fpv Video Transmitter 1.6G~2.2G · 16CH · 4.5W · IRC · OSD · V1.0

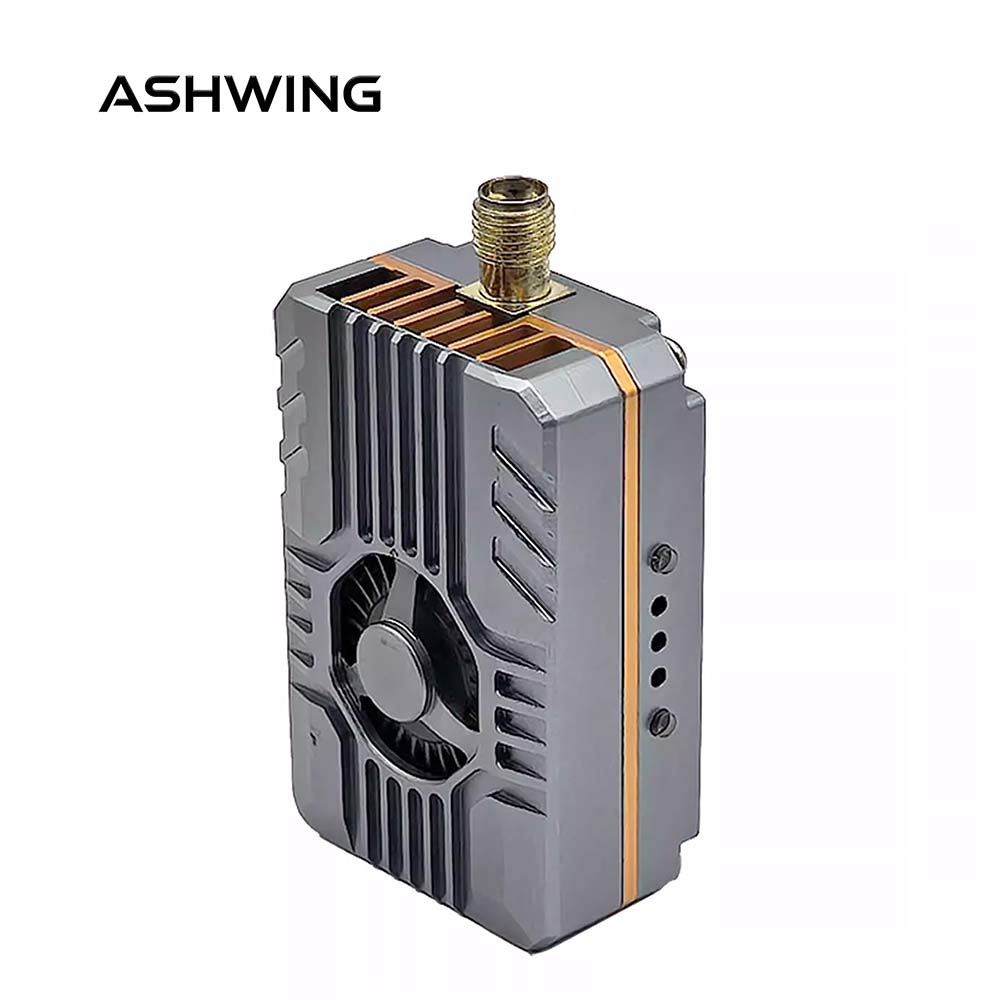

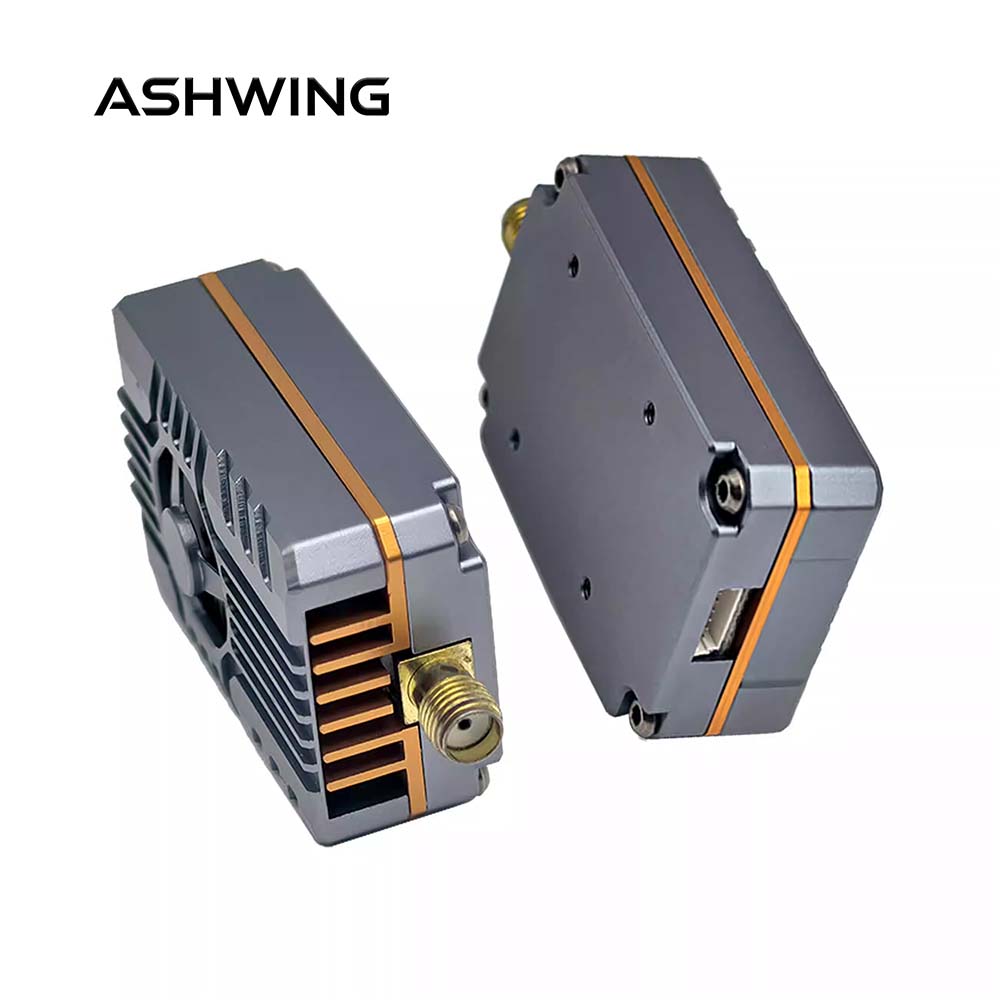

4.5W High Power fpv Video Transmitter
the fpv Video Transmitter SK-VTX07 is an image transmission transmitter with an output power of over 4.5W. It features compact size, lightweight design, low power consumption, low latency, and strong anti‑interference capability. Equipped with built‑in aluminum heat sink and fan for active heat dissipation to ensure stable high‑power transmission. Integrated temperature control protection prevents overheating during long ground parameter adjustment.
the fpv Video Transmitter SK-VTX07 is an image transmission transmitter with an output power of over 4.5W. It features compact size, lightweight design, low power consumption, low latency, and strong anti‑interference capability. Equipped with built‑in aluminum heat sink and fan for active heat dissipation to ensure stable high‑power transmission. Integrated temperature control protection prevents overheating during long ground parameter adjustment.
fpv Video Transmitter supports IRC protocol and OSD parameter adjustment. Widely used in FPV drone flight, outdoor entertainment, racing competitions, professional aerial photography.
- 2.2G 8CH 4.5W (2000MHz ~ 2280MHz)
- Power supply: DC 7V-36V
- Output voltage: DC 5V
- Power:PIT Mode, 25mW, 200mW, 2000mW, 4500mW
- Control protocol: IRC, supports OSD parameter adjust
- Antenna Interface:SMA

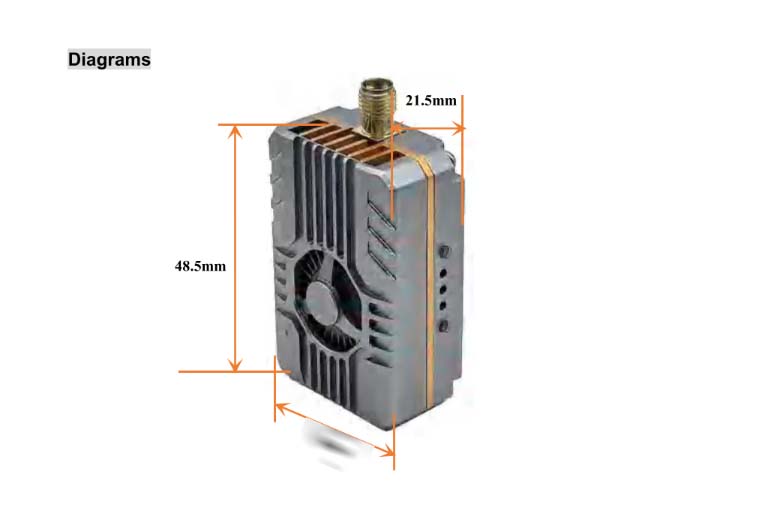

- Outline Dimensions:48.5mm * 35mm * 21.5mm (excluding SMA head) 20mm * 20mm spacing (with M2 mounting holes)
fpv Video Transmitter General Characteristics
| Input voltage | DC +7V ~ 30V |
| Output voltage | DC +5V |
| Frequency band | 1680 ~ 2280 MHz |
| Channel customer | 16CH |
| Channel Frequency | A: 1680/1720/1760/1800/1840/1880/1920/1960 MHz B: 2000/2040/2080/2120/2160/2200/2240/2280 MHz |
| Modulation type | FM |
| Frequency control | PLL |
| Frequency Stability | ±100KHz (Typ.) |
| Frequency precision | ±200KHz (Typ.) |
| S/N (Fo±3MHz) | >55dBc |
| Antenna Port | SMA 50 Ohms |
| Video input level | 1V±0.2Vp-p type |
| Operating Temperature | -10℃ ~ +60℃ |
| Control Protocol | IRC |
| Weight | Approx.: 38.8g |
| Profile dimension | 48.5mm(L) × 35mm(W) × 21.5mm(H) |
fpv Video Transmitter RF Output & Channel Plan
| 🔹 2G2 Band A (MHz) | |
|---|---|
| CH1 | 1680 |
| CH2 | 1720 |
| CH3 | 1760 |
| CH4 | 1800 |
| CH5 | 1840 |
| CH6 | 1880 |
| CH7 | 1920 |
| CH8 | 1960 |
| 🔸 2G2 Band B (MHz) | |
|---|---|
| CH1 | 2000 |
| CH2 | 2040 |
| CH3 | 2080 |
| CH4 | 2120 |
| CH5 | 2160 |
| CH6 | 2200 |
| CH7 | 2240 |
| CH8 | 2280 |
fpv Video Transmitter Power Levels & Current Consumption
| Power Level | 0 | 1 | 2 | 3 | 4 |
|---|---|---|---|---|---|
| Values | PIT | 25mW | 200mW | 2W | 4.5W |
| Current @12V | 160mA±20mA | 450mA±30mA | 490mA±40mA | 1000mA±50mA | 1.3A±50mA |

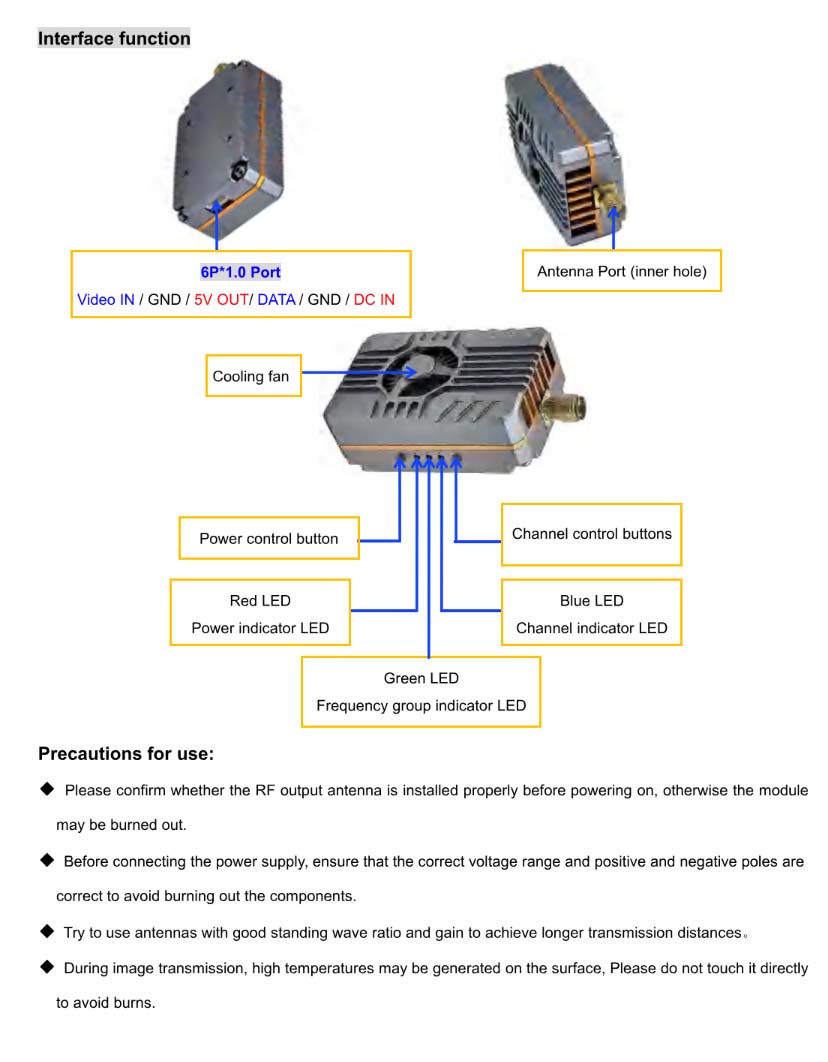

fpv Video Transmitter Interface & Connector
fpv Video Transmitter Video IN · GND · 5V OUT · DATA · GND · DC IN

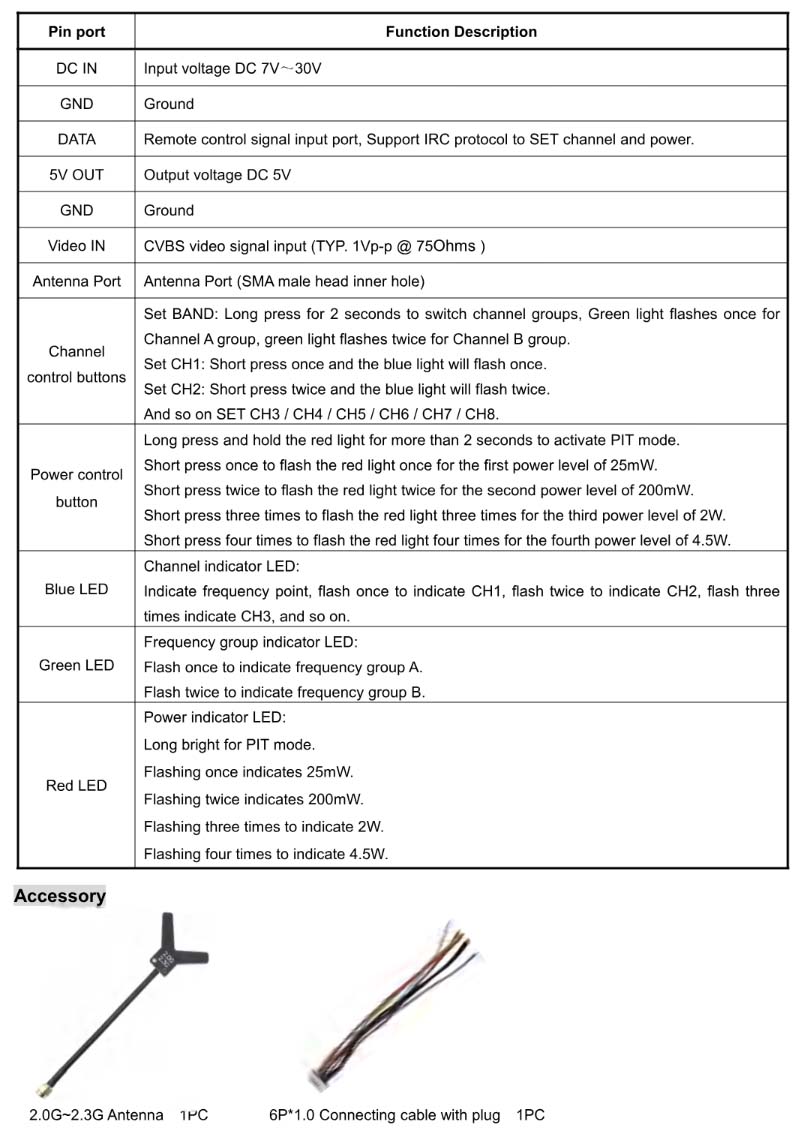

fpv Video Transmitter 6P×1.0 Port – Pin Functions
| Pin port | Function Description |
|---|---|
| DC IN | Input voltage DC 7V～30V |
| GND | Ground |
| DATA | Remote control signal input port, support IRC protocol to SET channel and power. |
| 5V OUT | Output voltage DC 5V |
| GND | Ground |
| Video IN | CVBS video signal input (TYP. 1Vp-p @ 75Ohms) |
| Antenna Port | Antenna Port (SMA male head inner hole) |
Operation Controls & LED Indication
Channel / Band / Power Control
| Control | Description |
|---|---|
| Channel control buttons | Set BAND: Long press for 2 seconds to switch channel groups – Green light flashes once (Channel A group) / flashes twice (Channel B group). Set CH1~CH8: Short press once → blue light flash 1x (CH1); short press 2x → blue light flash 2x (CH2) … and so on up to CH8. |
| Power control button | Long press >2s: red light ON (PIT mode). Short press 1x: red flash 1 → 25mW Short press 2x: red flash 2 → 200mW Short press 3x: red flash 3 → 2W Short press 4x: red flash 4 → 4.5W |
LED Indicator Summary
Blue LED Channel indicator: flash 1 = CH1, flash 2 = CH2, … flash 8 = CH8
Green LED Frequency group: flash 1 = Group A, flash 2 = Group B
Red LED Power: steady = PIT; flash 1 = 25mW; flash 2 = 200mW; flash 3 = 2W; flash 4 = 4.5W
⚠️ Precautions for Use
- ✅ Please confirm the RF output antenna is properly installed before powering on — otherwise the module may be burned out.
- ✅ Before connecting power, ensure correct voltage range and polarity (+/-) to avoid component damage.
- ✅ Try to use antennas with good VSWR and gain to achieve longer transmission distances.
- ✅ During operation, the surface may become very hot. Do not touch directly to avoid burns.
Accessories Included
| 2.0G~2.3G Antenna | 1 PC |
| 6P×1.0 Connecting cable with plug | 1 PC |
SK-VTX07 · V1.0
Summary: 16-channel 4.5W video transmitter with 1.6–2.2GHz coverage, SMA connector,
integrated fan/heatsink, IRC control, and button/LED interface for channel/power configuration.
Designed for FPV and professional UAV applications.
