MAK4 V2 7inch fpv drone racing frame – Lightweight X-Type 7″ Freestyle & Long-Range Frame

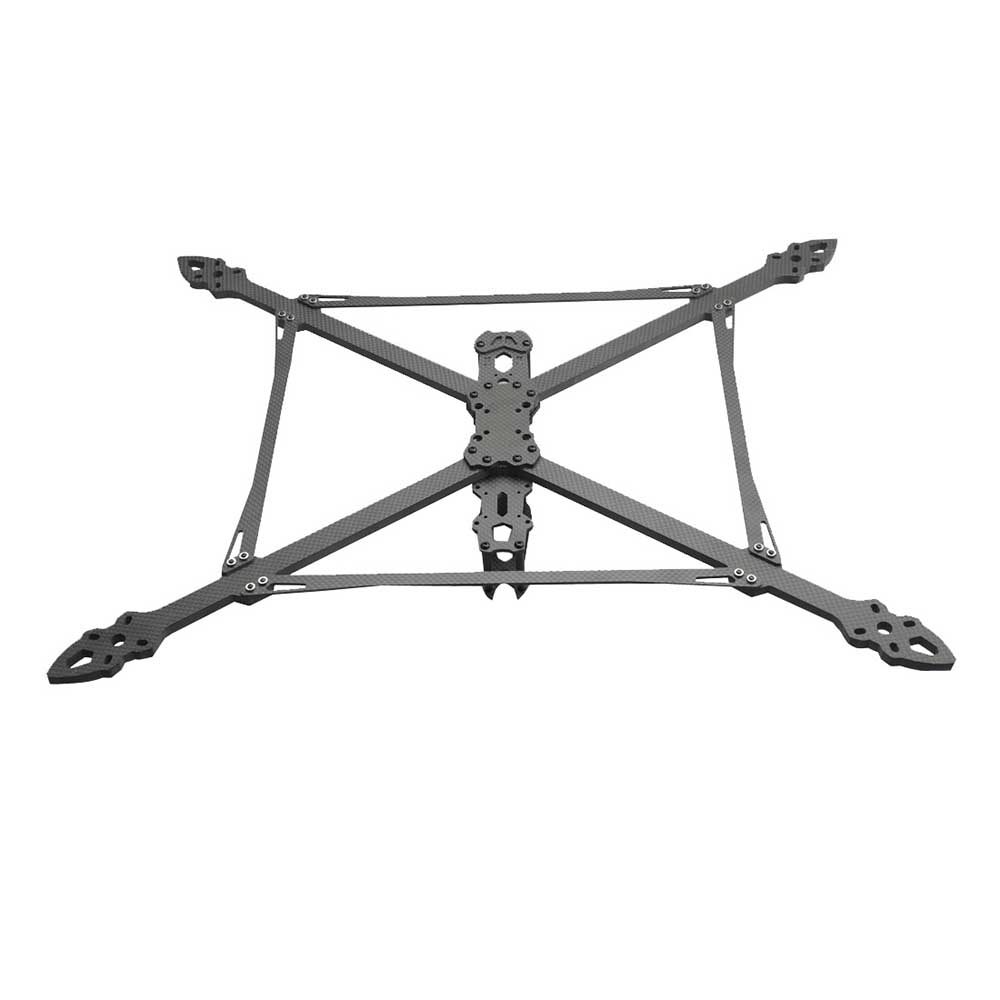

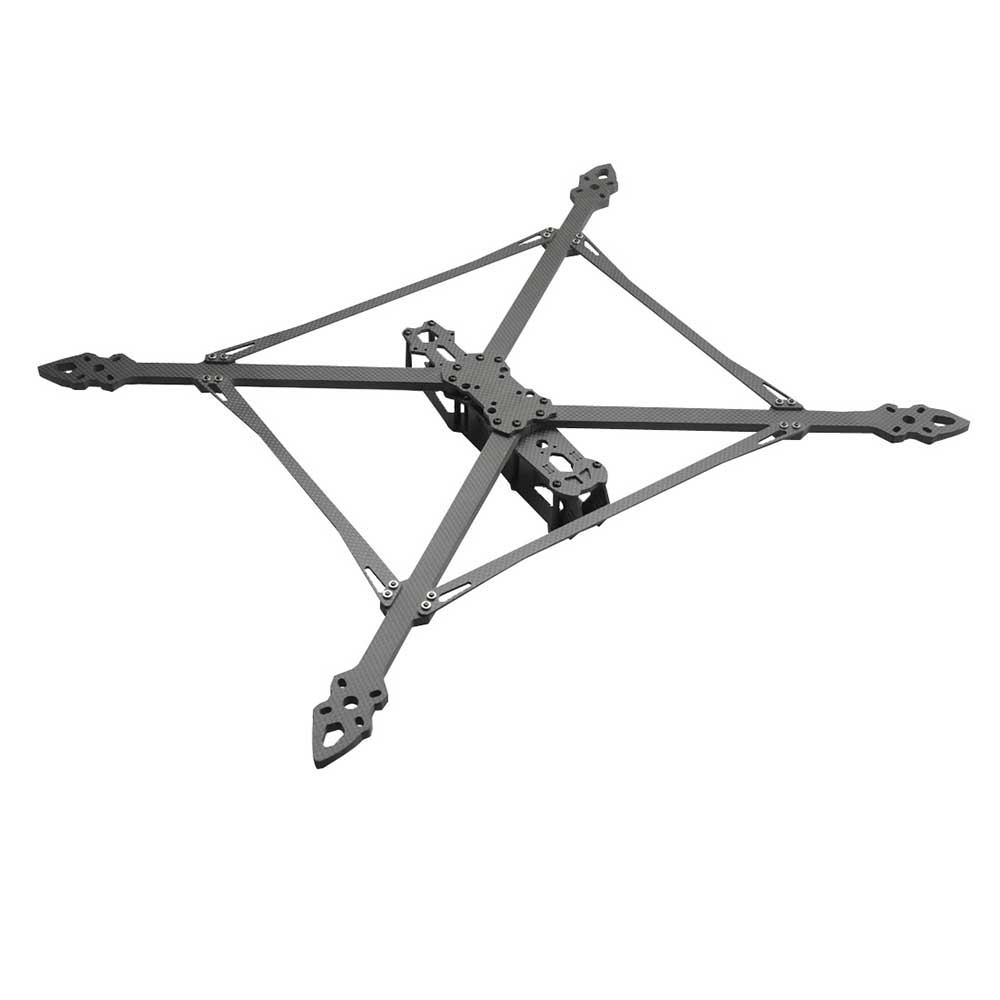

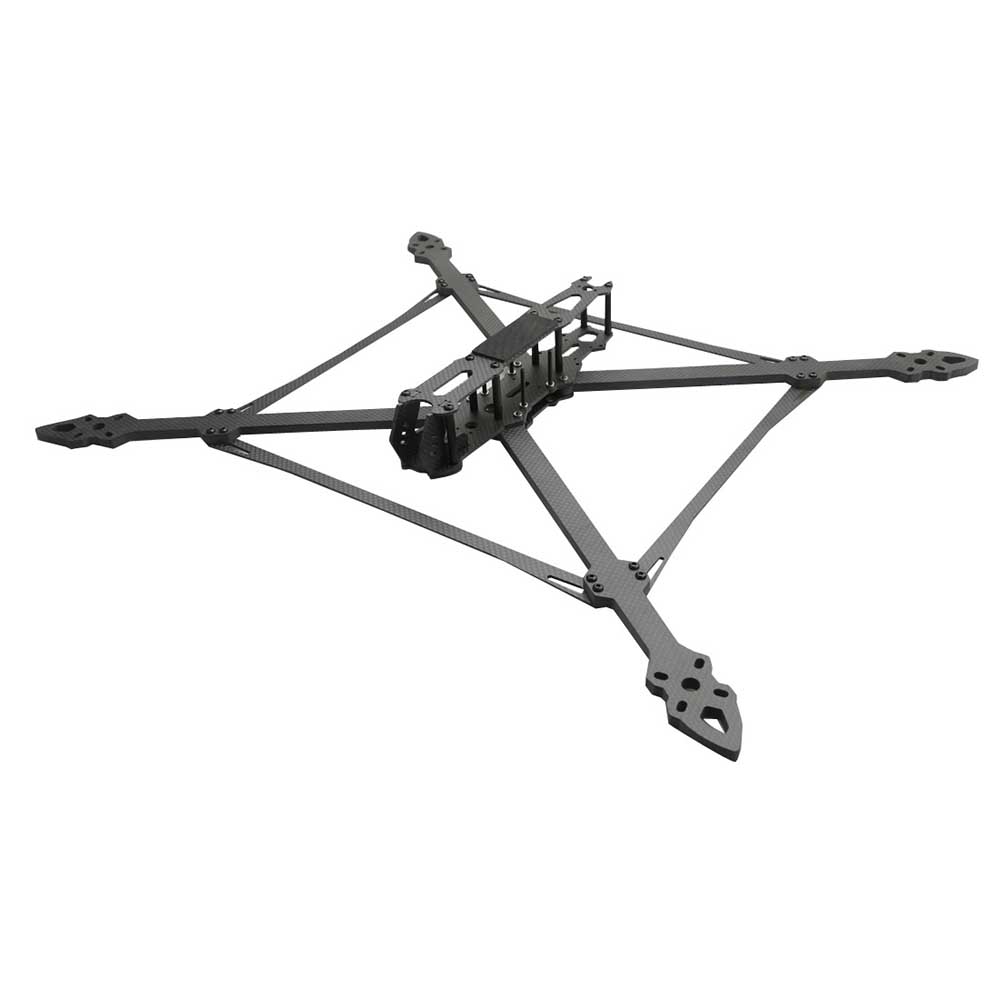

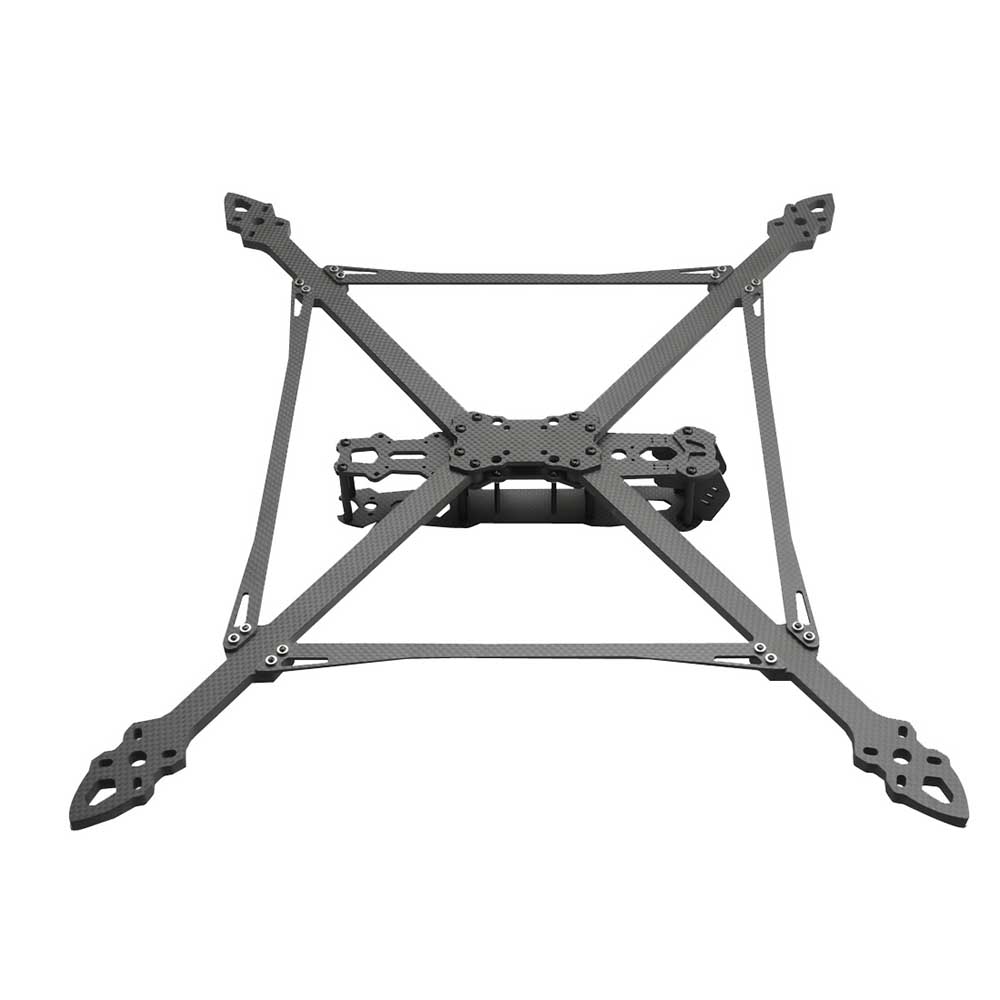

The MAK4 V2 fpv drone racing frame 7inch is a precision-engineered FPV drone frame designed for 7-inch propeller setups. Featuring an X-Type structure with a 295mm wheelbase, this frame strikes the perfect balance between agility and stability, making it ideal for freestyle flying, long-range cruising, and cinematic applications. The versatile mounting system supports a wide range of components, offering maximum flexibility for custom builds.
Key Features
- Optimized for 7-Inch Propellers – Perfect for pilots seeking efficiency and power in a compact package.
- Lightweight X-Type Design – Weighs only 185g, ensuring excellent power-to-weight ratio.
- Durable Multi-Plate Construction:
- 3.0mm bottom & medium plates – Rigid core structure
- 2.0mm top plate – Lightweight protection
- 6.0mm arms – Impact-resistant for aggressive flying
- Versatile Mounting Options:
- Flight Controller: 20×20mm & 30.5×30.5mm
- Camera: 19mm horizontal spacing
- VTX/Map: 20×20mm & 30.5×30.5mm
- Motors: 16×16mm & 19×19mm
- Ample Internal Space – 35mm stack height accommodates various electronics.
- Precision-Cut Carbon Fiber – Clean edges and precise fitment.
fpv drone racing frame Technical Specifications
| Parameter | Value |
|---|---|
| Model | MAK4 V2 7inch |
| Frame Structure | X-Type |
| Wheelbase | 295mm |
| Frame Weight | 185g |
| Dimensions | 230.35mm × 278.52mm |
| Bottom Plate Thickness | 3.0mm |
| Medium Plate Thickness | 3.0mm |
| Top Plate Thickness | 2.0mm |
| Arm Thickness | 6.0mm |
| Connecting Plate Thickness | 2.0mm |
| Camera Side Plate Thickness | 2.5mm |
| Camera Mounting Hole Spacing | 19mm (horizontal) |
| VTX Mounting Hole Spacing | 20×20mm & 30.5×30.5mm |
| Flight Controller Mounting Pitch | 20×20mm & 30.5×30.5mm |
| Internal Stack Height | 35mm |
| Motor Mounting Hole Pitch | 16×16mm & 19×19mm |
| Packing | Electrostatic bag |
fpv drone racing frame Recommended Configuration (Not Included)
| Component | Recommended Specifications |
|---|---|
| Propeller | 7 inches |
| Motor | 2806.5 / 2807 / 2810 / 2812 |
| Flight Controller | F4 / F405 / F7 / F722 series |
| ESC | 45A – 65A |
| Camera | 19×19mm (Nano/Micro size) |
| Battery | 6S 3000mAh – 6500mAh |
Package Includes
- 1 × MAK4 V2 7inch Carbon Fiber fpv drone racing frame Kit (295mm wheelbase)
- (Electronics and hardware accessories not included)
This MAK4 V2 7inch fpv drone racing frame is an excellent choice for pilots seeking a lightweight, versatile, and durable platform for their 7-inch FPV builds – whether for freestyle performance or efficient long-range
Description:
Model: MAK4 V2 7inch
Frame structure: X-Type
Wheelbase: 295mm
Weight: 185g
packing: electrostatic bag
Size: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Recommended configuration (not included) :
Propeller: 7-inch
motor: 2806.5/2807/2810/2812
flight control: F 4/F 405/F 7/F 722
electric: 45A-65A ESC
Camera: 19 * 19MM
Battery: 6S-3000MAH-6500Mah
Package Included:
1*Mark4 V2 Mark 4 7inch 295mm Carbon Fiber Frame
