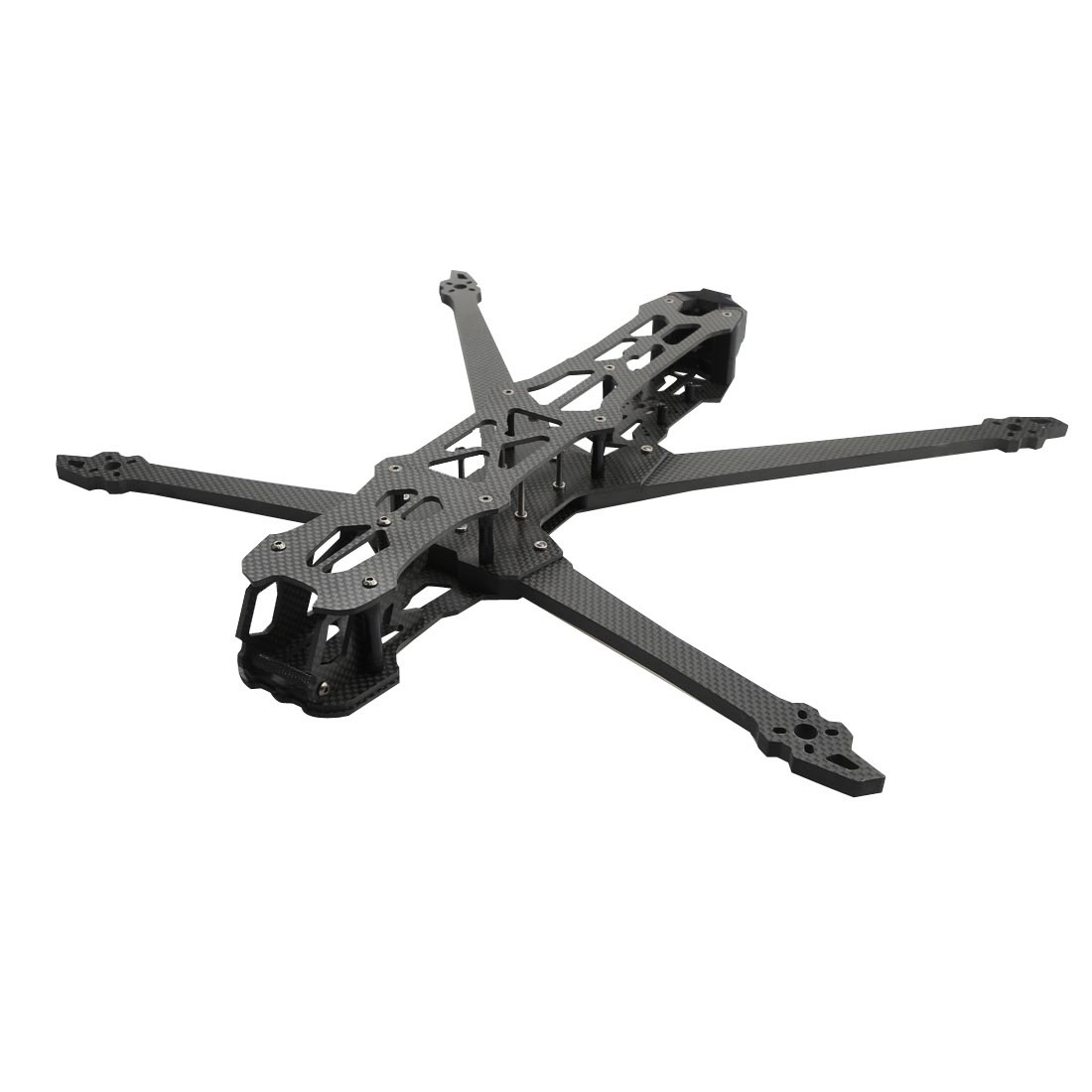

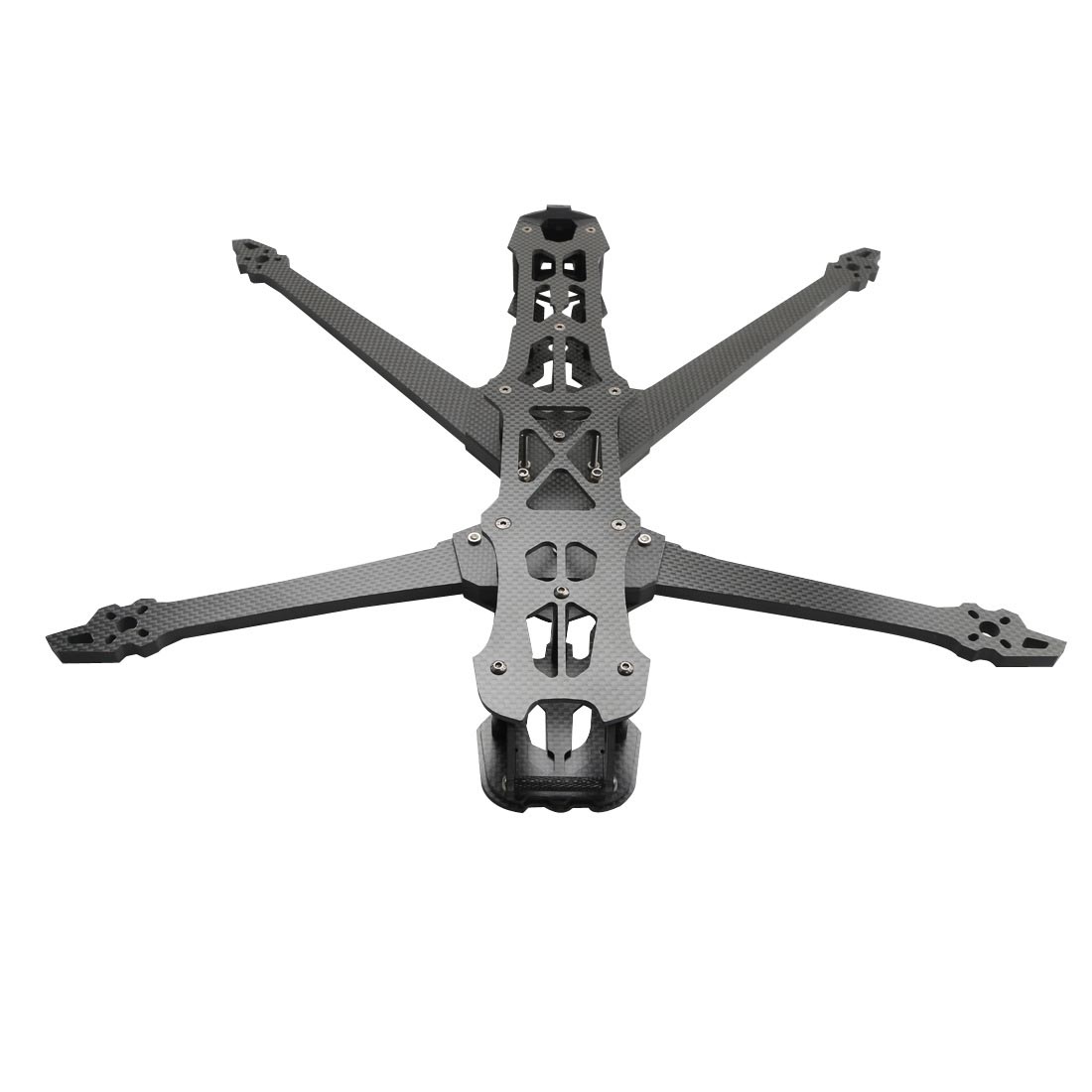

10 Inch Carbon Fiber Fpv Frame Rc Racing Large Drone GK -V3 Rack Accessories

Description

Fpv Frame Specifications

• Model: Fpv Frame  GK-10inch-V3 Carbon Fiber

• Wheelbase: 435mm

• Dimensions: 490 × 490 × 42mm

• Weight: 457g

• Material: High-strength carbon fiber

• Top Plate Thickness: 2.5mm

• Base Plate Thickness: 2.5mm

• Arm Thickness: 7mm

Fpv Frame Mounting Compatibility

• Flight Controller Mounting Pitch: 30.5 × 30.5mm

• Camera Mounting Hole Spacing: 19 × 19mm

• Mapping / Stack Mounting Hole Spacing: 20 × 20mm & 30.5 × 30.5mm

• Motor Mounting Hole Pitch: 16 × 16mm / 19 × 19mm

• Inner Space Height: 35mm



⚙️ Recommended Configuration (Not Included)

• Motors: 3115 / 3210 / 3214 (or similar)

• ESC: 70–80A (6S compatible)

• Propellers: 10 inches

• Flight Controller: F4 / F7 / F405 / F722

• VTX: 5.8G / 1.2G / 4.9G (1.2W – 5W)

• Battery: 6S 8000–12000mAh LiPo

✅ Strong & rigid 7mm arms – Built for heavy‑duty FPV / long‑range payloads
✅ Standard 30.5mm stack mount – Compatible with most flight controllers
✅ Dual motor mounting patterns – 16×16 & 19×19 for versatile motor choice
✅ Plenty of internal space – 35mm height for large stacks and wiring

This frame kit is ideal for 10‑inch heavy‑lift FPV drones, capable of carrying professional cameras, sensors, or other payloads. All electronic components must be purchased separately.

• Fpv Frame  GK-V3 10inch KIT Carbon Fiber
• Model: GK-10inch-V3 Carbon Fiber
• wheelbase:435mm
• size:490*490*42mm
• weight:457g
• top thickness:2.5mm
• Base plate thickness: 2.5 mm
• arm thickness: 7 mm
• Camera mounting hole spacing: 19 mm
• Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
• Flight Control Mounting Pitch: 30.5*30.5mm
• Inner space height: 35mm
• Motor mounting hole pitch: 16*16mm & 19*19m
