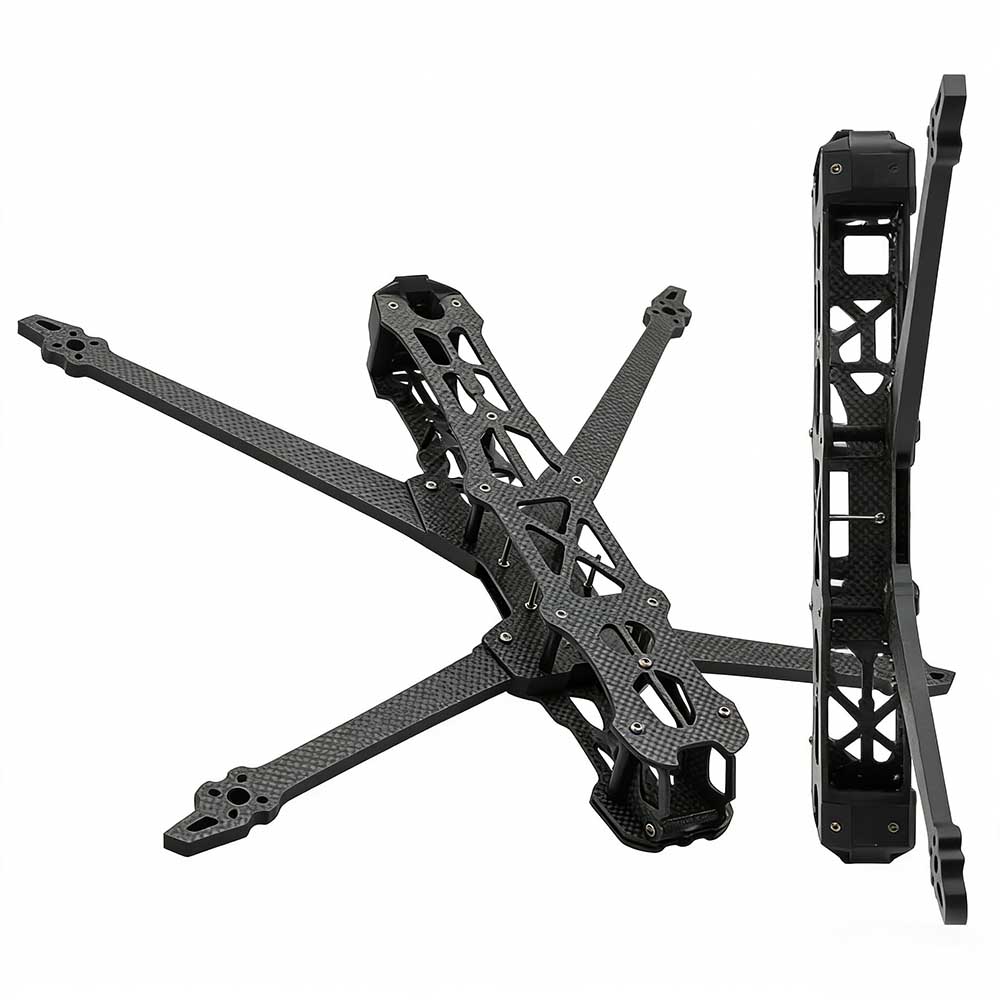

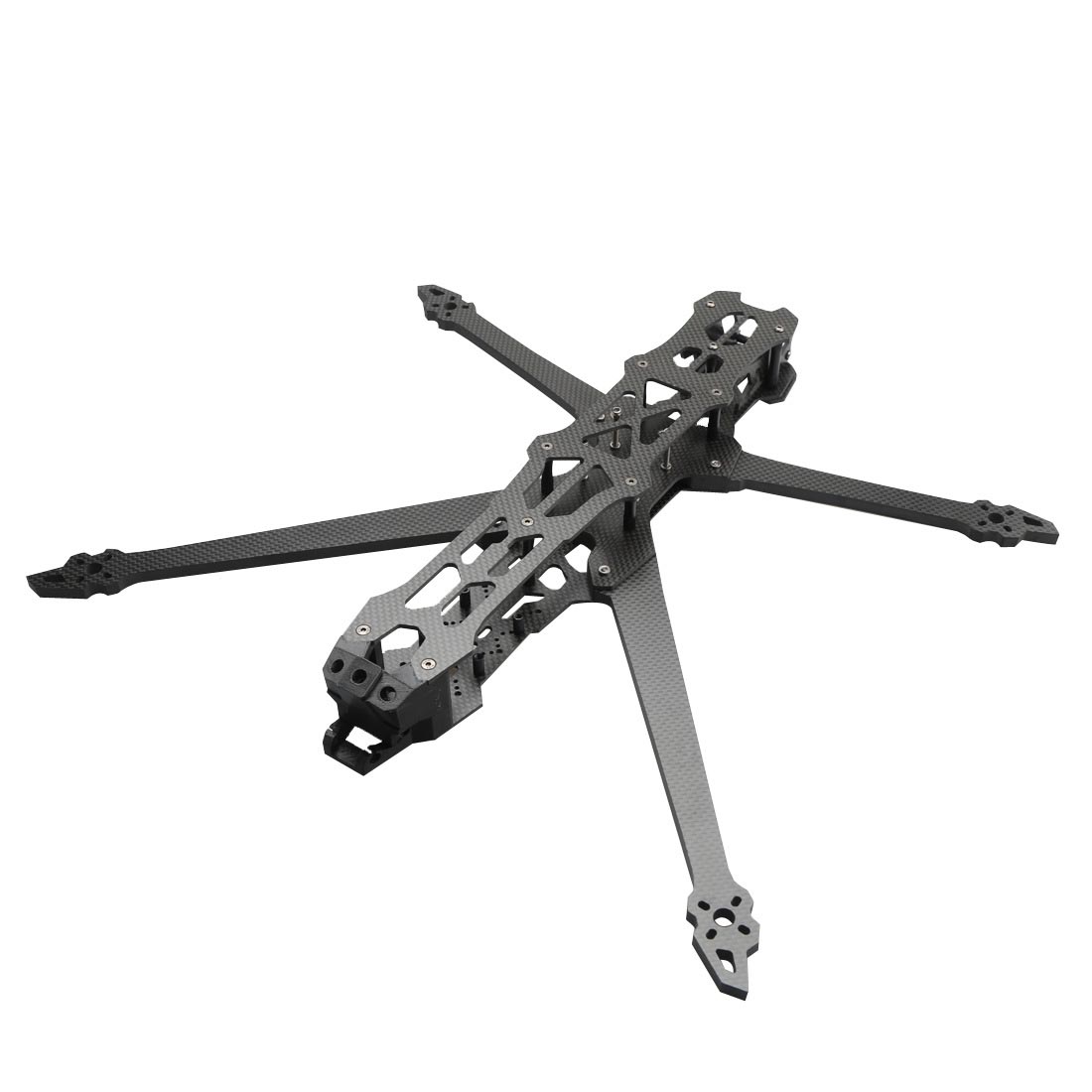

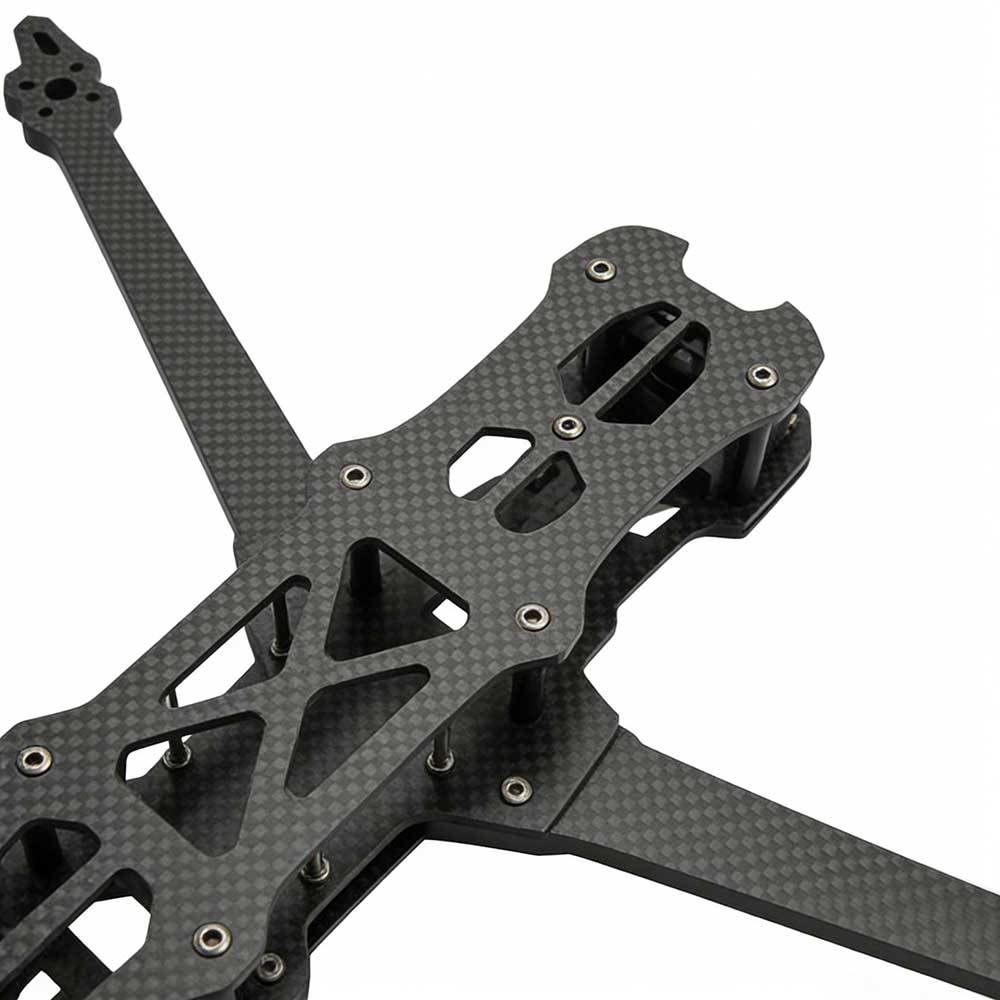

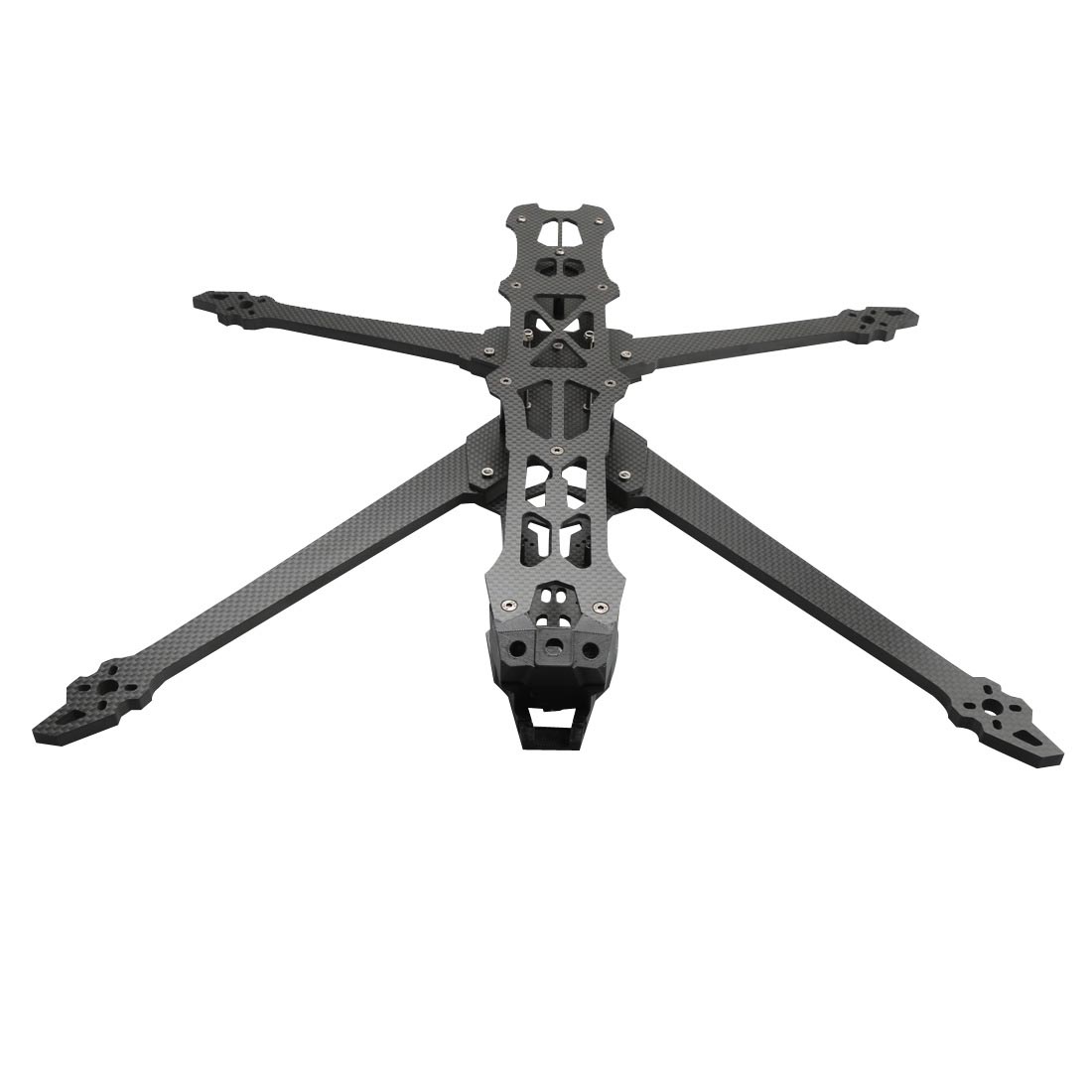

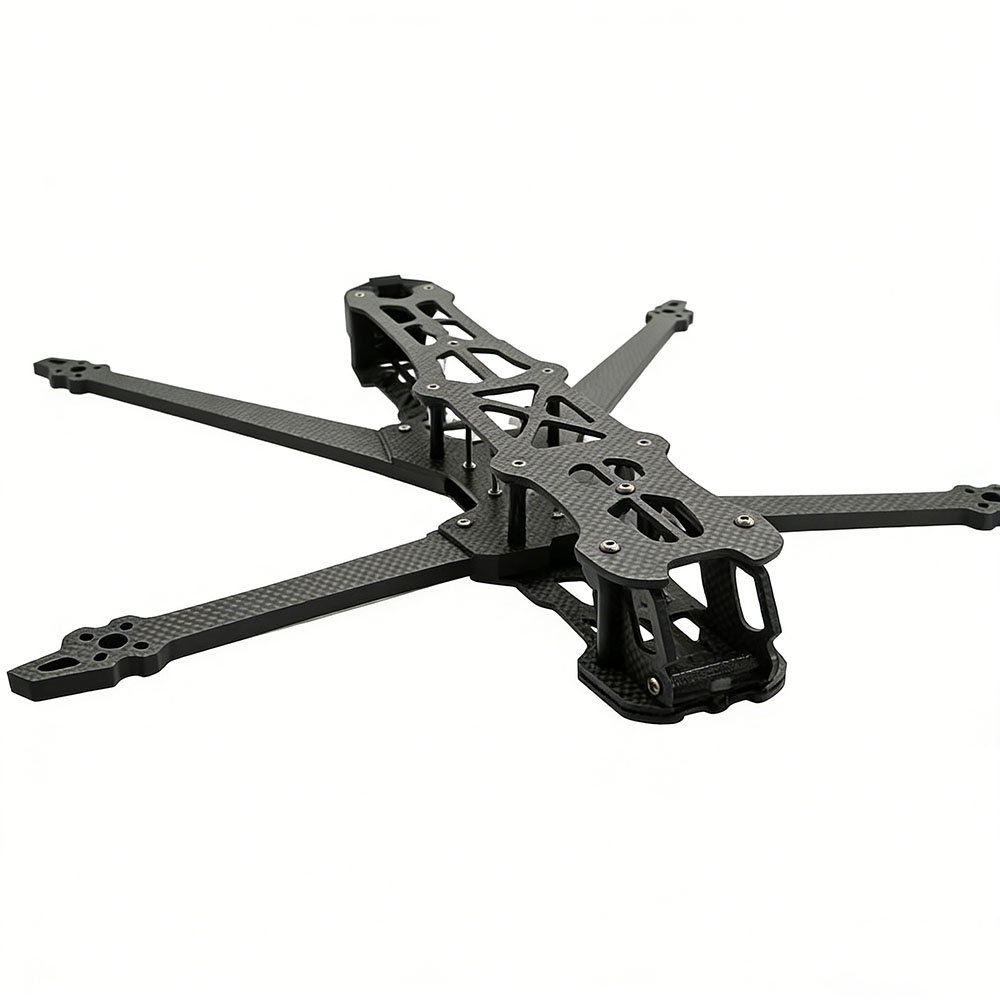

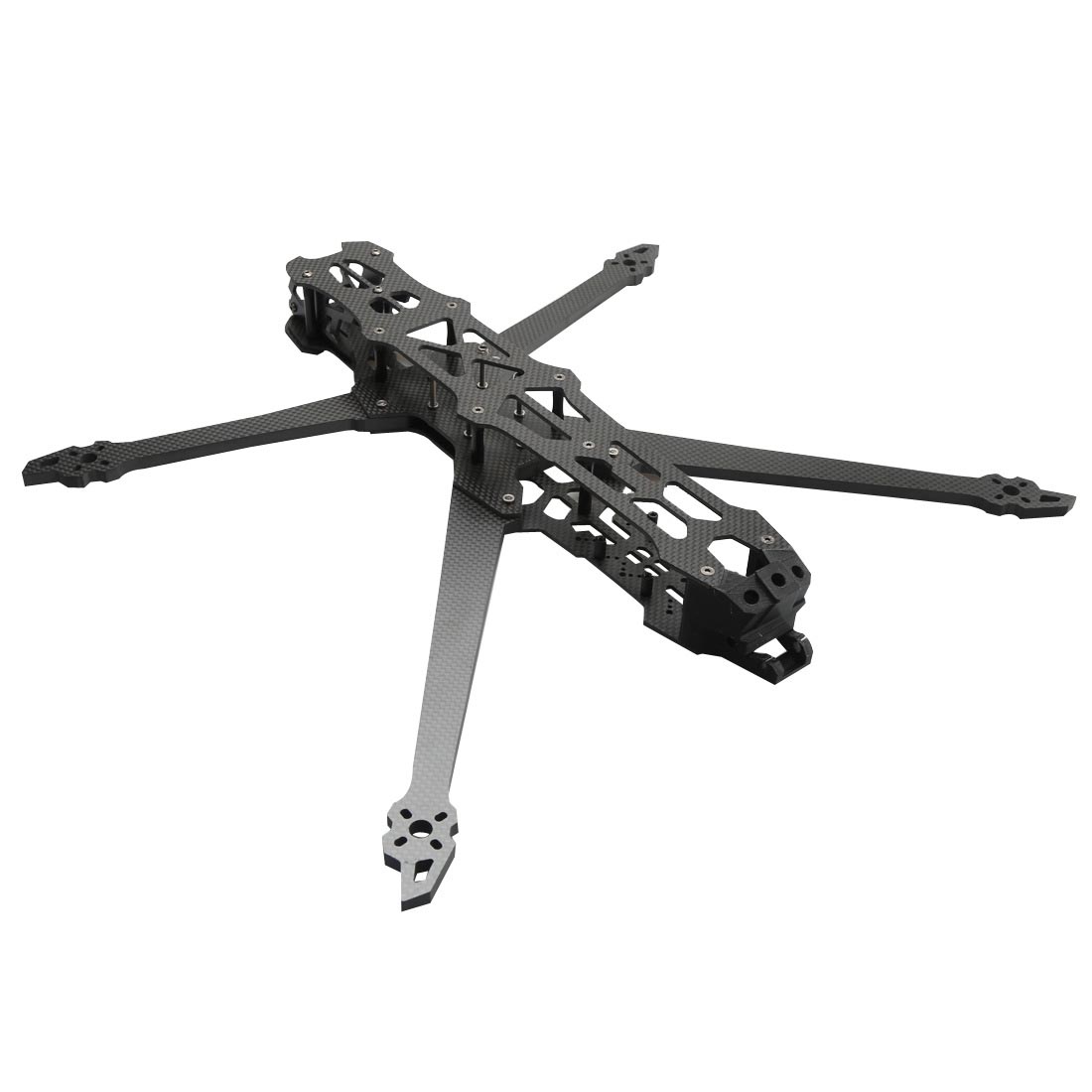

15 Inch Fpv Drone Frame Carbon Fiber Rc Racing GK -V3 Rack UAV Accessories Kit Endurance UAV Quadcopter Parts

📐 Fpv Drone Frame Specifications

• Model: Fpv Drone Frame GK-15 inch V3 Carbon Fiber
• Wheelbase: 680mm
• Weight: 700g
• Material: High‑strength carbon fiber
• Top Plate Thickness: 2.5mm
• Bottom Plate Thickness: 2.5mm
• Arm Thickness: 7mm

🔧 Fpv Drone Frame Mounting Compatibility

• Flight Controller Mounting Pitch: 30.5 × 30.5mm
• Camera Mounting Hole Spacing: 19 × 19mm
• Mapping / Stack Mounting Hole Spacing: 20 × 20mm & 30.5 × 30.5mm
• Motor Mounting Hole Pitch: 25 × 25mm / 30 × 30mm
• Internal Space Height: 40mm

⚙️ Fpv Drone Frame Recommended Configuration (Not Included)

• Motors: 4215 / 4218 / 4312 / 5215 (or similar)
• ESC: 80–100A (6S–8S compatible)
• Propellers: 15 inches
• Camera: 19 × 19mm
• Flight Controller: F4 / F7 / F405 / F722
• VTX: 5.8G / 1.2G / 4.9G (1.2W – 5W)
• Battery: 6S–8S 12000–22000mAh LiPo

✅ 7mm thick arms – Maximum strength for extreme heavy‑lift applications
✅ 680mm wheelbase – Ultra‑stable platform for 15″ props and large payloads
✅ Dual motor mounting patterns – 25×25 / 30×30 for flexible motor choices
✅ 40mm internal space – Ample room for large stacks, wiring, and accessories
✅ 8S ready – Supports high‑voltage systems for longer flight times and higher efficiency

This Fpv Drone Frame is engineered for professional heavy‑lift FPV drones, capable of carrying cinema cameras, LiDAR sensors, or large‑scale delivery payloads. All electronic components must be purchased separately.
