Mark4 V1 7 Inch Long Range Fpv Drone Frame Carbon Fiber Racing Quadcopter

Description

Mark4 7inch FPV Drone Frame – Lightweight 7″ Freestyle & Long-Range Frame Product Overview

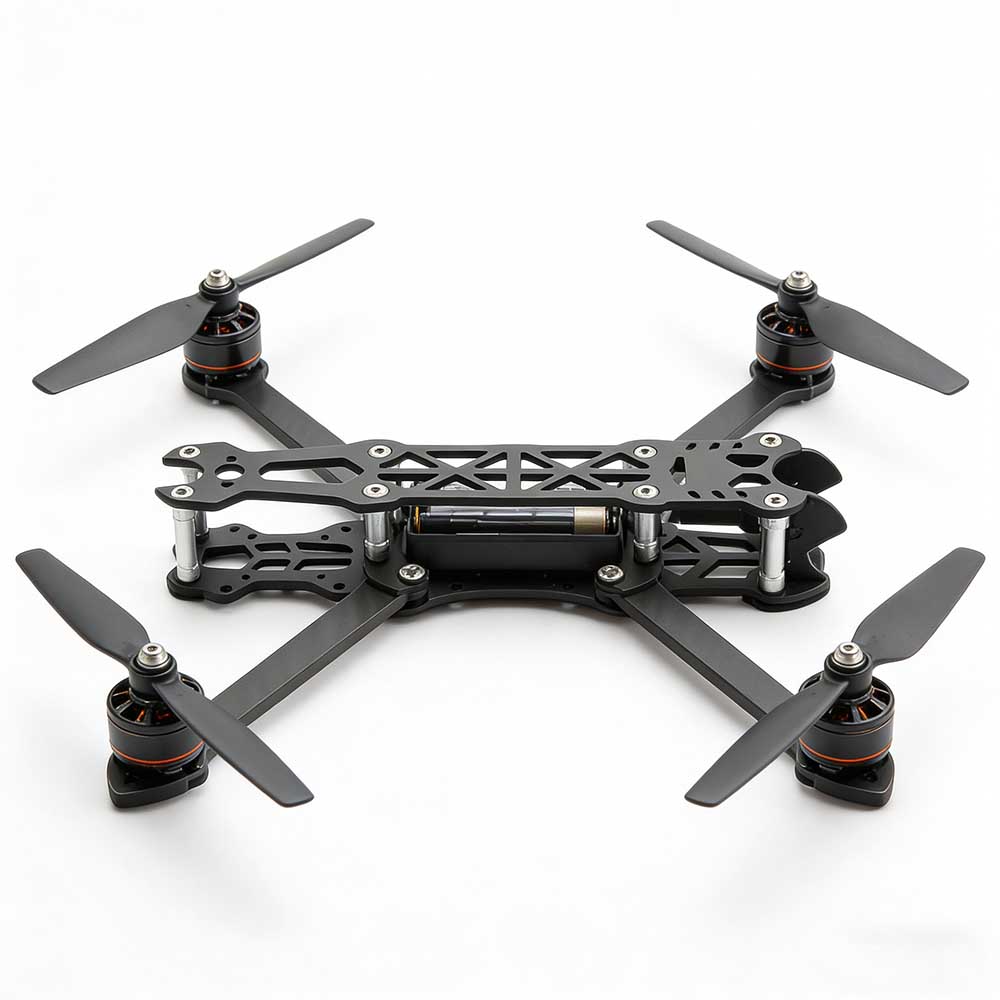

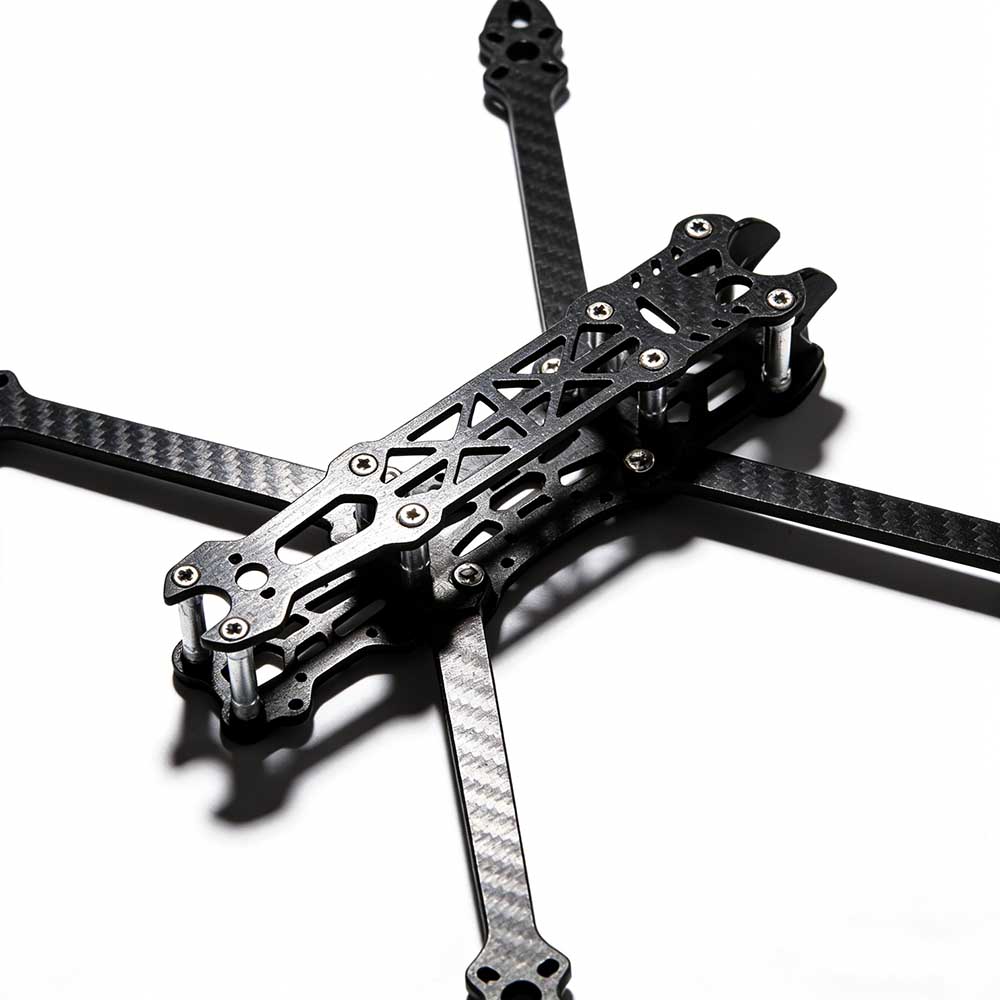

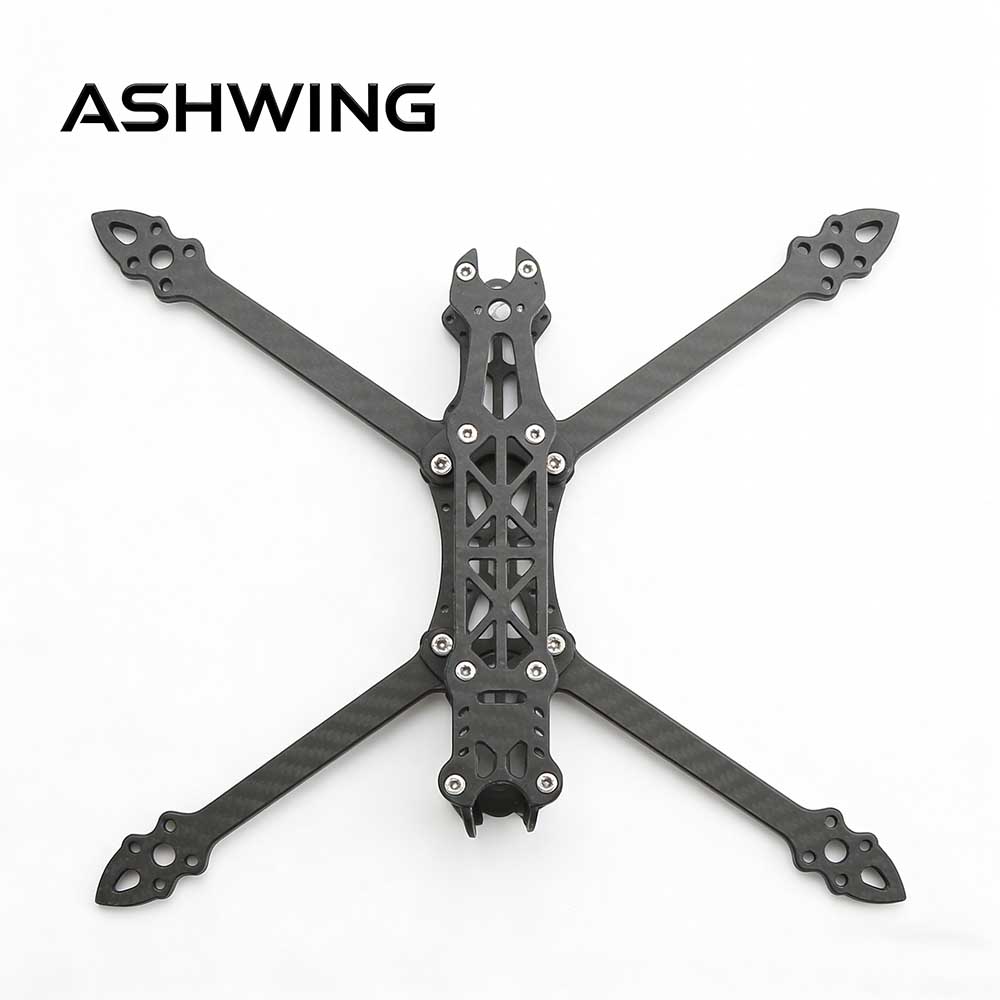

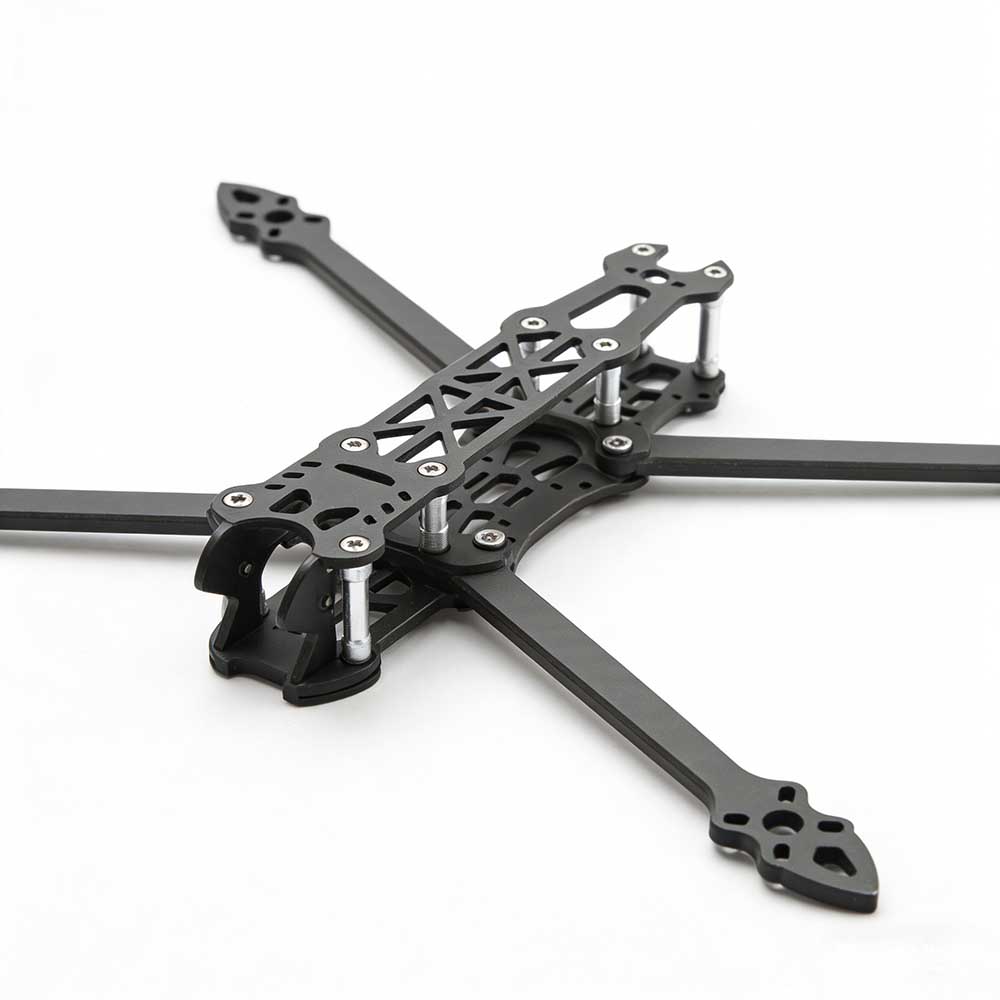

The Mark4 7inch  Fpv Drone Frame  is a precision-engineered FPV drone frame designed for 7-inch propeller setups. With a 295mm wheelbase and an ultra-lightweight construction of only 121g, this frame delivers exceptional agility and efficiency for freestyle, long-range cruising, and cinematic flights. The robust 5mm arms and 2.5mm plates provide durability without sacrificing weight, making it an ideal choice for pilots seeking high performance.

---

 Key Features

• Optimized for 7-Inch Propellers – Perfect balance of thrust and efficiency for 7″ builds.
• Ultra-Lightweight – Weighs only 121g for excellent power-to-weight ratio.
• Durable Construction:
  • 5mm arms – Impact-resistant for aggressive flying.

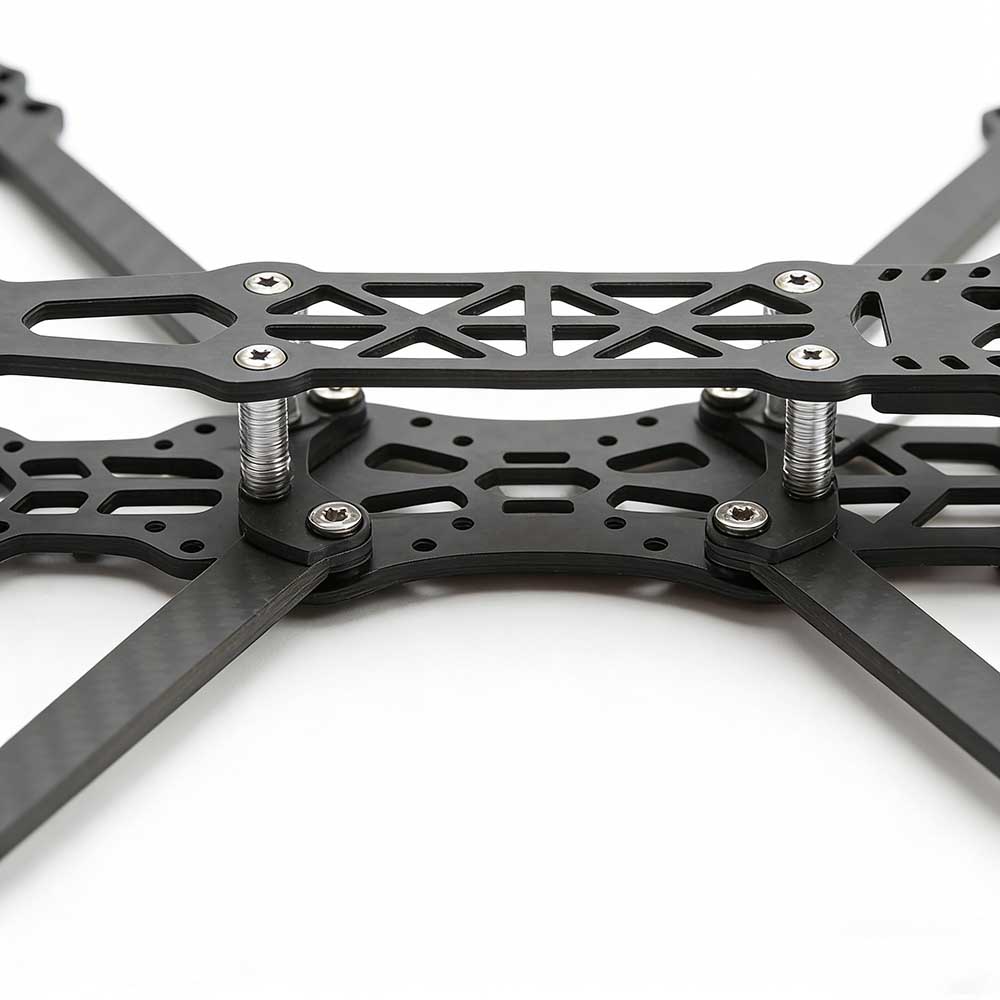

  • 2.5mm top, bottom, and side plates – Rigid yet lightweight.
• Standard 19mm Camera Mount – Compatible with most Micro/Nano cameras.
• Versatile Motor Mounting – Supports popular motor sizes (2305–2812).
• Compact Dimensions – 193×223mm footprint fits neatly into standard builds.


---

Fpv Drone Frame Technical Specifications

Parameter	Value
Name	Mark4 7inch
Wheelbase	295mm
Weight	121g
Dimensions (L×W)	193mm × 223mm
Arm Thickness	5mm
Top Plate Thickness	2.5mm
Bottom Plate Thickness	2.5mm
Side Plate Thickness	2.5mm
Camera Mount Size	19mm × 19mm
Recommended Propeller	7 inches
Motor to Motor Distance	295mm

---

Fpv Drone Frame Recommended Configuration (Not Included)

Component	Recommended Specifications
Flight Controller	RF / Kiss / F3 / F4 / F7
Motor	2305 / 2306 / 2407 / 2408 / 2507 / 2810 / 2812
ESC	30A – 70A
Propeller	7 inches
Battery	4S 1800mAh – 6S 3300mAh

---

Package Includes

• 1 × Mark4 7inch FPV Frame Kit (choice of color/spec as selected)

---

This Mark4 7inch Fpv Drone Frame is the perfect foundation for pilots seeking a lightweight, durable, and versatile platform for their 7-inch FPV adventures – whether for freestyle or long-range exploration.

• Name: Mark4-7inch 295mm
• Propeller: 7 inch
• Weight: 121g
• Motor to motor: 295MM
• Size: 193*223MM
• Arms plate: 5MM
• Top plate: 2.5MM
• Bottom plate: 2.5MM
• Side plate: 2.5MM
• Camera mount size: 19*19mm
• Recommended configuration: (not included) Flight Controller: RF/Kiss/F3/F4/F7
• Motors: 2305/2306/2407/2408/2507/2810/2812
• ESC: 30A-70A
• Propeller: 7 inch
• Battery: 4S 1800mAh-6s 3300mAh
• Package included: (Send it as your choice) 1 x Mark4 7inch FPV Frame kit
