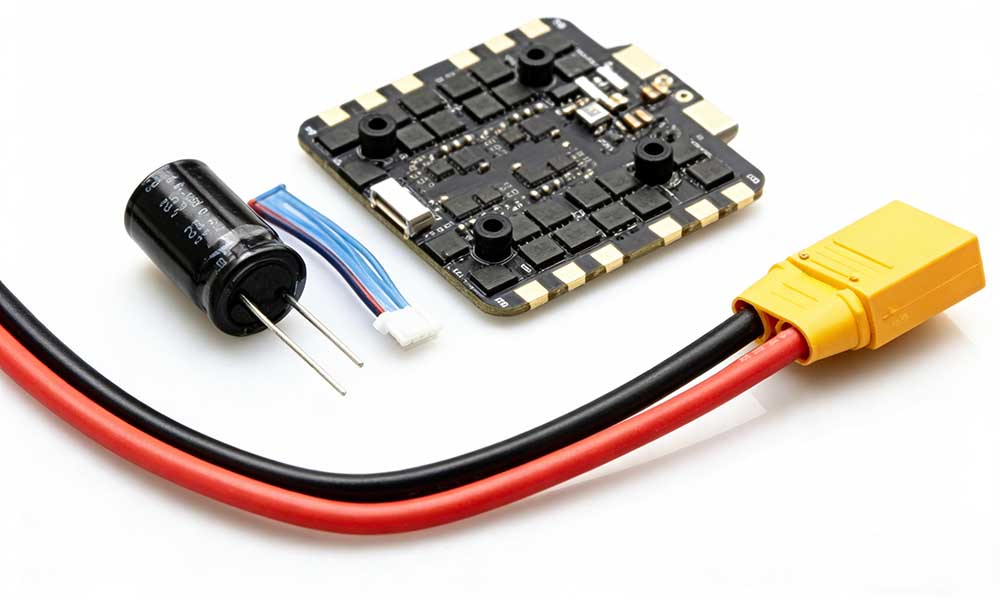

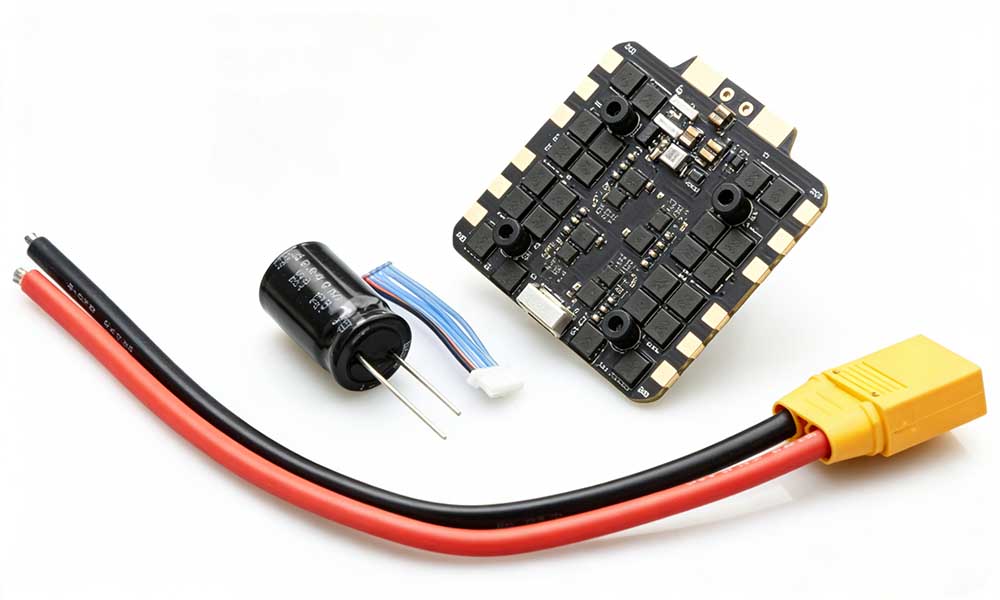

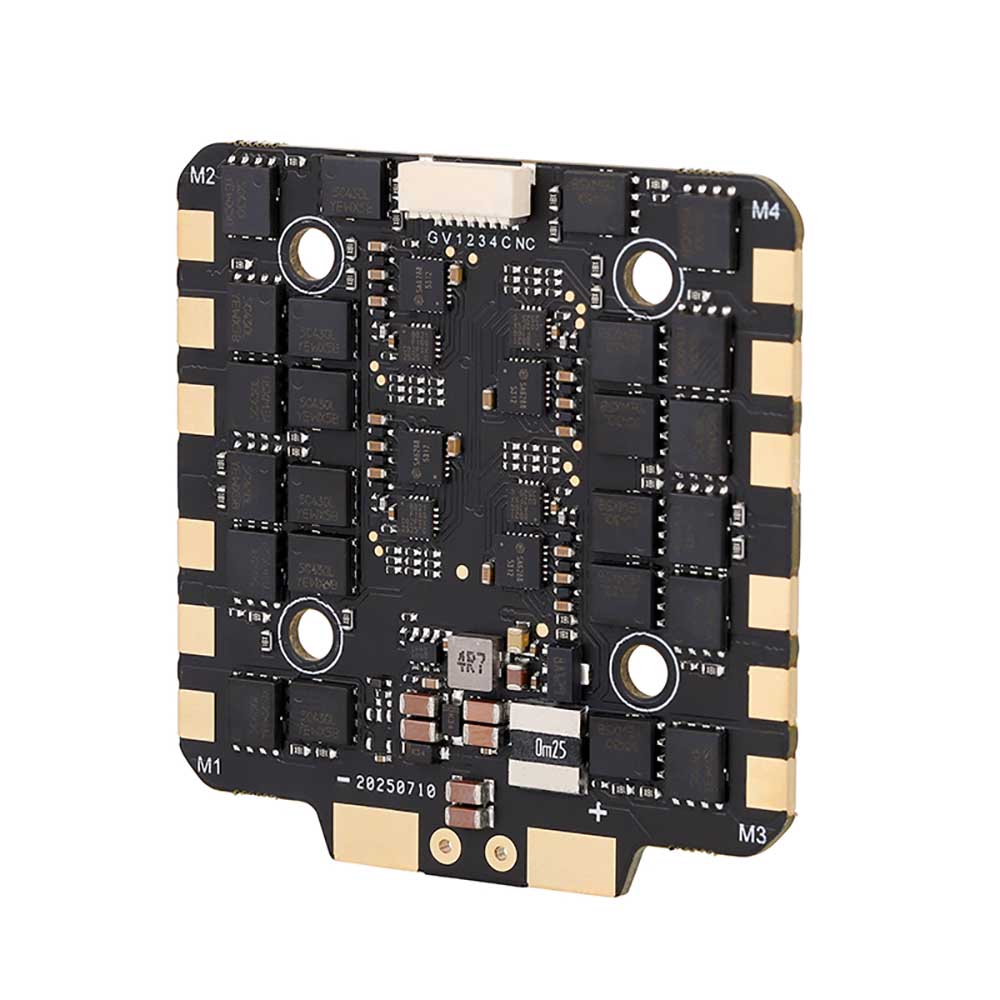

Brushless ESC 80A 4 in 1 Electronic Speed Controller for FPV Drones 3-8S LiPo

Description

Brushless ESC  BLS 3-8S 80A 4-in-1 ESC – High-Performance BLHeli_S ESC for FPV Drones Product Overview

The BLS 3-8S 80A 4-in-1 Brushless ESC  is a compact and powerful electronic speed controller designed for demanding FPV drone applications. With support for 3-8S LiPo batteries and 80A continuous current per channel, it delivers robust and reliable performance for 5-10 inch freestyle, racing, and long-range drones. Featuring an EFM8BB21 MCU, high-performance MOSFETs, and DSHOT300/600 protocol support, this ESC ensures smooth throttle response and efficient power delivery.

---

Brushless ESC Key Features

• Wide Voltage Range – Supports 3-8S LiPo, compatible with a variety of setups.
• High Current Handling – 80A continuous current per channel, 90A burst (10s) for demanding maneuvers.
• BLHeli_S Firmware – Pre-flashed with stable Q_H_40_24_v0.19.2 firmware for smooth performance.
• DSHOT Protocol Ready – Supports DSHOT300/600 for digital signal precision.
• Integrated Current Sensor – Provides real-time current monitoring (scale 200) to your flight controller.
• Compact & Lightweight – Measures 57×56mm with standard 30.5×30.5mm mounting pattern, weighs only 28g.
• High-Quality Components – EFM8BB21 MCU and high-performance MOSFETs ensure efficiency and durability.



---

Brushless ESC Technical Specifications

Parameter	Value
Item Type	BLS 3-8S 80A 4-in-1 ESC
MCU	EFM8BB21F16G
MOSFET	High-performance MOSFET
Power Input	3-8S LiPo
Continuous Current	80A × 4
Burst Current	90A (10 seconds)
ESC Telemetry	No
Current Sensor Scale	200
ESC Protocol	DSHOT300 / DSHOT600
Firmware	Q_H_40_24_v0.19.2
Mounting Pattern	30.5 × 30.5mm (4mm hole diameter)
Dimensions	57 × 56mm
Weight	28g

---

Recommended Applications

• Drone Types: 5-10 inch FPV Freestyle, Racing, Long-Range, Cinema drones
• Frame Compatibility: Standard 30.5mm stack mounting
• Flight Controller Integration: Works with any FC supporting DSHOT protocols and current sensor input

---

Package Includes

• 1 × BLS 3-8S 80A 4-in-1 Brushless ESC
• (Mounting hardware and cables may vary; check with seller)

---

The BLS 80A 4-in-1 Brushless ESC  is a top choice for pilots seeking high power, compact design, and reliable performance in their FPV builds.

Item Type: BLS 3-8S 80A 30.5×30.5 4-in-1 ESC
MCU: EFM8BB21F16G
MOSFET: High performance MOSFET
Power Input: 3-8S LiPo
Continuous Current: 80 * 4
Burst Current: 90A(10seconds)
ESC Telemetry :NO
Current Sensor Scale:200
ESC Protocol :DSHOT300/600
Firmware: Q_H_40_24_v0.19.2
Mounting :30.5 x 30.5mm( 4mm hole diameter)
Dimension :57(L) * 56(W)
Weight 28g

BLS 80A 4-in-1 ESC – High‑Voltage Monster for 8S Rigs

Designed for extreme power systems, this 80A 4-in-1 ESC brings 8S capability and massive current headroom to large FPV drones, X-class racers, and heavy‑lift long‑range builds. With a rugged 30.5×30.5mm mounting format and high‑performance MOSFETs, it delivers relentless thrust without compromise.

Key advantages:

• 8S LiPo ready (3‑8S) – Unlock insane power for 7‑inch, 8‑inch, or even 10‑inch builds. Perfect for high‑speed long‑range or heavy payloads.
• Huge current capacity – 80A continuous and 90A burst (10 sec) per channel confidently drives massive motors like 2812, 3115, or 4215 without overheating.
• Compact yet powerful – At just 57×56mm and 28g, it fits standard 30.5×30.5mm stacks while handling serious amp draw – excellent power‑to‑weight ratio.
• Reliable EFM8BB21 MCU – Fast, proven processor with clean DShot signal handling for crisp throttle response.
• Supports DShot300/600 – Digital signal compatibility ensures low latency and easy setup with F4, F7, and H7 flight controllers.
• Pre‑tuned firmware – Ships with Q_H_40_24_v0.19.2 (BLHeli_S based), known for smooth motor synchronisation and reliable performance at high RPM.
• Built‑in current sensing – Scale 200 provides accurate real‑time amp and mAh readings in your OSD (telemetry output not available, but sensor data works via flight controller).
• Robust 4mm mounting holes – Standard pattern with larger holes for easy installation on thick frames.

Whether you’re building an 8S speed demon, a heavy‑lift cinema rig, or an unstoppable long‑range cruiser, this ESC gives you the voltage headroom and thermal margin you need to push harder.
