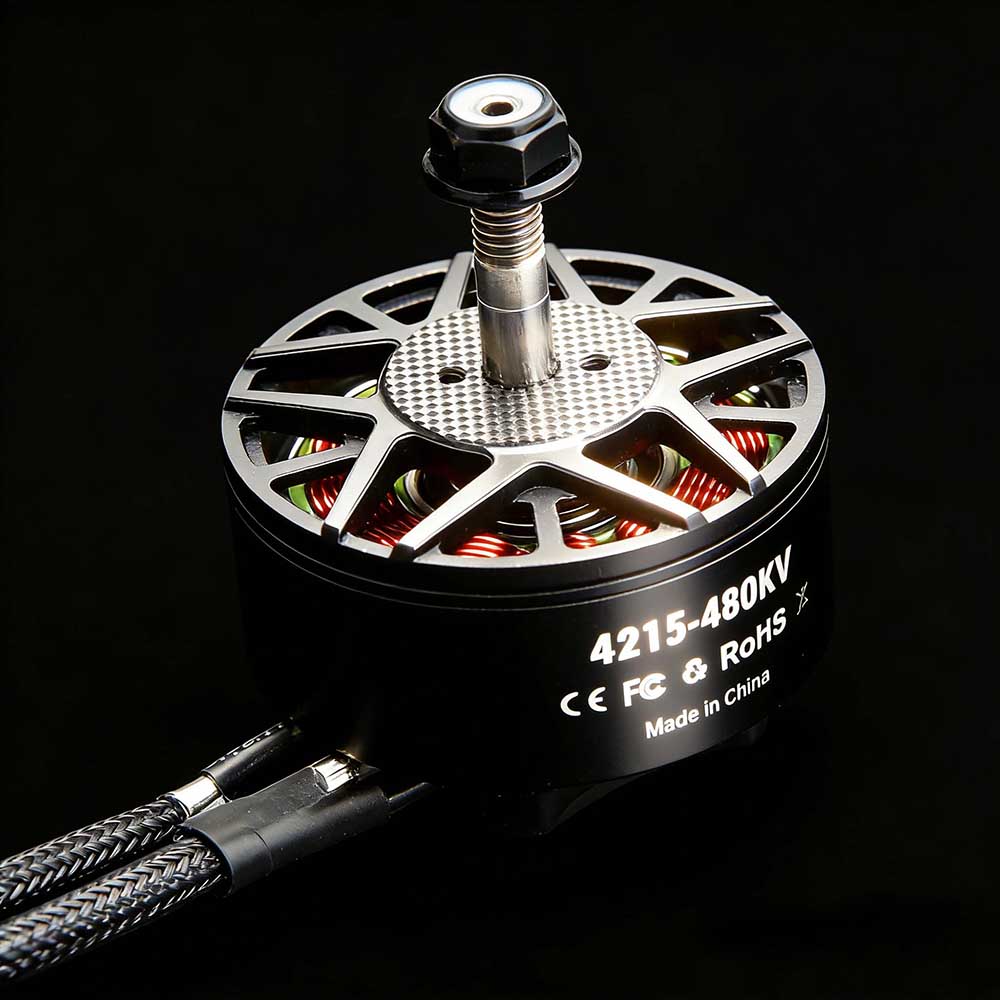

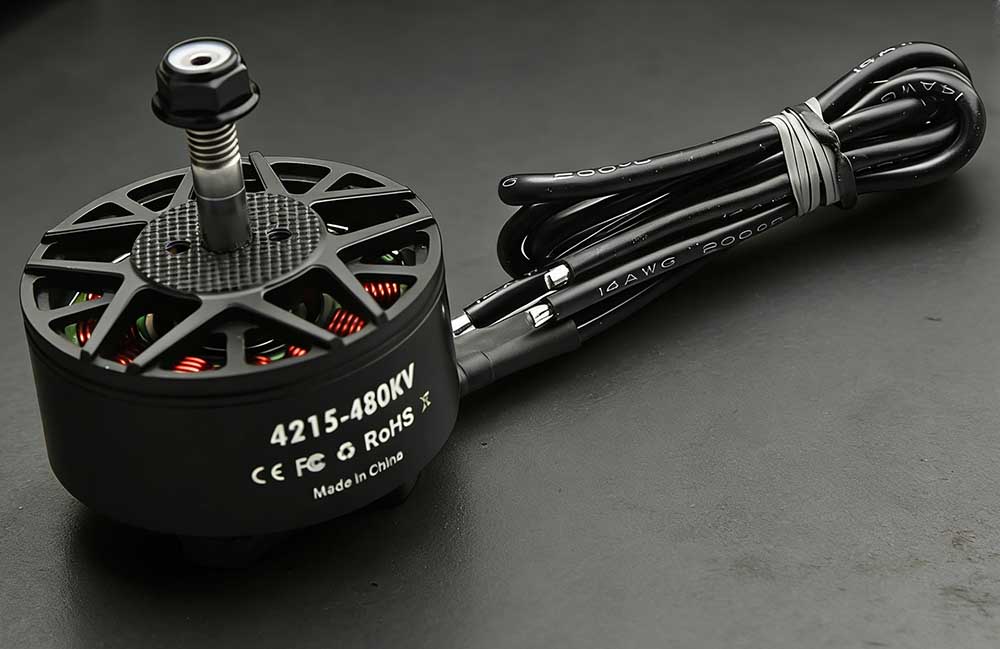

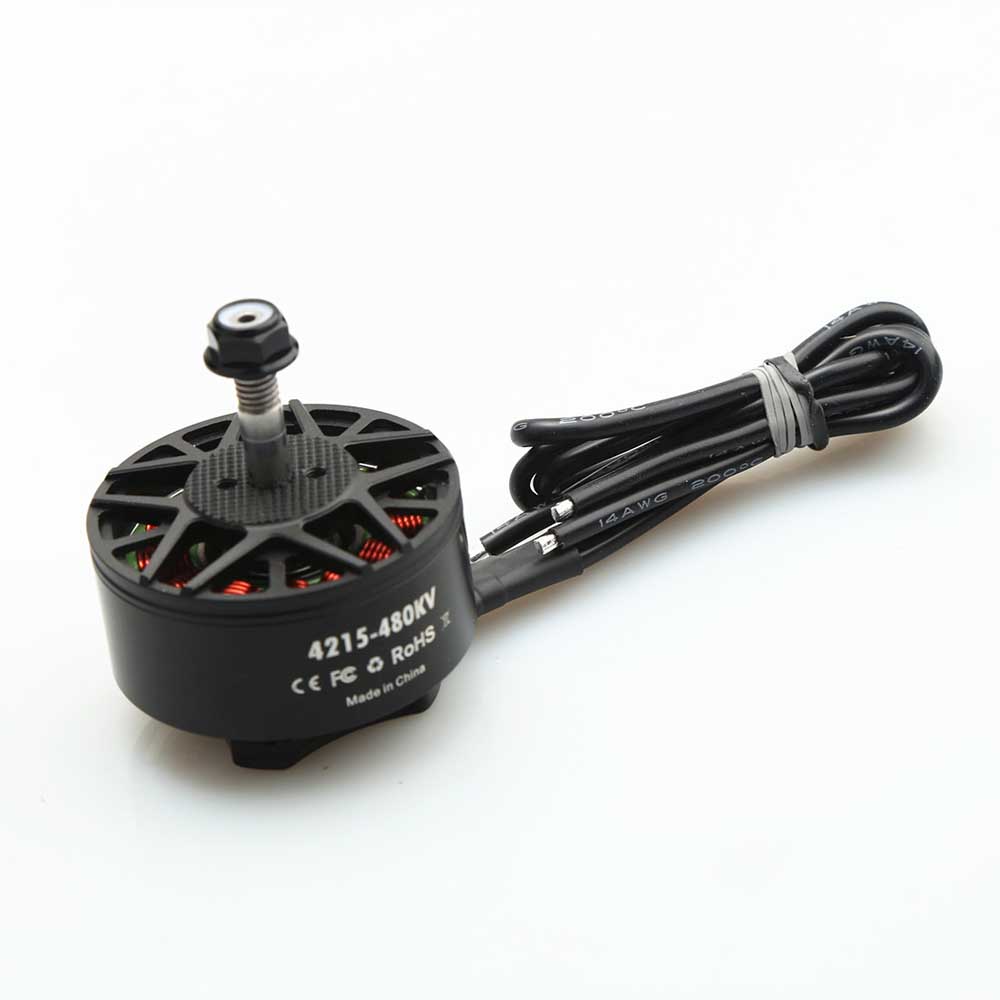

Brushless Fpv Racing Drone Motors 4215 Brushless Motor (480KV) for Heavy-Lift & Long-Endurance Drones
Model: 4215
KV Rating: 480KV
Configuration: 12N14P (12 Slots, 14 Poles)
Stator Material: Kawasaki 1200 high-permeability silicon steel
Magnet Poles: 14
Brushless Fpv Racing Drone Motors Key Features:
- High-Temperature Enamel Wire: 220℃ heat-resistant grade for enhanced thermal stability
- Precision Machined Housing: 6061-T6 aluminum alloy shell for lightweight durability
- Propeller Mount: M6 standard thread
- Motor Mount: M4 screw holes with 4x30mm bolt pattern (standard 30mm spacing)
- Shaft Diameter: 6mm hardened steel shaft
- Lead Wires: 500mm length, 14AWG black silicone wire
Brushless Fpv Racing Drone Motors Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 6S – 8S LiPo |
| No-Load Current | 1.5A @ 25V |
| Internal Resistance (Phase-to-Phase) | 68mΩ |
| Max Thrust | 5kg (approx.) |

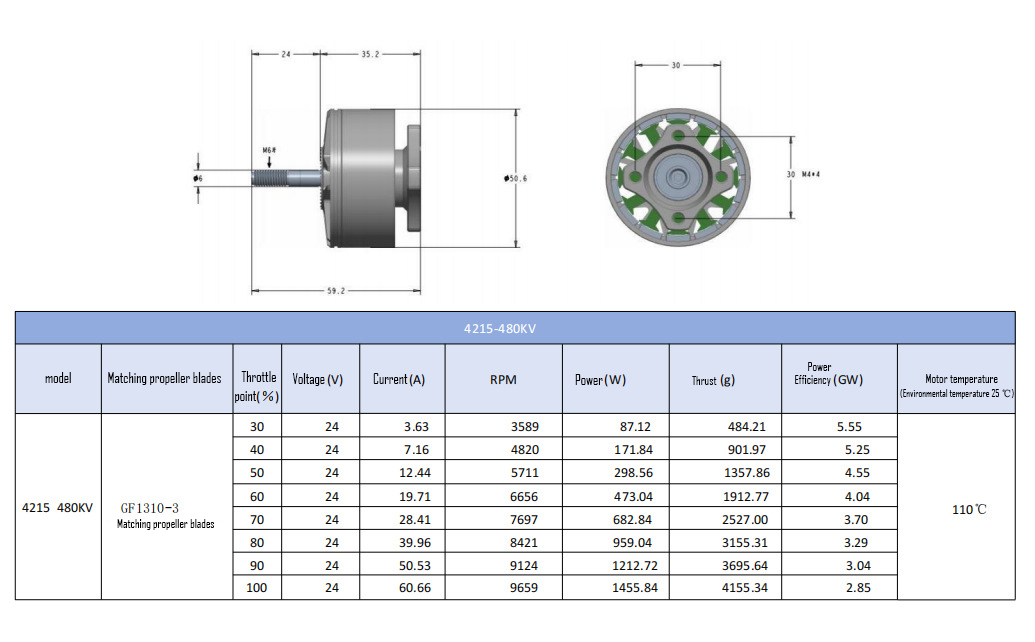

| Motor Dimensions | 59.2mm (Diameter) x 50.6mm (Height) |
| Weight (Motor only) | 231.9g |
| Weight (with Packaging) | 261g |
| Packaging Dimensions | 70 x 70 x 70mm |
| Coil Withstand Voltage | 500V (Tested) |
Brushless Fpv Racing Drone Motors Application Notes:
- Ideal for heavy-lift multirotors, aerial photography platforms, and long-endurance drones requiring high efficiency and stability.
- Suitable for use with 16-18 inch propellers (depending on specific application and voltage).
- Recommended ESC: 40A-60A (depending on propeller load and voltage).
