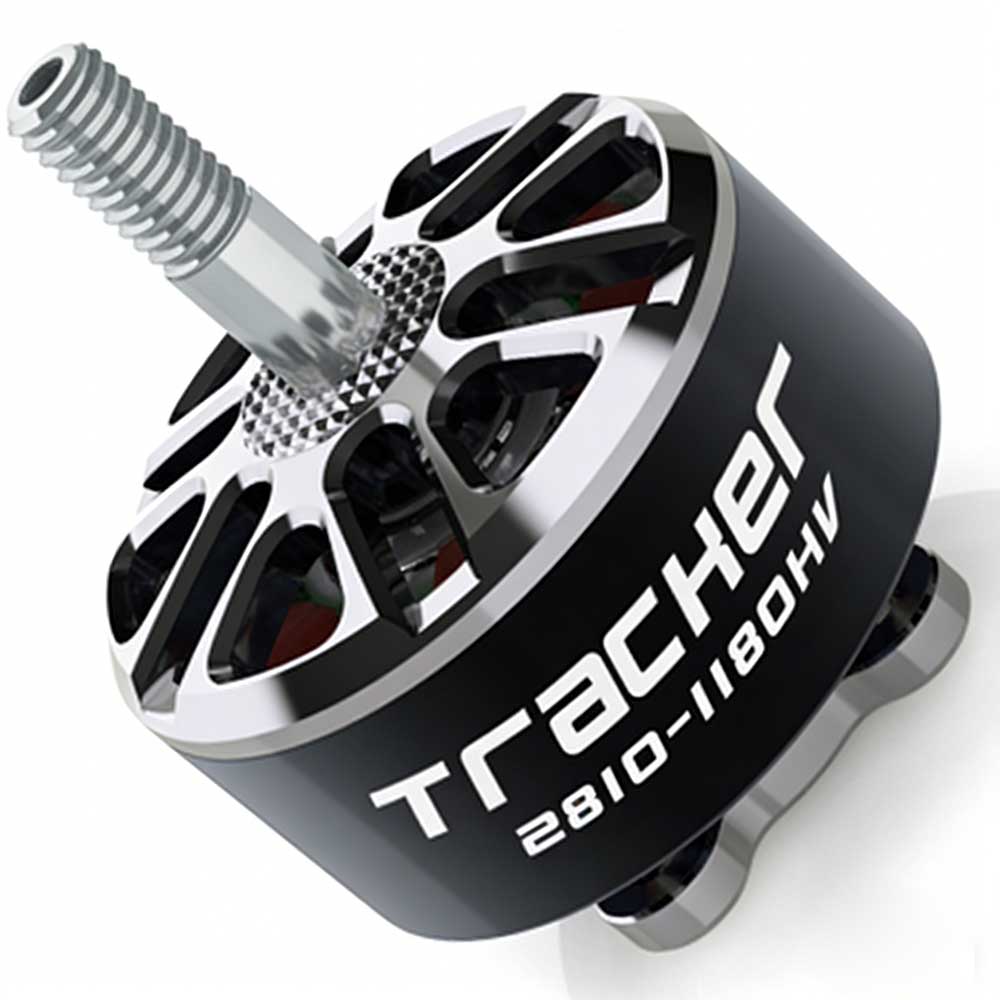

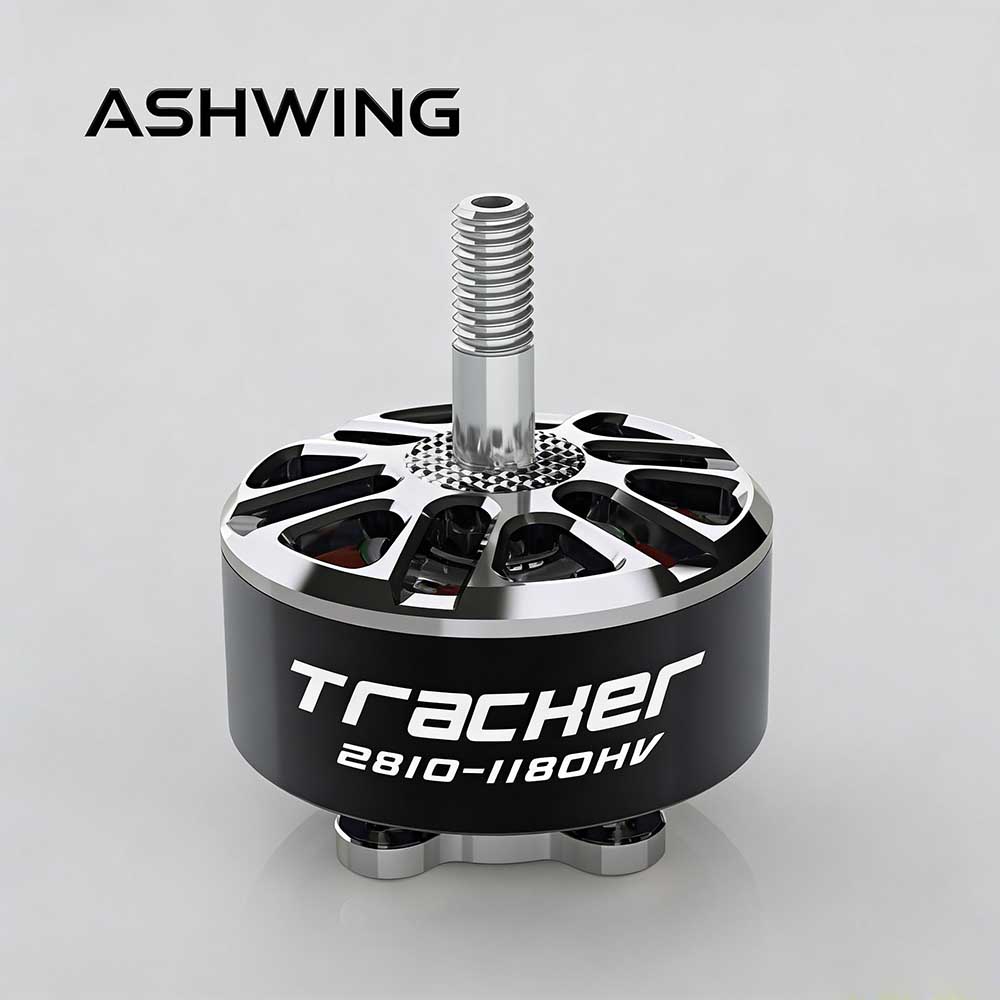

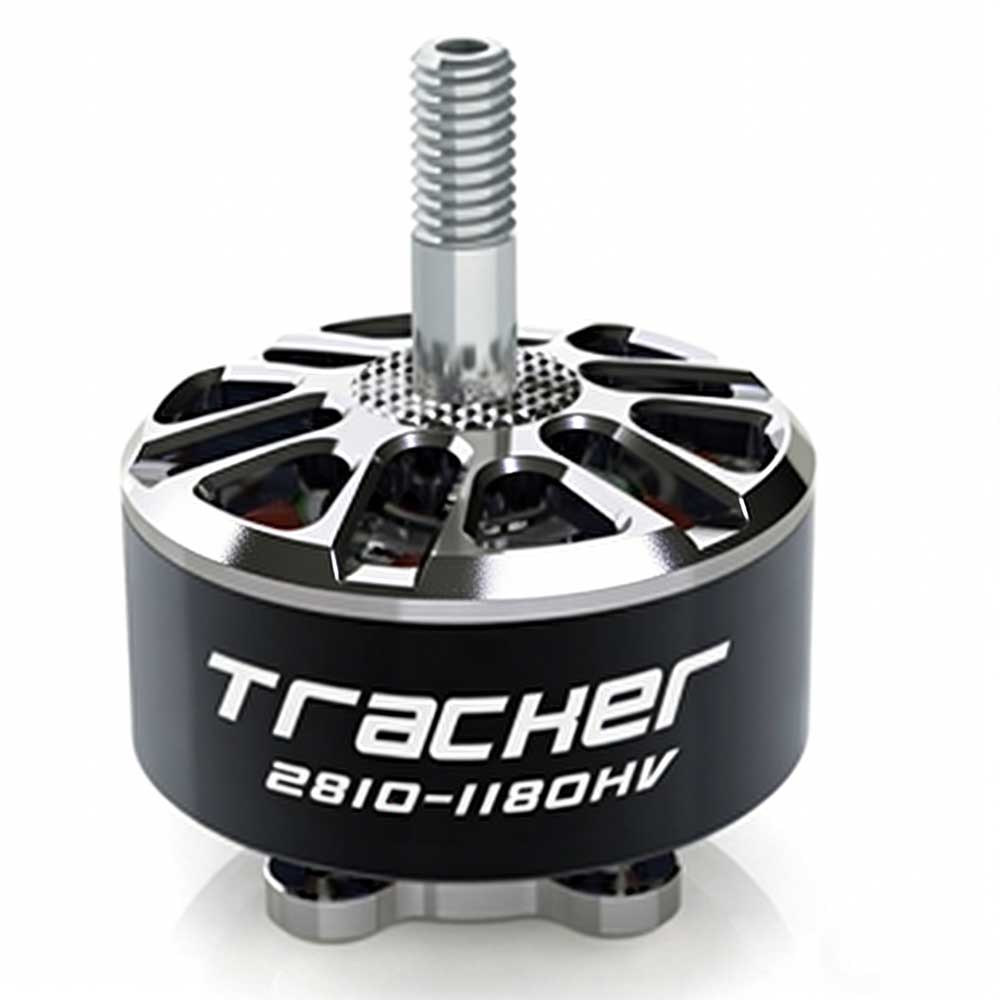

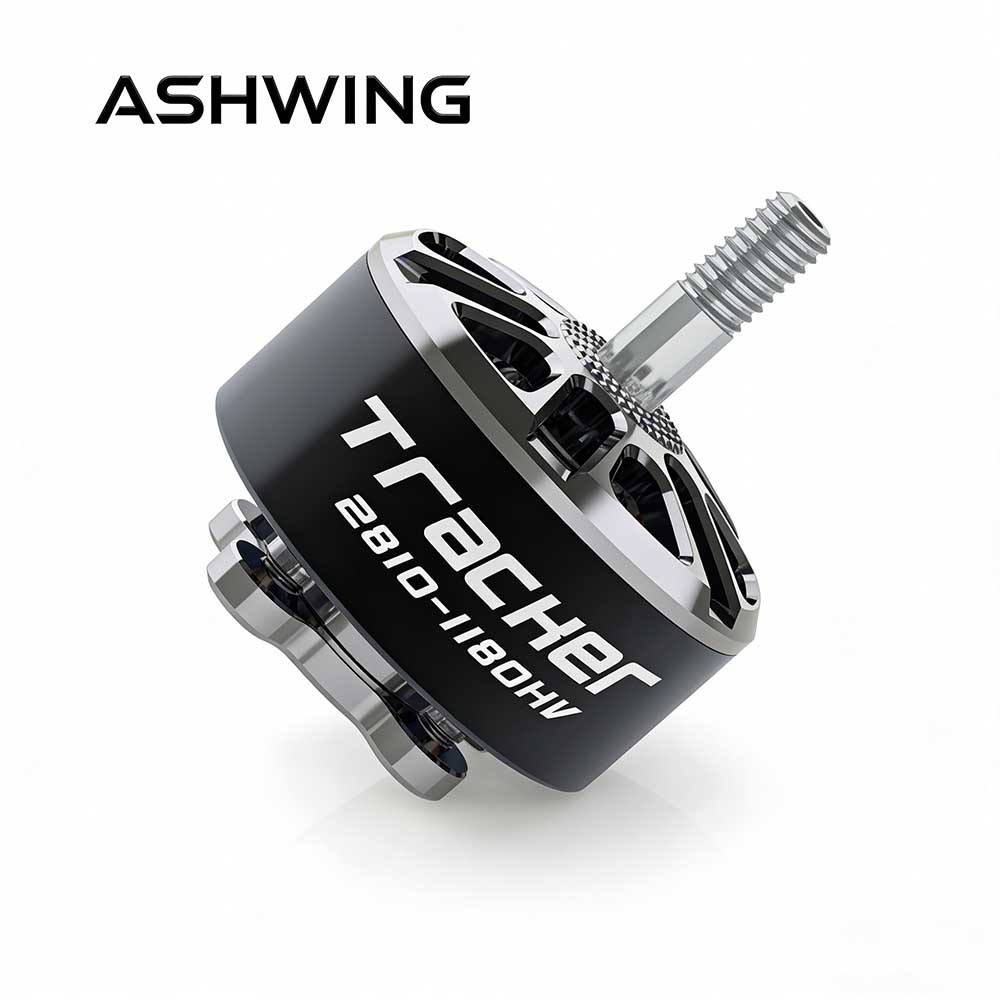

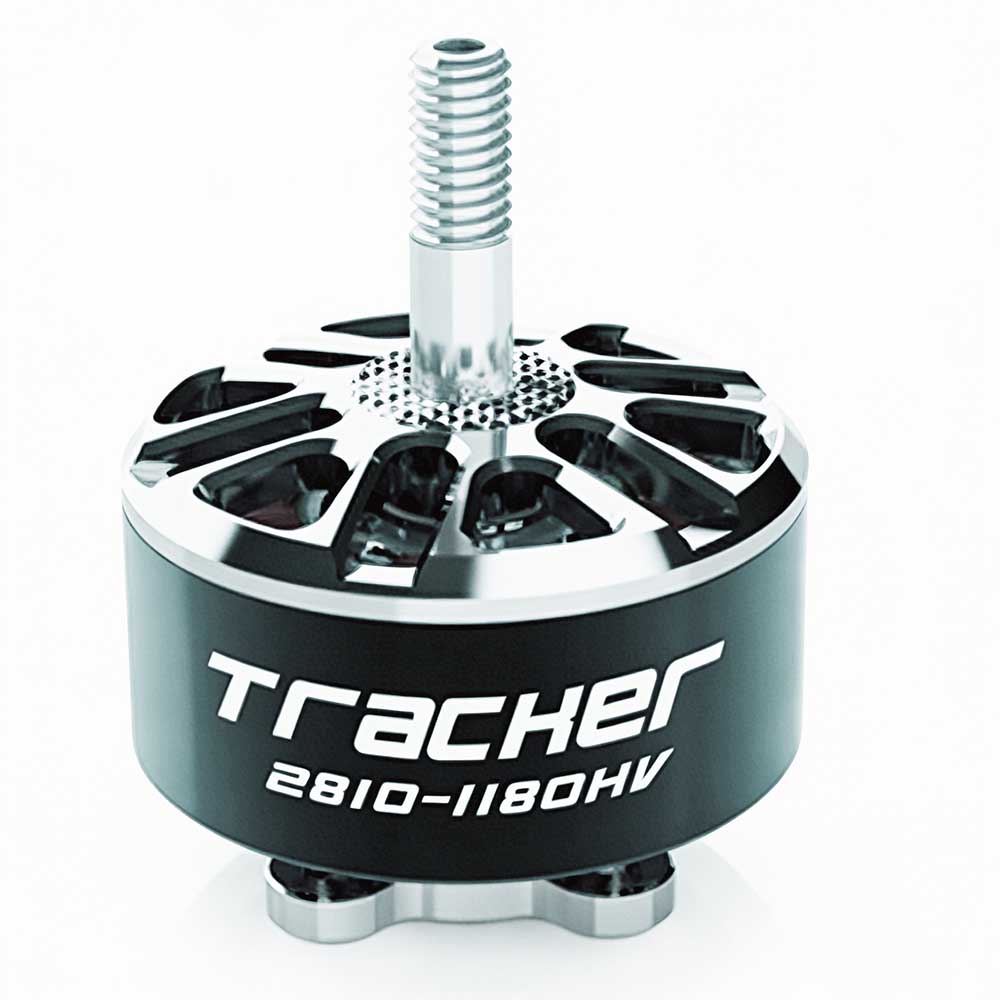

Brushless Fpv Drone Motors 2810 1180KV Racing RC 6INCH 7inch 8inch 9INCH Long Range Quadcopter

Description

Tracker 2810 Brushless Motor – High-Performance FPV Motor for 7-10 inch Long Range & Freestyle Drones Product Overview

The  Brushless Fpv Drone Motors Tracker 2810 is a high-torque, precision-engineered brushless motor designed for demanding FPV applications. Whether you are building a Mark4, APEX, or a custom long-range (LR7/LR8) drone, this motor delivers exceptional efficiency and power for 6-10 inch propeller setups.

---

Fpv Drone Motors Key Features

• Powerful & Efficient: Optimized for 5-7S LiPo batteries, providing ample thrust for 7-10 inch drones.
• Premium Materials:
  • Stator: 0.2mm Kawasaki silicon steel for reduced eddy current losses.
  • Rotor: N52H arc magnets for high magnetic flux and torque.
  • Bearings: Japanese NMB (12x6x4mm) for ultra-smooth rotation and long life.
• Durable Construction: CNC-machined 7075 aluminum bell and base casing – lightweight yet robust.
• Versatile KV Options: Choose from 1180KV, 1350KV, or 1500KV to match your flying style (long-range cruising vs. freestyle).
• Universal Compatibility: Fits standard M3 19x19mm mounting pattern; M5 propeller shaft thread.

---

Fpv Drone Motors Technical Specifications

---

Fpv Drone Motors Recommended Applications

• Frame Size: 6, 7, 8, 9, 10 inch drones
• Propeller Size: 5, 6, 7, 8 inch (choose KV accordingly)
• ESC Requirement: 40A – 60A (based on KV and load)
• Flight Controller Compatibility: F3, F4, F7, KK, SpeedyBee F405/F722, and similar

---

Selection Guide

---

Package Includes

• 1 x GTSKYTENRC Tracker 2810 Motor (selected KV)
• 1 x Hardware kit (mounting screws, bullet connectors if applicable)

---

This motor is a solid choice for builders who demand reliability and performance from their mid-to-large sized FPV platforms.

Tracker 2810 Series – Premium 7‑10″ Long‑Range & Freestyle Fpv Drone Motors

Engineered for serious long‑range and freestyle pilots, the Tracker 2810 series brings together high‑grade materials, precise manufacturing, and versatile KV options to power everything from 6″ race quads to 10″ cinema rigs. Whether you’re building a Mark4, APEX, or custom LR7, these motors deliver the torque and reliability you need for extended flights and aggressive moves.

Key advantages:

• Three KV options for perfect tuning
  – 1180KV: Ideal for 7‑8″ long‑range on 5‑7S (efficiency focused)
  – 1350KV: Balanced choice for 6‑8″ freestyle or mixed flying on 5‑6S
  – 1500KV: Punchy response for 5‑7″ agile builds on 4‑6S
• Wide voltage range (5‑7S LiPo) – Unlock serious power for heavy‑lift or high‑speed long‑range missions, while still running efficiently on 4‑6S when needed.
• Premium materials for durability & performance
  – 0.2mm Kawasaki silicon steel stator – Low eddy current losses, high magnetic flux
  – Japanese NMB bearings (12x6x4) – Smooth, quiet, and long‑lasting
  – N52H arc magnets – Strongest neodymium grade, excellent torque density
  – Al 7075 bell & base – Aerospace‑grade aluminum for crash resistance and heat dissipation
• Robust mechanical design
  – M5 prop shaft thread – Standard for 7‑10″ props, compatible with most propellers
  – Steel shaft – Resists bending under high thrust
  – 19x19mm M3 bolt pattern – Fits full‑size frames (Mark4, Apex, LR7, etc.)
  – 18AWG 25cm silicone wires – Low resistance, easy routing in large frames
• Optimized 12N14P topology – Smooth throttle response, low cogging, and excellent efficiency across the RPM range.
• Lightweight yet powerful – At 65g (with wires), it’s competitive for its class, leaving room for larger batteries or payloads.

Perfect for:

• 7‑8″ long‑range cruisers (1180KV + 6S/7S)
• 6‑7″ freestyle quads (1350KV / 1500KV + 5‑6S)
• 8‑10″ heavy‑lift or cinema drones (1180KV + 7S, paired with 40‑60A ESC)

Recommended ESC:

40A‑60A (e.g., BLHeli_S 50A/60A or BLS 80A for 7S builds)

Whether you’re chasing mountain ridges or power‑looping through gaps, the Tracker 2810 series gives you the torque, build quality, and KV flexibility to match your flying style perfectly.

• Tracker 2810 1180KV 1350KV 1500KV 4S-6S Brushless Motor for Mark4 APEX FPV Freestyle 7inch 8inch Long Range LR7 Drones
• Series: Tracker
• Color: Titanium
• KV: 1180KV/1350KV/1500KV
• No.of Cells(Lipo): 5-7S
• Configuration: 12N14P
• Stator: 0.2mm Kawasaki silicon steel
• Prop Adapter Shaft Thread: M5
• Shaft: STEEL SHAFT
• Bolt Pattern: M3 (19X19mm)
• Bearings: Japanese NMB 12X6X4
• Rotor: N52H arc magnets
• Weight: 65g with 25cm SR wires
• Wire AWG: 18AWG 25cm length
• Bell cap: Al 7075
• Base casing: Al 7075
• Applicable model: 6-inch 7-inch 8-inch 9-inch 10 inch drone
• ESC:40A-45A-50A-60A ESC
• Propeller: 5-inch 6-inch 7-inch 8-inch propeller
• Flight control: F3/F4/F7/KK/SpeedyBee F405 F722, etc
