DF-V2 10inch FPV Drone fpv racing frame – Lightweight 10″ Long-Range & Heavy-Lift Frame Product Overview

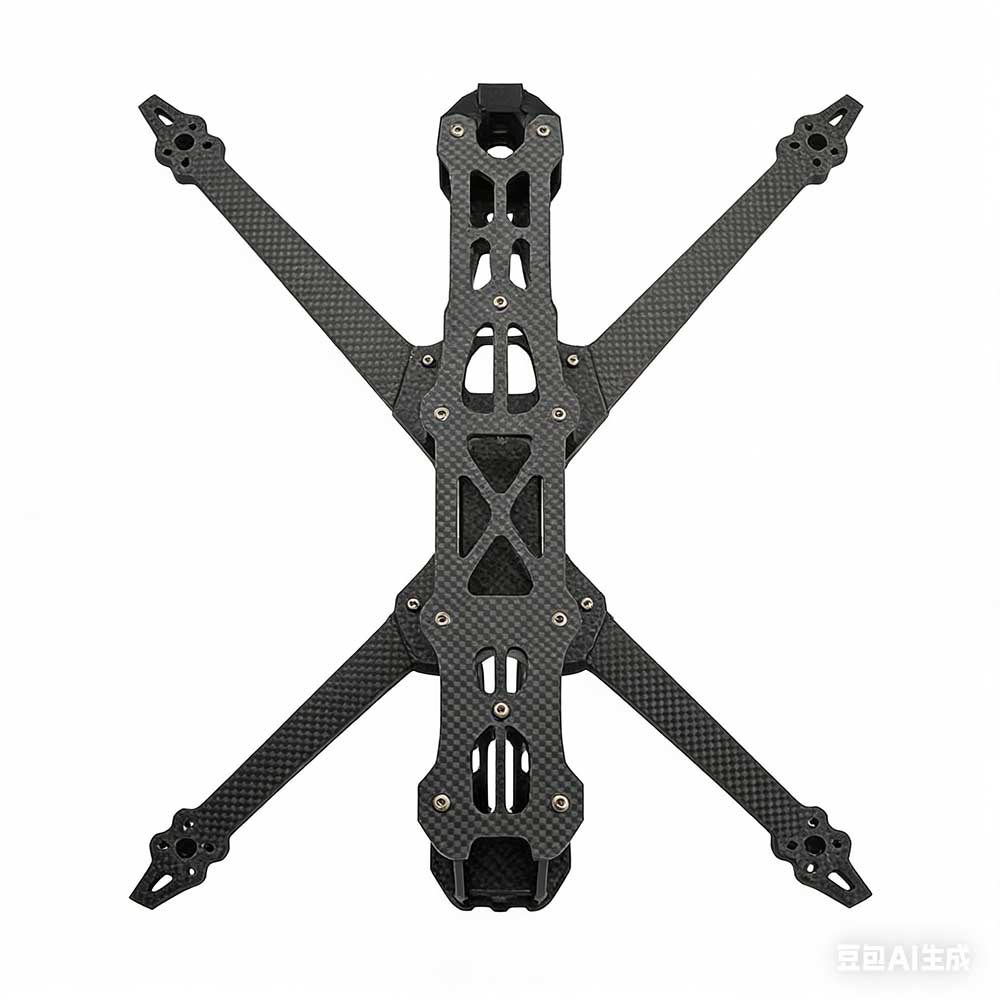

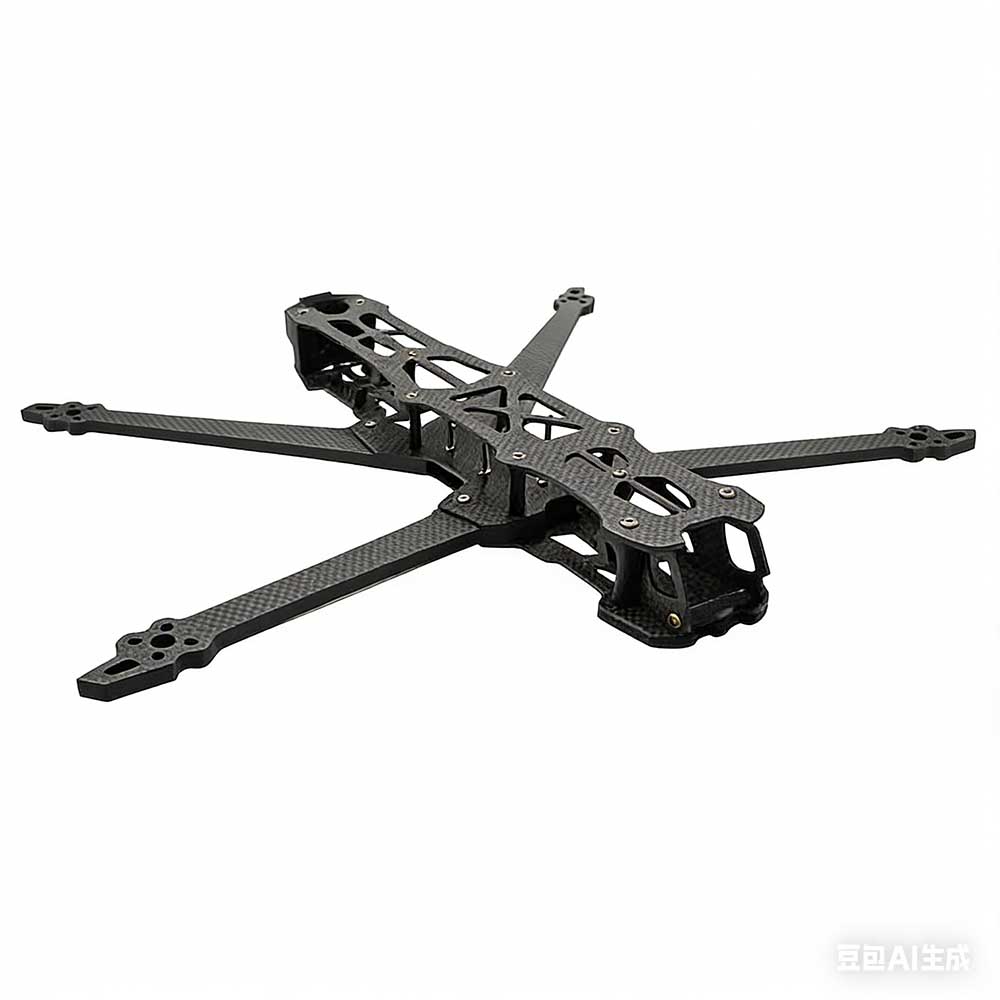

The DF-V2 10inch fpv racing frame is a precision-engineered FPV drone frame designed for 10-inch propeller setups. With a 427mm wheelbase and a lightweight yet robust construction, this fpv racing frame is ideal for long-range exploration, heavy-lift applications, and cinematic FPV flights. The versatile mounting system accommodates various electronics, making it a perfect platform for custom builds requiring maximum thrust and stability.
Key Features
- Optimized for 10-Inch Propellers – Designed to harness the efficiency and thrust of 10″ props for extended flight times and heavy payloads.
- Lightweight Yet Strong – Total weight of just 310g with 2mm plates and a reinforced 7mm camera arm for impact resistance.
- Versatile Component Compatibility:
- Flight Controller: 30.5×30.5mm
- Camera: 19mm horizontal spacing
- VTX/Map: 20×20mm & 30.5×30.5mm
- Motors: 16×16mm & 19×19mm
- Ample Internal Space – 35mm stack height accommodates tall electronics and wiring.
- Durable Construction – High-quality carbon fiber with precision-cut edges for a clean finish.
fpv racing frame Technical Specifications
| Parameter | Value |
|---|---|
| Model | DF-V2 10inch |
| Wheelbase | 427mm |
| Frame Weight | 310g |
| Bottom Plate Thickness | 2mm |
| Top Plate Thickness | 2mm |
| Camera Arm Thickness | 7mm |
| Camera Side Panel Thickness | 2mm |
| Camera Mounting Hole Spacing | 19mm (horizontal) |
| VTX/Map Mounting Hole Spacing | 20×20mm & 30.5×30.5mm |
| Flight Controller Mounting Pitch | 30.5×30.5mm |
| Internal Stack Height | 35mm |
| Motor Mounting Hole Pitch | 16×16mm & 19×19mm |
fpv racing frame Recommended Configuration (Not Included)
| Component | Recommended Specifications |
|---|---|
| Motor | 3110 / 3115 / 3210 / 3214 |
| ESC | 60A – 80A |
| Propeller | 10 inches |
| Camera | 19×19mm (Nano/Micro size) |
| Flight Controller | F4 / F7 / F405 / F722 / KK series |
| VTX | 5.8G / 1.2G / 4.9G (1.2W – 5W) |
| Battery | 6S 6000mAh – 12000mAh |
Package Includes
- 1 × DF-V2 10inch fpv racing frame Kit (Carbon fiber plates & hardware)
- 1 × Hardware accessory bag (screws, standoffs, etc.)
- (Electronics not included)
This DF-V2 10inch fpv racing frame is the ideal foundation for pilots building high-performance long-range cruisers or heavy-lift platforms requiring the efficiency and stability of 10-inch propellers.
- Model: DF- V2 10inch fpv racing frame
- Wheelbase: 427mm
- Weight: 310g
- Thickness of bottom plate: 2mm
- Thickness of top plate: 2mm
- Thickness of camera arm: 7mm
- Camera side panel thickness: 2mm
- Camera mounting hole spacing: 19 mm
- Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
- Flight Control Mounting Pitch: 30.5*30.5mm
- Inner space height: 35mm
- Motor mounting hole pitch: 16*16mm & 19*19mm
- Recommended Configuration: (not included)
- motor: 3110/3115/3210/3214
- ESC: 60A-80A
- propeller: 10 inches,
- Camera: 19 * 19mm
- flight control: F4/F7/F405/F722/KK
- VTX:5.8G/1.2G/4.9G-1.2W-5W
- Battery: 6S-6000MAH-12000MAH
