DF-V2 8Inch FPV Drone Frame Carbon Fiber Rc Racing Crossing Large Payload

Description

DF-V2 8inch FPV Drone Frame – Lightweight 8″ Long-Range & Freestyle Frame Product Overview

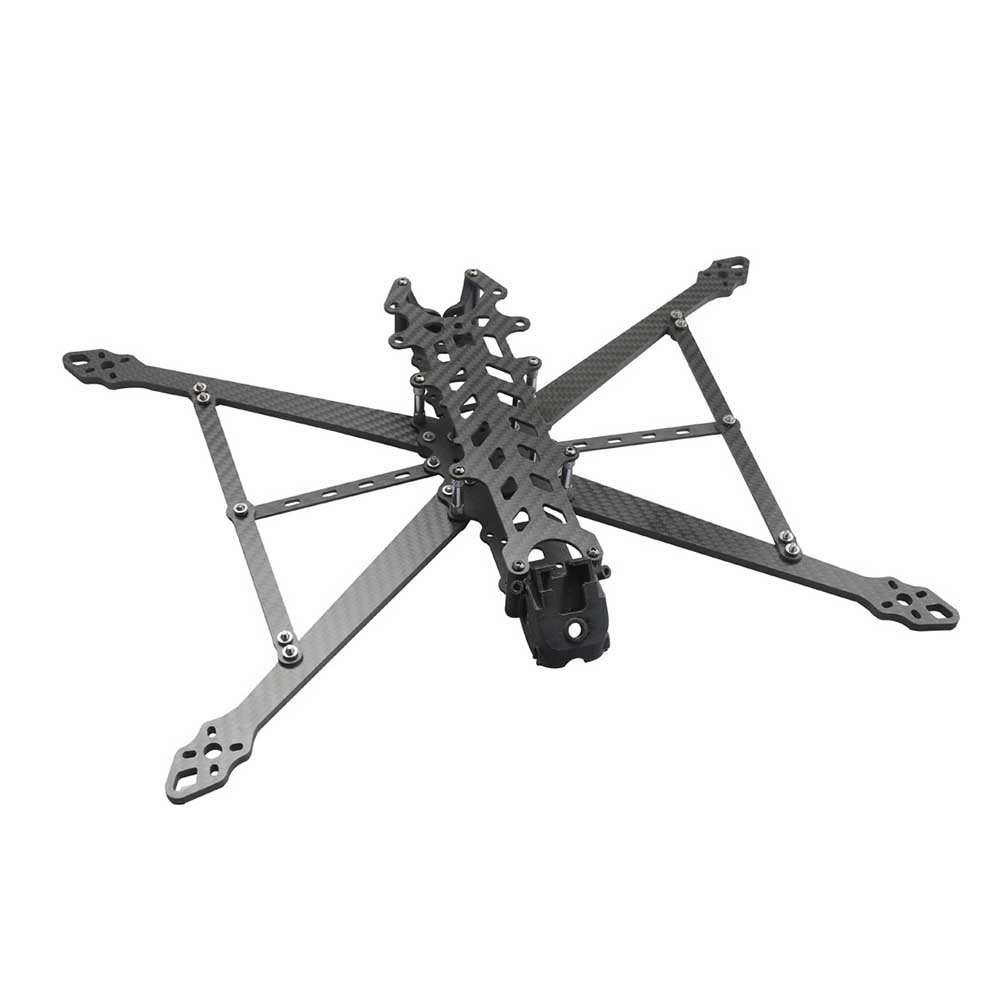

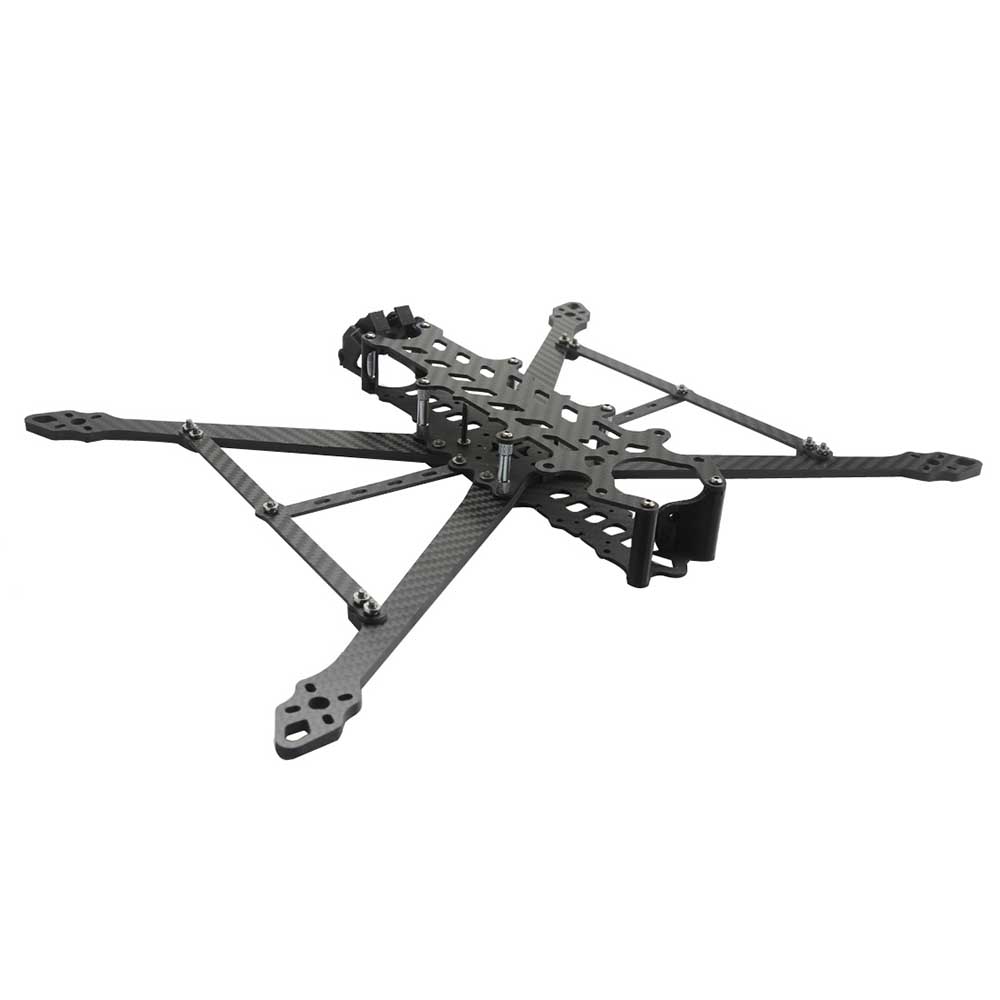

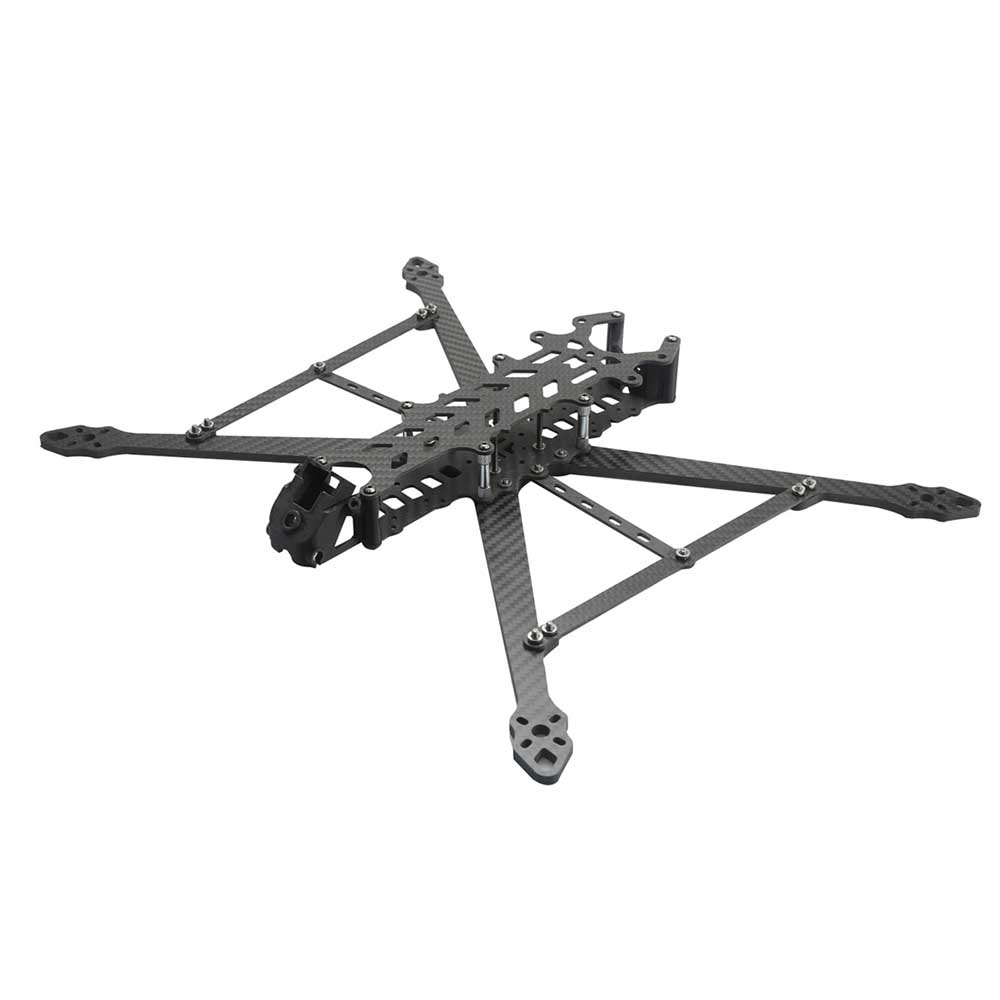

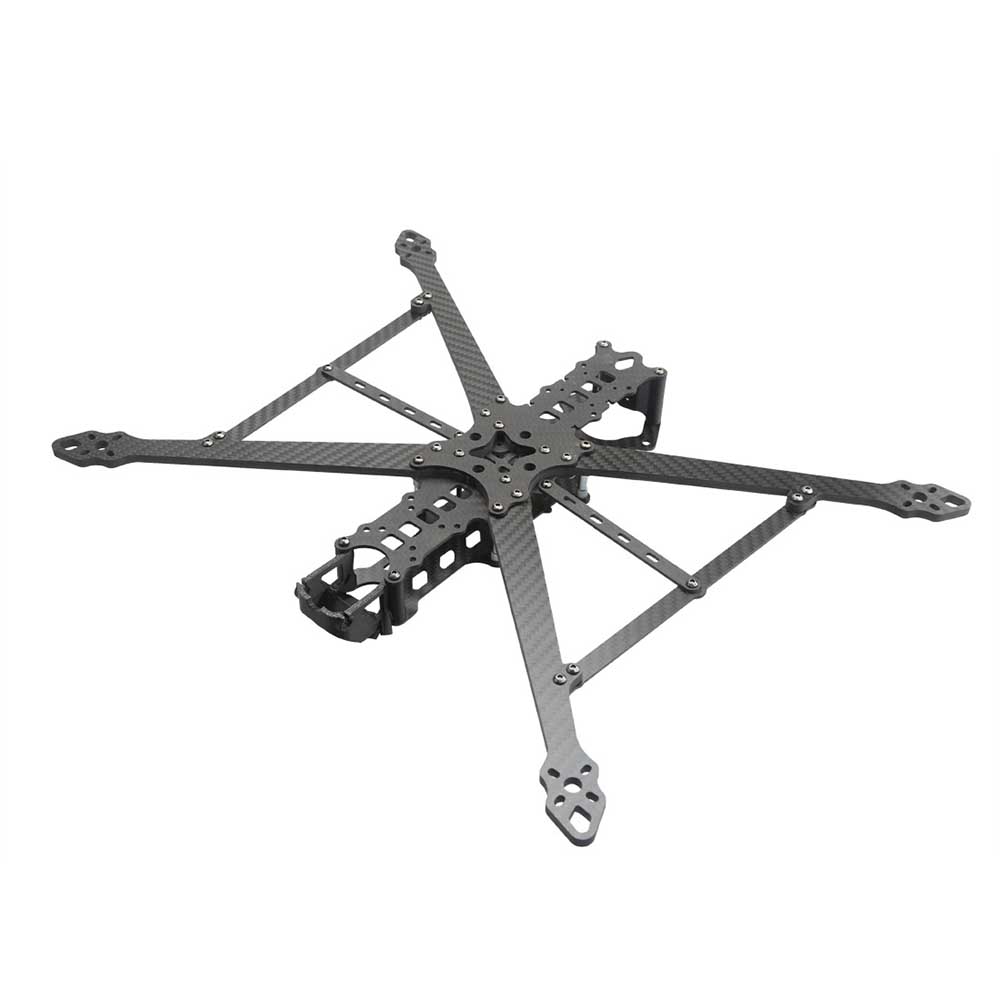

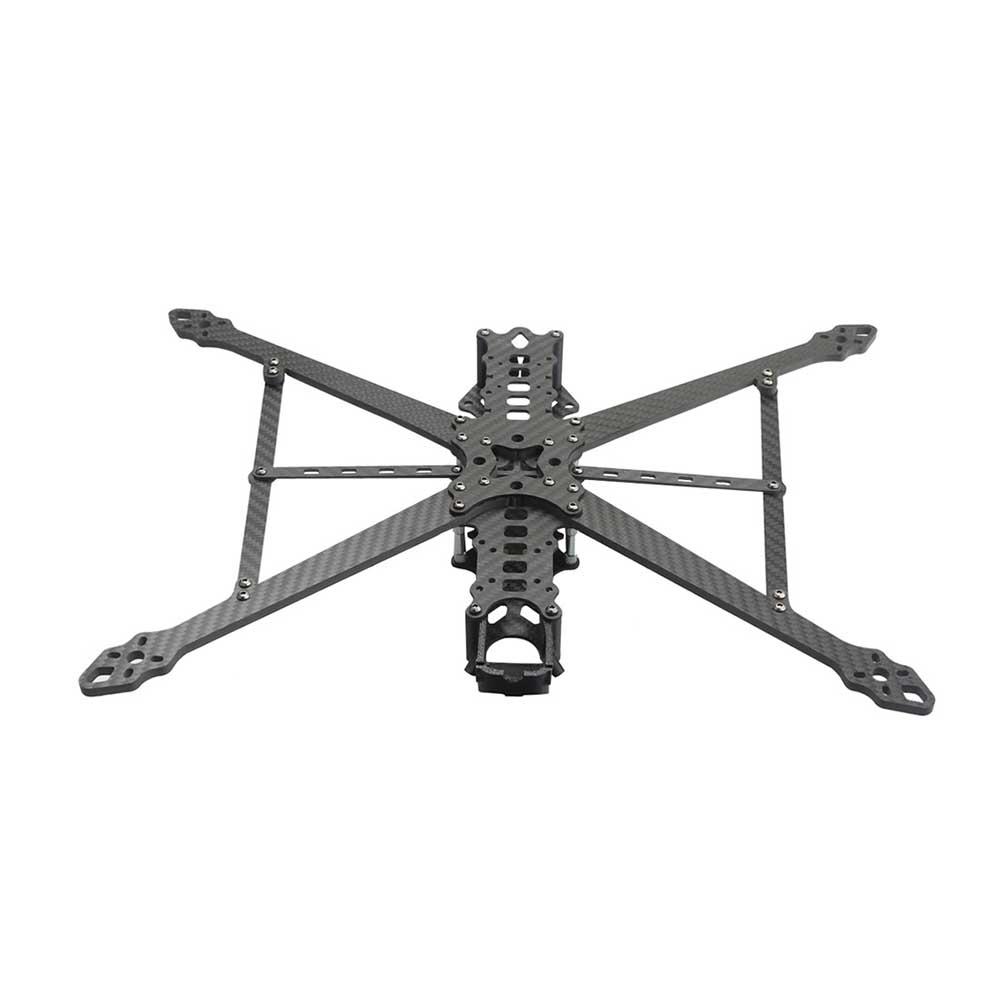

The DF-V2 8inch FPV Drone Frame is a precision-engineered FPV drone frame designed for 8-inch propeller setups. With a 367mm wheelbase and a lightweight yet durable construction, this frame is ideal for long-range cruising, freestyle flying, and cinematic applications. The modular design supports multiple mounting patterns for flight controllers, cameras, and motors, offering maximum flexibility for custom builds.

Key Features

• Optimized for 8-Inch Propellers – Perfect balance of stability and agility for 8″ builds.
• Lightweight Construction – Total weight of just 282g for excellent power-to-weight ratio.
• Durable Materials – 2mm bottom/top plates and 6mm camera arm for impact resistance.
• Versatile Mounting Options:
  • Flight Controller: 30.5×30.5mm
  • Camera: 19mm horizontal spacing
  • VTX/Map: 20×20mm & 30.5×30.5mm
  • Motors: 16×16mm & 19×19mm
• Ample Internal Space – 35mm stack height accommodates various electronics.
• Clean Aesthetics – Sleek design with carbon fiber construction.


FPV Drone Frame Technical Specifications

Recommended Configuration (Not Included)

• Model: DF- V2 8inch
• Wheelbase: 367mm
• Weight: 282g
• Thickness of bottom plate: 2mm
• Thickness of top plate: 2mm
• Thickness of camera arm: 6mm
• Camera side panel thickness: 2mm
• Camera mounting hole spacing: 19 mm
• Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
• Flight Control Mounting Pitch: 30.5*30.5mm
• Inner space height: 35mm
• Motor mounting hole pitch: 16*16mm & 19*19mm
• Recommended Configuration: (not included)
• motor: 2810/2812/3110/3112
• ESC: 45A-60A
• propeller: 8 inches,
• Camera: 19 * 19mm
• flight control: F4/F7/F405/F722/KK
• VTX:5.8G/1.2G/4.9G-1.2W-3W
• Battery: 6S-3000MAH-8000MAH
