FPV drone Signal Detector Handheld RF scanner 30-6000Hz Portable Detection Equipment device
¥19.00
- FPV drone Signal Detector Handheld
- Frequency range:30-6000 MHz
- RBW:10-500 kHz (default 500)
- In‑band flatness 1 dB (after factory calibration)
Description
The PSA360 drone Signal Detector is a compact, handheld spectrum analyzer designed for easy, real‑time detection of wireless signals from 30 MHz to 6 GHz. It combines professional‑grade RF measurement capabilities with an intuitive touchscreen interface, making it suitable for security inspections, drone monitoring, spectrum clearing, and on‑site troubleshooting – without requiring extensive training.
drone Signal Detector Key Features
1. drone Signal Detector True Spectrum Analysis in Your Hand
- Built on a spectrum analyzer core (not just a simple power meter).
- Provides bar graph (histogram) display, waterfall plot, top‑5 signal ranking, and distance trend estimation all on one screen.
2. drone Signal Detector Easy to Use – “Turn on and Go”
- Default configuration works out of the box.

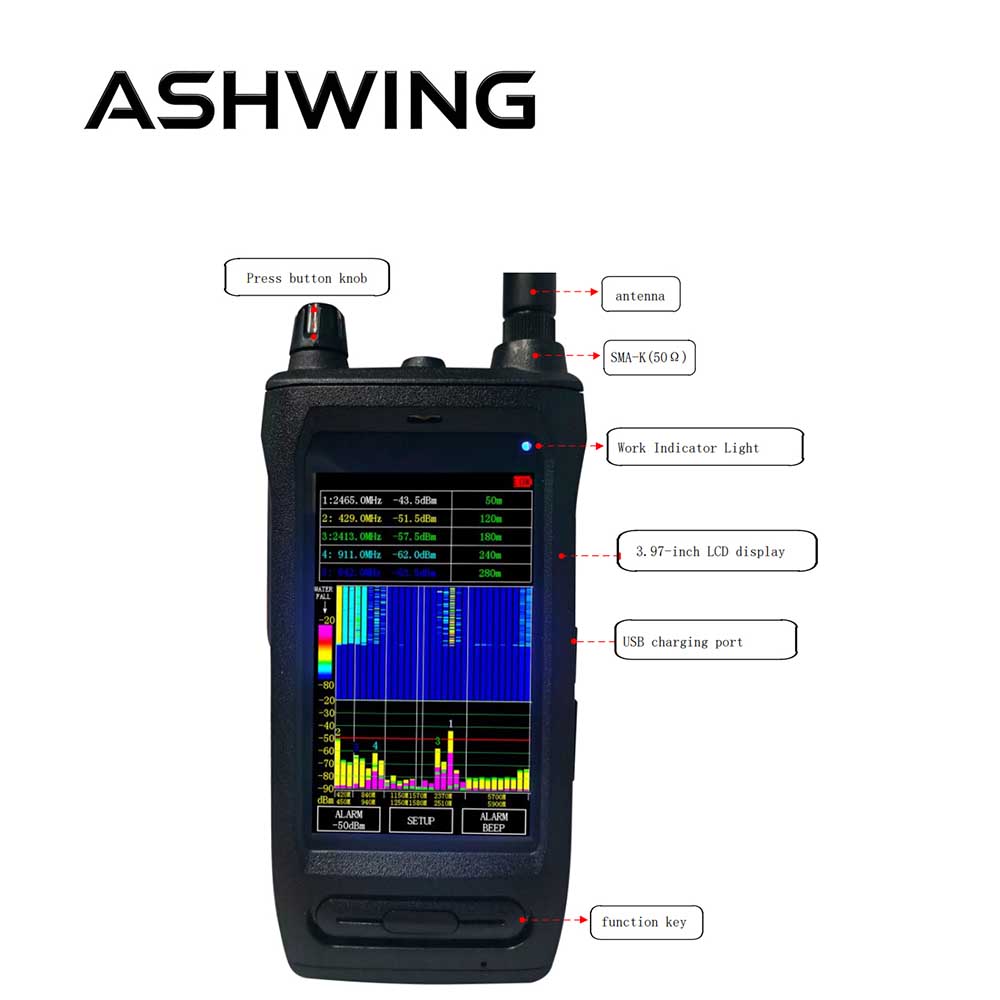

- 3.97‑inch high‑resolution touchscreen (800×480) with clear graphics.

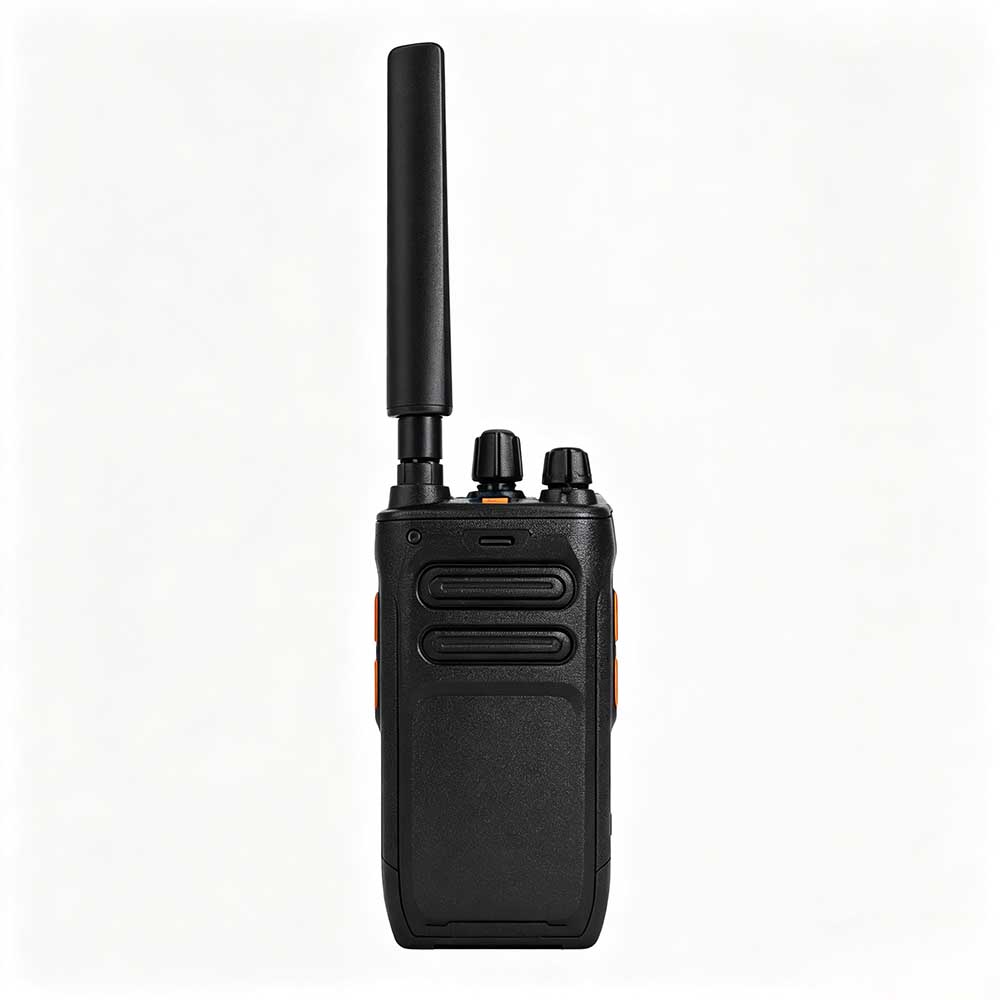

- Walkie‑talkie style body, lightweight and comfortable for one‑handed operation.

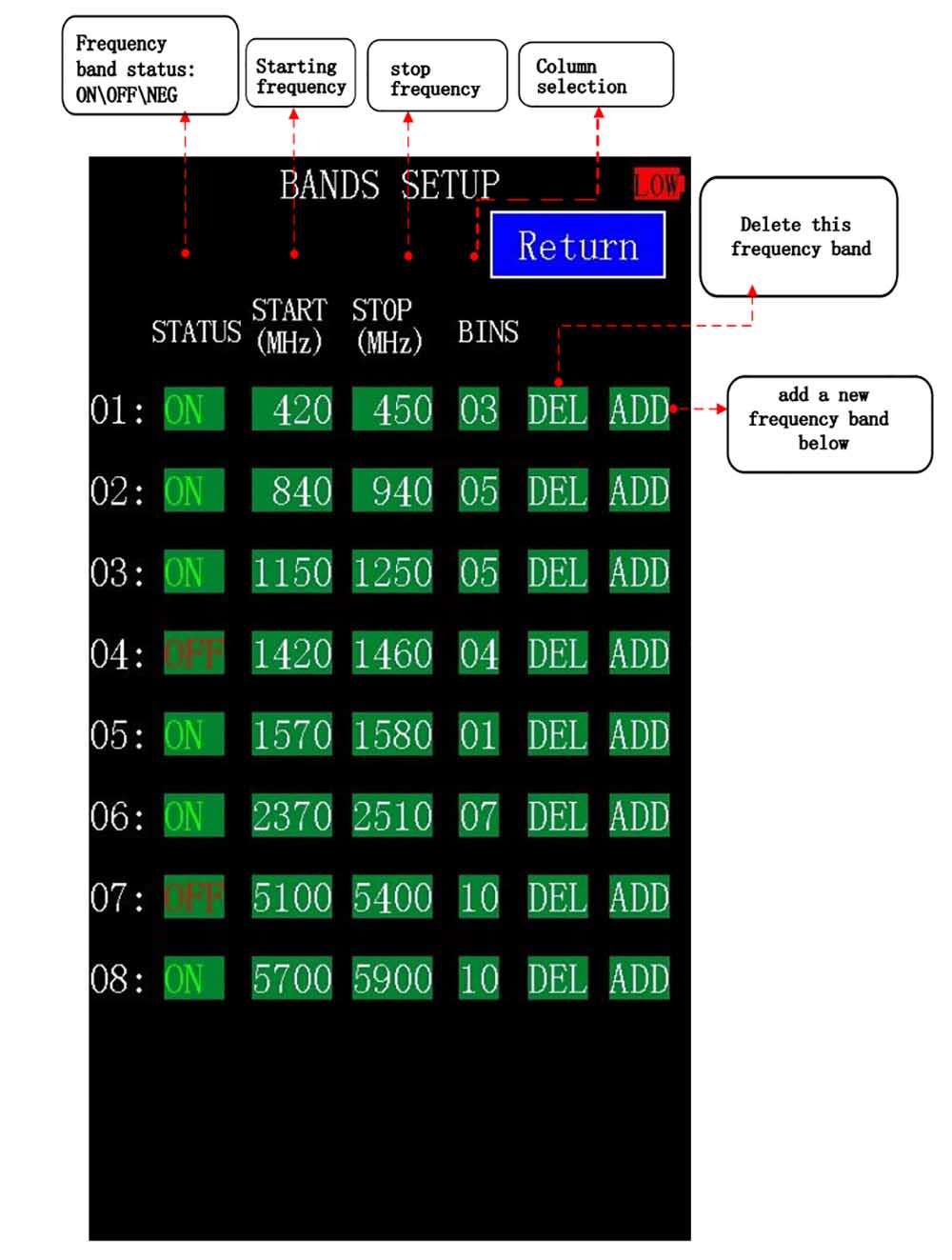

3. drone Signal Detector Flexible Frequency Band Setup
- Up to 20 configurable frequency bands.
- Each band can have its own start/stop frequency and number of bins (resolution).
- Total bins up to 100 – allows detailed spectral views.

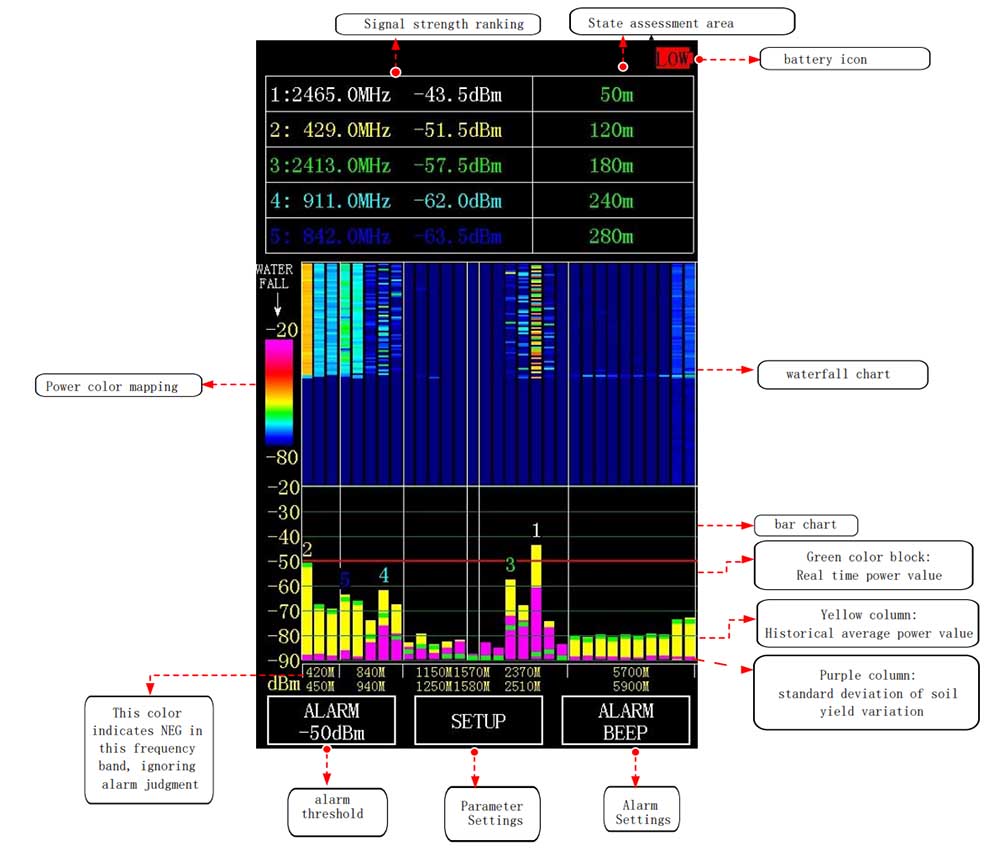

4. drone Signal Detector Advanced Visualization Tools
- Real‑time bar graph – green blocks show current signal strength per bin.

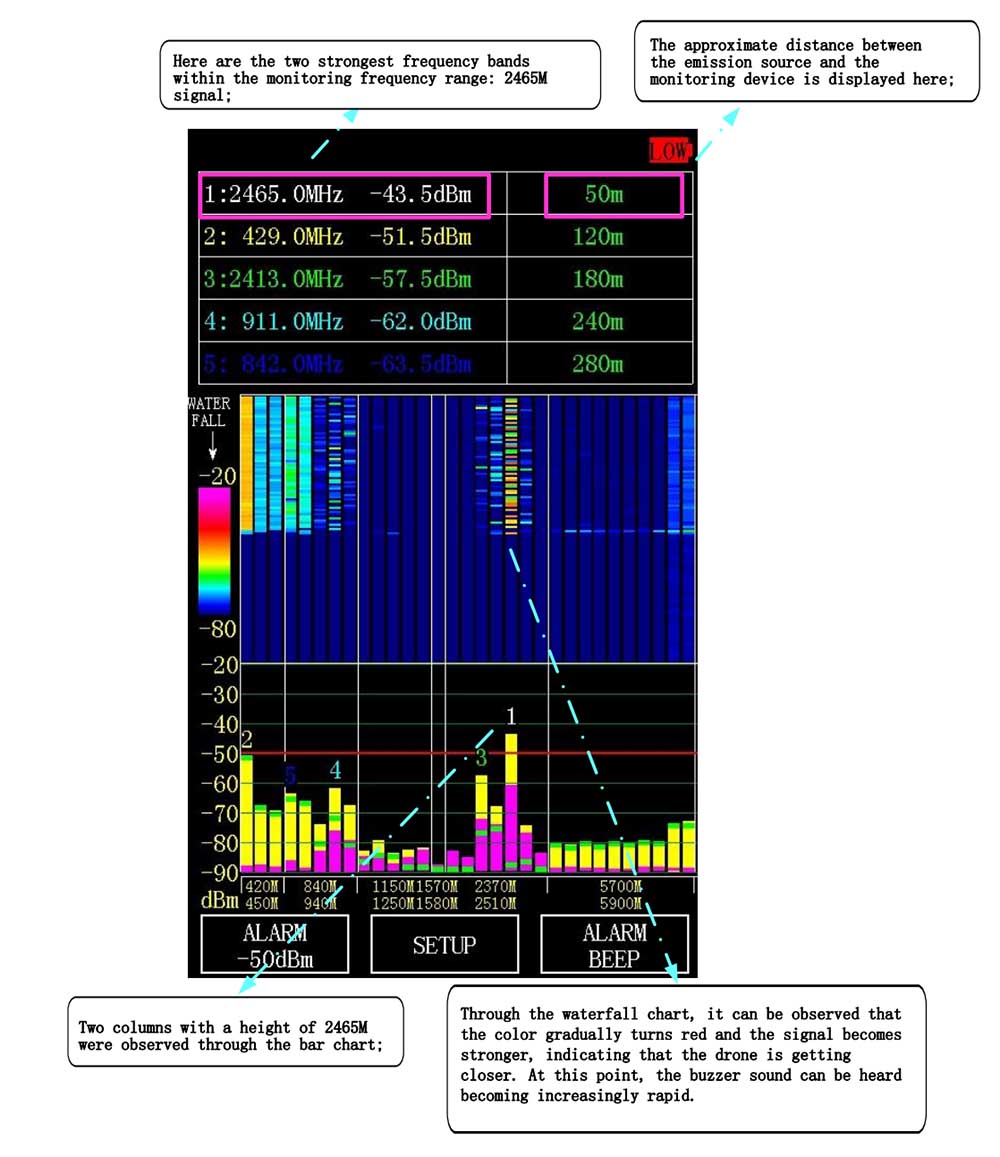

- Waterfall diagram – color‑coded historical signal strength (red = strong, blue = weak). Ideal for spotting intermittent or frequency‑hopping signals.
- Purple bar overlay – indicates the standard deviation (fluctuation intensity) of historical signals.
- Top 5 signals – lists the strongest frequencies and their power levels.
- Distance estimation – shows whether a signal source is approaching or moving away (based on signal strength change).
5. drone Signal Detector Adjustable Alarms & Multiple Alert Modes
- Alarm threshold adjustable from -90 dBm to -20 dBm (1 dB steps).
- Four alert modes: Silent, Buzzer, Vibration, or Buzzer + Vibration.
- Alarm tone/vibration becomes faster as the signal exceeds the threshold – intuitive for direction finding.
6. drone Signal Detector Long Battery Life & Smart Power Management
- 5800 mAh built‑in lithium battery.
- Up to 8 hours of continuous operation.
- Screen can be turned off while the device continues scanning – saves power for covert or long‑duration missions.
7. drone Signal Detector Convenient Charging & Portability
- USB Type‑C charging (5V/1A) – works with power banks, laptops, or standard phone chargers.
- Compact size: 154 × 79 × 38 mm (excluding antenna and knob).
- Lightweight, easy to carry in a pocket or bag.
8. Wide Frequency Coverage & Applications
- 30 MHz – 6000 MHz covers:
- Drone remote control and video links (2.4 GHz, 5.8 GHz)
- Walkie‑talkies, mobile phones, base stations
- Hidden cameras, wireless bugs, jammers
- Wi‑Fi, Bluetooth, 5G signals
- Explicitly supports drone signal detection as a pre‑configured example (see 5.8 GHz monitoring).

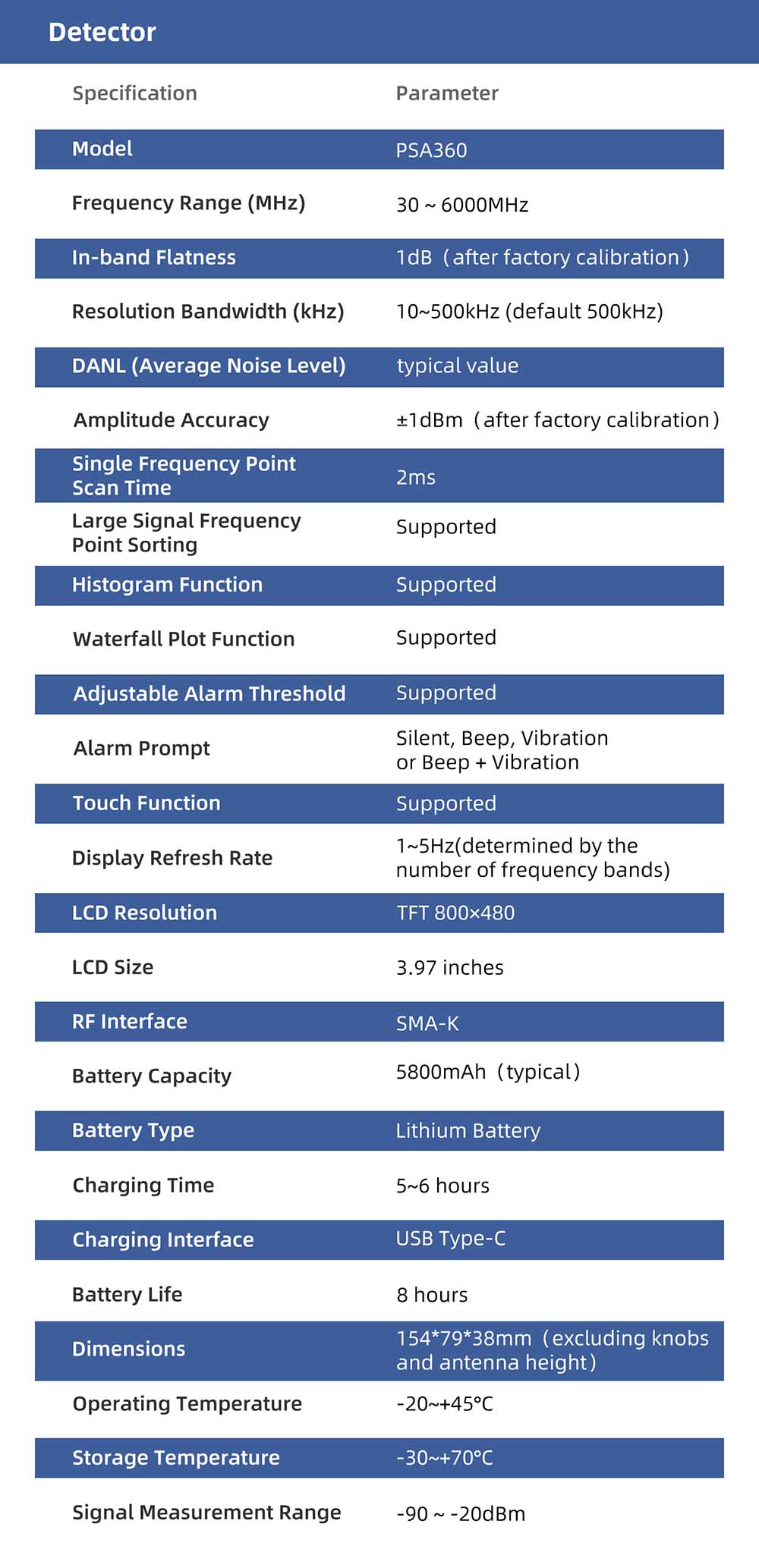

drone Signal Detector Technical Specifications
| Parameter | Value |
|---|---|
| Model | PSA360 |
| Frequency range | 30 MHz – 6000 MHz |
| In‑band flatness | ±1 dB (factory calibrated) |
| RBW | 10 – 500 kHz (default 500 kHz) |
| DANL (noise floor) | -110 dBm (typical) |
| Amplitude accuracy | ±1 dBm (factory calibrated) |
| Single frequency sweep time | 2 ms |
| Signal measurement range | -90 dBm to -20 dBm |
| Display | 3.97″ TFT LCD, 800×480, touchscreen |
| Display refresh rate | 1–5 Hz (depends on number of bands) |
| RF connector | SMA‑K (female) |
| Battery | 5800 mAh lithium, up to 8 hours |
| Charging | USB Type‑C, 5V/1A, charging time 5–6 hours |
| Dimensions | 154 × 79 × 38 mm (excluding antenna/knob) |
| Operating temperature | -20°C to +45°C |
| Storage temperature | -30°C to +70°C |
drone Signal Detector Applications
- Drone signal detection – locate and track drones by monitoring their 2.4 GHz / 5.8 GHz control and video links.
- Counter‑surveillance – find hidden wireless cameras, audio bugs, or other unauthorized transmitters.
- Spectrum management – identify interference sources, test wireless coverage, detect jammers.
- On‑site RF troubleshooting – verify presence of walkie‑talkie, mobile, or base station signals.
- Production line testing – batch testing of RF devices.
What’s in the Box (Typical)
- PSA360 Handheld Signal Detector
- Antenna (suitable for 30 MHz – 6 GHz)
- USB Type‑C charging cable
- Quick start guide
- Protective carrying case (optional)
Why Choose drone Signal Detector PSA360?
| Traditional Approach | PSA360 Advantage |
|---|---|
| Expensive, heavy lab spectrum analyzers | Compact, affordable, handheld |
| Requires expert training | Easy “turn on and go” operation |
| No built‑in alarm or distance estimation | Real‑time audible/vibration alerts + trend analysis |
| Hard to spot intermittent signals | Waterfall plot reveals history at a glance |
| Separate devices for different bands | One unit covers 30 MHz – 6 GHz |
Conclusion
The PSA360 Handheld Signal Detector is a powerful yet simple tool for anyone who needs to detect, visualize, and locate wireless signals in the field. Whether you are securing a facility against drones, searching for hidden cameras, or troubleshooting RF interference, the PSA360 gives you professional‑grade insight in a pocket‑sized, battery‑powered device.
Key Advantages of PSA360 Handheld drone Signal Detector
1. All‑in‑One Spectrum Analysis
- Built on a true spectrum analyzer core, not just a simple power meter.
- Combines real‑time bar graph, waterfall plot, top‑5 signal sorting, and distance estimation on a single screen.
2. Intuitive & Easy to Use
- “Silly‑proof” operation – turn on and go with default settings.
- High‑resolution 3.97‑inch touchscreen (800×480) for clear visualization.
- Walkie‑talkie style design, lightweight and handheld.
3. Flexible Band Configuration
- Up to 20 configurable frequency bands.
- Each band can have its own number of bins (resolution).
- Total bins up to 100 for detailed spectral views.
4. Advanced Signal Analysis Tools
- Waterfall plot with color‑mapped historical signal strength.
- Purple bar overlay shows signal standard deviation (fluctuation intensity).
- Distance estimation – indicates whether a signal source is approaching or moving away.
- Top 5 strongest signals displayed with frequency and power.
5. Adjustable Alarm & Multiple Alert Modes
- Alarm threshold adjustable from -90 dBm to -20 dBm (1 dB step).
- Four alert modes: silent, buzzer, vibration, or buzzer+vibration.
- Alarm sound/vibration becomes faster as signal exceeds the threshold.
6. Long Battery Life & Smart Power Management
- 8 hours of continuous operation on a full charge.
- Built‑in 5800 mAh lithium battery.
- Screen can be turned off while the device continues to work – saves power for covert or extended use.
7. Convenient Charging & Portability
- USB Type‑C charging (5V/1A) – works with power banks, laptops, or standard chargers.
- Compact size: 154×79×38 mm, easy to carry.
8. Wide Application Range
- Covers 30 MHz to 6 GHz – suitable for drones, walkie‑talkies, mobile phones, base stations, jammers, covert cameras, and more.
- Specifically includes drone signal detection as a built‑in example (e.g., monitoring 5.8 GHz video links).
9. Rugged & Reliable
- Operating temperature: -20°C to +45°C.
- SMA‑K RF connector for external antennas.
- Factory calibrated with ±1 dBm amplitude accuracy.
Short Pitch (Ideal for Brochure or Sales)
“The PSA360 is a compact, handheld spectrum analyzer that combines real‑time bar graphs, waterfall plots, signal ranking, and distance estimation in one easy‑to‑use device. With 30 MHz to 6 GHz coverage, up to 20 configurable bands, adjustable alarms, and 8‑hour battery life, it is perfect for drone detection, spectrum monitoring, and wireless site surveys – all at a fraction of the cost of traditional equipment.”
