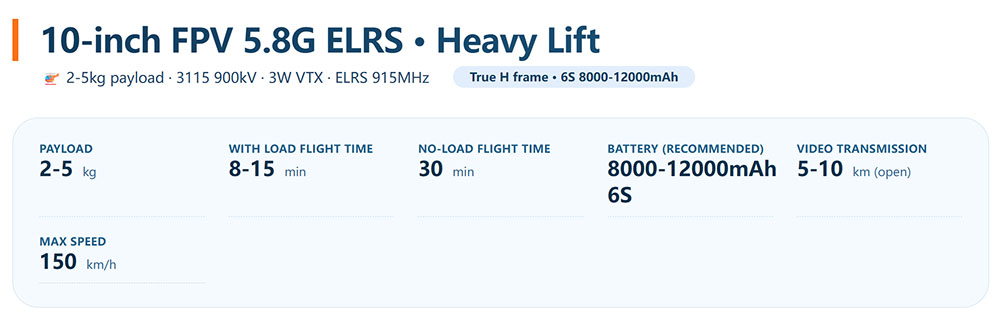

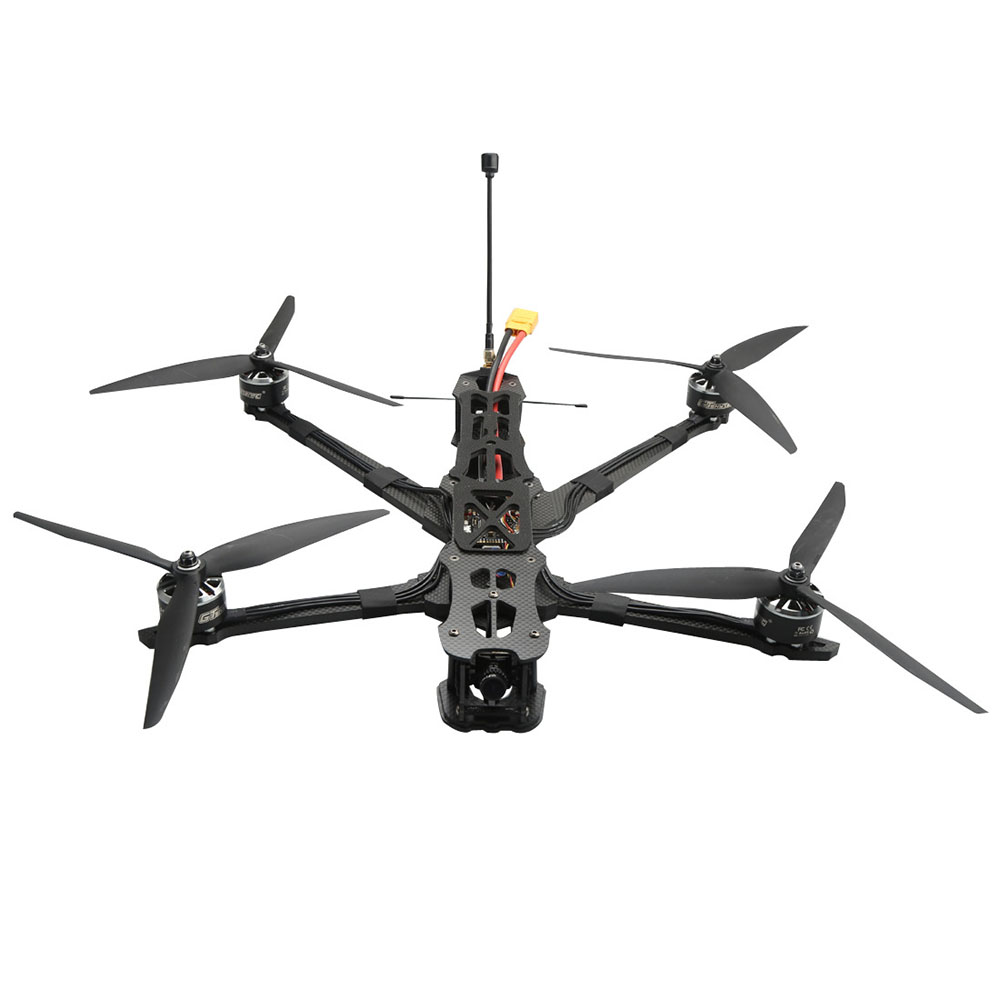

FPV Drone 2‑5kg payload · 3115 900kV · 3W VTX · ELRS 915MHz
True H frame · 6S 8000‑12000mAh
FPV Drone Payload2‑5 kgWith load flight time8‑15 minNo‑load flight time30 minBattery (recommended)8000‑12000mAh 6SVideo transmission5‑10 km (open)Max speed150 km/h

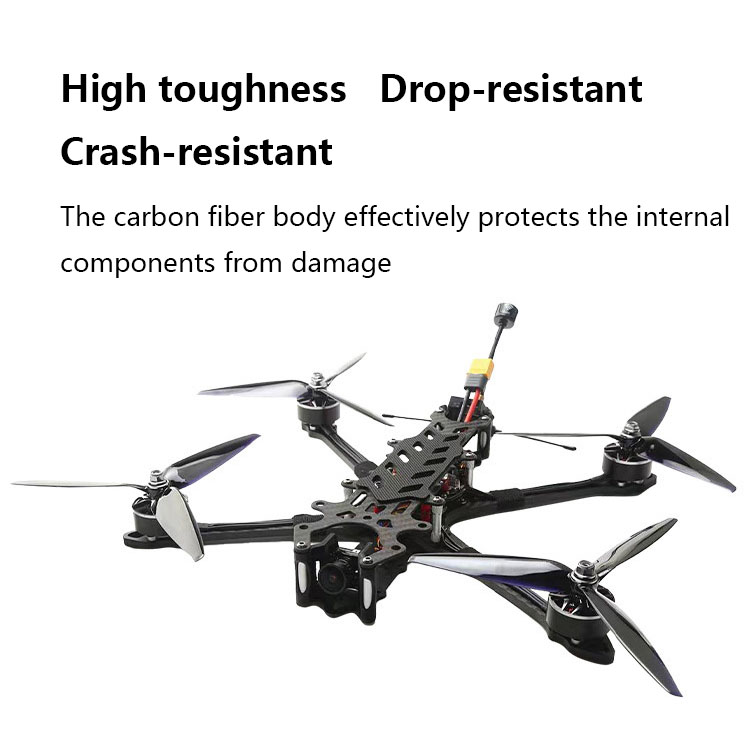

FPV Drone Frame – 10″ True H
| Structure |
True H |
| Wheelbase |
427 mm |
| Bottom plate thickness |
2 mm |
| Arm thickness |
7 mm |
| Camera spacing |
20 mm |
| Stack mounting hole |
M3 * 30.5 mm |
| VTX mounting hole |
M2*20 / 25.5 & M3*30.5 mm |
| Max propeller size |
10.0 inch |
| Motor mounting hole |
16×16 mm / 19×19 mm |
| Dimensions (folded?) |
21.6×5 cm / 22.3×10.8 cm |
FPV Drone Motor – 3115 900KV
| KV value |
900 RPM/V |
| Max current |
65 A (inferred) |
| No‑load current |
1.28 A @ 12V |
| Phase resistance |
38 mΩ |
| Max continuous current |
64.7 A |
| Max power |
1617 W |
| Max thrust |
4185 g |
| Motor dimensions |
Φ37.1 × 32.1 mm |
Flight Controller – F405
| Size |
37 × 37 mm |
| Mounting holes |
30.5 × 30.5 mm |
| Buzzer |
B- (negative) ; B+ positive |
| RC |
Receiver SmartPort interface |
| Rssi |
RSSI signal input port |
FPV Drone ESC – 65A 6S (4IN160V1)
| Model |
BLHeil_S4IN160V1 |
| Continuous current |
65 A |
| Burst current (10s) |
75 A |
| BEC |
No |
| Current sensor |
Yes |
| Weight |
21.5 g |
| Size |
37 × 42.7 mm |
| Mounting holes |
30.5 × 30.5 mm |
Camera – GT-E2 Night Vision
| Model |
GT-E2 |
| Image sensor |
1/3″ CMOS |
| Resolution |
1280H × 720V |
| TV system |
NTSC/PAL switchable |
| Supported voltage |
5‑20V (typical) |
VTX – 3W 5.8GHz
| Supported voltage |
7‑28 V |
| BEC |
5V / 500 mA |
| Transmission power |
PIT / 25 mW / 3000 mW |
| Antenna interface |
MMCX |
| Channels |
A / B / E / F / R bands (40CH) |
| Audio/control |
SmartAudio |
| Mounting |
20×20 mm M2 |
| Dimensions |
25 × 37 × 6.5 mm |

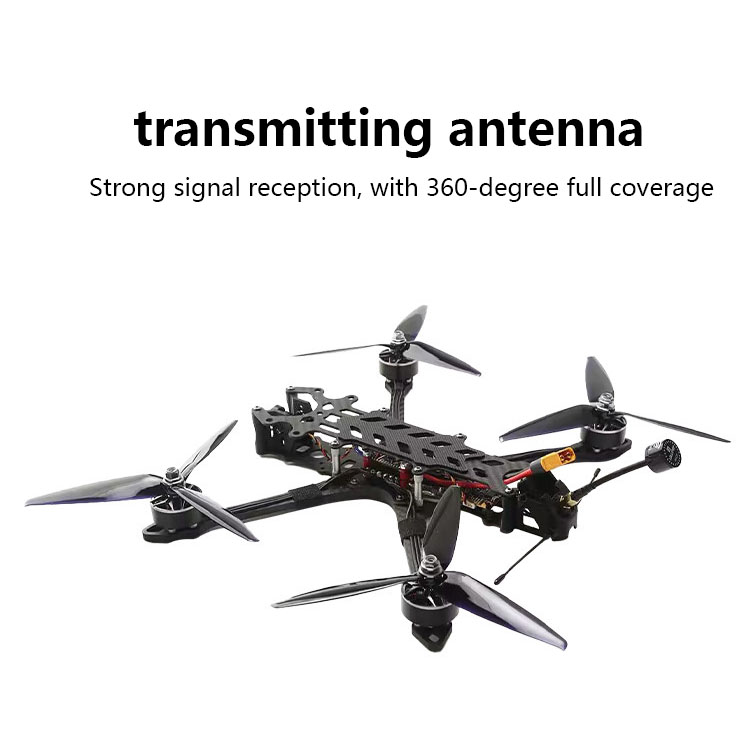

Receiver & Antenna – ELRS 915MHz
| Antenna type |
Lollipop 4+ Long 150mm |
| Processing chip |
ESP8285 |
| RF chip |
RX1276 / MLTRT |
| Operating current |
100 mA |
| Protocol |
CSRF |
| Frequency |
915MHz or 868MHz |
| Size (receiver) |
12 × 12 × 3 mm |
| Weight (no antenna) |
0.6 g |
| Antenna connector |
IPEX1 |
| Firmware update |
WiFi |
