Description

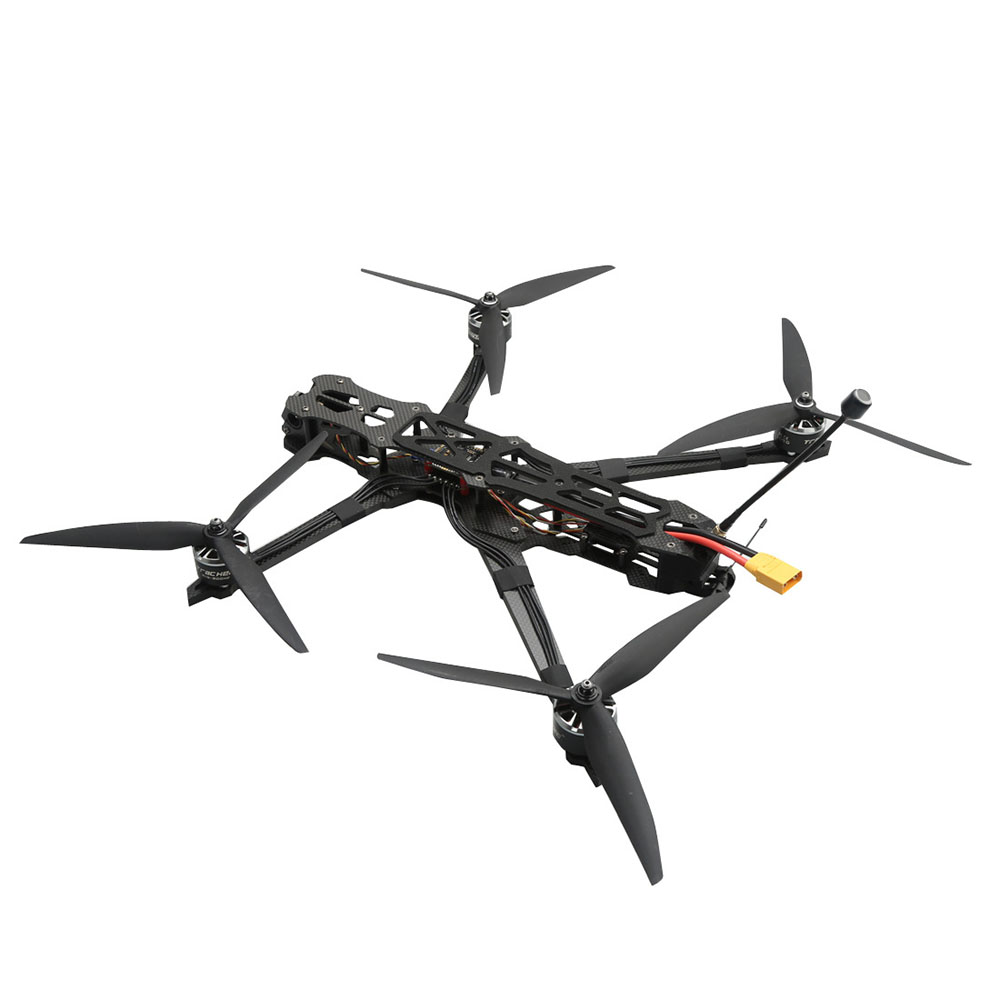

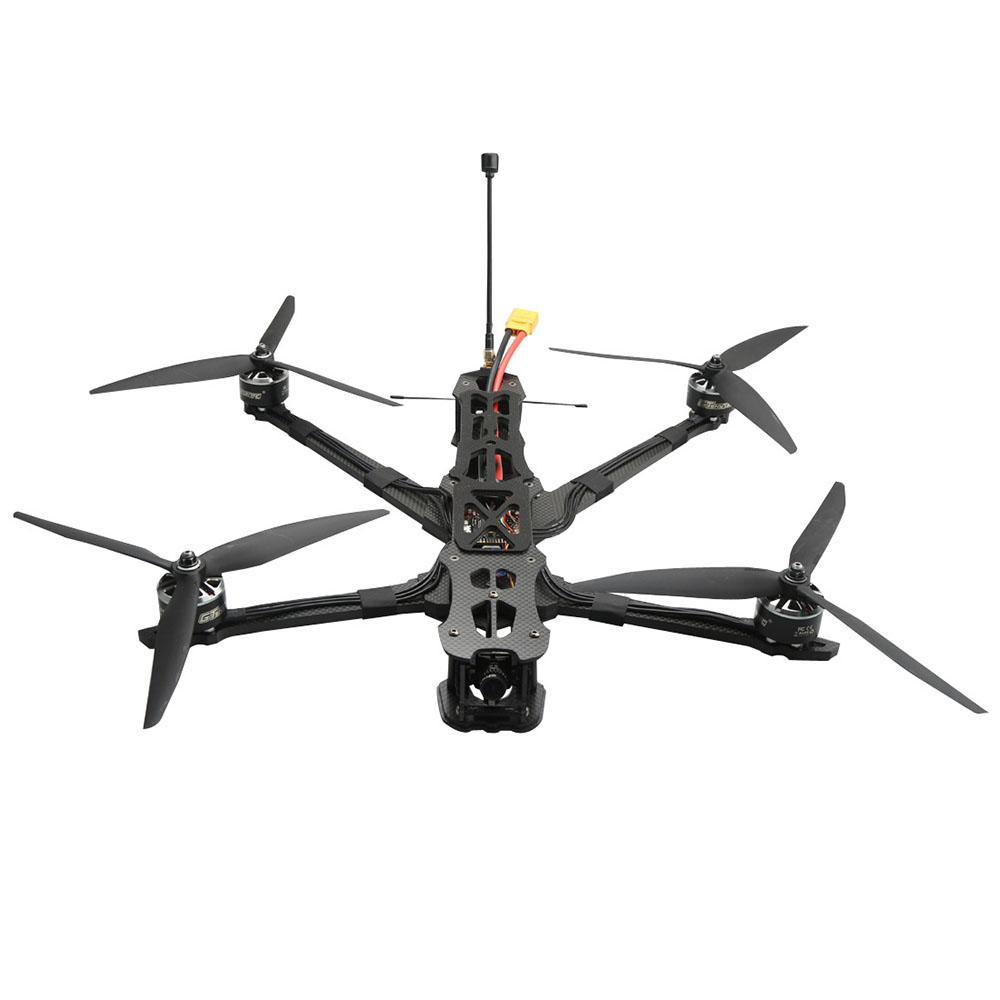

15‑inch FPV Drone 5.8G ELRS · Heavy Lift with Camera
the FPV Drone with Camera is cheap for diy and military，it has Fast flying speed, long flying distance.
PV Drone 5‑8kg payload · 42138 380kV · 4W VTX · 110A ESC · 8S ready
22000mAh 8S · 5‑20km range
Payload5‑8 kg With load flight time8‑15 minBattery (recommended)22000mAh 8S 29.6VFlight distance5‑20 km Max speed100 km/h
FPV Drone Frame – 15‑inch
| Wheelbase |
680 mm |
| Bottom plate thickness |
3 mm |
| Top plate thickness |
2 mm |
| Carbon plate material |
T700 |
| Electronics layer height |
25 mm |
| Arm thickness |
7 mm |
| Camera spacing |
20 mm |
| Stack mounting hole |
M3 * 30.5 mm |
| VTX mounting hole |
M2*20 / 25.5 & M3*30.5 mm |
| Max propeller size |
10.0 inch (frame spec, but 15″ props used) |
| Motor mounting hole |
16×16 mm / 19×19 mm |
| Top plate size |
33.5 × 6.5 cm |
| Bottom plate size |
33.5 × 6.5 cm |
FPV Drone Motor – 42138 380KV
| KV value |
380 RPM/V |
| Operating voltage |
6‑8S |
| No‑load current |
2.8 A @ 20 V |
| Phase resistance |
50 mΩ |
| Motor weight |
289 g |
| Max current |
60 A |
| Max power |
1800 W |
| Max thrust |
5150 g |
| Motor dimensions |
Φ49 × 40.1 mm |
FPV Drone Flight Controller – F722
| MCU |
STM32F722RET6 |
| Gyroscope |
ICM42688 |
| Barometer |
DPS310 or SPL06 |
| Blackbox |
16 MB |
| OSD chip |
AT7456 |
| BEC |
5V @ 2A, 9V @ 2A |
| Input voltage |
12‑50 V (3‑6S LiPo recommended) |
| Firmware |
Betaflight |
| Serial ports |
6 |
| Supported motors |
M1 – M8 |
| Size (PCB) |
40.6 × 40.6 × 9.8 mm |
| Weight |
19.6 g |
| Mounting holes |
30.5 mm / M3 |
ESC – 110A 8S (Q H 40_24_V0.19.2)
| Firmware |
Q H 40_24_V0.19.2 |
| Current ratio value |
200 |
| Input voltage |
4‑6S (rated 8S capable) |
| Continuous current |
110 A |
| Burst current (10s) |
120 A |
| ESC telemetry |
Not supported |
| BEC |
Not supported |
| Size |
57 × 56 × 6 mm |
| Mounting holes |
30.5 × 30.5 mm |
| Weight |
28 g |
Camera – GT-E2 Night Vision
| Model |
E2 |
| Image sensor |
1/3″ CMOS |
| Resolution |
1280H × 720V |
| TV system |
NTSC/PAL switchable |
| Menu support |
Yes |
| Image aspect |
16:9 |
| Synchronization |
Internal electronic |
| Electronic shutter |
PAL 1/50‑100,000 ; NTSC 1/60‑100,000 |
| S/N ratio |
>52 dB (AGC OFF) |
| Video output |
CVBS |
| Lens |
2.1 mm / D160 |
| Min. illumination |
0.01 lux @ F1.2 |

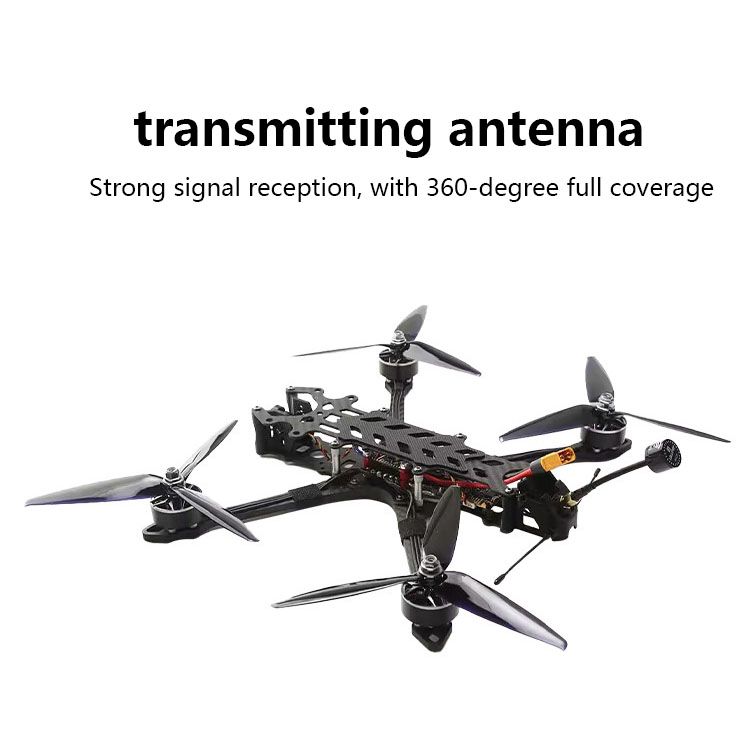

VTX – 4W 5.8GHz
| Supported voltage |
7‑28 V |
| BEC |
5V / 500 mA |
| Transmission power |
25 mW (13.95 dBm) / 4000 mW (34.04 dBm) |
| Antenna interface |
MMCX |
| Output power modes |
PIT / 25 mW / 4000 mW |
| Standard channels |
40CH (A/B/E/F/R bands) |
| Protocol |
SmartAudio |
| Mounting holes |
20 × 20 mm M2 |
| Size |
25 × 37 × 6.5 mm |
| Weight |
19 g |
Propellers – 15x7x3 (three‑blade)
| Type |
15X7X3 |
| Blades |
3 |
| Material |
Fiberglass Nylon |
| Pitch |
8 inch (as per table) / 7 inch (model) – verify |
| Center hole inner diameter |
6 mm |
| Weight |
39 g |
