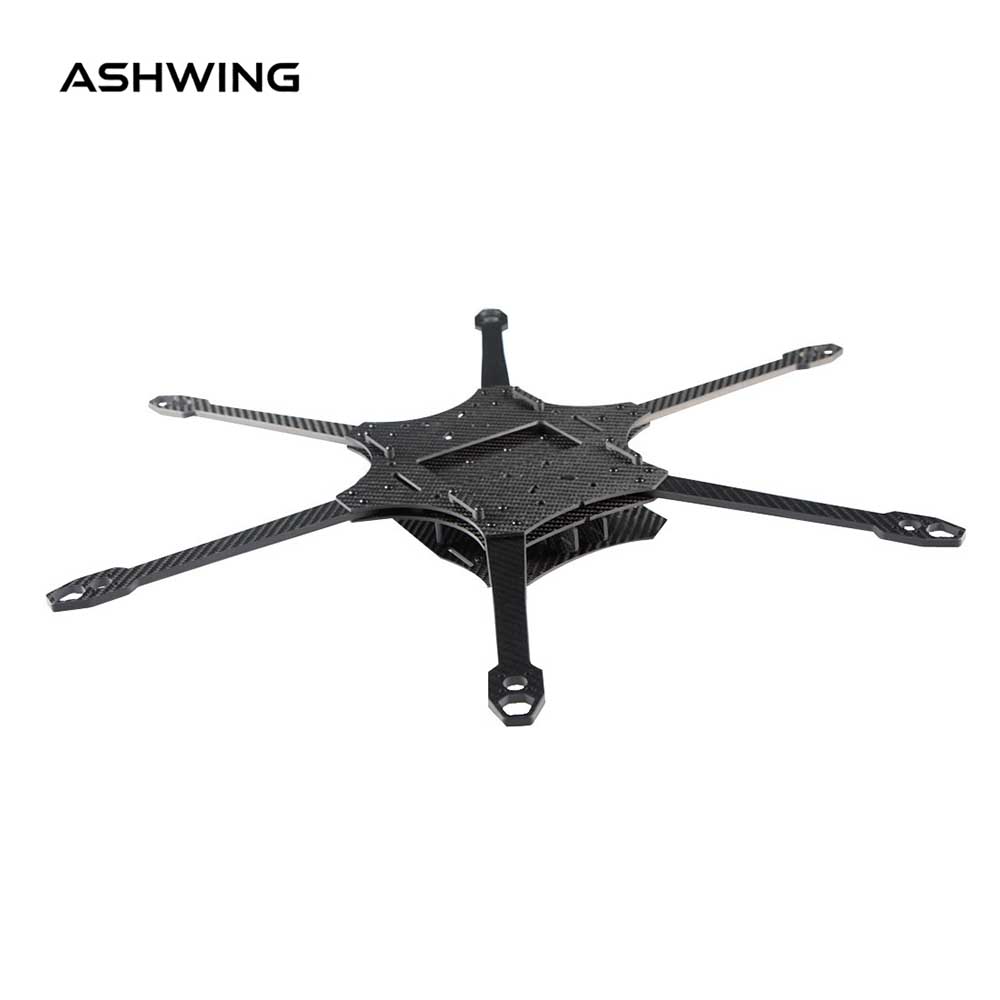

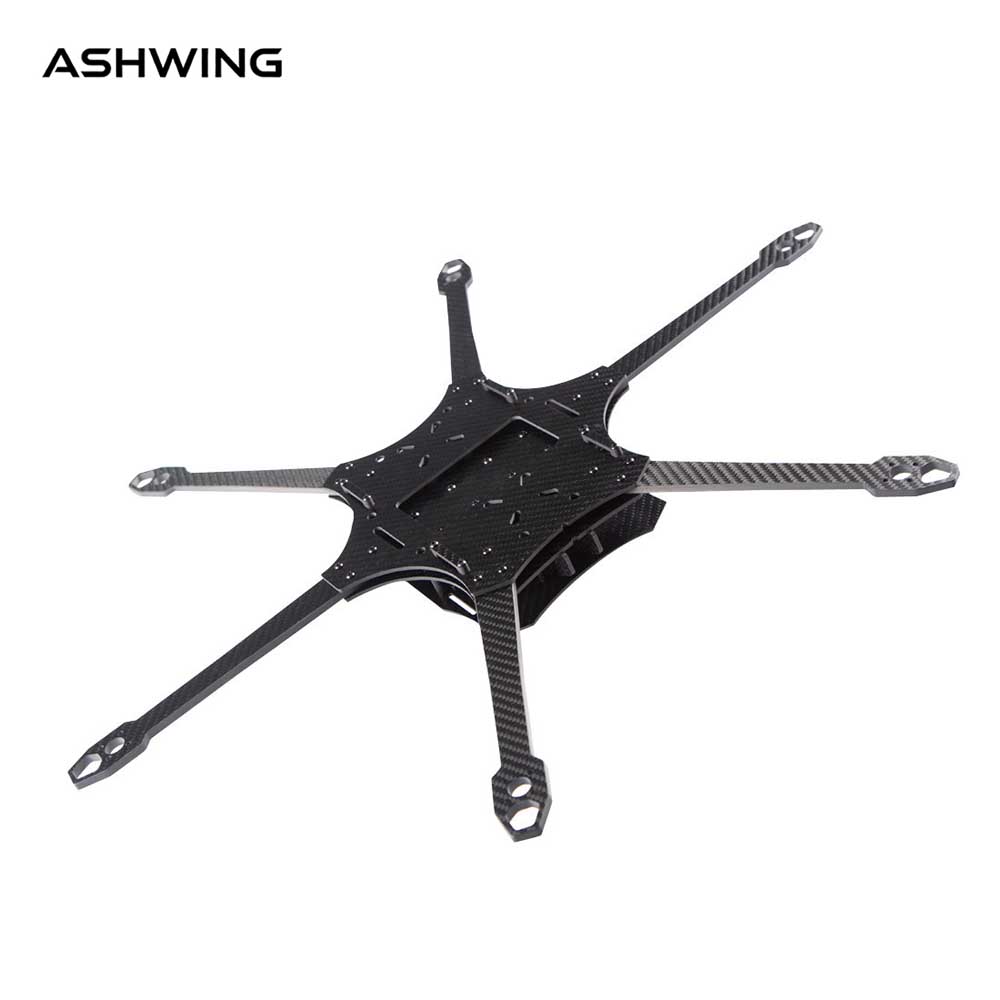

GX-V6 10inch 6-Axis Carbon Fiber fpv drone frame – Heavy-Lift Hexacopter for Long-Range FPV & Industrial UAVs Product Overview
The GX-V6 10inch fpv drone frame is a professional-grade 6-axis (hexacopter) carbon fiber frame engineered for demanding FPV and industrial applications. With a 550mm wheelbase and lightweight yet rigid construction, it provides exceptional stability and payload capacity for long-range FPV, aerial photography, mapping, and industrial UAV missions. The modular design supports multiple mounting patterns for flight controllers, cameras, and motors, offering maximum flexibility for custom builds.
Key Features
- 6-Axis Hexacopter Design – Redundant motor configuration for enhanced safety and lifting capability.
- Optimized for 10-Inch Propellers – Perfect balance of efficiency and thrust for medium to heavy payloads.
- Lightweight Carbon Fiber Construction – High-strength 2mm plates throughout for durability without excess weight.
- Versatile Component Mounting:
- Motors: 16×16mm & 19×19mm patterns
- Flight Controller: 20×20mm & 30.5×30.5mm
- VTX: 20×20mm & 30.5×30.5mm
- Camera: 19mm horizontal spacing
- Ample Internal Space – 25mm aluminum standoffs provide clean routing for electronics.
- Fiber Optic Ready – Designed to accommodate fiber optic transmission systems for long-range video.
fpv drone frame Technical Specifications
| Parameter | Value |
|---|---|
| Model | GX-V6 6-Axis |
| Frame Type | Hexacopter (X6 configuration) |
| Material | Carbon Fiber |
| Wheelbase | 550mm |
| Dimensions | 456 × 456 × 60mm |
| Top Plate Thickness | 2mm |
| Middle Plate Thickness | 2mm |
| Bottom Plate Thickness | 2mm |
| Arm Thickness | 5mm |
| Motor Mounting Hole Spacing | 16×16mm & 19×19mm |
| Camera Mounting Spacing | 19mm |
| Flight Controller Mounting | 20×20mm & 30.5×30.5mm |
| VTX Mounting Hole Spacing | 20×20mm & 30.5×30.5mm |
| Standoff Height | 25mm |
| Supported Propeller Size | 10 inches |
| Packing List | 1 × Frame Kit, 1 × 3D Printed Accessories |
fpv drone frame Recommended Configuration (Not Included)
| Component | Recommended Specifications |
|---|---|
| Motor | 3115 / 3210 / 3214 |
| ESC | 60A – 80A |
| Flight Controller | F405 / F722 / F435 |
| VTX / Image Transmission | 1.2G / 3.3G / 5.8G |
| Battery | 6S–8S LiPo, 10000mAh – 22000mAh |
| Propeller | 10 inches |

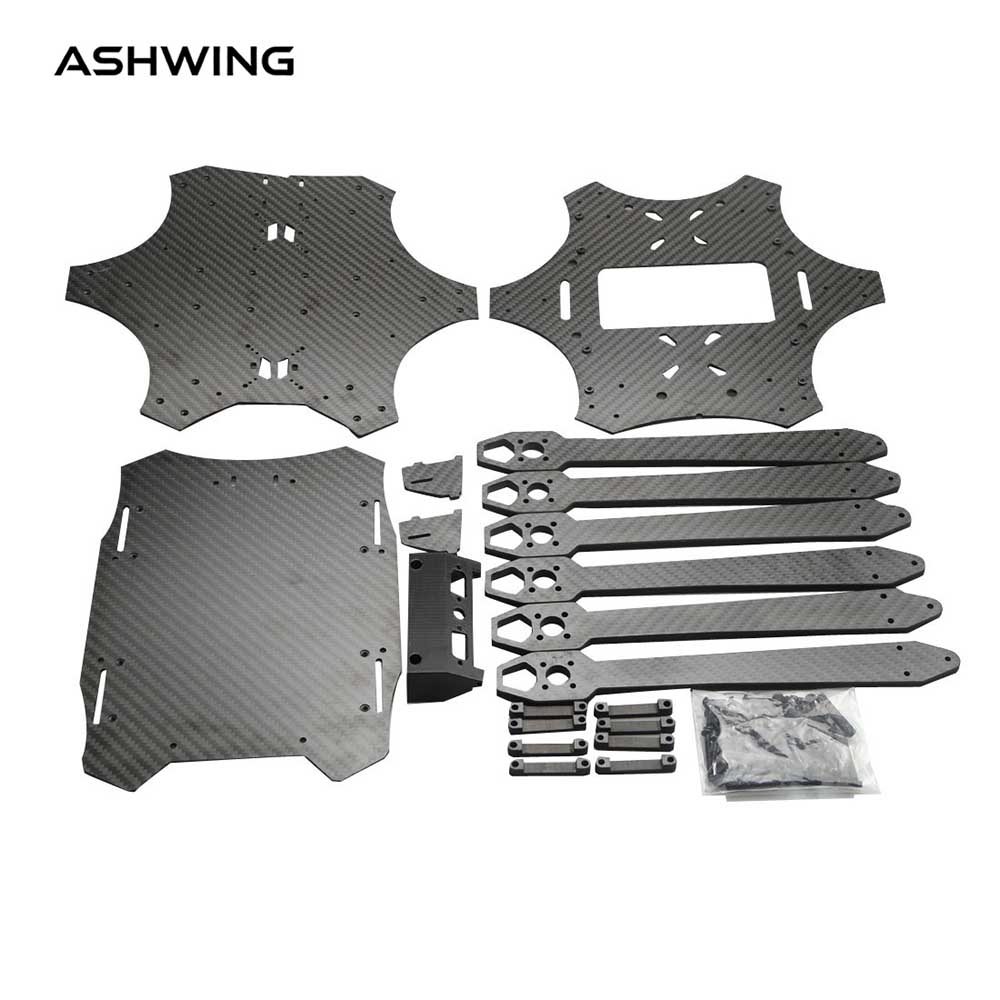

Package Includes
- 1 × GX-V6 6-Axis 10″ Carbon Fiber Frame Kit
- 1 × 3D Printed Accessories Set
- (Electronics, motors, and hardware not included)
The GX-V6 10inch hexacopter fpv drone frame is the ideal foundation for professional pilots and industrial operators seeking a stable, redundant, and versatile platform for long-range FPV, aerial work, and heavy-lift applications.
- GX-V6-10 inch V6 six axis carbon fiber rack fiber optic long-range FPV
- unmanned aerial vehicle rack
- Model: GX-V6 6-axis
- Material: Carbon Fiber
- wheelbase:550mm
- Size: 456 * 456 * 60mm
- Top plate thickness: 2mm
- Medium plate thickness: 2mm
- Bottom plate thickness: 2mm
- Arm thickness: 5mm
- Motor installation hole spacing: 16×16/19x19mm
- Camera installation spacing: 19mm
- Flight control installation hole spacing: 20×20/30.5×30.5mm
- Installation hole spacing for image transmission: 20×20/30.5×30.5mm
- Aluminum column height: 25mm
- Recommended configuration: (not included)
- Motor: 3115 3210 3214
- Electric tuning: 60A-80A
- Flight Control: F405/F722/F435
- Image transmission: 1.2G/3.3G/5.8G
- Battery: 6S-8S-10000-22000MAH
- Packing list: 1 * TEARCKEP GX-V6 6-Axis 10 inch Carbon Fiber Rack Kit ,1 * 3D printed copy
