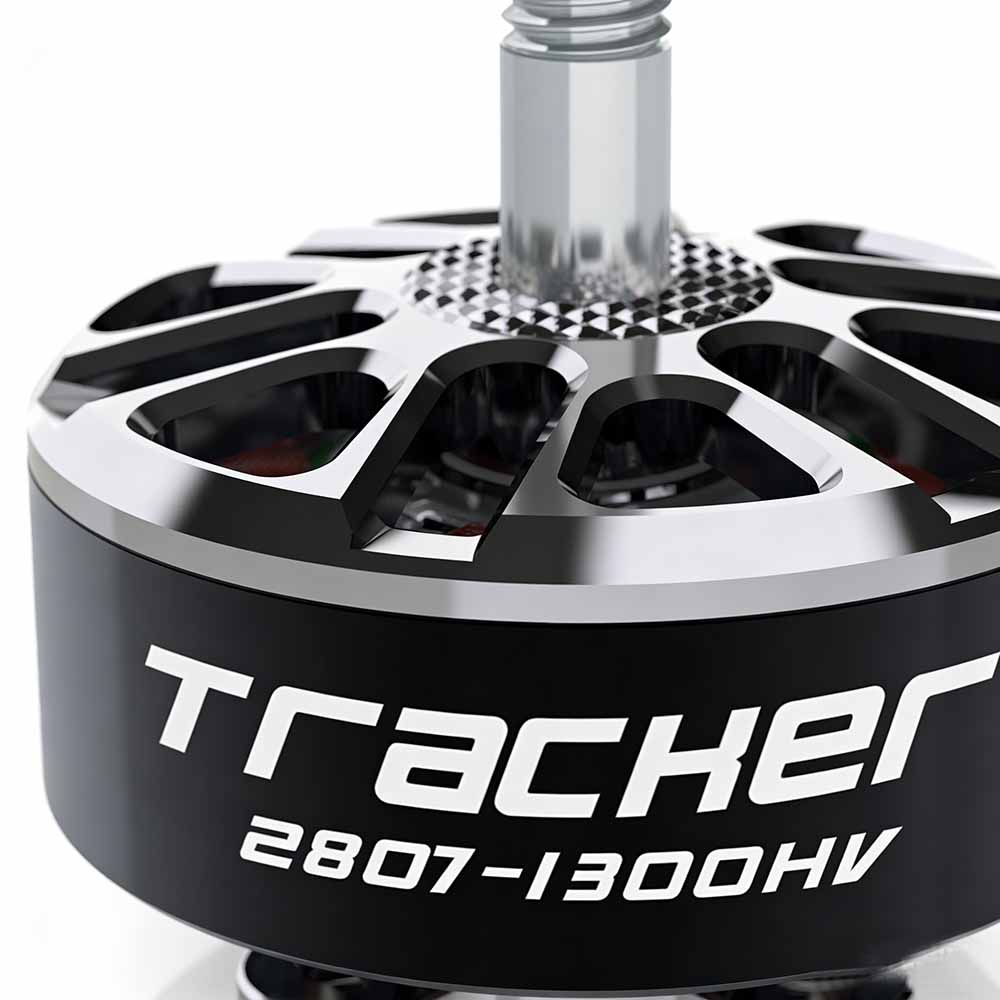

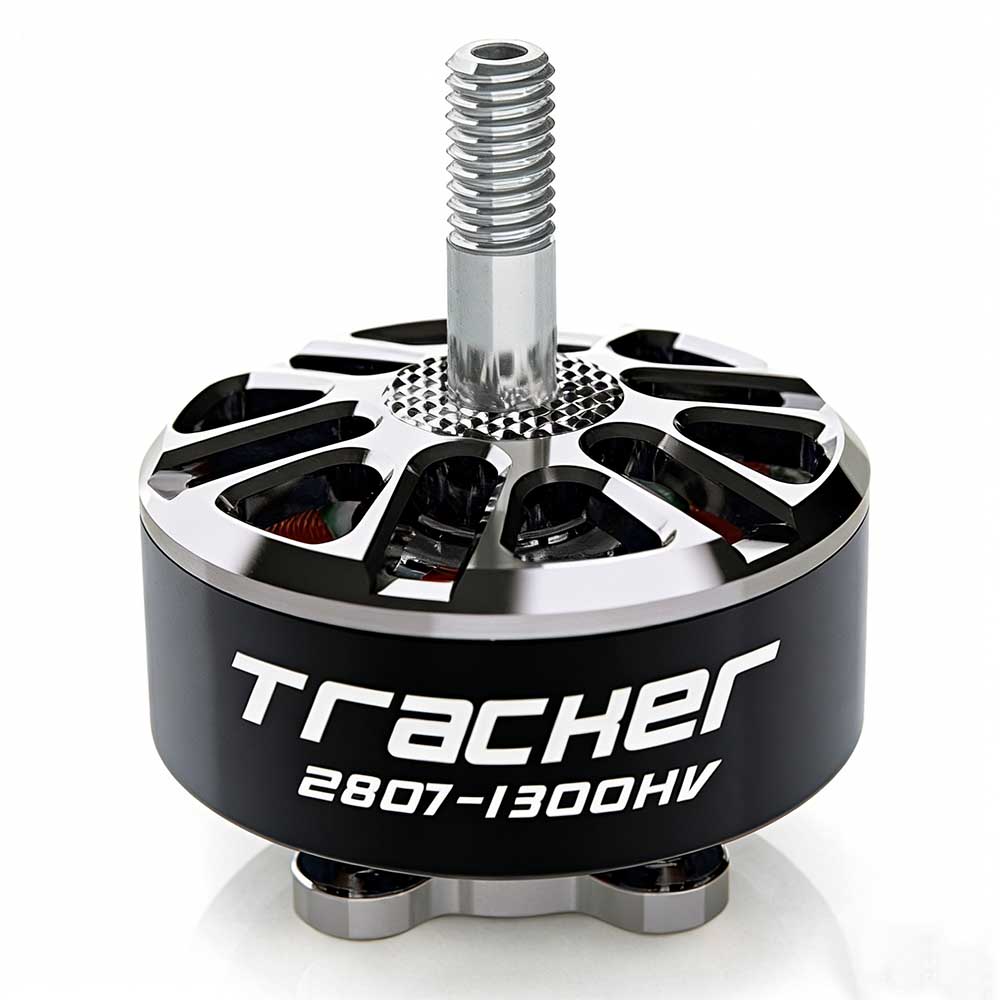

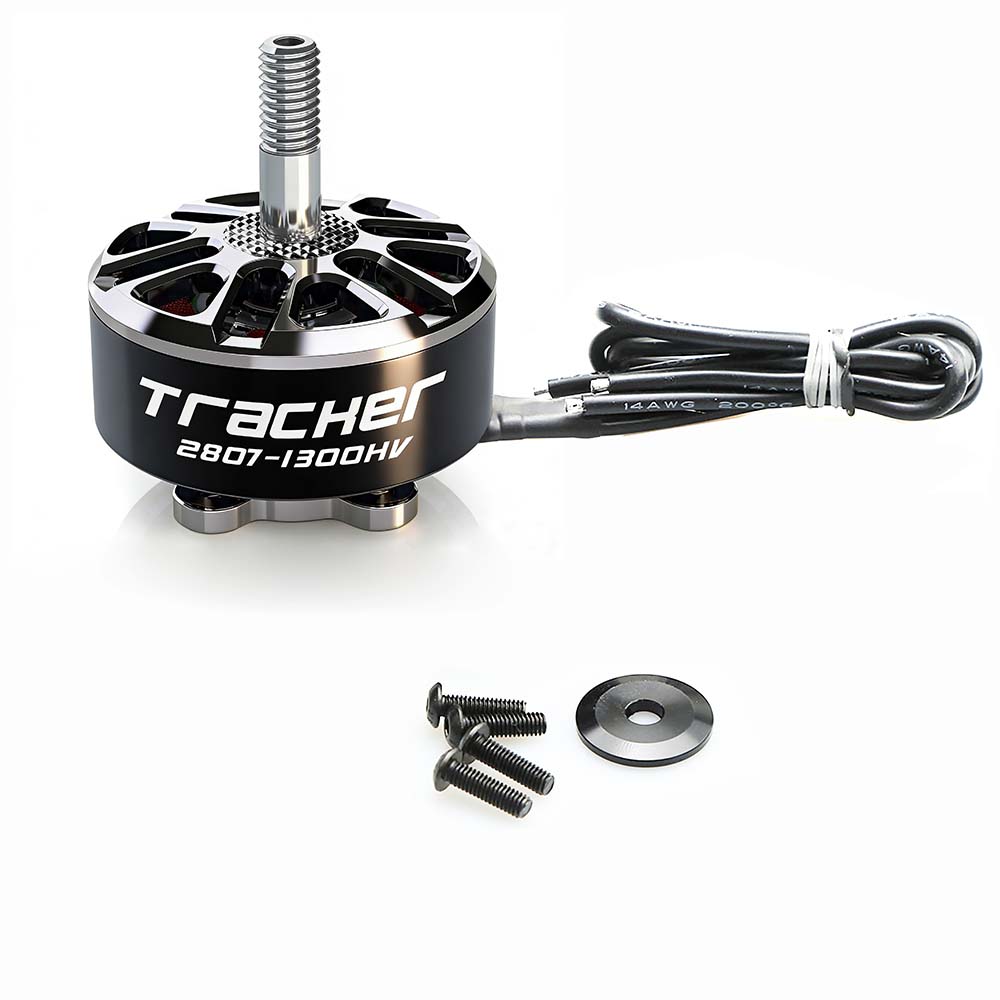

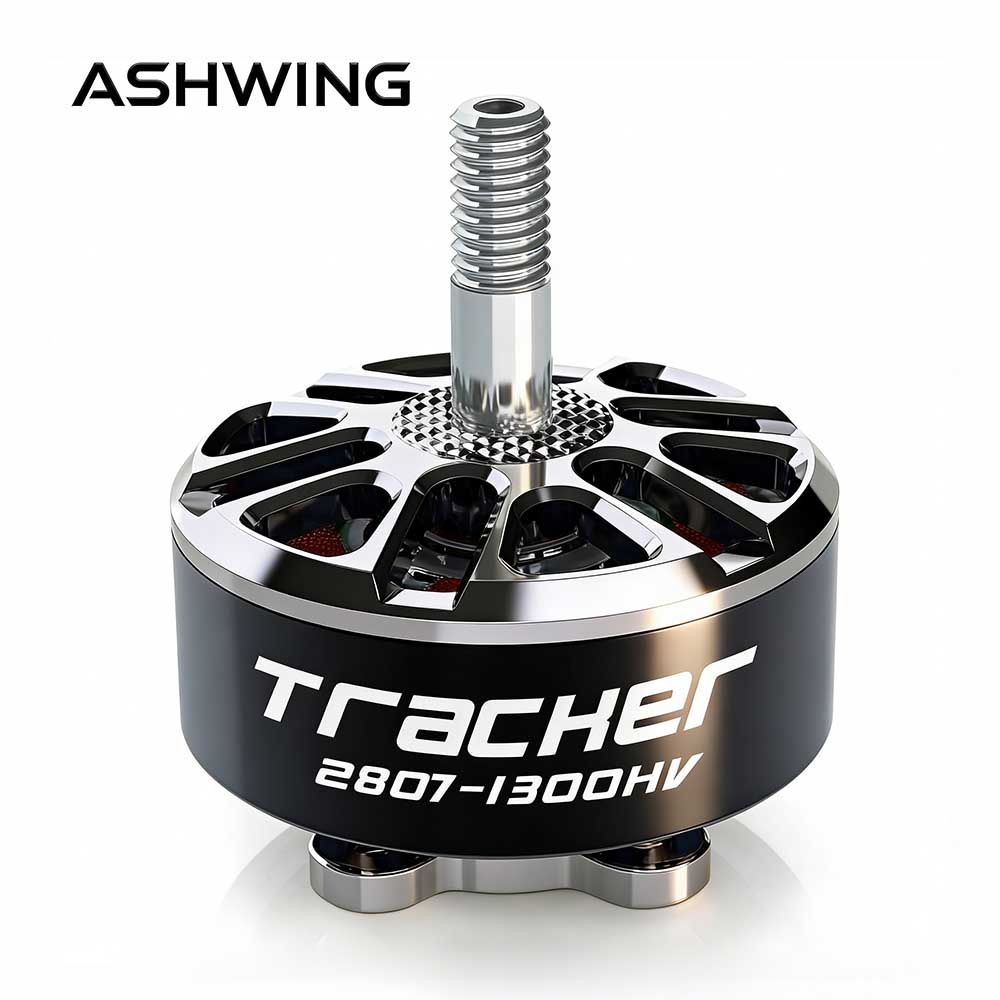

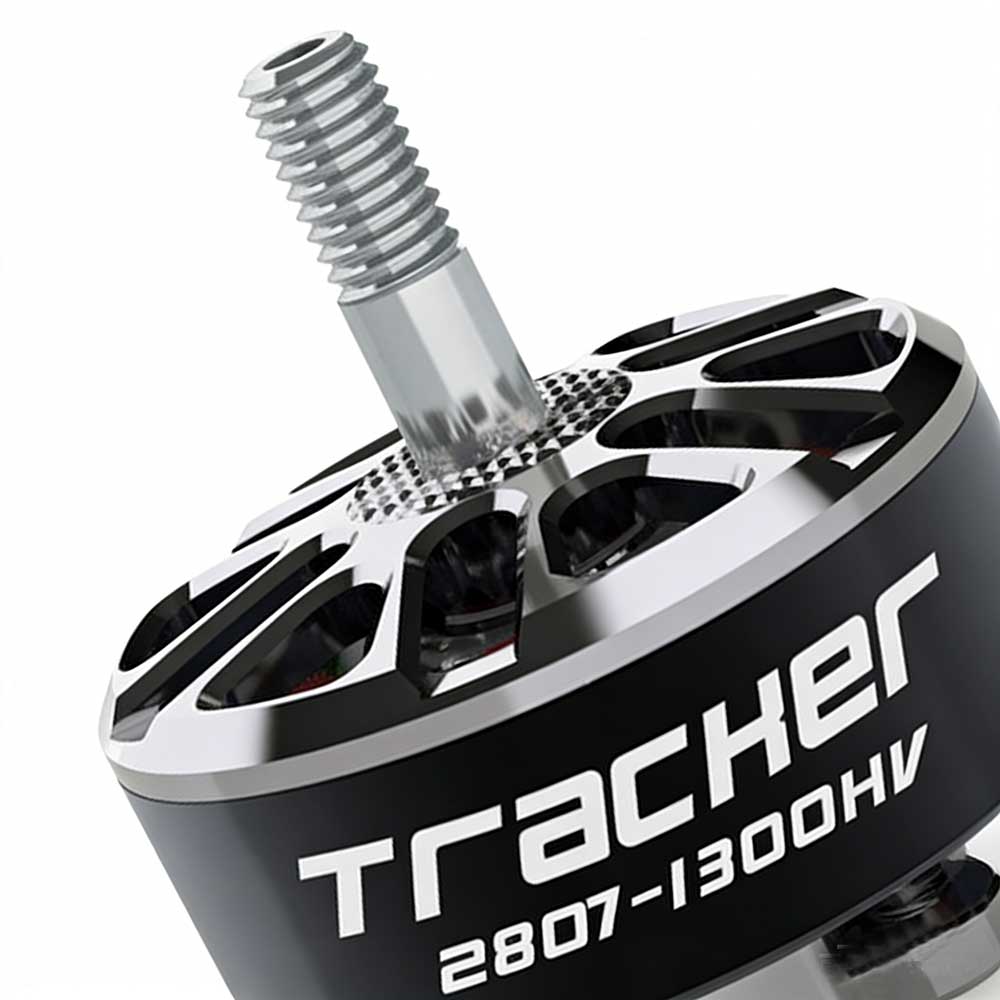

Product Name: 2807 1300KV FPV Brushless Motor for Drone
FPV Brushless Motor Key Features:
-
High Power Output: Delivers a maximum power of 1400W on 6S, providing explosive thrust for 5-7 inch FPV drones.
-
Wide Voltage Compatibility: Designed for 2S to 6S LiPo batteries, offering flexible setup options for various flying styles from cruising to high-speed freestyle.
-
Durable Construction: Features a 4mm bearing shaft and a 12N 14P high-torque motor architecture for reliable performance and durability.
-
Precision Engineering: Low internal resistance (60mΩ) ensures high efficiency and cooler operation during aggressive throttle punches.
FPV Brushless Motor Technical Specifications:
| Parameter | Value | Notes |
|---|---|---|
| Test Item / Model | 2807-1300KV | Stator: 28mm, Height: 7mm; KV: 1300 |
| Cell Count | 2S – 6S | Optimized for 4S-6S operation |
| Weight | 48.6g | (Without silicone wires) Lightweight for its power class |
| Bearing Shaft | 4mm | Standard shaft diameter for durability |
| Max Power | 1400W | @ 6S; Peak performance |
| Lead Wire | 18# AWG / 200mm | High-quality silicon wire for current handling |
| Dimensions | Φ33.5mm * 17.5mm | Stator diameter and magnet height |
| Idle Current | 1A | @ 10V |
| Propeller Range | 6″ – 7″ | Recommended prop size for optimal efficiency |
| Motor Framework | 12N 14P | 12 Slots, 14 Poles; common high-torque design |
| Peak Current | 55A | @ 6S (Continuous current may be lower) |
| Internal Resistance | 60mΩ | Low resistance for high efficiency |
Application Recommendation:
This motor is ideal for 5-7 inch FPV freestyle, long-range, and cinematic drones. The 1300KV variant is best suited for 6S setups, paired with a 40A-60A ESC and 5×3 or 6×4.5 propellers to balance thrust and efficiency.
- No.of cells: 2S-6S
- Weight:48.6g W/0 Silicone Wire
- Bearing Shaft:4mm
- Max.Power (6S):1400W
- Lead:18#AWG200mm
- Motor Dimensions:33.5mm*17.5mm
- Idle Current (10V):1A
- Propeller:6″-7″
- Framework:12N 14P
- Peak Current (6S):55A
- Internal Resistance:60mΩ
