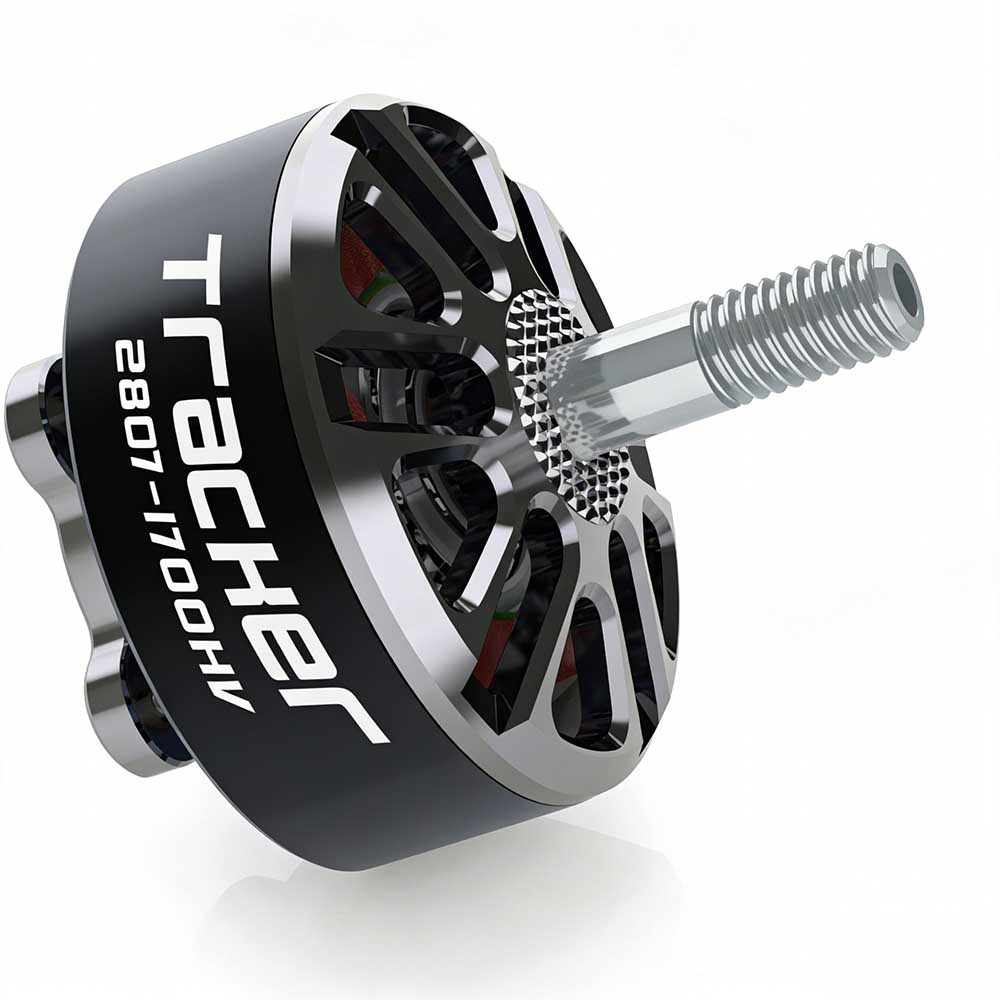

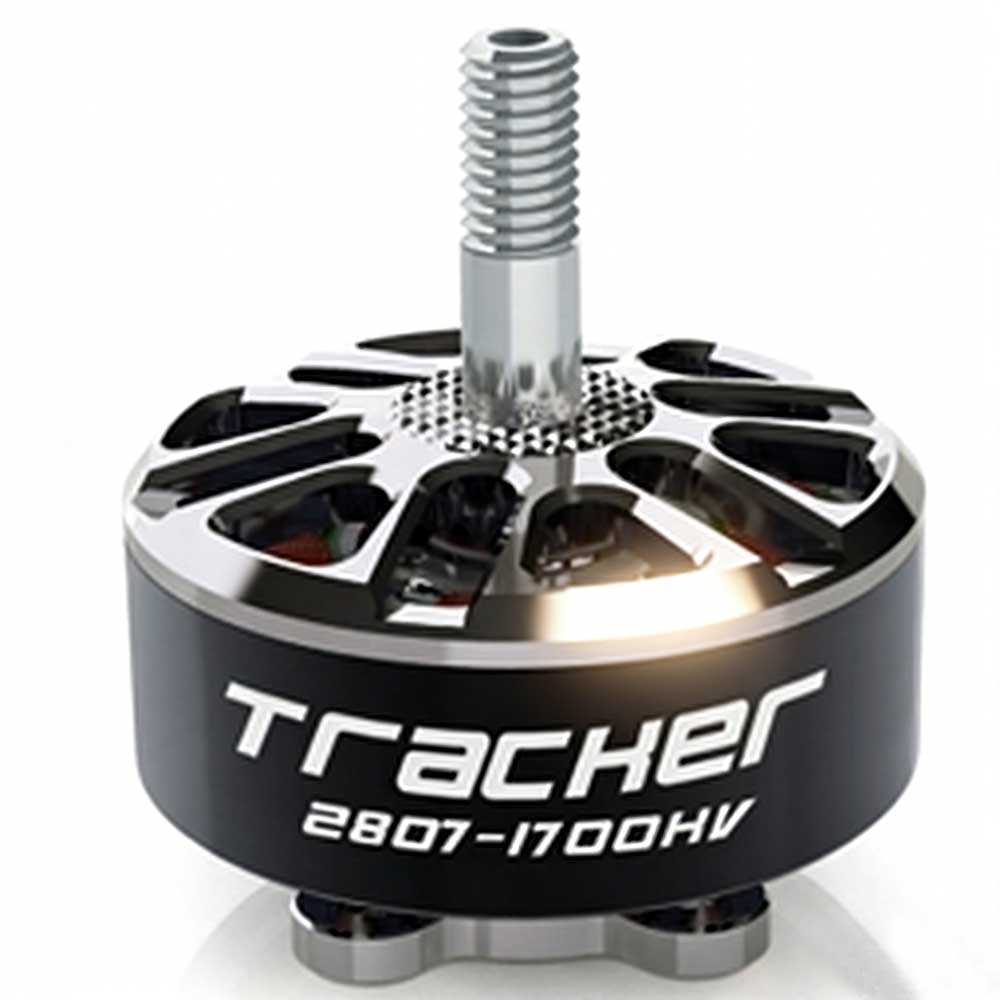

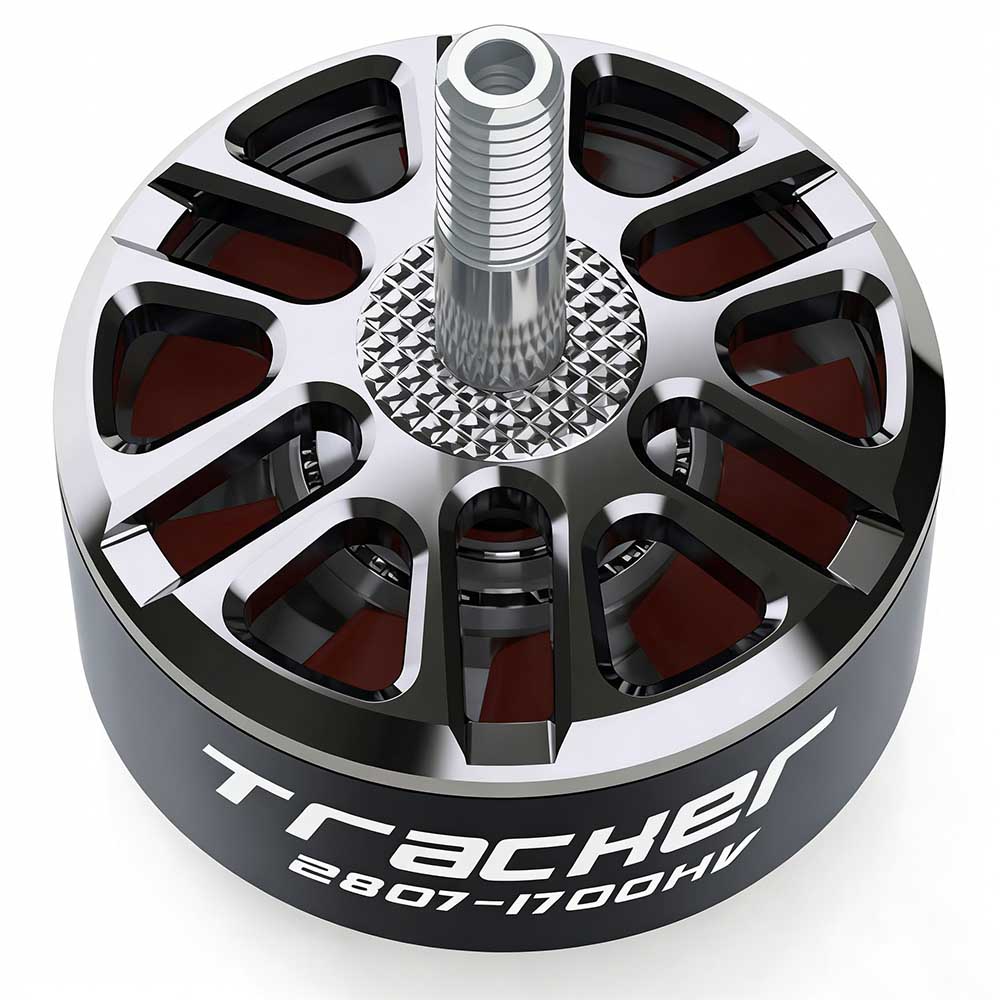

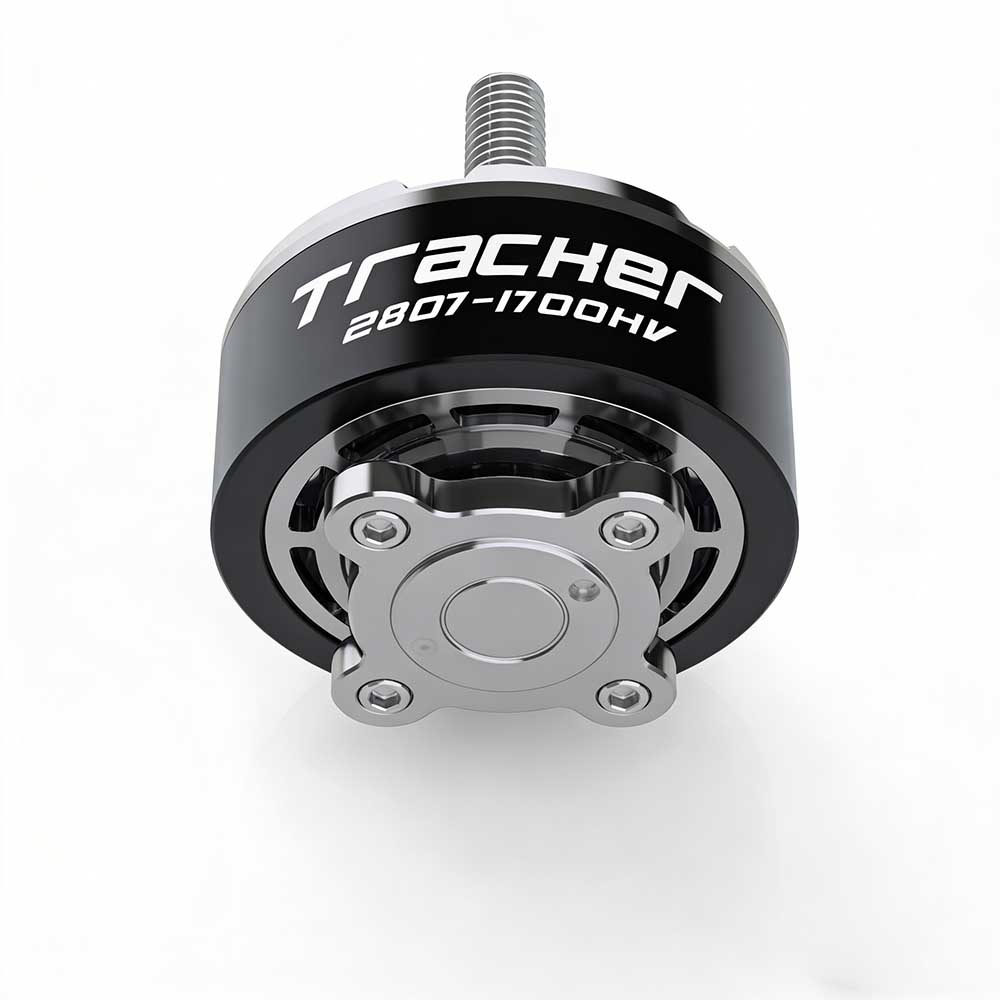

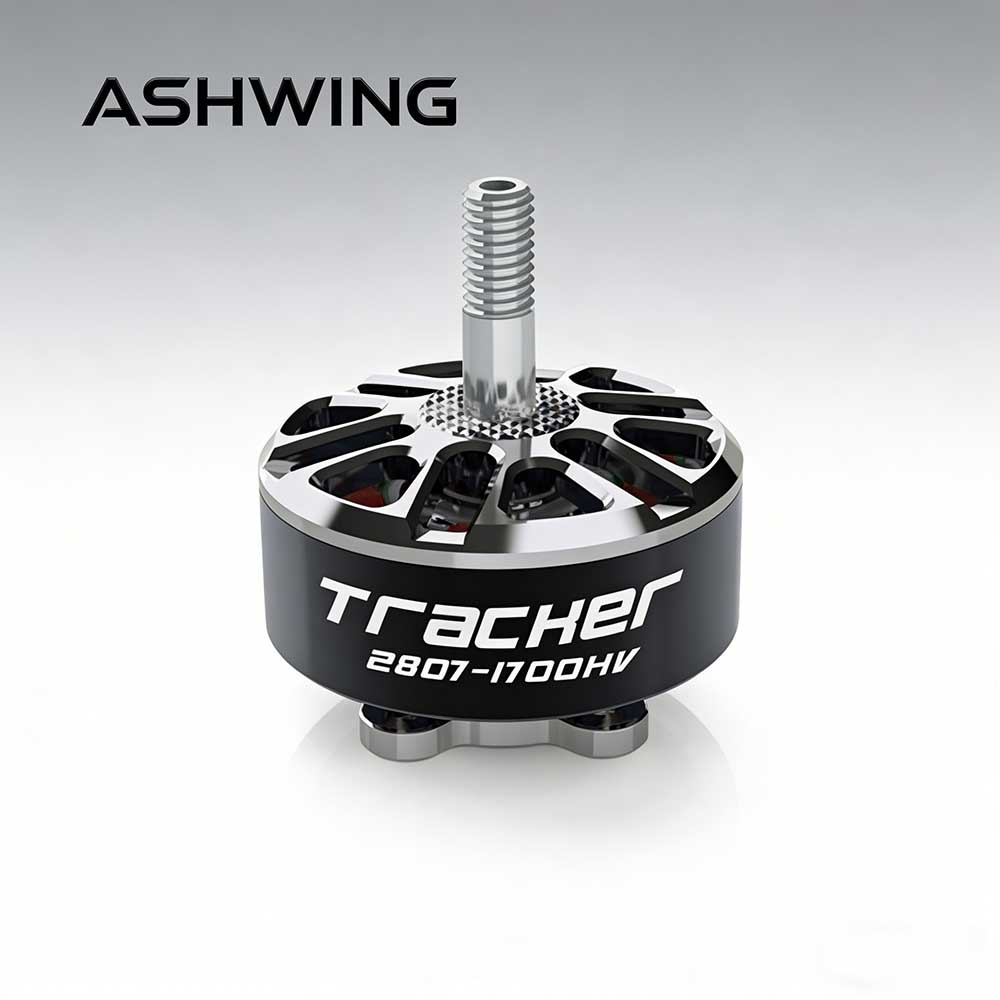

Tracker Brushless Fpv Drone Motors 2807 1700KV Framework 6S RC Racing Long Range Quadcopter

Description

2807 1700KV Brushless Fpv Drone Motors – High-RPM FPV Motor for 5-7 inch Freestyle & Racing Drones Product Overview

The 2807 1700KV Brushless Fpv Drone Motors is a high-performance outrunner designed for FPV pilots who demand explosive power and rapid throttle response. Built with a 2807 stator size and a 1700KV rating, this motor is optimized for high-RPM performance on 4S-6S LiPo batteries, making it ideal for 5-7 inch freestyle, racing, and lightweight long-range drones.

---

Fpv Drone Motors Key Features

• High KV for Aggressive Flying: 1700KV delivers high RPMs, perfect for pilots who prioritize quick acceleration and top-end speed.
• Wide Voltage Compatibility: Supports 3S to 6S LiPo batteries, offering flexible setup options.
• Efficient Power Delivery: Produces up to 900W of peak power on 6S for thrilling punch-outs.
• Low Internal Resistance: Only 45mΩ ensures higher efficiency and cooler operation during hard throttle punches.
• Durable Build:
  • 4mm Steel Shaft: Robust and impact-resistant.
  • 12N14P Motor Architecture: High-torque design with smooth performance.
• Precision Engineering: CNC balanced for vibration-free flight.

• Test item:2807-1700KV
• No.of cells: 3S-6S
• Weight:47.9g(W/0 Silicone Wir
• Bearing Shaft:4mm
• Max.Power (6S):900W
• Lead:18#AWG200mm
• Motor Dimensions:33.5mm*17.5mm
• Idle Current (10V):1.9A
• Propeller:6″-7″
• Framework:12N 14P
• Peak Current (6S):55A
• Internal Resistance:45mΩ

---

Fpv Drone Motors Technical Specifications

---

Fpv Drone Motors Recommended Applications

• Drone Size: 5″, 6″, 7″ FPV drones
• Flying Style: Freestyle, Racing, Lightweight Long-Range
• Propeller Size:
  • 5″ props on 4S-5S for high-RPM racing
  • 6″ props on 4S-6S for balanced freestyle
  • 7″ props on 4S for efficient cruising
• ESC Requirement: 45A – 60A (ensure good thermal management)
• Flight Controller Compatibility: F4, F7, F405, F722, and similar

---

Selection Guide

---

Package Includes

• 1 x 2807 1700KV Brushless Motor
• 1 x Hardware kit (mounting screws, bullet connectors if applicable)

---

This 2807-1700KV motor is a solid choice for pilots who want punchy, responsive performance from their 5-6 inch freestyle or racing drones.

2807 Series Fpv Drone Motors (1300KV & 1700KV) – High‑Torque 7″ Long‑Range Powerhouses

Designed specifically for 6‑7″ propellers, the 2807 stator size delivers exceptional torque and efficiency for long‑range, cinematic, and heavy‑lift FPV drones. With a robust 4mm steel shaft, 12N14P magnetic architecture, and high‑grade construction, these motors handle 6S abuse while keeping temperatures in check.

Common advantages (both models):

• Optimized for 6‑7″ props – Perfect for 7″ long‑range cruisers, 6″ freestyle quads, or heavy‑lift cinema rigs.
• Durable 4mm bearing shaft – Withstands hard crashes and high‑thrust loads without bending.
• Compact, low‑profile design – 33.5mm diameter × 17.5mm height fits most frames with ease.
• 18AWG 200mm silicone leads – Flexible, high‑current wires reduce resistance and simplify installation.
• 12N14P motor topology – Smooth, cogging‑free operation with excellent throttle linearity.

Model‑specific highlights:

Feature	2807‑1300KV	2807‑1700KV
Best for	6S long‑range efficiency, 7″ props	4S‑6S responsive freestyle, 6″ props
Cell range	2S‑6S (ideal 6S)	3S‑6S (ideal 4S‑6S)
Max power (6S)	1400W (brutal torque)	900W (balanced output)
Peak current (6S)	55A	55A
Idle current @10V	1.0A (more efficient)	1.9A (higher idle draw)
Internal resistance	60mΩ	45mΩ (slightly lower copper loss)
Weight	48.6g	47.9g (nearly identical)

Which one should you choose?

• 1300KV – Ideal for 6S 7″ long‑range builds where efficiency and smooth cruising are key. The massive 1400W peak power gives you plenty of reserve for climbs or windy conditions, while the lower idle current extends flight time.
• 1700KV – Better suited for 4S‑6S 6″ freestyle or agile 7″ builds that need quicker throttle response. The slightly lower resistance (45mΩ) helps reduce heat under high‑load punch‑outs.

Both motors share the same durable frame, shaft, and mounting pattern, making them drop‑in compatible for any 2807‑class build. Whether you’re chasing mountain summits or ripping tight gaps, the 2807 series delivers reliable, high‑torque performance.
