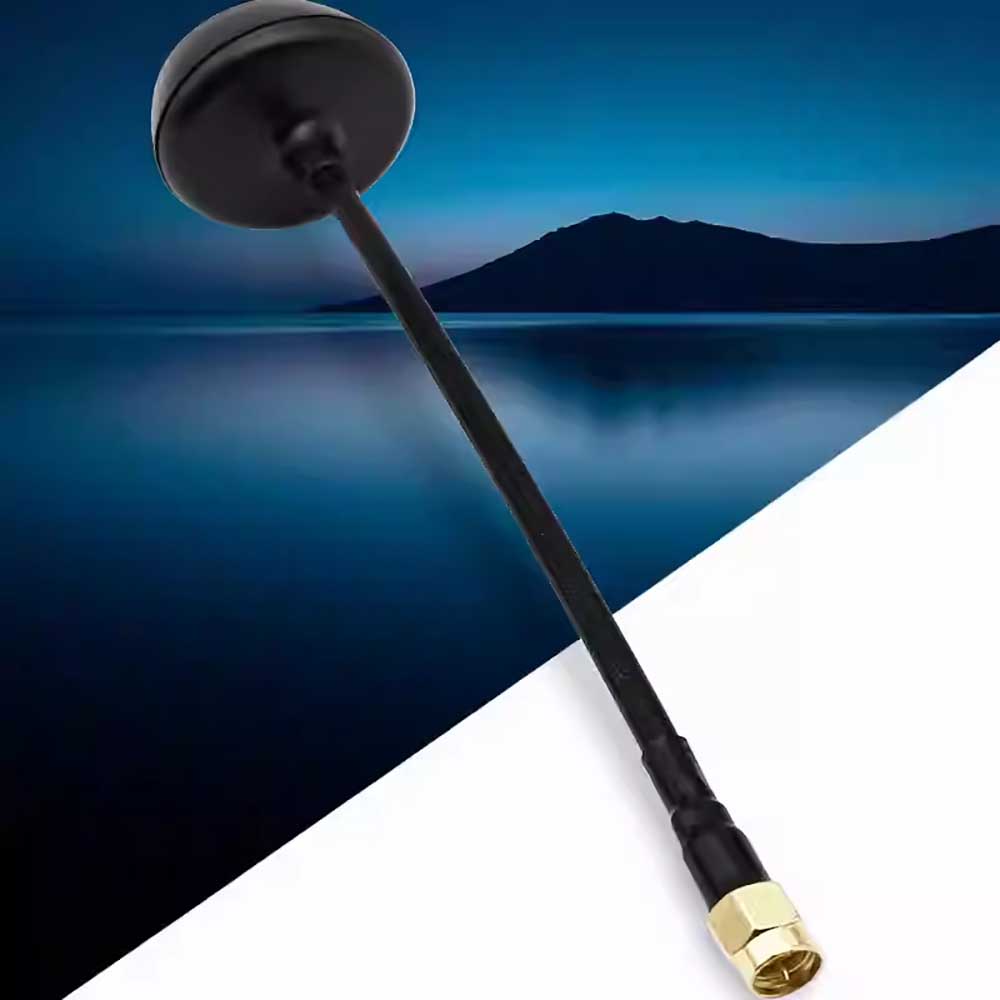

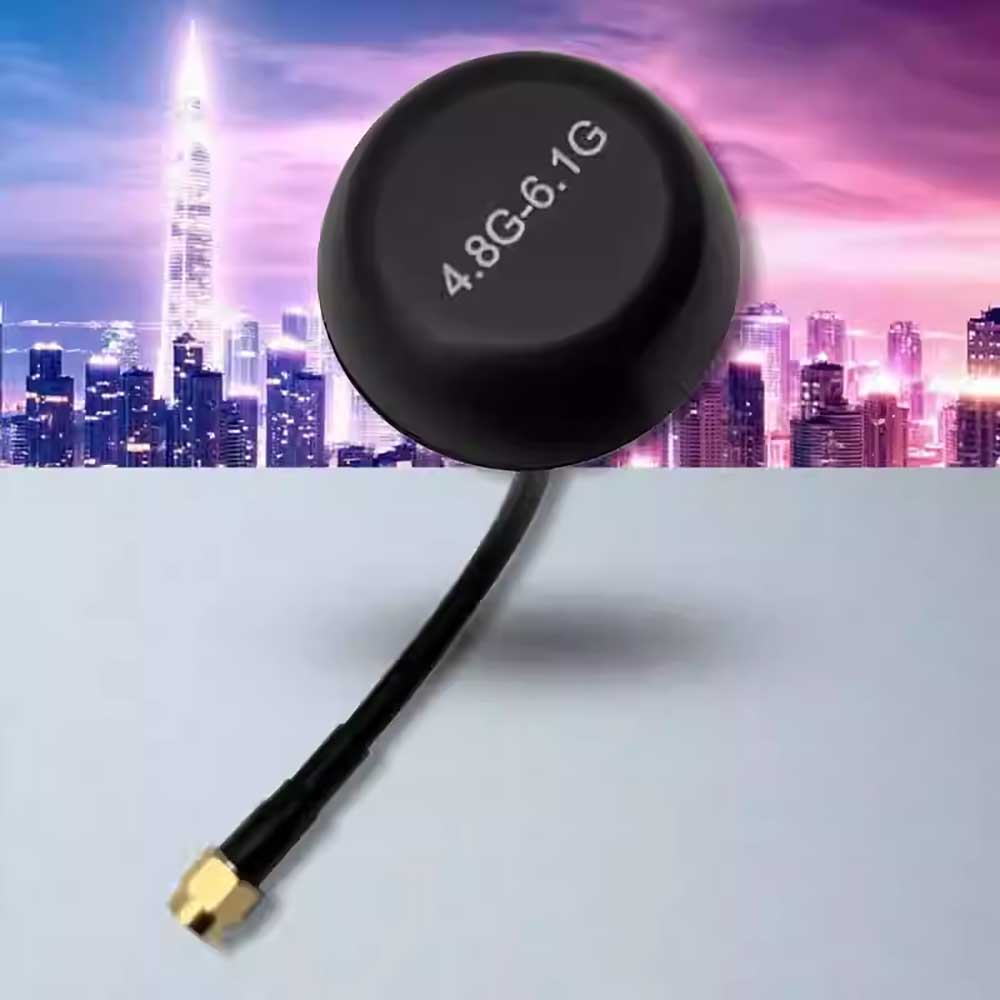

4.9G 5.8Ghz 6G High-gain Video Transmitter FPV Antenna 4800-6100MHz Mushroom Head

Description

Video Transmitter FPV Antenna：

Here is a professional English product attribute description about FPV Antenna based on the provided specifications:

Product Name: 4.9G/5.8G Mushroom  Antenna (FPV Antenna)

Product Overview:
This is a high-performance mushroom (omni-directional) antenna designed for FPV (First Person View) drone applications. It is compatible with both 4.9GHz and 5.8GHz video transmission systems, offering stable signal reception and transmission for an enhanced flying experience.

Key Specifications:

• Application: Ideal for FPV drones, racing quads, and other unmanned aerial vehicles (UAVs) requiring reliable video links.
• Frequency Range: Broadband coverage from 4.8GHz to 6.1GHz, supporting both 4.9G and 5.8G bands.
• Gain: 5 dBi, providing a balanced omni-directional signal pattern for consistent coverage.

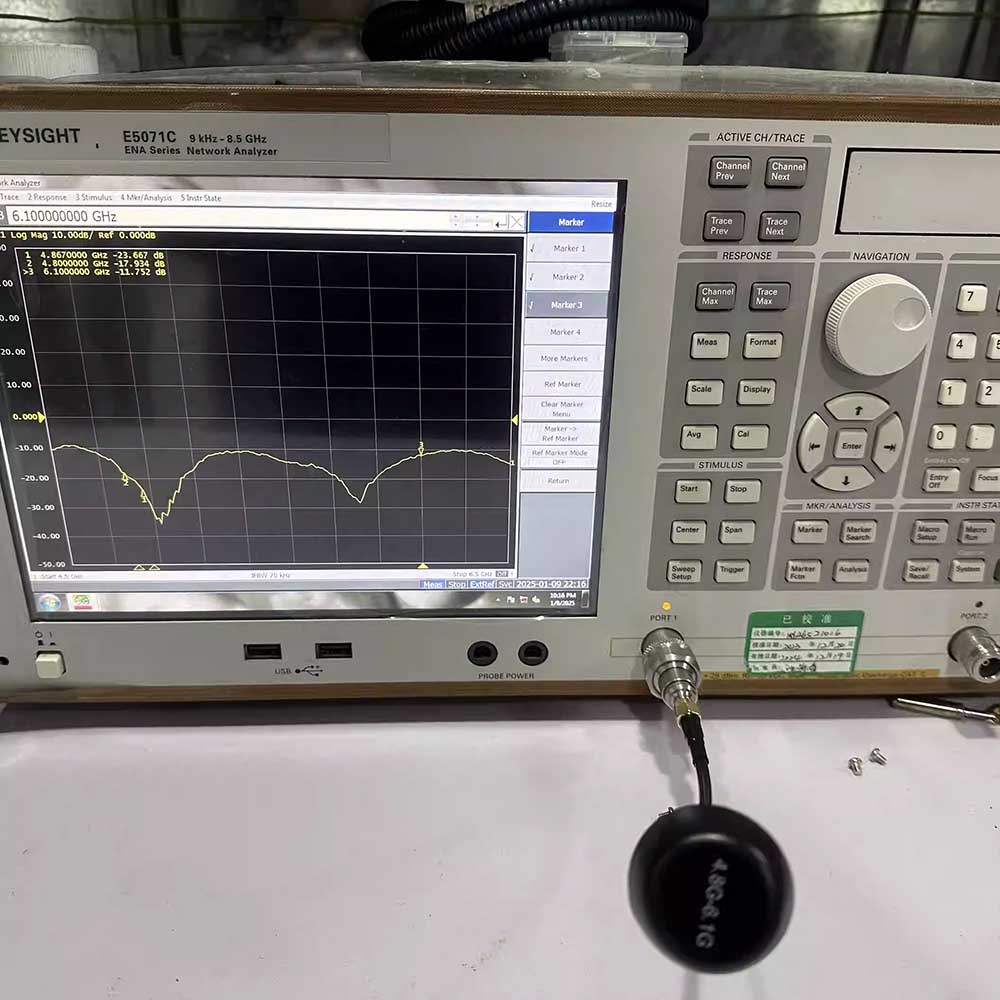

• VSWR (Voltage Standing Wave Ratio): ≤ 2.0, ensuring efficient power transfer and minimal signal loss.
• Input Impedance: 50 Ω (standard for most RF systems).
• Maximum Input Power: 50W, capable of handling high-power transmitters.

Mechanical Specifications:

• Color: Black
• Connector Type: SMA-J (SMA Male) input for direct attachment to video transmitters or receivers.
• Dimensions: 34mm (Diameter) x 150mm (Height)
• Cable Length: 130mm (feeder cable from the connector to the antenna element).
• Operating Temperature: Wide range from -40℃ to +85℃, suitable for various weather conditions.
• Operating Humidity: 20% to 80%

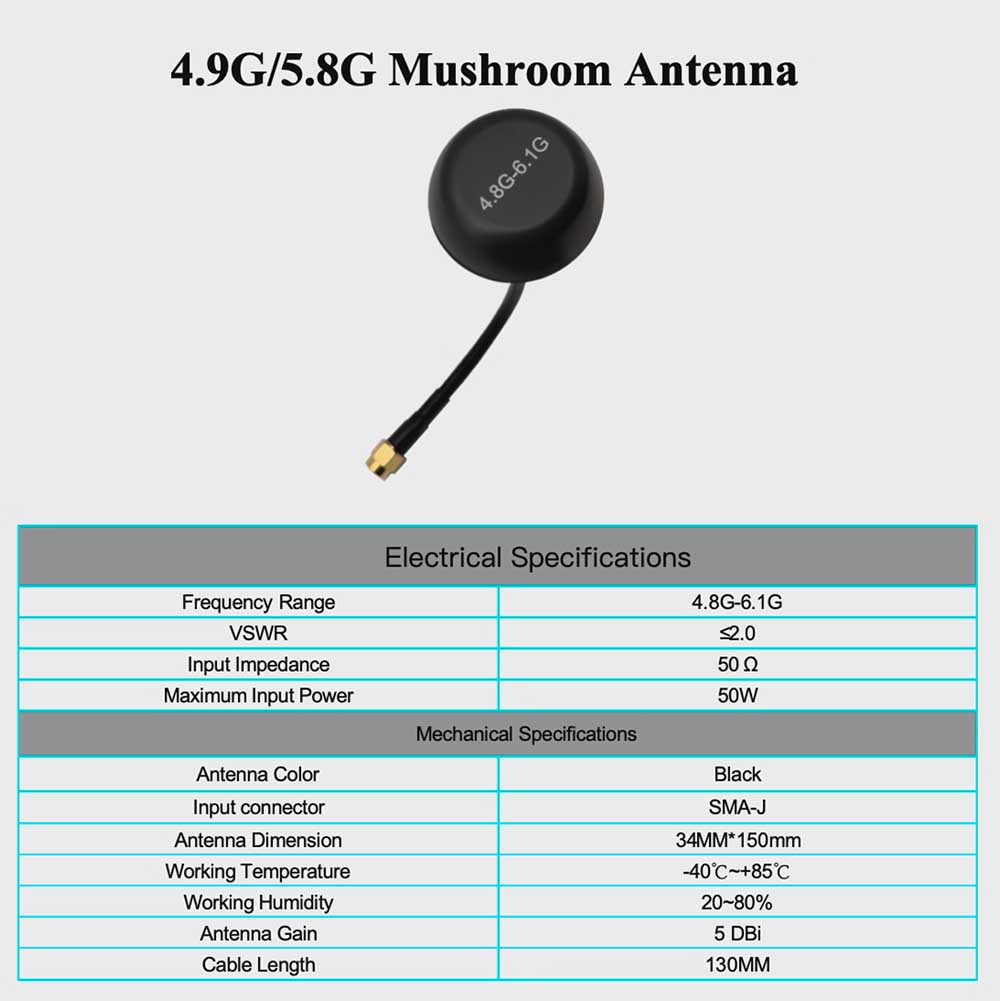

Video Transmitter FPV Antenna attribute

• Frequency Range :4.8G-6.1G
• VSWR: ≤2.0
• Input Impedance: 50 Ω
• Maximum Input Power: 50W
• Antenna Color :Black
• input connector :SMA-J
• Antenna Dimension :34MM*150mm
• Working Temperature :-40℃~+85℃
• Working Humidity :20~80%
• Antenna Gain: 5 DBi
• Cable Length :130MM
