Brushless FPV Drone Motors X4320 450KV RC Long Range Quadcopter

Description

FPV Drone Motors X4320 350KV Brushless Motor – High-Torque Power for 13-15 inch Heavy-Lift & Long-Range Drones,Product Overview

The X4320 350KV Brushless FPV Drone Motors is a high-performance outrunner designed for demanding UAV applications. With a massive 3683W peak power output on 12S and a robust 6.0mm steel shaft, this motor delivers exceptional torque and reliability for heavy-lift, long-range, and professional-grade drone platforms. Optimized for 6-8S operation, the X4320 is the ideal choice for pilots seeking maximum thrust and efficiency with 13-15 inch propellers.

---

FPV Drone Motors Key Features

• Massive Power Output – Delivers up to 3683W peak power (12S) for heavy payloads and aggressive climbs.
• High-Voltage Compatibility – Rated for 6-8S LiPo, with peak performance achievable on 8S.
• Extreme Torque Design – 12N14P motor architecture with N52H-class magnetic circuit for exceptional low-end torque.
• Industrial-Grade Durability:
  • 6.0mm hardened steel shaft – Withstands high-stress maneuvers and hard landings.
  • Low internal resistance (46mΩ) – Maximizes efficiency and reduces heat buildup.
• Precision Engineering – CNC-balanced rotor for vibration-free operation at high RPMs.
• Heavy-Duty Wiring – 14AWG silicone leads (400mm) for safe high-current handling.

---

FPV Drone Motors Technical Specifications

Parameter	Value	Notes
Test Item / Model	X4320 350KV	Stator: 43mm diameter, 20mm height
KV Rating	350 RPM/V	Optimized for high torque, low RPM
LiPo Cell Count	6-8S	Peak performance on 8S
Bearing Shaft	6.0mm	Hardened steel
Max Power	3683W	@ 12S (peak; ensure ESC capability)
Weight	297g	Without silicone wires
Lead Wire	14AWG / 400mm	High-flex silicone insulation
Motor Dimensions	Φ51mm × 40.5mm	Diameter × height
Idle Current	1.4A	@ 10V
Motor Framework	12N 14P	12 slots, 14 poles
Peak Current	80A	@ 12S (ensure adequate ESC headroom)
Internal Resistance	46mΩ	Low resistance for high efficiency
Recommended Propeller	HQ15×7-3	3-blade 15×7 optimized

---

FPV Drone Motors Recommended Applications

• Drone Size: 13″, 14″, 15″ propeller platforms
• Drone Type: Heavy-lift multirotors, long-range FPV (LR13/LR15), professional UAVs, cinematography drones
• Propeller Size: 13-15 inches (test with recommended HQ15×7-3 for optimal performance)
• ESC Requirement: 80A – 100A (high-quality, with good thermal management)
• Battery: 8S LiPo for best balance of power and efficiency
• Flight Controller Compatibility: Any FC supporting standard PWM/DShot outputs

• Test item X4320 350KV
• Operating Rated Voltage 6-8S
• Bearing Shaft 6.0mm
• Max.Power (12S) 3683W
• Motor Weight 297g (W/0 Silicone Wire)
• Lead 14#AWG400mm
• Motor Dimensions 51mm*40.5mm
• Idle Current (10V) 1.4A
• Framework 12N 14P
• Peak Current (12S) 80A
• Internal Resistance 46mΩ
• Propeller HQ15*7-3

---

 Performance Profile

Parameter	6S	8S	12S (Peak)
Max Power	~1800W	~2800W	3683W
Recommended Prop	14-15″	15″	15″ (burst)
Typical Current	35-45A	45-60A	80A (peak)

---

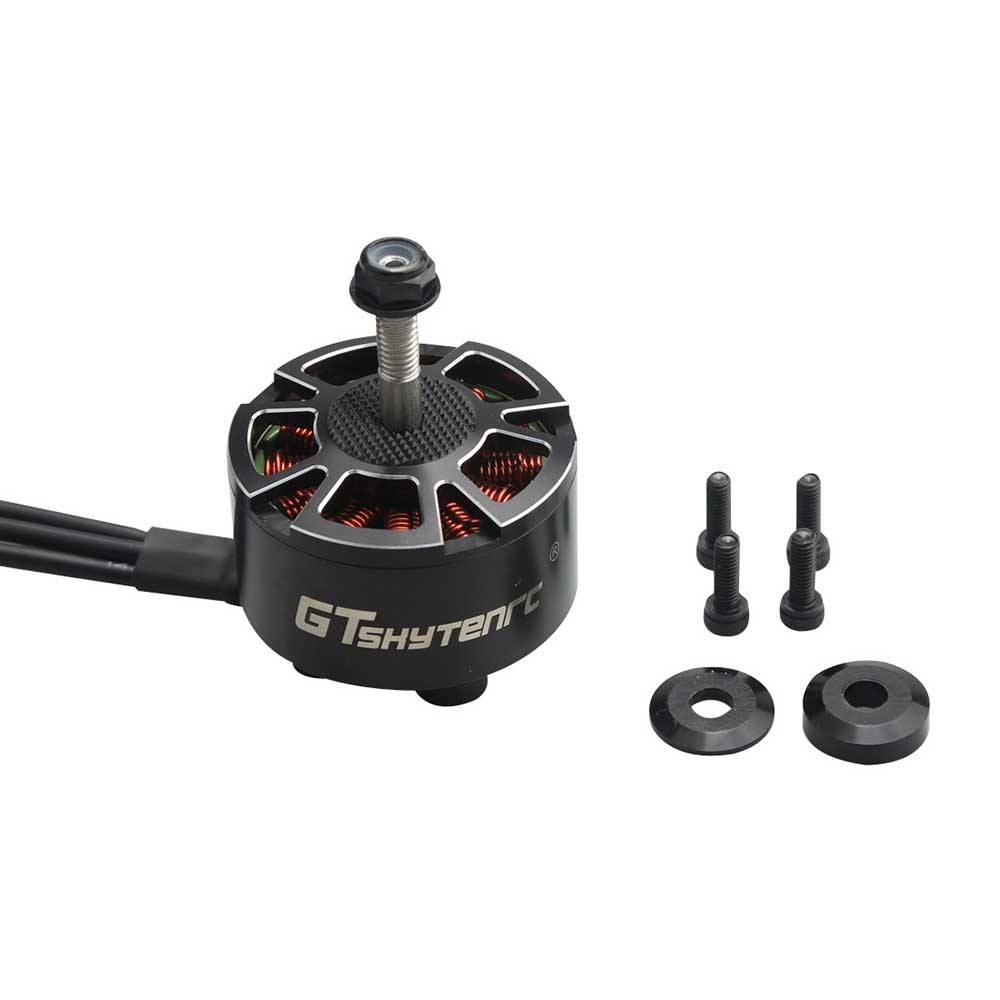

 Package Includes

• 1 × X4320 350KV Brushless Motor
• 1 × Hardware kit (mounting screws, bullet connectors if applicable)
• (Motor wires pre-installed with 14AWG silicone cable)

---

This X4320 350KV motor is a top-tier choice for professional builders and pilots who demand uncompromising power and reliability from their heavy-lift and long-range drone platforms.

X4320 350KV – Ultra‑High‑Power 12S Motor for 15‑17″ Heavy‑Lift & Industrial FPV Drone Motors

Delivering astonishing power density, the X4320 350KV is engineered for extreme heavy‑lift and long‑endurance applications. With a massive 43×20mm stator, 12S peak capability, and 3683W maximum power, this motor pushes the boundaries of what large FPV and industrial UAVs can achieve.

Key advantages:

• Monstrous power output – 3683W max (12S) per motor enables 6‑10kg+ payloads on quadcopters or 20kg+ on octocopters – ideal for cinema cameras, Li‑ion megapacks, or agricultural sprayers.
• 12S high‑voltage ready – Although rated for 6‑8S continuous, the 12S peak rating gives you a massive overhead for short‑duration bursts or custom high‑voltage setups. Perfect for professional applications requiring instant thrust.
• Optimized for 15‑17″ propellers – The 350KV winding paired with large, high‑pitch props (e.g., HQ15×7‑3) delivers incredible static thrust while maintaining low RPM efficiency for extended flight times.
• Efficient electrical design –
  – Idle current: 1.4A @ 10V – Excellent magnetic circuit efficiency.
  – Internal resistance: 46mΩ – Very low for this power class, reducing heat generation even under 80A loads.
  – Peak current: 80A (12S) – Realistic maximum for sustained heavy lifting.
• Premium 12N14P magnetic topology – Smooth, vibration‑free torque delivery for cleaner video and reduced mechanical stress on airframes.
• Robust mechanical construction –
  – 6.0mm steel bearing shaft – Withstands extreme torque and crash loads.
  – 51mm diameter × 40.5mm height – Compact for its power rating, fitting most 15‑17″ frames.
  – 297g weight (without wires) – Excellent power‑to‑weight ratio (12.4W/g).
  – 14AWG 400mm silicone leads – Thick, low‑resistance wiring for high‑current 12S setups.
• Wide operating voltage (6‑8S nominal, 12S peak) – Flexibility to run 6S for moderate flying or 12S for all‑out power.

Recommended applications:

• Professional heavy‑lift cinema drones (RED Komodo, Alexa Mini)
• Long‑endurance mapping & survey UAVs (12S Li‑ion)
• Agricultural spraying or cargo delivery drones
• X‑class (15‑17″) freestyle or racing

Recommended ESC: 80‑100A (12S rated, e.g., BLS 100A 12S or dual 80A)
Recommended propeller: 15×5 – 17×6 (two‑blade or folding)
Flight controllers: H7 / Cube / Pixhawk with 12S power module

The X4320 350KV is built for pilots and professionals who refuse to compromise on thrust, efficiency, or reliability. When you need to lift serious weight over serious distances, this motor delivers.
