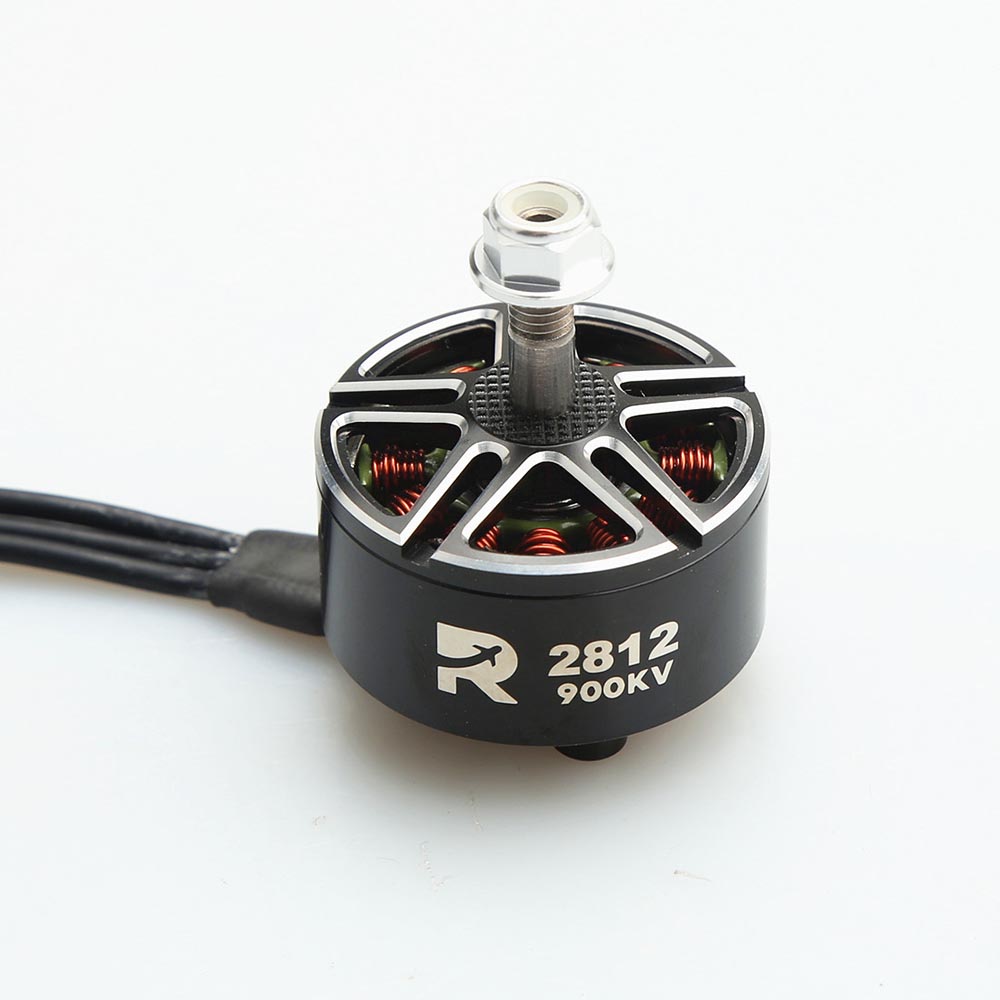

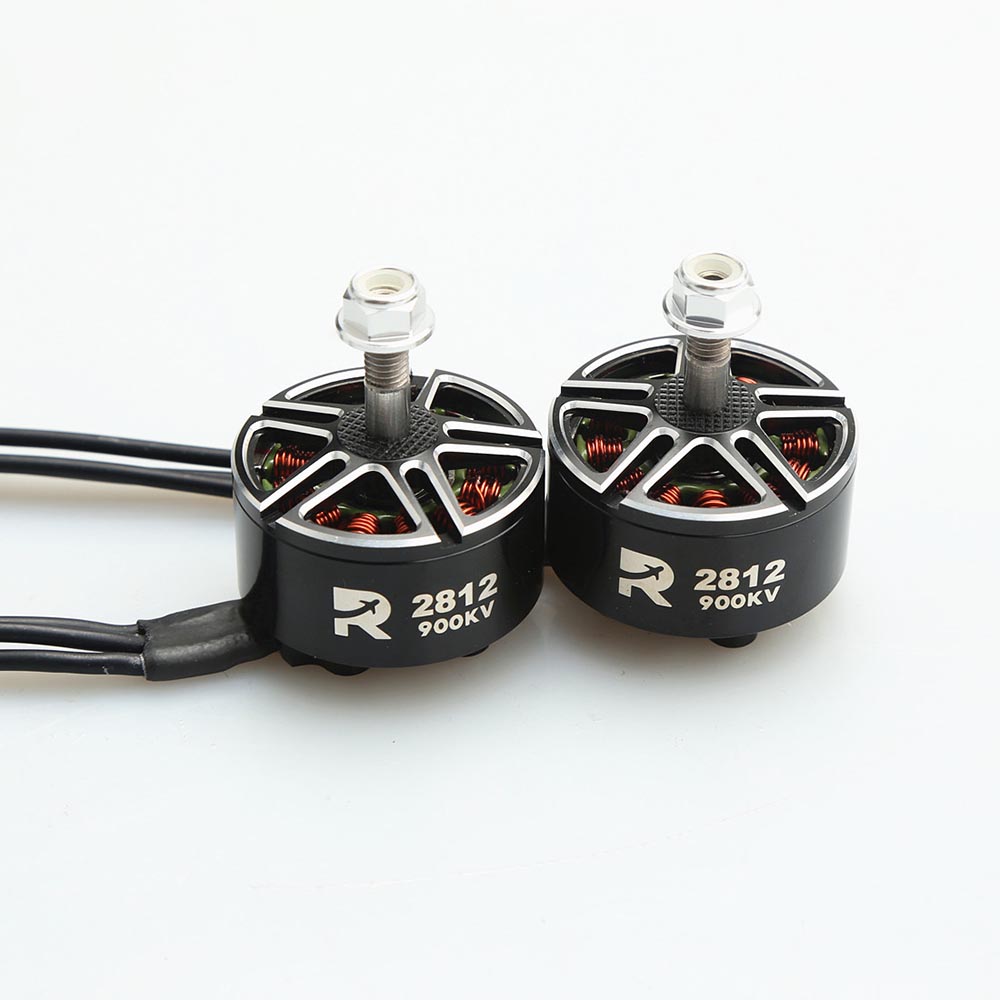

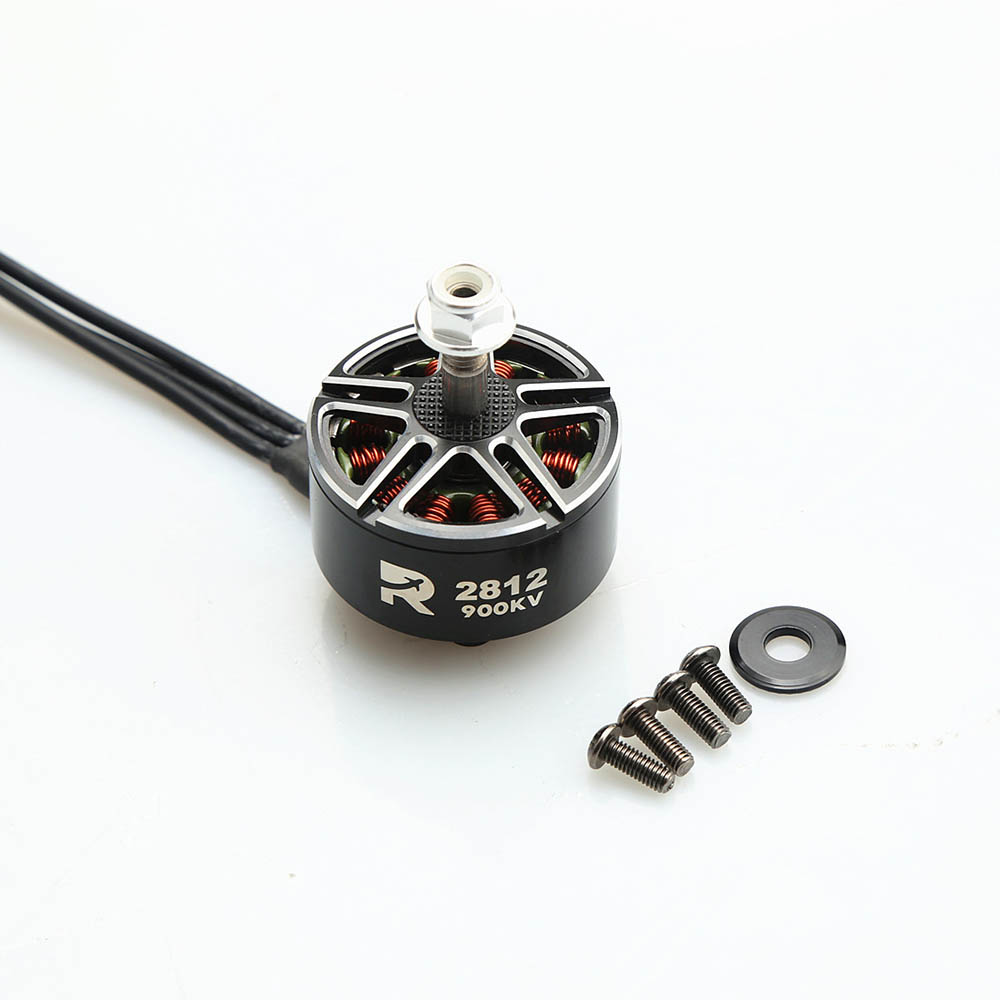

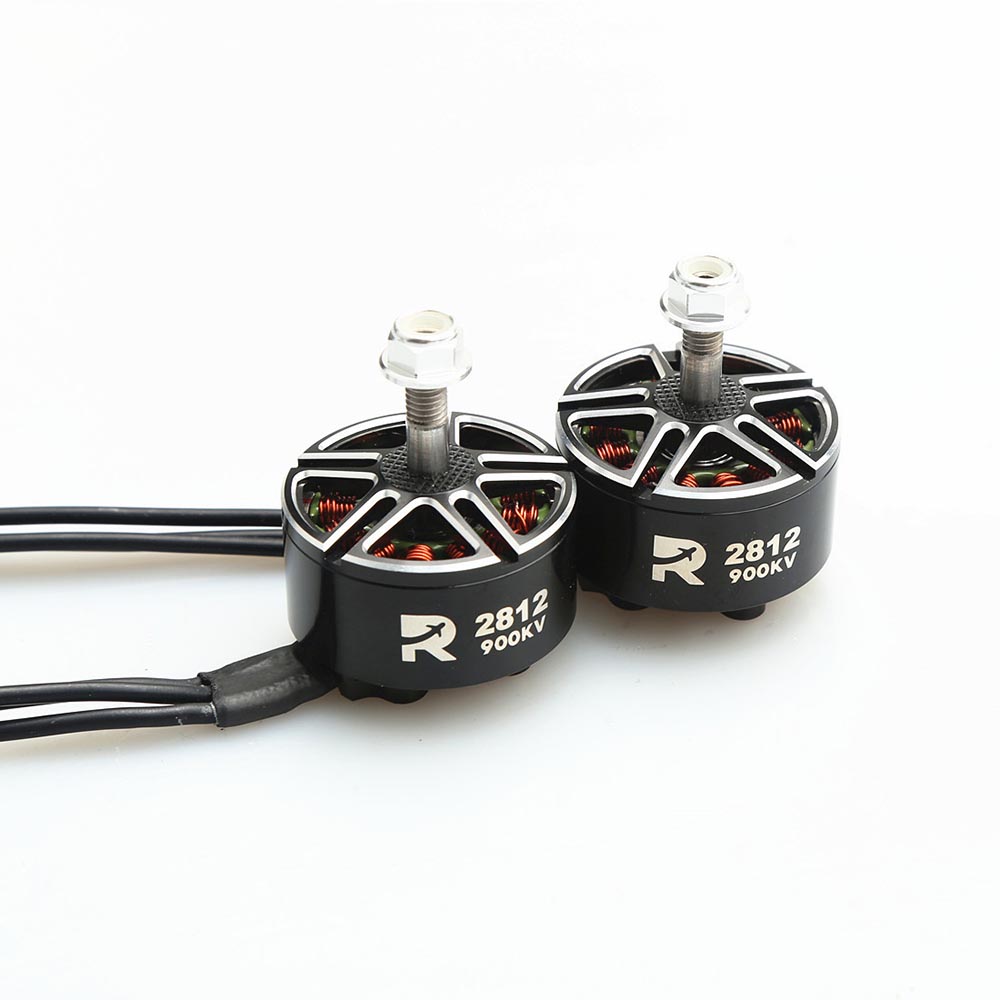

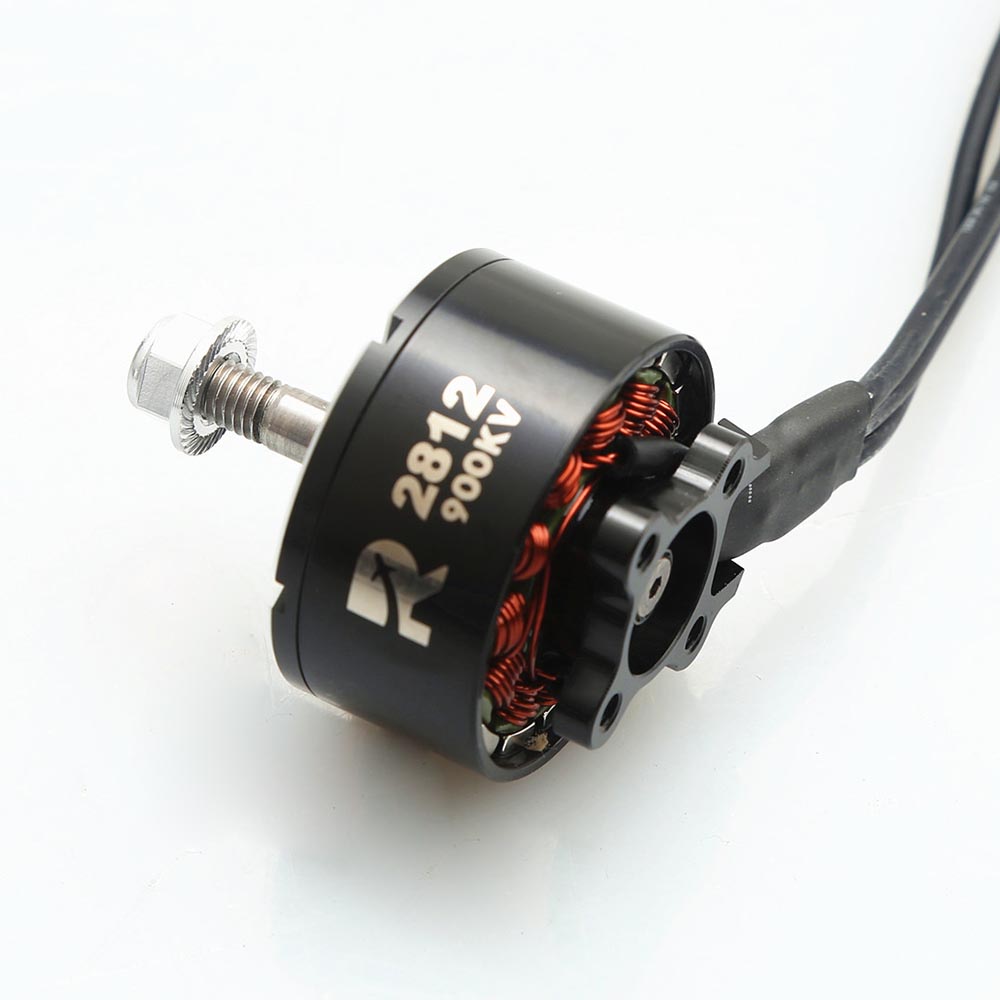

Brushless FPV Drones Motor tracker 2812 1115KV 900KV 7inch 8inch Long Range Quadcopter for FPV Racing

Description

The Tracker 2812 FPV Drones Motor feature a taller stator (22.5mm) than standard 2807, delivering exceptional torque for swinging 7‑10″ propellers. Built with premium materials and available in two well‑chosen KV options, they’re perfect for Mark4, Apex, LR7, and other large frames.

Tracker 2812 Series Brushless FPV Drones Motor (For 7-10 inch Long Range & Freestyle Drones)

Model: 2812-900KV / 2812-1115KV FPV Drones Motor
Series: Tracker High-Performance Series
Configuration: 12N 14P High Torque Motor Architecture
Stator Size: 2812 (28mm x 12mm)

Drones Motor tracker Key Features:

• Series: Tracker High-Efficiency Series
• Configuration: 12N 14P High Torque Motor Framework
• Stator Dimensions: 28mm x 12mm (2812)
• Shaft Diameter: 4mm hardened steel shaft
• Weight: 73g (excluding silicone wires)
• Wire Gauge: 18AWG, 250mm length
• Recommended Prop: 9×4.7 Carbon Fiber (Tested); Supports 5-8 inch props


Drones Motor tracker Common Specifications:

• Shaft Diameter: 4mm
• Motor Dimensions: 33.5mm x 22.5mm
• Weight: 73g (excluding silicone wires)
• Lead Wire: 18AWG, 250mm length
• Tested Propeller: CF 9×4.7 (Recommended)

Drones Motor tracker Variant Specifications:

• Compatibility & Application:

  • Frame Size: Suitable for 6-inch, 7-inch, 8-inch, 9-inch, and 10-inch drones (Ideal for Mark4, APEX, LR7 Long Range builds).
  • Propeller Size: Compatible with 5-inch, 6-inch, 7-inch, and 8-inch propellers.
  • Recommended ESC: 40A, 45A, 50A, 60A, or 65A Electronic Speed Controllers (select based on KV and propeller load).
  • Flight Controller: Compatible with F3, F4, F7, KK, SpeedyBee F405, F722, and other standard flight controllers.



Tracker 2812 Series – High‑Torque 7‑10″ FPV Drones Motor for Long‑Range & Freestyle

The Tracker 2812 motors feature a taller stator (22.5mm) than standard 2807, delivering exceptional torque for swinging 7‑10″ propellers. Built with premium materials and available in two well‑chosen KV options, they’re perfect for Mark4, Apex, LR7, and other large frames.

Drones Motor tracker Key advantages (both models):

• Optimized for 7‑10″ props – Handles everything from 6″ agility to 10″ endurance.
• 4mm steel shaft & 18AWG 250mm leads – Durable and easy to route.
• 12N14P magnetic design – Smooth, linear throttle response.
• Wide voltage range (2‑6S) – Works with 4S, 5S, or 6S LiPo.

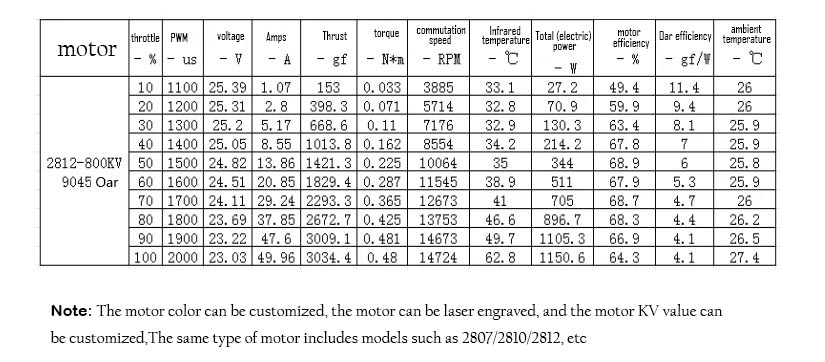

Drones Motor tracker Model comparison:

	2812‑900KV	2812‑1115KV
Best use	8‑10″ long‑range / heavy‑lift	6‑8″ freestyle / fast cruising
Max power (6S)	1480W	950W
Peak current (6S)	40A (ESC‑friendly)	60A (more punch)
Idle current @10V	1.0A (efficient)	1.2A
Internal resistance	68mΩ	78mΩ
Weight	73g	73g



Which to choose?

• 900KV – Ideal for 8‑10″ long‑range on 6S. Lower current draw allows 40‑50A ESCs; huge 1480W peak gives you reserve power for climbs.
• 1115KV – Snappier response for 6‑7″ freestyle or 7‑8″ spirited cruising. Pair with 50‑65A ESCs for reliable punch‑outs.

Compatible with: F3/F4/F7/SpeedyBee flight controllers, 40‑65A ESCs, and 5‑8″ propellers.
