DF-V1 7inch Fpv Drone Frame Carbon Fiber Racing Quadcopter Long Range

Description

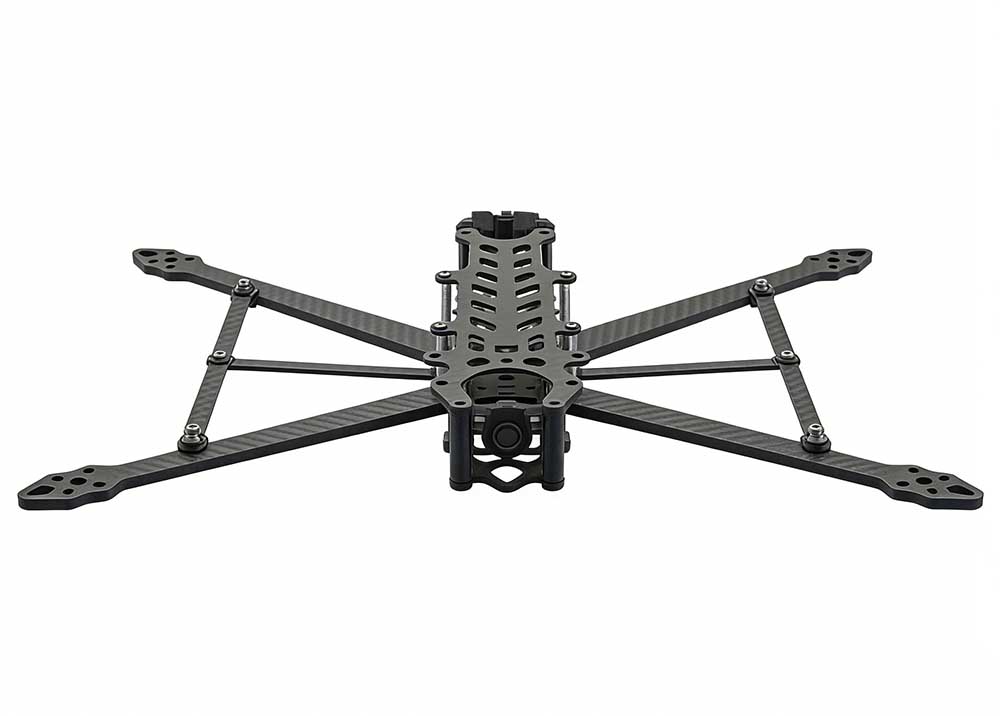

Product Name: MAK4 V2 7 Inch FPV Drone Frame Kit – X-Type Carbon Fiber Frame for Freestyle and Long-Range

---

Fpv Drone Frame Product Overview

The MAK4 V2 7-Inch FPV Drone Frame Kit is a high-performance X-Type carbon fiber frame designed for 7-inch propeller setups. With a 295mm wheelbase, 6mm thick arms, and a lightweight 185g construction, this frame delivers exceptional rigidity and responsiveness for freestyle, racing, and long-range FPV applications. The frame features versatile mounting options for flight controllers, ESCs, and VTX units, making it an ideal choice for pilots building powerful 7-inch drones.

---

Fpv Drone Frame Key Features

• X-Type Frame Structure – Provides balanced flight characteristics and excellent maneuverability.
• Optimized Wheelbase – 295mm wheelbase delivers stable flight performance for 7-inch propellers.
• Durable Carbon Fiber Construction – 6mm thick arms with 3.0mm bottom and middle plates for maximum impact resistance.
• Ample Internal Space – 35mm inner space height accommodates stacked electronics and tall components.
• Versatile Mounting Compatibility – Flight controller and VTX mounting support both 20×20mm and 30.5×30.5mm patterns.
• Flexible Motor Mounting – Supports motor mounting hole spacing of 16×16mm and 19×19mm.
• Standard Camera Mount – 19mm camera mounting spacing for most FPV cameras.
• Lightweight Yet Strong – Only 185g frame weight balances durability with agile flight performance.

---

Fpv Drone Frame Technical Specifications

Parameter	Value
Model	MAK4 V2 7-Inch FPV Frame
Frame Structure	X-Type
Wheelbase	295mm
Weight	185g
Dimensions	230.35 × 278.52mm
Bottom Plate Thickness	3.0mm
Middle Plate Thickness	3.0mm
Upper Plate Thickness	2.0mm
Arm Thickness	6.0mm
Connecting Plate Thickness	2.0mm
Camera Side Plate Thickness	2.5mm
Camera Mounting Hole Spacing	19mm
VTX Mounting Hole Spacing	20×20mm & 30.5×30.5mm
Flight Controller Mounting Spacing	20×20mm & 30.5×30.5mm
Inner Space Height	35mm
Motor Mounting Hole Spacing	16×16mm & 19×19mm
Packaging	Electrostatic bag

---

Fpv Drone Frame Recommended Configuration (Not Included)

Component	Recommendation
Propeller	7 inches
Motor	2806.5 / 2807 / 2810 / 2812
Flight Controller	F4 / F405 / F7 / F722
ESC	45A – 65A
Camera	19 × 19mm format
Battery	6S 3000mAh – 6500mAh

---

Fpv Drone Frame Recommended Applications

• Drone Types: FPV Freestyle, Racing, Long-Range Cruising
• Propeller Size: 7-inch (optimized for agile freestyle and efficient long-range flight)
• Power Systems: Suitable for 6S high-voltage setups
• Component Integration: Compatible with both 20×20mm and 30.5×30.5mm flight controller and VTX mounting patterns

---

Package Includes

• 1 × MAK4 V2 7-Inch Carbon Fiber Frame Kit (includes top plate, bottom plate, middle plate, arms, camera side plates, connecting plates, and mounting hardware)

---

Notes

1. Due to differences in monitor calibration, the actual product color may vary slightly from the images shown. The style is guaranteed to match the pictures.
2. Please allow 1–3mm deviation due to manual measurement and different measurement methods. Ensure you accept this tolerance before purchasing.

---

Summary

The MAK4 V2 7-Inch FPV Drone Frame Kit is a premium X-Type carbon fiber frame designed for pilots seeking a balance of agility, durability, and versatility. With its 295mm wheelbase, 6mm thick arms, 35mm internal stack height, and comprehensive mounting options for both 20×20mm and 30.5×30.5mm electronics, this frame provides a solid foundation for high-performance 7-inch drone builds. Whether pushing freestyle limits or embarking on long-range missions, the MAK4 V2 delivers the strength and flexibility required for demanding FPV applications.

Mark4 7-inch Fpv Drone Frame – Long‑Range Ready, Lightweight & Tough

Weighing only 121g, the Mark4 7‑inch frame delivers an exceptional strength‑to‑weight ratio for long‑range cruising and cinematic flights. The 5mm thick arms provide outstanding crash resistance, while the 2.5mm plates keep the airframe stiff and responsive. With a 295mm motor‑to‑motor span and compact 193×223mm footprint, it’s a true 7‑inch platform that remains agile yet stable in the air.

Key advantages:

• Long‑range optimized – Supports 7‑inch propellers and large batteries (up to 6S 3300mAh), giving you extended flight times and smooth, efficient cruising.
• Built to last – Reinforced 5mm arms absorb hard impacts, reducing downtime from crashes – ideal for rugged outdoor environments.
• Wide electronics compatibility – Accepts flight controllers in RF/Kiss/F3/F4/F7 formats, motors from 2305 to 2812, and ESCs 30A–70A – perfect for custom high‑efficiency builds.
• Standard camera mount – 19×19mm mount fits most popular FPV cameras, ensuring crisp video feedback for long‑range flights.
• Lightweight design – At just 121g (frame only), you have more payload capacity for larger batteries or additional electronics like GPS and buzzers.

Whether you’re chasing mountain vistas or flying gentle proximity lines, the Mark4 7‑inch frame offers a durable, versatile, and lightweight foundation that scales from 4S to 6S power systems – all in a clean, easy‑to‑assemble package.
