DF -V1 8inch Fpv Drone Frame Carbon Fiber Racing Quadcopter Long Range

Description

Product Name:   8-Inch FPV Drone Frame – Carbon Fiber Freestyle Frame

---

Fpv Drone Frame Product Overview

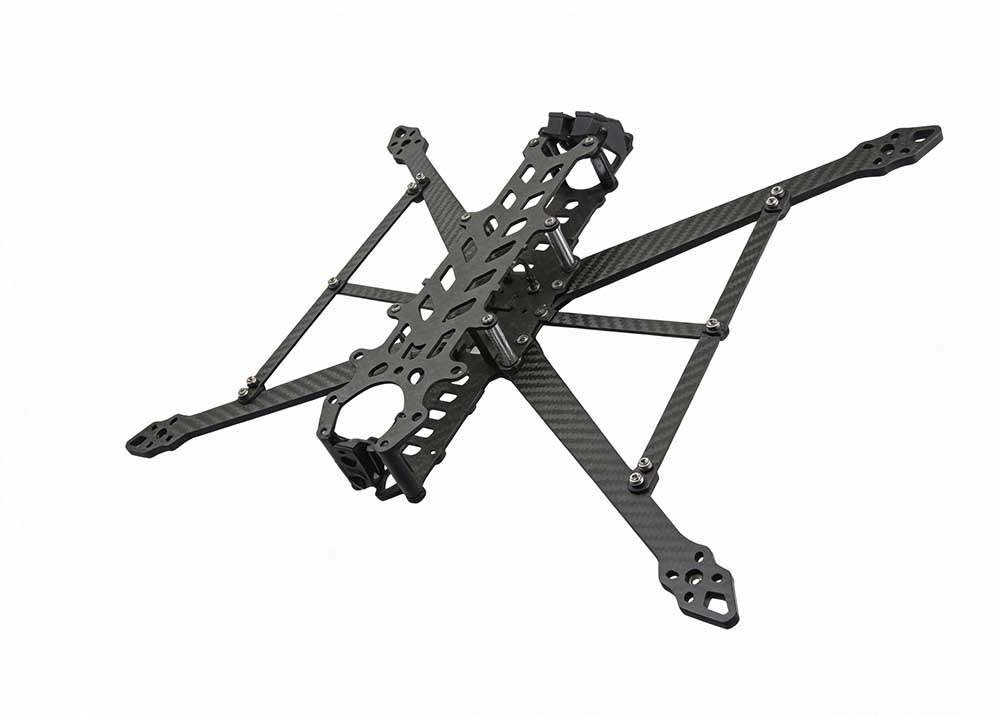

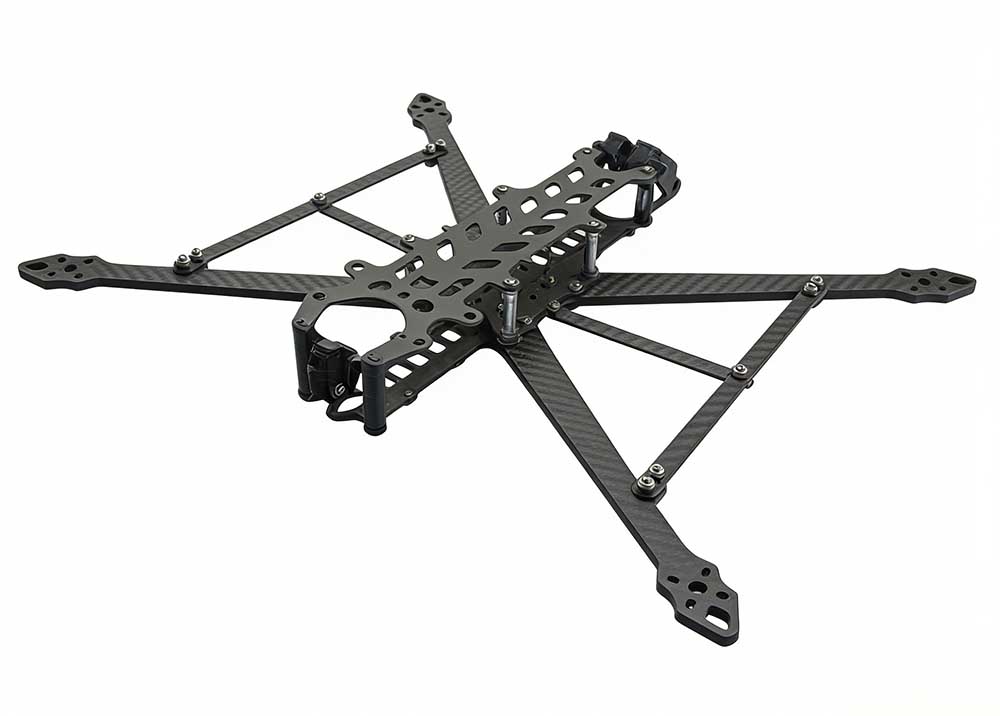

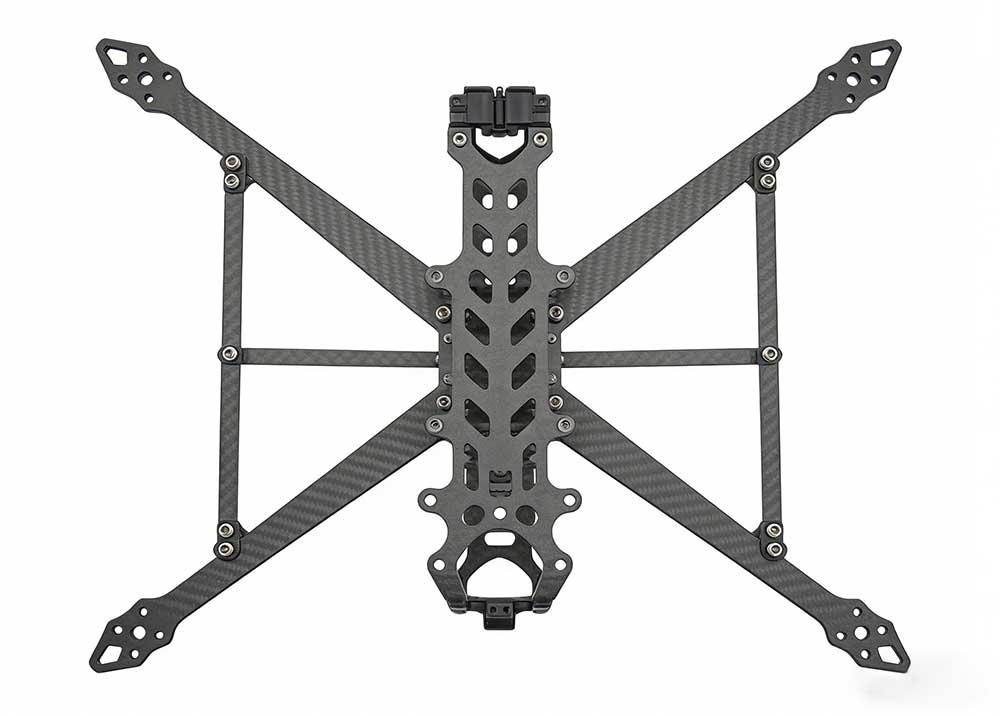

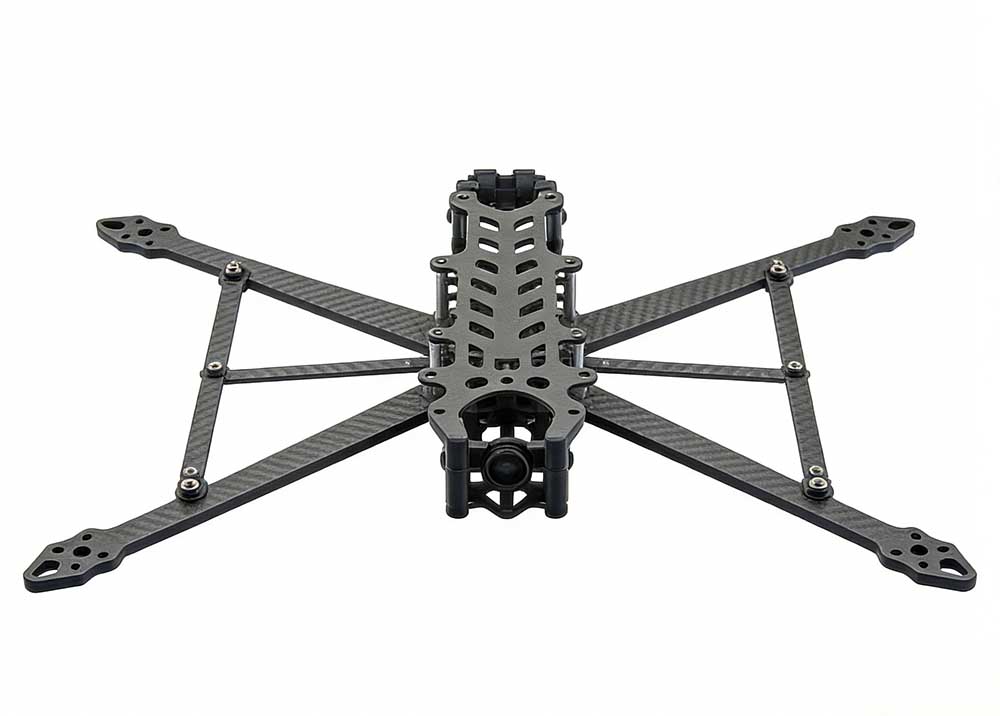

The   8-Inch FPV Drone Frame is a high-performance freestyle frame designed for pilots seeking durability, precise handling, and ample payload capacity. Featuring a True X frame design, replaceable 5.0mm arms, and a wide top and bottom plate configuration, this frame accommodates larger batteries and equipment while maintaining optimal center of gravity. Constructed from high-quality 3K full carbon with 7075 T10 aluminum hardware, it delivers exceptional strength and reliability for aggressive freestyle and long-range flying.

---

Fpv Drone Frame Key Features

• True X Frame Design – Balanced geometry for predictable handling and responsive control.
• Wide Top & Bottom Plate Design – Provides ample space for carrying larger capacity batteries and additional payloads.
• Top-Mounted Battery – Optimizes center of gravity (CG) for improved flight performance and stability.
• Replaceable Arms – 5.0mm thick arms are easily replaceable, reducing downtime and repair costs.
• High-Quality Materials – Constructed from premium 3K full carbon fiber for maximum strength-to-weight ratio.
• Premium Hardware – 7075 T10 aluminum screws offer superior durability and corrosion resistance.
• Compact Body Design – Streamlined 425×135mm body dimensions reduce drag and enhance agility.
• Integrated Mounting – Features installation base and antenna mount with integrated camera mounting solution.


---

Fpv Drone Frame Technical Specifications

Parameter	Value
Type	8-Inch Freestyle Frame
Frame Weight	Approx. 186g
Wheelbase	375mm
Dimensions (Body)	425mm × 135mm
Arm Thickness	5.0mm
Top Plate Thickness	2.0mm
Material	3K Full Carbon Fiber
Hardware	7075 T10 Aluminum Screws
Camera Mount	Integrated (compatible with standard FPV cameras)

---

Fpv Drone Frame Recommended Configuration (Not Included)

Component	Recommendation
Flight Controller	RevoBee F4 / F7 Compatible Controller
Motor	iPower The Force 2806.5 / 2207 / 2810 / 2812
Propeller	8-inch
Camera	RunCam Swift / Foxeer Camera (2.1 / 2.5 / 2.8mm wide angle lens)
VTX	600mW / 1300mW / 2500mW Transmitter
Battery	4S – 6S LiPo, 2200mAh – 7000mAh

---

Fpv Drone Frame Recommended Applications

• Drone Types: FPV Freestyle, Aggressive Acrobatics, Long-Range Cruising
• Propeller Size: 8-inch (optimized for powerful thrust and efficient flight)
• Power Systems: Suitable for 4S to 6S LiPo setups
• Component Integration: Compatible with standard 30.5×30.5mm and 20×20mm flight controller and VTX mounting patterns

---

Package Includes

• 1 × P 8-Inch Carbon Fiber Frame Kit (includes top plate, bottom plate, arms, camera mount, antenna mount, and 7075 T10 aluminum hardware)

---

Notes

1. Due to differences in monitor calibration, the actual product color may vary slightly from the images shown. The style is guaranteed to match the pictures.
2. Please allow 1–3mm deviation due to manual measurement and different measurement methods. Ensure you accept this tolerance before purchasing.

---

Summary

The  8-Inch FPV Drone Frame combines rugged durability with precision engineering, offering a True X design, replaceable 5.0mm arms, and a wide chassis for larger batteries and payloads. Built with premium 3K carbon fiber and 7075 T10 aluminum hardware, this frame delivers exceptional strength and reliability for aggressive freestyle and long-range flying. Whether pushing the limits of acrobatic performance or embarking on extended missions, the Poisonous Bees 8-inch frame provides a stable, durable, and versatile foundation for demanding FPV builds.
