DF-V2 9Inch FPV Frame Drone Carbon Fiber Rc Racing Crossing Large Payload

$41.99

Wheelbase: 387mm
Weight:292g
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm

Category: FPV Drone Frame

Description

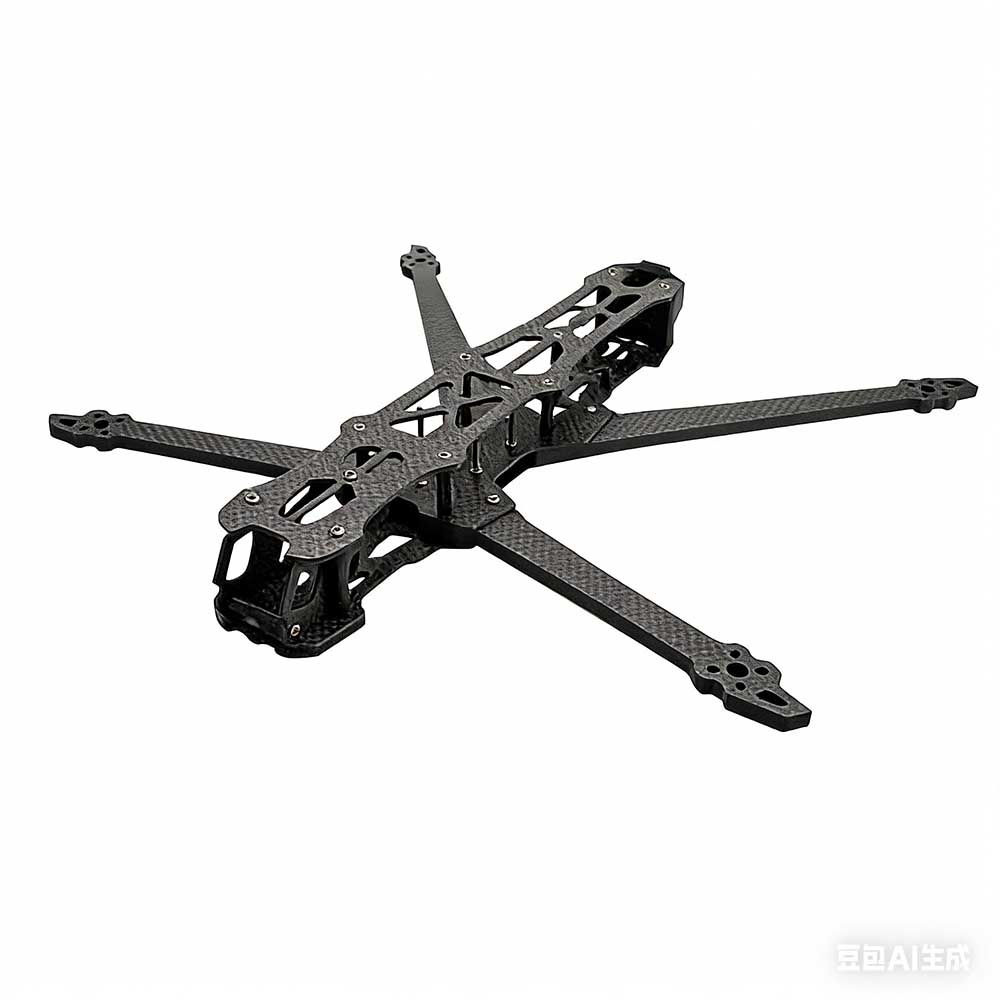

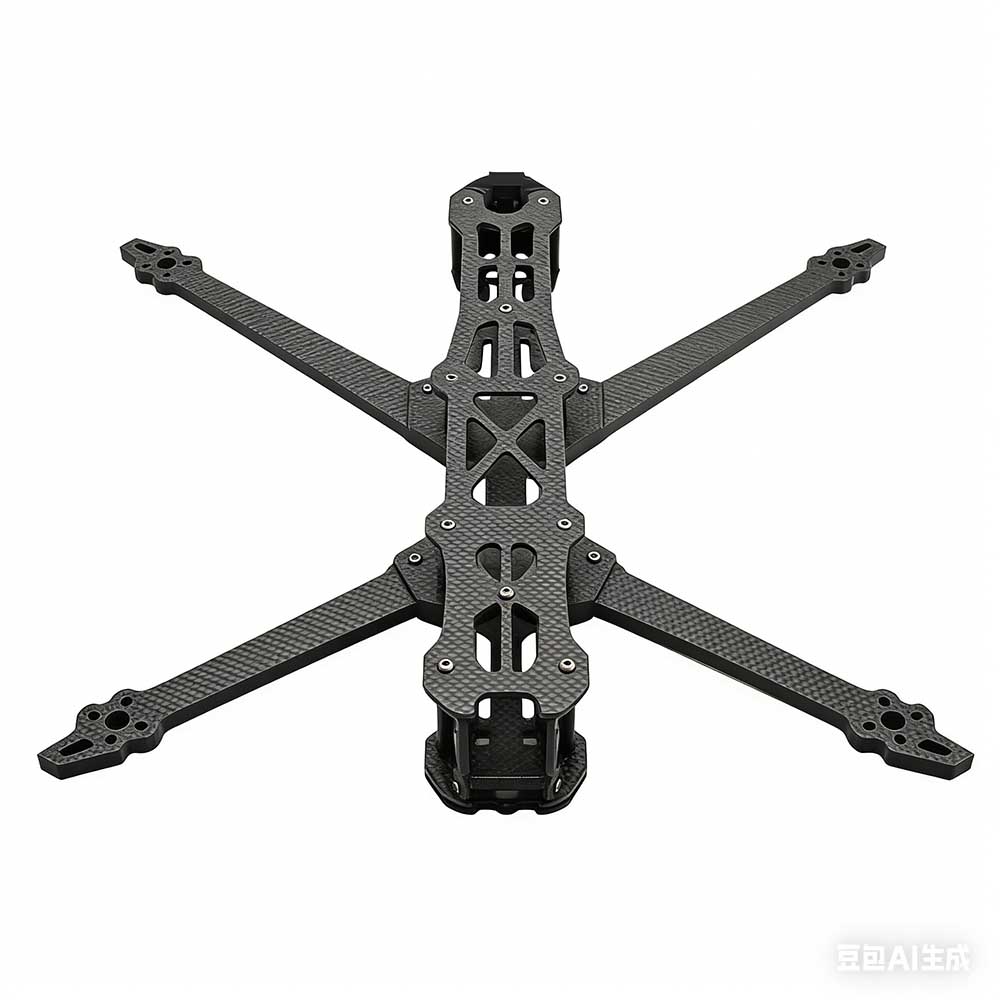

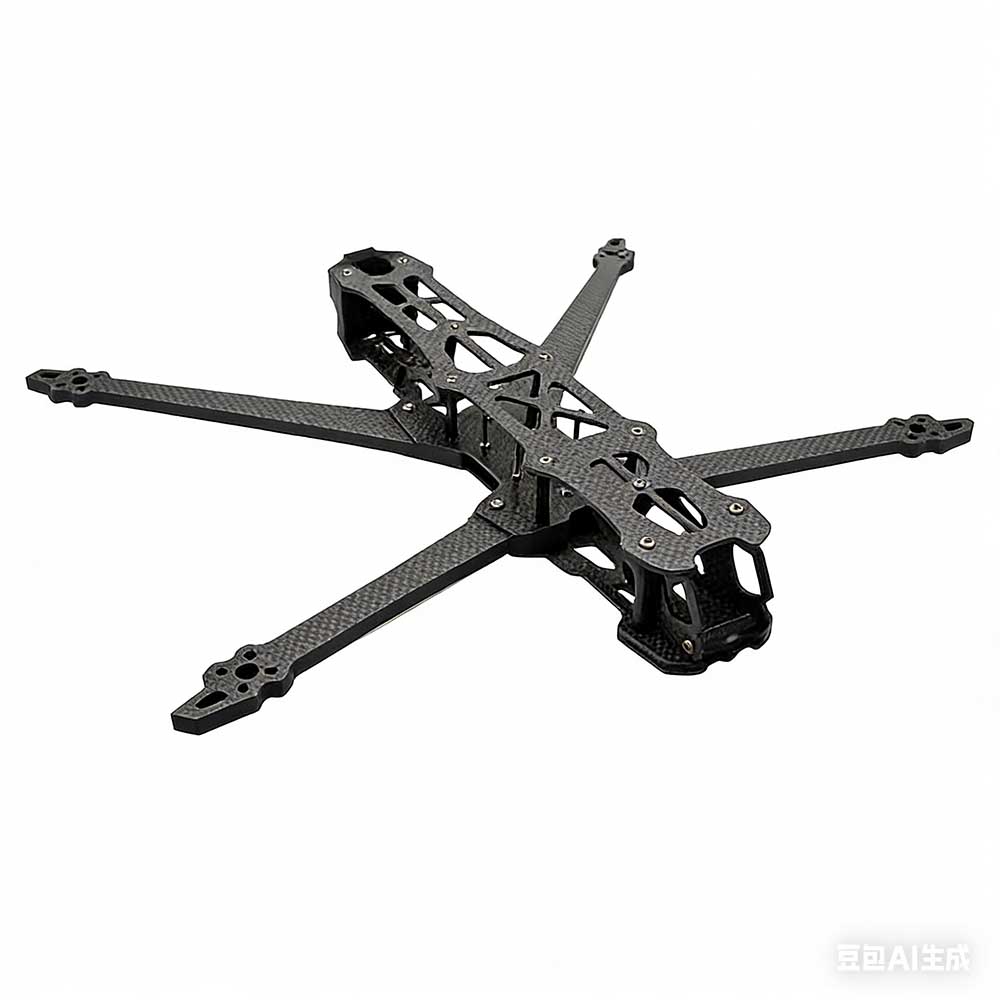

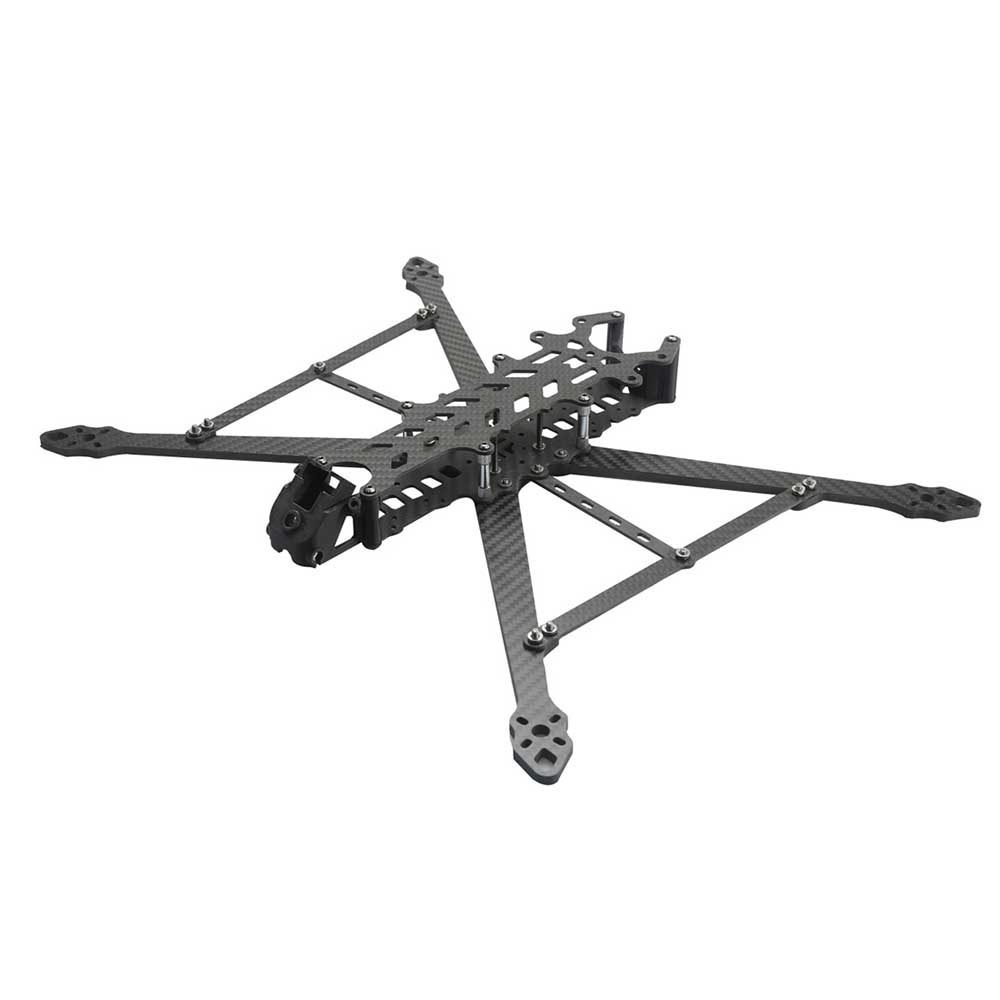

DF-V2 9inch FPV Frame – Lightweight 9″ Long-Range & Freestyle Frame Product Overview

The DF-V2 9inch FPV Frame is a precision-engineered FPV drone frame designed for 9-inch propeller setups. With a 387mm wheelbase and a lightweight yet durable construction, this frame is ideal for long-range cruising, heavy-lift freestyle, and cinematic applications. The modular design supports multiple mounting patterns for flight controllers, cameras, and motors, offering maximum flexibility for custom builds.

Key Features

Optimized for 9-Inch Propellers – Perfect balance of stability and thrust for 9″ builds.
Lightweight Construction – Total weight of just 292g for excellent power-to-weight ratio.
Durable Materials – 2mm bottom/top plates and 6mm camera arm for impact resistance.
Versatile Mounting Options:
- Flight Controller: 30.5×30.5mm
- Camera: 19mm horizontal spacing
- VTX/Map: 20×20mm & 30.5×30.5mm
- Motors: 16×16mm & 19×19mm
Ample Internal Space – 35mm stack height accommodates various electronics.
Clean Aesthetics – Sleek design with carbon fiber construction.

FPV Frame Technical Specifications

Parameter	Value
Model	DF-V2 9inch
Wheelbase	387mm
Frame Weight	292g
Bottom Plate Thickness	2mm
Top Plate Thickness	2mm
Camera Arm Thickness	6mm
Camera Side Panel Thickness	2mm
Camera Mounting Hole Spacing	19mm (horizontal)
VTX/Map Mounting Hole Spacing	20×20mm & 30.5×30.5mm
Flight Controller Mounting Pitch	30.5×30.5mm
Internal Stack Height	35mm
Motor Mounting Hole Pitch	16×16mm & 19×19mm

FPV Frame Recommended Configuration (Not Included)

Component	Recommended Specifications
Motor	2812 / 3110 / 3115 / 3210 / 3214
ESC	50A – 65A
Propeller	9 inches
Camera	19×19mm (Nano/Micro size)
Flight Controller	F4 / F7 / F405 / F722 / KK series
VTX	5.8G / 1.2G / 4.9G (1.2W – 3W)
Battery	6S 4000mAh – 8000mAh

Package Includes

1 × DF-V2 9inch FPV Frame Kit (Carbon fiber plates & hardware)
1 × Hardware accessory bag (screws, standoffs, etc.)
(Electronics not included)

This DF-V2 9inch FPV Frame is an excellent choice for pilots seeking a lightweight, versatile, and durable platform for their 9-inch FPV builds – whether for long-range exploration or aggressive freestyle.
