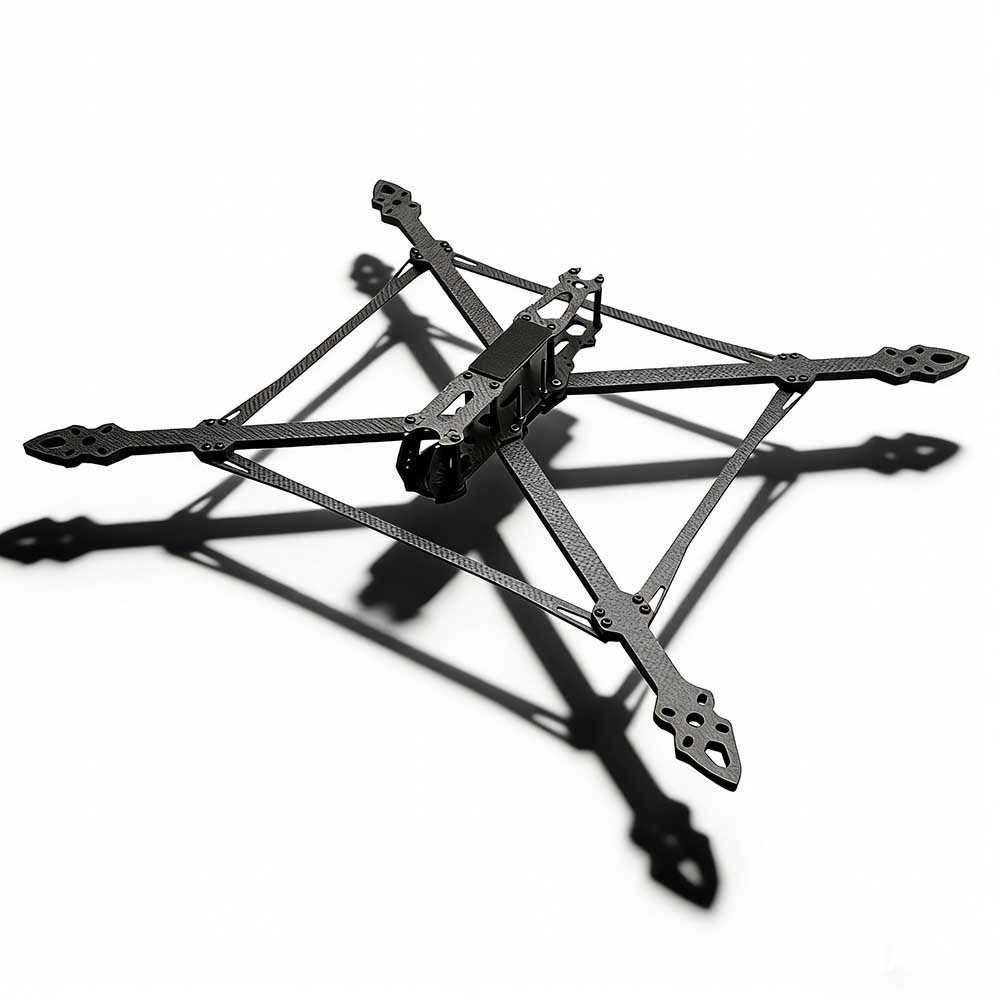

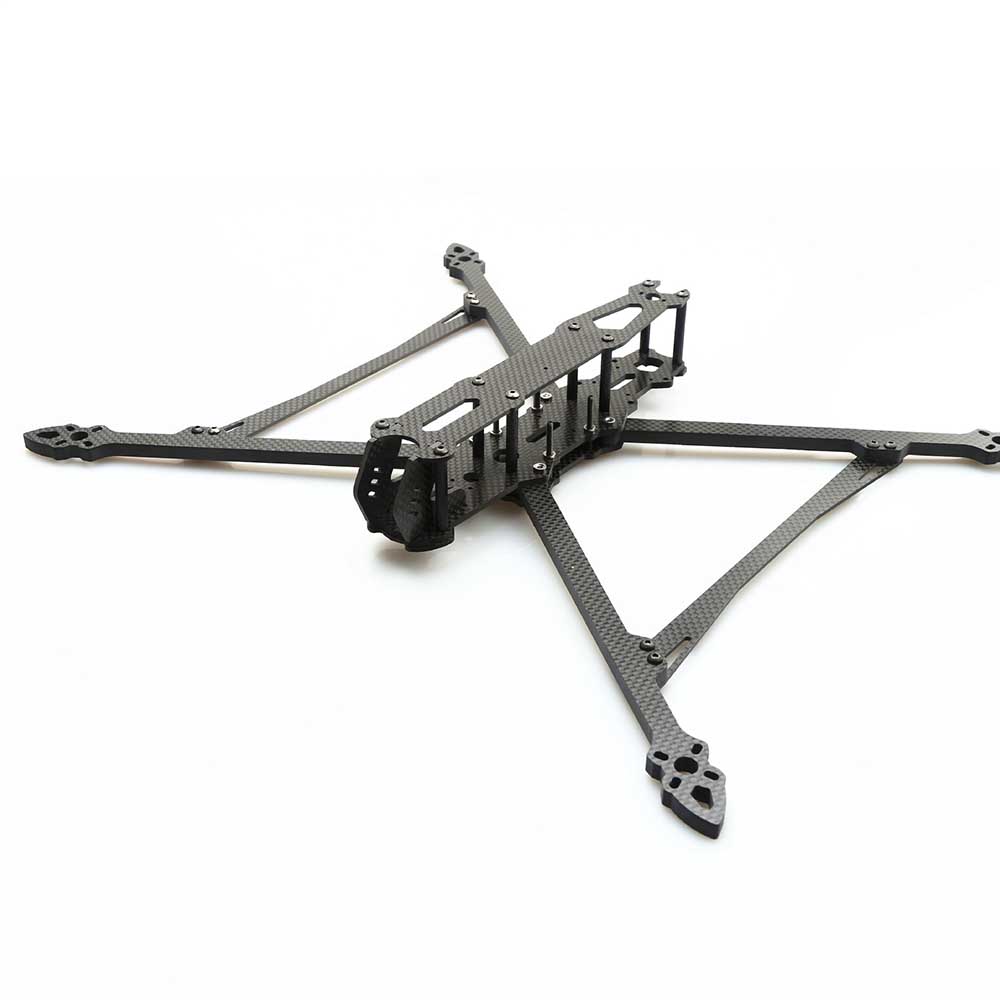

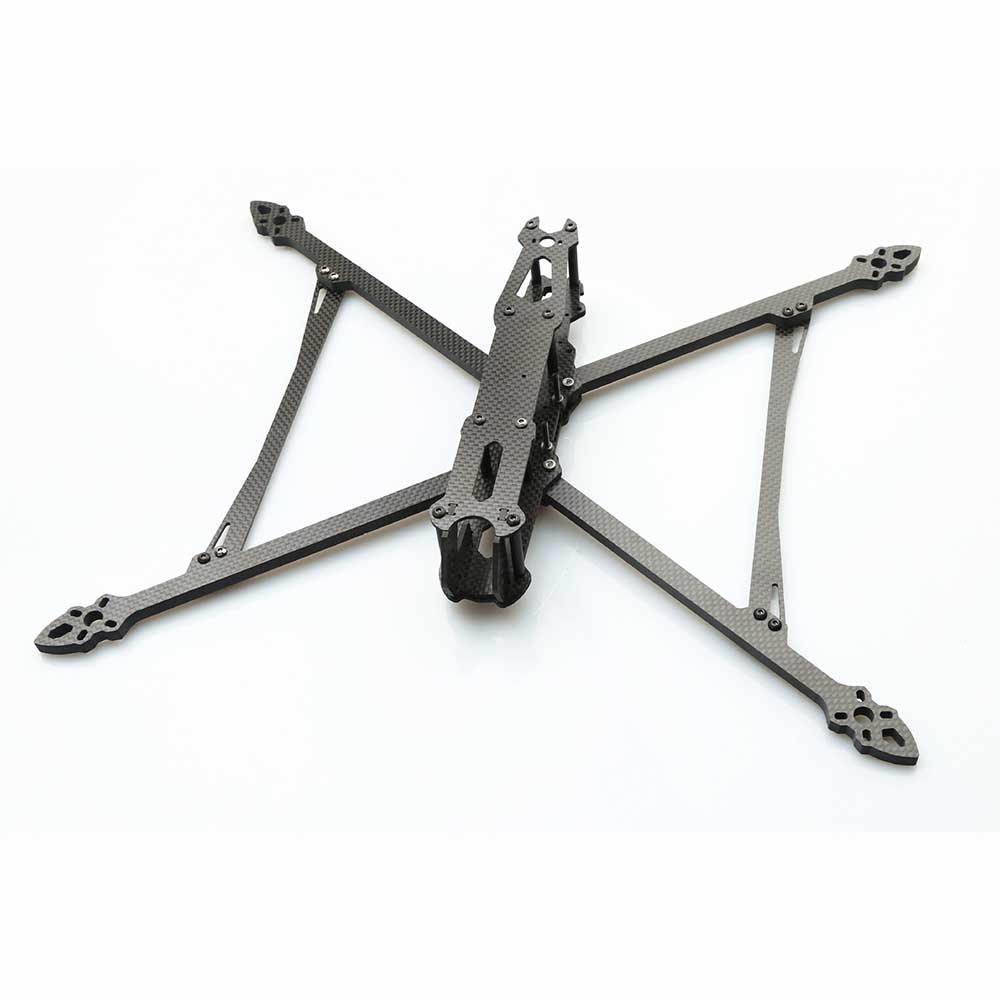

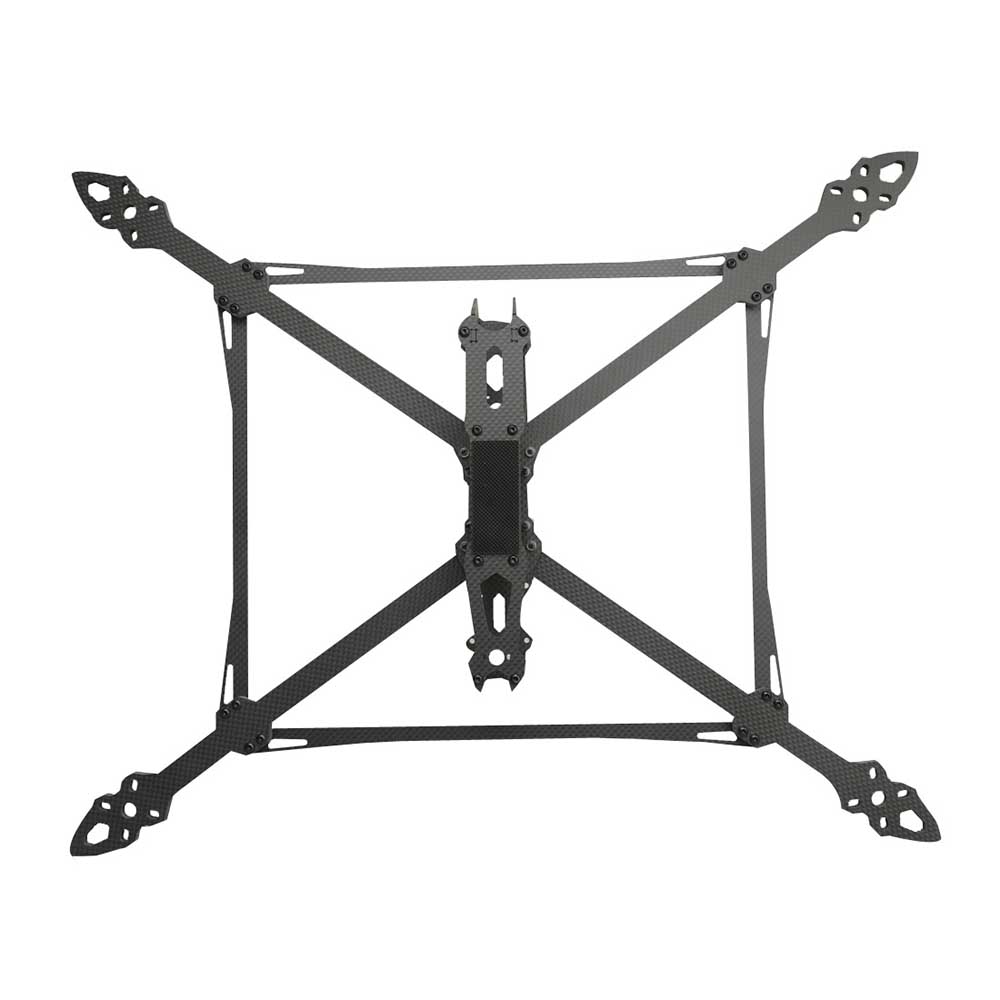

MAK4 V2 8inch fpv racing drone frame – Light weight 8″ Long-Range & Freestyle Frame Product Overview
The MAK4 V2 8inch fpv racing drone frame is a precision-engineered FPV drone frame designed for 8-inch propeller setups. With a 367mm wheelbase and a lightweight yet durable construction, this frame is ideal for long-range cruising, freestyle flying, and cinematic applications. The robust design features reinforced arms and multiple mounting options for maximum build flexibility.
Key Features
- Optimized for 8-Inch Propellers – Perfect balance of stability and efficiency for 8″ builds.
- Lightweight Construction – Total weight of approximately 214g for excellent power-to-weight ratio.
- Durable Materials:
- 3mm bottom plate – Rigid core structure
- 2mm top plate – Lightweight protection
- 6mm camera arm – Impact-resistant for aggressive flying
- 2.5mm camera side panels – Added durability for camera protection
- Versatile Mounting Options:
- Flight Controller: 30.5×30.5mm
- Camera: 19mm horizontal spacing
- VTX/Map: 20×20mm & 30.5×30.5mm
- Motors: 16×16mm & 19×19mm
- Ample Internal Space – 35mm stack height accommodates various electronics.
fpv racing drone frame Technical Specifications
| Parameter | Value |
|---|---|
| Model | MAK4 V2 8inch |
| Wheelbase | 367mm |
| Frame Weight | ~214g |
| Bottom Plate Thickness | 3mm |
| Top Plate Thickness | 2mm |
| Camera Arm Thickness | 6mm |
| Camera Side Panel Thickness | 2.5mm |
| Camera Mounting Hole Spacing | 19mm (horizontal) |
| VTX/Map Mounting Hole Spacing | 20×20mm & 30.5×30.5mm |
| Flight Controller Mounting Pitch | 30.5×30.5mm |
| Internal Stack Height | 35mm |
| Motor Mounting Hole Pitch | 16×16mm & 19×19mm |
fpv racing drone frame Recommended Configuration (Not Included)
| Component | Recommended Specifications |
|---|---|
| Propeller | 8 inches |
| Motor | 2807 / 2810 / 2812 / 3110 |
| ESC | 45A – 65A |
| Camera | 19×19mm (Nano/Micro size) |
| Flight Controller | F4 / F7 / F405 / F722 series |
| VTX | 5.8G / 1.2G compatible |
| Battery | 6S 3000mAh – 8000mAh |

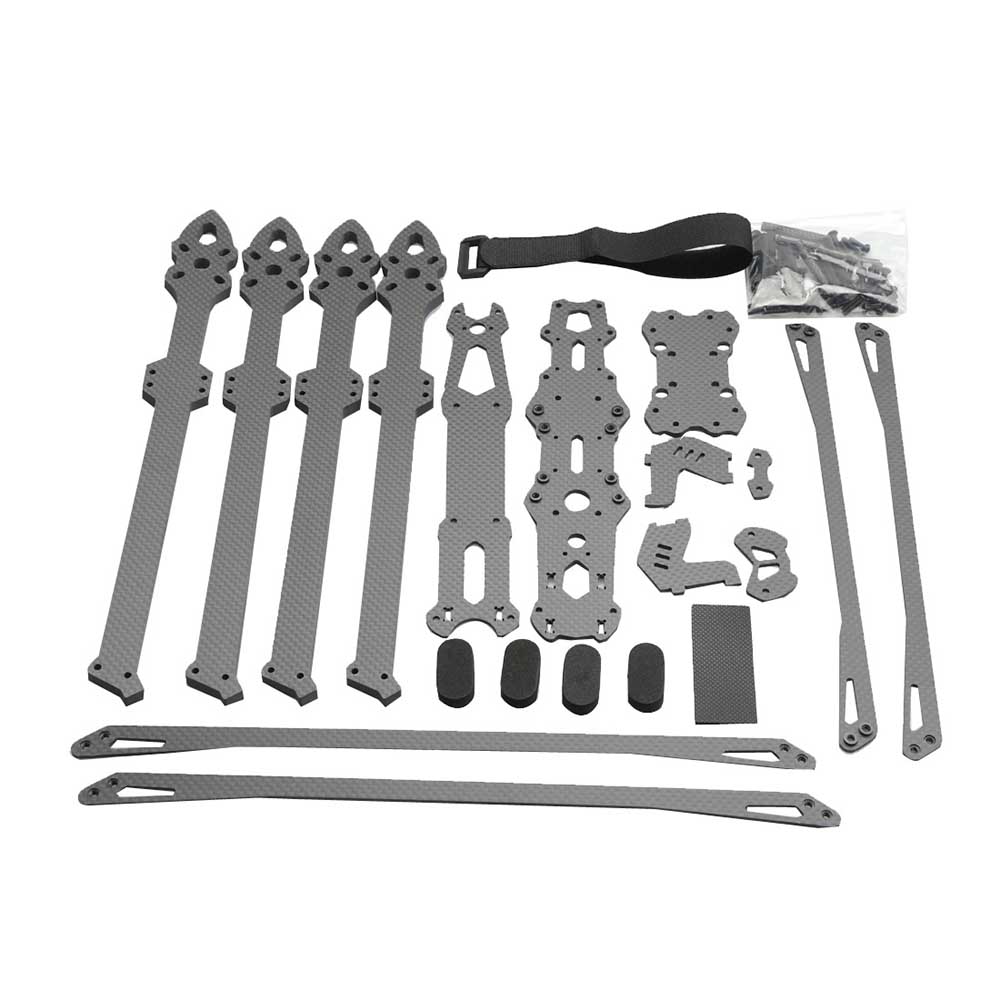

Package Includes
- 1 × MAK4 V2 8inch Carbon Fiber fpv racing drone frame Kit
- (Electronics and hardware accessories not included)
This MAK4 V2 8inch fpv racing drone frame is an excellent choice for pilots seeking a lightweight, versatile, and durable platform for their 8-inch FPV builds – whether for long-range exploration or aggressive freestyle performance.
Model: MAK4 V2 8inch
Wheelbase: 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm
