Description

Product Name: GX-V4 15-Inch FPV Drone Frame Kit – Carbon Fiber Long-Range Heavy-Lift Frame

---

fpv drone frame Product Overview

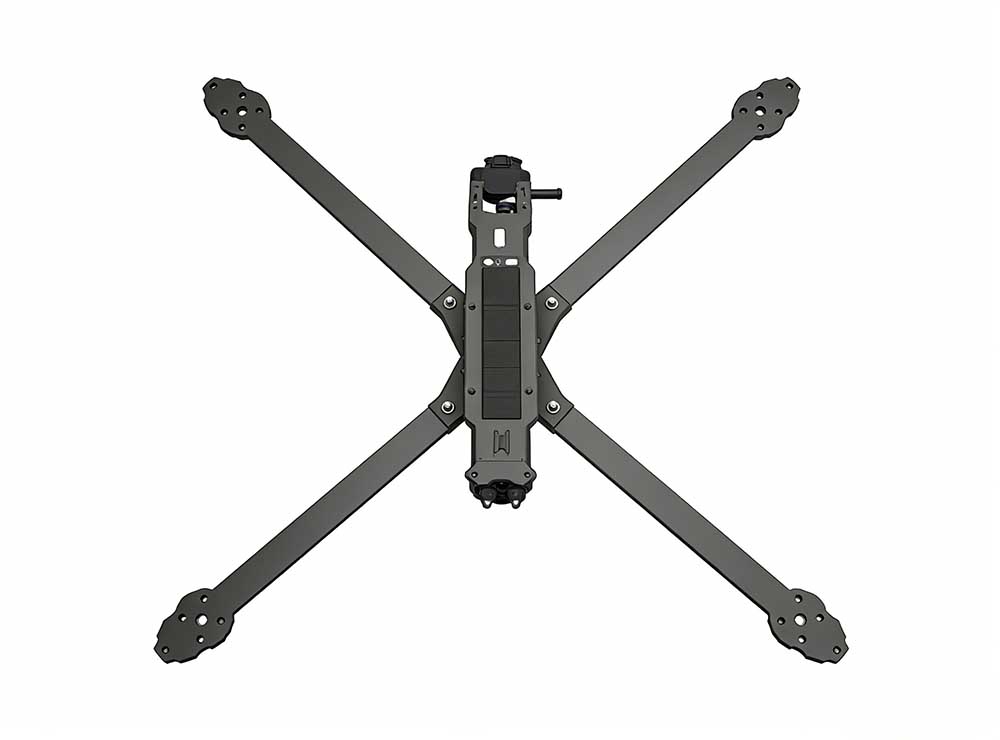

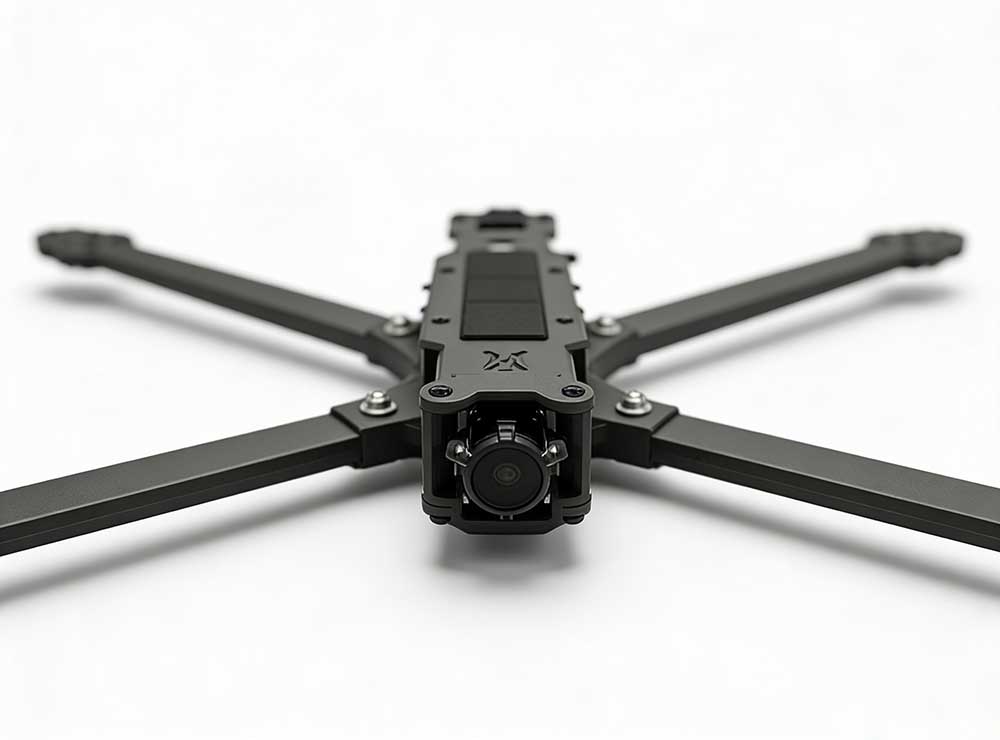

The GX-V4 15-Inch FPV Drone Frame Kit is a high-strength, long-range carbon fiber frame designed for 15-inch propeller setups. With a 660mm wheelbase, 8mm thick arms, and robust construction weighing 655g, this frame delivers exceptional stability and durability for heavy-lift, cinematic, and long-range FPV applications. The frame features versatile mounting options for flight controllers, ESCs, and VTX units, making it an ideal choice for pilots building high-performance 15-inch drones.

---

fpv drone frame Key Features

• Large 660mm Wheelbase – Provides exceptional stability for long-range flights and heavy payloads.
• Durable Carbon Fiber Construction – 2.5mm top plate, 2.5mm bottom plate, and 8mm thick arms for maximum impact resistance and rigidity.
• 15-Inch Propeller Support – Optimized for 15-inch propellers, delivering efficient thrust and extended flight times.
• Ample Internal Space – 40mm inner space height accommodates stacked electronics and tall components.
• Versatile Mounting Compatibility – Flight controller mounting supports 30.5×30.5mm patterns; VTX/mapping mounting supports both 20×20mm and 30.5×30.5mm patterns.
• Flexible Motor Mounting – Supports motor mounting hole spacing of 25×25mm and 30×30mm, compatible with a wide range of motors.
• Standard Camera Mount – 19mm camera mounting spacing for most FPV cameras.
• Lightweight Yet Strong – 655g frame weight balances durability with flight efficiency.


---

fpv drone frame Technical Specifications

Parameter	Value
Model	GX-15inch V4 Carbon Fiber
Wheelbase	660mm
Frame Weight	655g
Top Plate Thickness	2.5mm
Bottom Plate Thickness	2.5mm
Arm Thickness	8mm
Camera Mounting Hole Spacing	19mm
VTX / Mapping Mounting Hole Spacing	20×20mm & 30.5×30.5mm
Flight Controller Mounting Spacing	30.5×30.5mm
Inner Space Height	40mm
Motor Mounting Hole Spacing	25×25mm & 30×30mm

---

fpv drone frame Recommended Configuration (Not Included)

Component	Recommendation
Motor	4215 / 4218 / 4312 / 5215
ESC	80A – 100A, 6S – 8S
Propeller	15 inches
Camera	19 × 19mm format
Flight Controller	F4 / F7 / F405 / F722
VTX	5.8G / 1.2G / 4.9G, 1.2W – 5W
Battery	6S – 8S, 12000mAh – 22000mAh

---

fpv drone frame Recommended Applications

• Drone Types: Long-Range FPV, Heavy-Lift Drones, Cinematic / Aerial Photography Platforms
• Propeller Size: 15-inch (optimized for efficient long-range flight and heavy payloads)
• Power Systems: Suitable for 6S–8S high-voltage setups with high-current ESCs
• Component Integration: Compatible with standard 30.5×30.5mm flight controller stacks and 20×20mm or 30.5×30.5mm VTX units

---

fpv drone frame Package Includes

• 1 × GX-V4 15-Inch Carbon Fiber Frame Kit (includes top plate, bottom plate, arms, and mounting hardware)
• (Mounting hardware and accessories included; check with seller for full kit contents)

---

Notes

1. Due to differences in monitor calibration, the actual product color may vary slightly from the images shown. The style is guaranteed to match the pictures.
2. Please allow 1–3mm deviation due to manual measurement and different measurement methods. Ensure you accept this tolerance before purchasing.

---

Summary

The GX-V4 15-Inch FPV Drone Frame Kit is a premium carbon fiber frame designed for pilots demanding maximum stability, durability, and versatility in long-range and heavy-lift applications. With its 660mm wheelbase, 8mm thick arms, 40mm internal stack height, and comprehensive mounting options for both 20×20mm and 30.5×30.5mm electronics, this frame provides a solid foundation for high-performance 15-inch drone builds. Whether for cinematic aerial photography, extended long-range missions, or heavy payload transport, the GX-V4 15-inch frame delivers the strength and flexibility required for demanding FPV applications.
