F7 F722 Fpv Drone Flight Controller with MCU IMU OSD USER2

Description

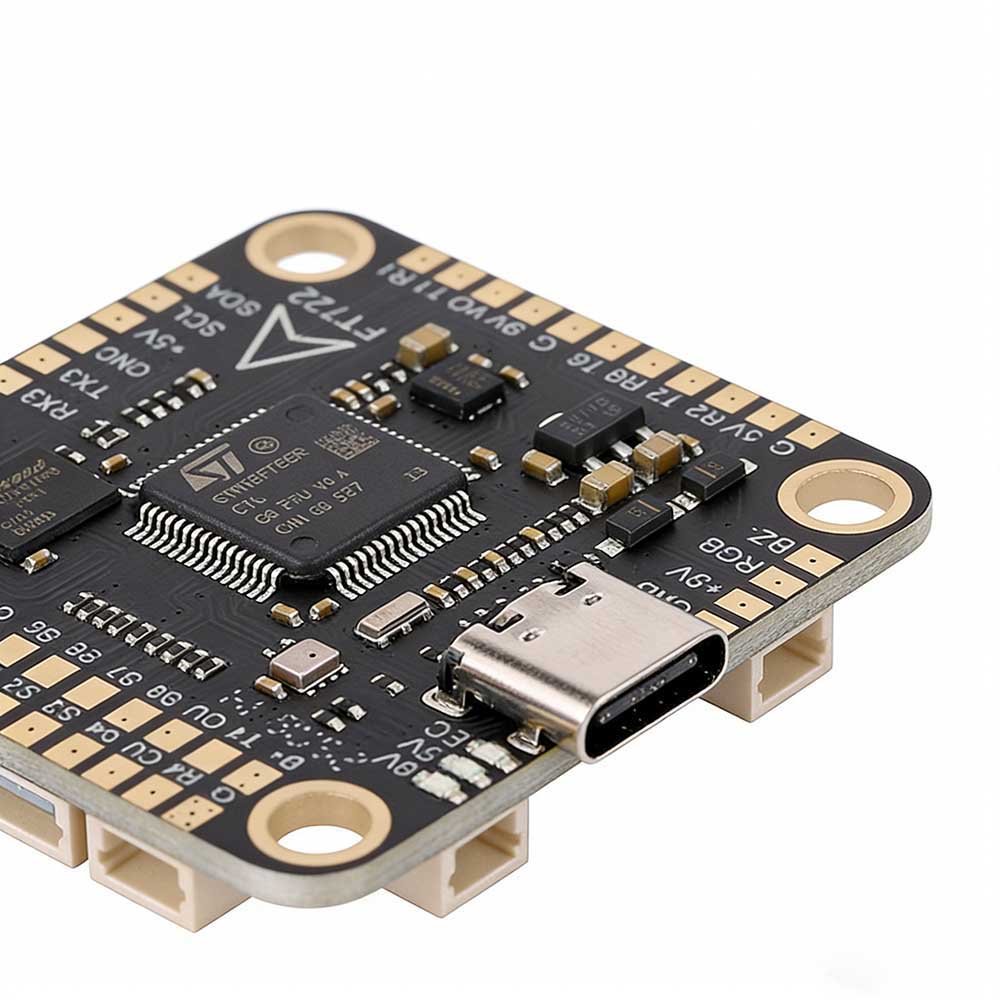

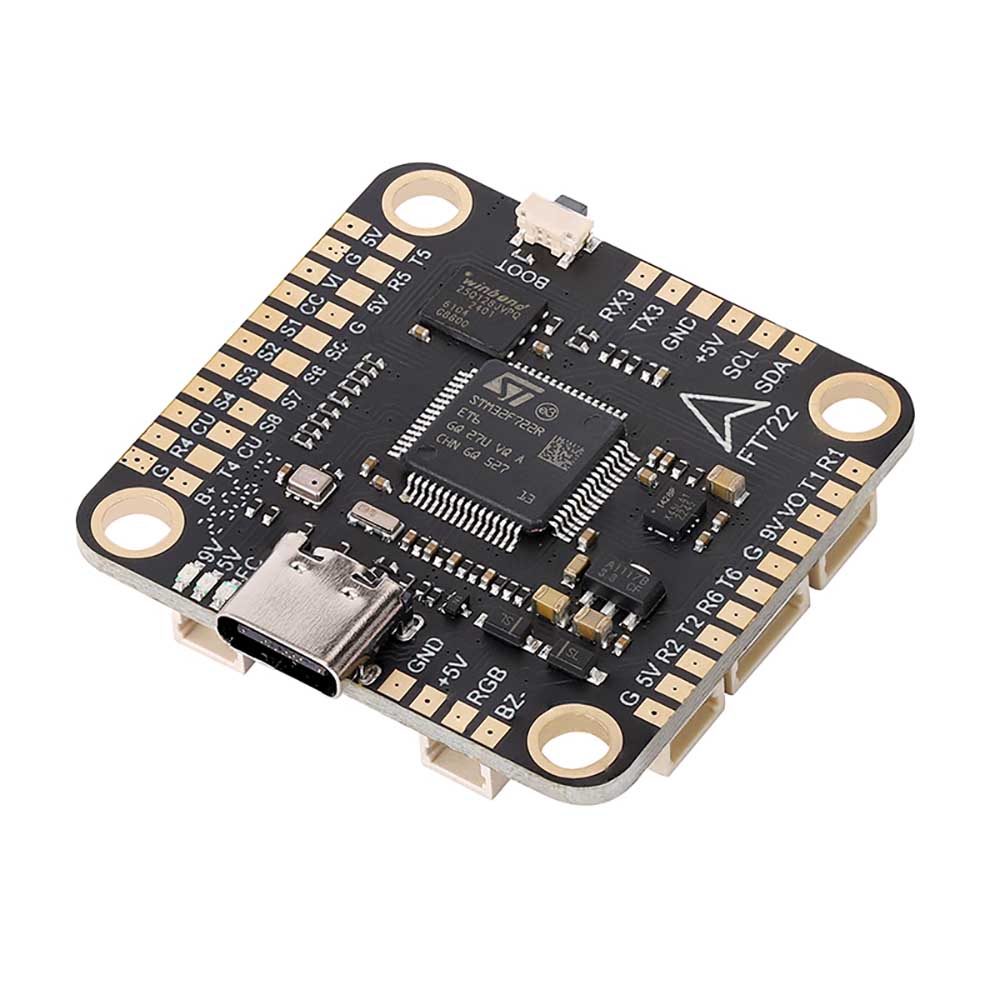

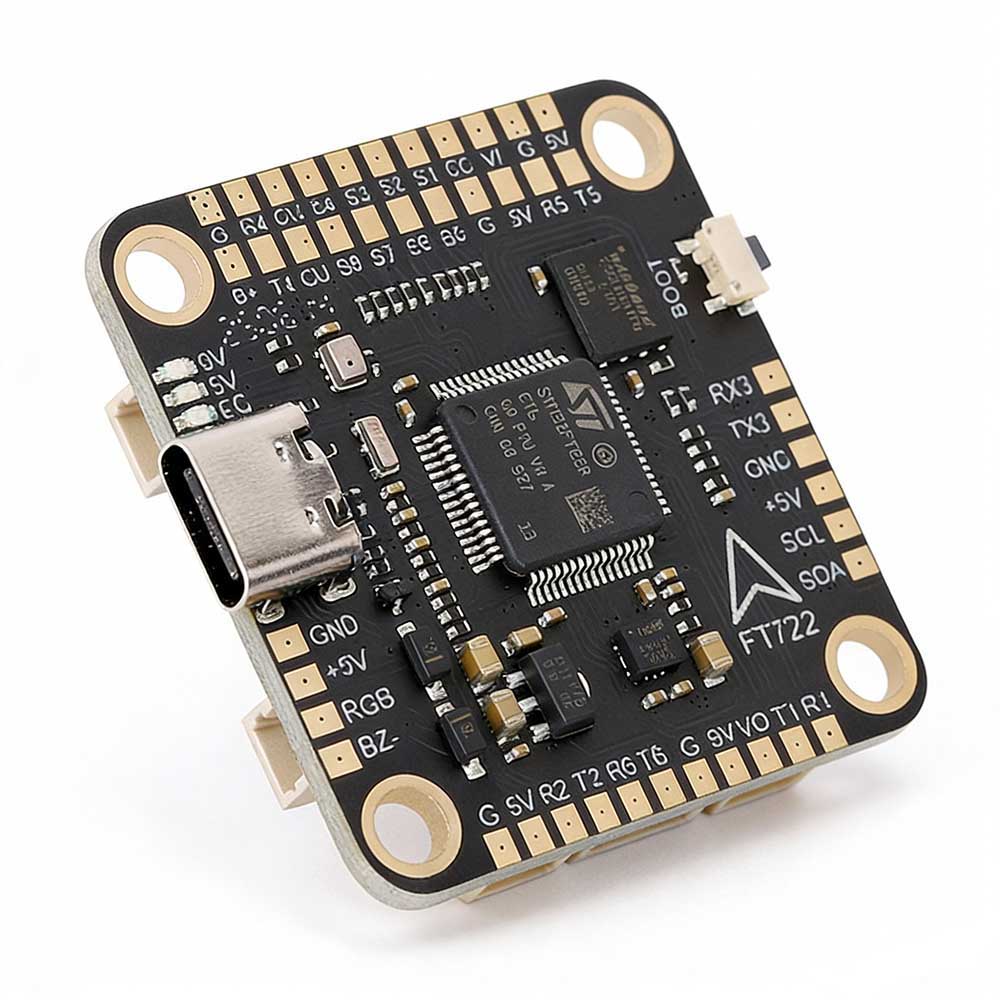

F722 Drone Flight Controller

Overview:
The F722 Drone Flight Controller is a high-performance flight control board designed for FPV drones, supporting both Betaflight (BF) and INAV firmware. It features advanced sensors, multiple UART ports, and robust power management, making it ideal for freestyle, racing, and long-range UAV applications.

Key Specifications

Key Features Summary

• High-Performance Processor: STM32F722RET6 ensures smooth handling of complex flight algorithms.
• Precision Sensors: ICM-42688 gyro and SPL06-001 barometer for accurate flight control and altitude hold.
• Versatile Power Options: Dual BEC outputs (5V/3A and 10V/3A) to power peripherals like receivers, cameras, and VTX.
• Extensive Connectivity: 6 UART ports for GPS, smart audio, receiver, and other peripherals.
• Wide Receiver Compatibility: Supports ELRS, TBS Crossfire, SBUS, IBUS, DSM2, and DSMX.
• Onboard Blackbox: 16MB memory for flight data analysis and troubleshooting.
• Durable Design: Compact 36x36mm form factor with standard 30.5mm mounting pattern.

Drone Flight Controller attribute

This F722 Flight Controller is an excellent choice for pilots seeking a reliable, feature-rich flight controller for advanced FPV and autonomous drone builds.

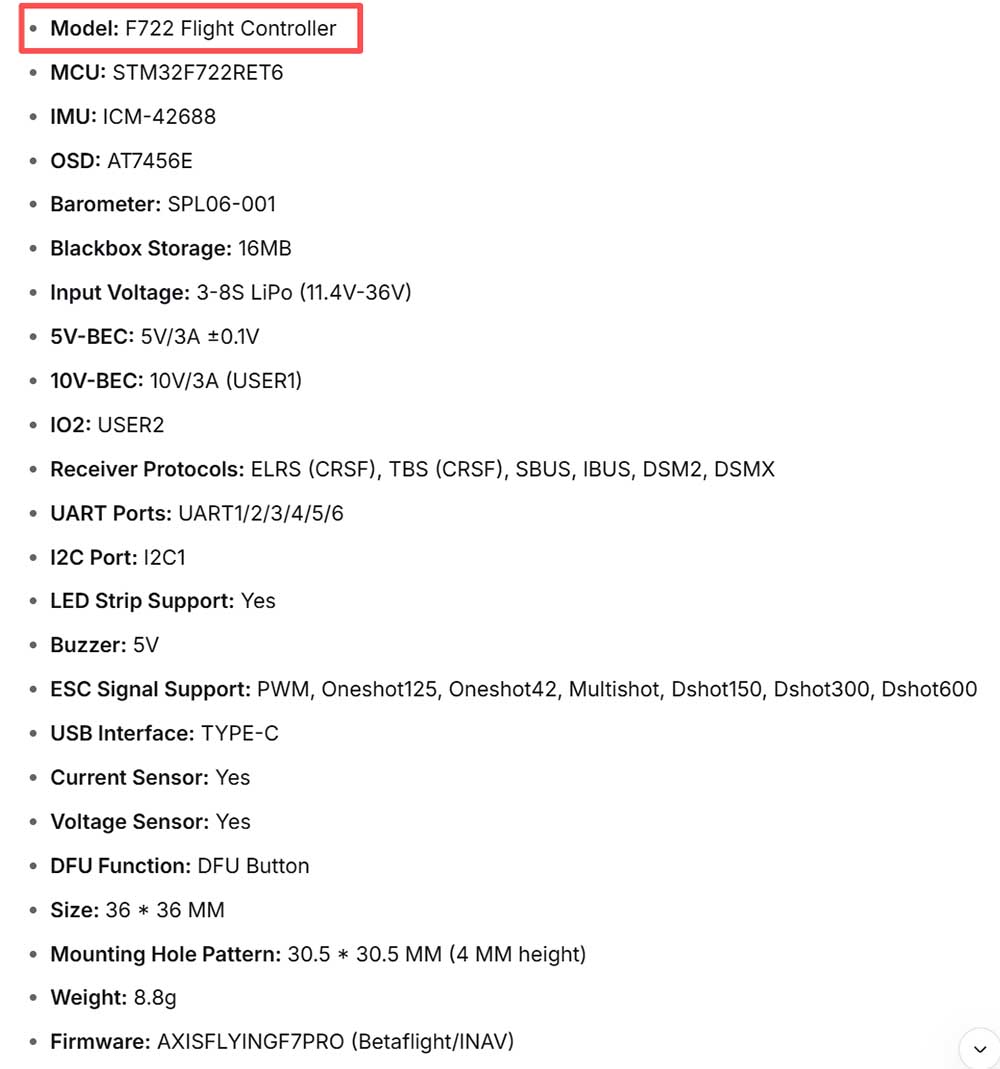

(Model): F722 Flight Controller
(MCU) STM32F722RET6
(IMU) ICM-42688
(OSD): AT7456E
(Baro) SPL06-001
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/3A ±0.1V
10V-BEC: 10V/3A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
(Buzzer): 5V
(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
(Current port): YES
(Voltage sensor) YES
DFU (DFU button): YES
(Size): 36*36MM
(Mounting Hole) 30.5*30.5*4MM
(Weight) 8.8g
Firmware:AXISFLYINGF7PRO BF/INAV

Key Advantages – F722 drone Flight Controller for Flight Controller Stack

1. Powerful & Modern Processor
   • STM32F722RET6 MCU (ARM Cortex‑M7, 216MHz) – high computational performance for advanced filters, complex mixing, and running Betaflight/INAV smoothly.
2. High‑Performance IMU
   • ICM-42688 (6‑axis MEMS) – excellent vibration isolation, high temperature stability, and low noise for accurate flight control.
3. Comprehensive On‑Board Features
   • AT7456E OSD – clean overlay for flight data on FPV feed.
   • SPL06-001 Barometer – precise altitude hold and positioning (essential for GPS missions).
   • 16MB Blackbox – ample logging for flight analysis and tuning.
4. Wide Input Voltage Range
   • 3–8S LiPo (11.4–36V) – compatible with small 3S builds up to high‑voltage 8S long‑range setups.
5. Dual BEC Outputs
   • 5V / 3A – powers receiver, GPS, LEDs, etc.
   • 10V / 3A (USER1) – ideal for powering FPV camera or VTX that require higher voltage (e.g., 9V/12V cameras).
   • USER2 (IO2) – additional configurable output.
6. Versatile Receiver Support
   • ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX – works with almost all modern receivers without external inverters.
7. Abundant Connectivity
   • 6 full UARTs (UART1–6) – connect GPS, VTX, smart audio, telemetry, etc.
   • I2C (I2C1) – for external sensors like magnetometer or airspeed.
   • LED strip support, Buzzer (5V) output.
8. Full ESC Protocol Support
   • PWM, Oneshot125/42, Multishot, Dshot150/300/600 – compatible with all modern ESCs, including bidirectional Dshot for RPM filtering.
9. Modern & User‑Friendly Hardware
   • USB‑C connector – easier cable connection and more durable.
   • Dedicated DFU button – simplifies firmware flashing (no bootloader tricks).
   • Current & voltage sensor inputs – enables mAh consumption monitoring and low‑battery warnings.
10. Standard Form Factor
    • 36×36mm board, 30.5×30.5mm mounting holes (4mm hole diameter) – fits all standard flight controller stacks.
    • Lightweight at only 8.8g – negligible impact on drone weight.
11. Targeted Firmware Support
    • Firmware target: AXISFLYINGF7PRO – works with both Betaflight and INAV (navigation firmware), making it suitable for both acro/freestyle and GPS‑assisted long‑range or autonomous flight.
