f4 F405 Fpv Drone Flight Controller Stack With Esc 60A Flying Tower 4 in 1

Description

Product 1:F405 Fpv Drone Flight Controller

---

Product Name: F405 Fpv Drone Flight Controller – 30.5×30.5mm Stackable FC for FPV Drones

---

Fpv Drone Flight Controller Product Overview

The F405 Fpv Drone Flight Controller is a versatile and reliable flight control board designed for a wide range of FPV drone applications. Powered by the STM32 F405 microcontroller, this FC offers robust processing power for both Betaflight and INAV firmware. With built‑in OSD, MicroSD blackbox, and support for multiple receiver protocols, it is an ideal choice for 5‑inch to 15‑inch freestyle, racing, and long‑range drones.

---

Fpv Drone Flight Controller Key Features

• Powerful MCU – STM32 F405 microcontroller for smooth flight performance and advanced algorithm support.
• DShot Ready – Supports DShot digital protocols for precise and responsive motor control.
• Integrated OSD – Drag‑and‑drop OSD configured through Betaflight for real‑time flight data display.
• High‑Quality Gyroscope – MPU6500 gyroscope for accurate attitude sensing.
• Wide Receiver Compatibility – Supports ELRS, CRSF, SBUS, IBUS, PPM, and Spektrum DSMX receivers.
• Onboard Blackbox – MicroSD card slot for flight data logging and performance analysis.
• Dual BEC Outputs – 5V/3A and 9V/3A to power peripherals such as receivers, VTX, and cameras.
• Video Filter – Built‑in video filter reduces noise for cleaner FPV video feed.
• Flexible Firmware – Pre‑loaded with OMNIBUSF4SD firmware; upgradable to Betaflight or INAV.

---

Fpv Drone Flight Controller Technical Specifications

---

Fpv Drone Flight Controller Recommended Applications

• Drone Sizes: 5‑inch, 6‑inch, 7‑inch, 8‑inch, 9‑inch, 10‑inch, 13‑inch, 15‑inch
• Drone Types: Freestyle, Racing, Long‑Range, Traversing (Cine) Drones
• Frame Compatibility: Standard 30.5mm stack mounting

---

Fpv Drone Flight Controller Package Includes

• 1 × F405 Fpv Drone Flight Controller
• (Mounting hardware and cables may vary; check with seller)

---

Fpv Drone Flight Controller Summary

The F405 Fpv Drone Flight Controller  offers a balanced combination of performance, features, and affordability. With its powerful STM32 F405 processor, versatile BEC outputs, broad receiver compatibility, and support for both Betaflight and INAV, it is a reliable choice for pilots building drones from 5 inches all the way up to 15 inches.

---

Product 2: BLHeli_S 60A 4-in-1 Brushless ESC

---

Product Name: BLHeli_S 60A 4-in-1 Brushless ESC – High-Performance ESC for FPV Drones

---

Product Overview

The BLHeli_S 60A 4-in-1 Brushless ESC is a compact and powerful electronic speed controller designed for demanding FPV drone applications. With support for 2–6S LiPo batteries and 60A continuous current per channel, it delivers robust performance for 4–7 inch freestyle, racing, and long‑range drones. Featuring an EF8BB21 processor, high‑performance MOSFETs, and DSHOT protocol support, this ESC ensures smooth throttle response and efficient power delivery in a compact 30.5×30.5mm stackable format.

---

Key Features

• Wide Voltage Range – Supports 2–6S LiPo, compatible with a variety of setups from 2S micro drones to 6S high‑performance builds.
• High Current Handling – 60A continuous current per channel, 70A burst (10s) for aggressive maneuvers and punch‑outs.
• BLHeli_S Firmware – Pre‑flashed with J_H_30_REV16_7 firmware for smooth and reliable performance.
• DSHOT Protocol Ready – Supports DShot150/300/600, Multishot, Oneshot, and PWM for broad flight controller compatibility.
• Integrated Current Sensor – Provides real‑time current monitoring for accurate battery management.
• Compact & Lightweight – Measures 41×39×5mm with standard 30.5×30.5mm mounting pattern, weighs only 15g.
• High‑Quality Components – EF8BB21 processor and high‑performance MOSFETs ensure efficiency and durability.

---

Technical Specifications

---

Recommended Applications

• Drone Types: 4–7 inch FPV Freestyle, Racing, Long‑Range, Cine Drones
• Frame Compatibility: Standard 30.5mm stack mounting
• Flight Controller Integration: Works with any flight controller supporting DSHOT, Multishot, Oneshot, or PWM protocols

---

Package Includes

• 1 × BLHeli_S 60A 4-in-1 Brushless ESC
• (Mounting hardware and cables may vary; check with seller)

---

Summary

The BLHeli_S 60A 4-in-1 Brushless ESC is an excellent choice for pilots seeking higher power, compact design, and reliable performance in their FPV builds. With its 60A per channel continuous current, 70A burst capability, support for multiple digital and analog protocols, and lightweight 15g form factor, this ESC delivers dependable power and performance for a wide range of FPV applications.

---

Stack Combination Note

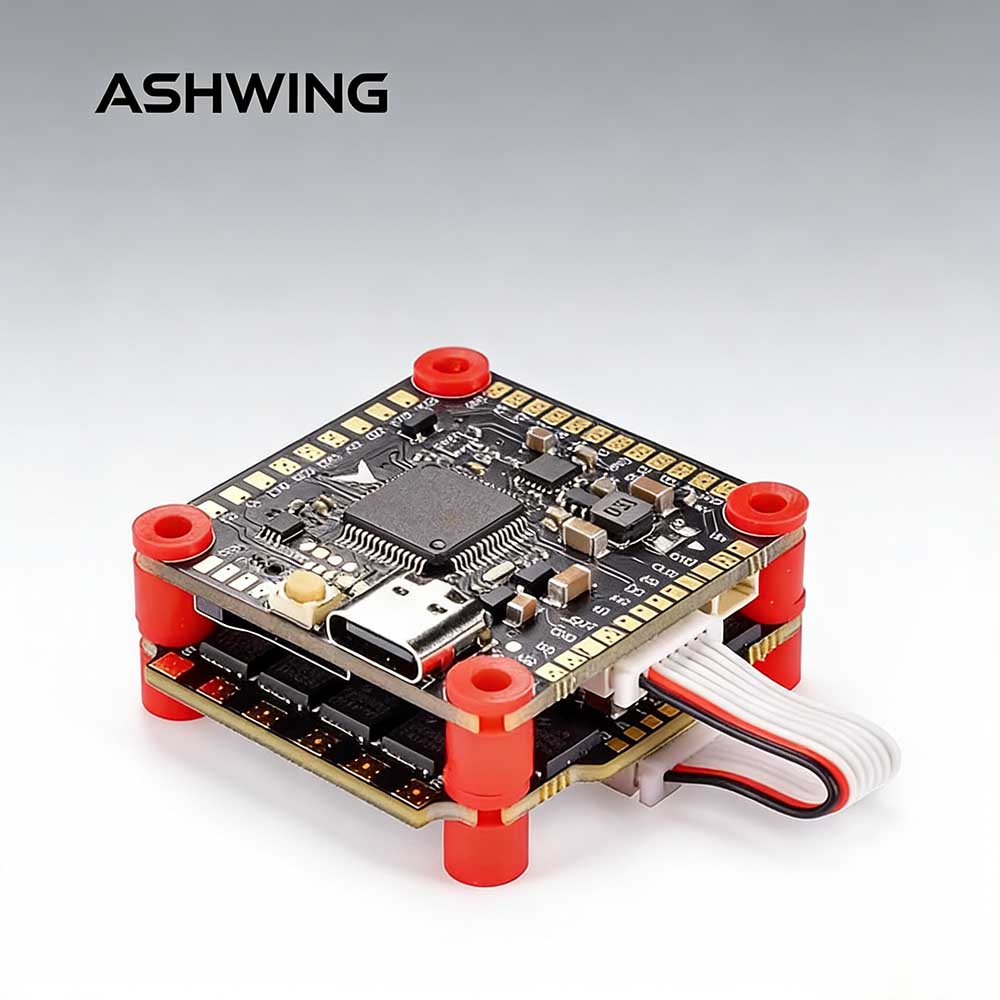

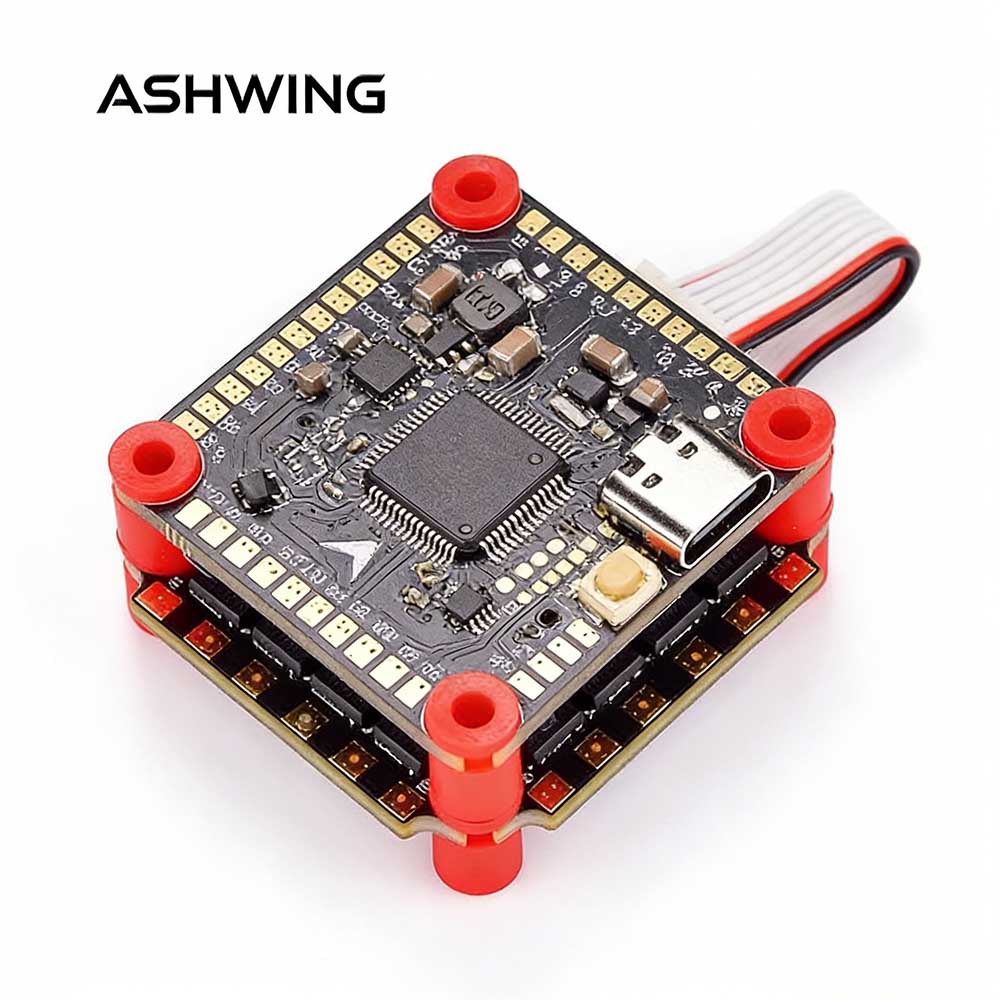

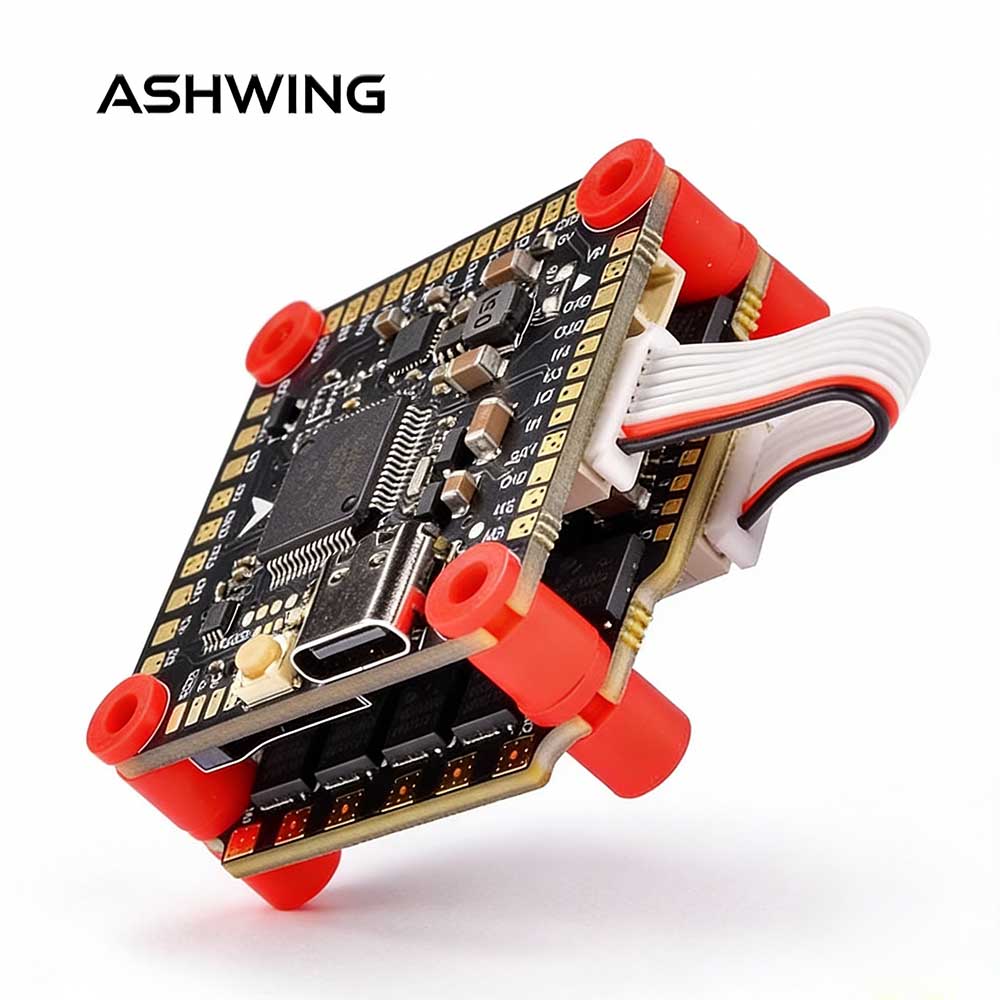

When paired together, the F405 Flight Controller and BLHeli_S 60A 4-in-1 ESC form a complete, stackable power and control system. Both share the standard 30.5×30.5mm mounting pattern, ensuring easy integration into most FPV frames. The FC’s 5V/3A and 9V/3A BEC outputs can power the receiver, VTX, and camera, while the ESC provides robust 60A per channel current handling for motors up to 6S configurations. This combination is ideal for 5‑inch to 7‑inch freestyle, racing, and long‑range builds.

1. Proven & Reliable MCU

   • STM32 F405 microcontroller – a well‑tested, stable platform with broad community support, ideal for both Betaflight and INAV.

2. Versatile Size & Weight

   • 36×36mm board, 30.5×30.5mm mounting holes – standard stack size.
   • Lightweight at only 13g – easy integration into any build.

3. Full Dshot Support

   • Compatible with Dshot protocols (including Dshot600) for clean, digital ESC communication and bidirectional Dshot / RPM filtering.

4. Drag‑and‑Drop OSD

   • On‑chip OSD fully configurable through Betaflight – no extra hardware needed, simple and intuitive.

5. High‑Performance Gyro

   • MPU6500 gyroscope – fast and accurate, well‑understood by the firmware, offering excellent flight characteristics.

6. Wide Receiver Compatibility

   • Supports ELRS (CRSF), TBS (CRSF), SBUS, IBUS, PPM, Spektrum DSMX – works with virtually all modern receivers without inverters.

7. On‑Board Blackbox

   • MicroSD card slot – ample logging capacity for tuning and troubleshooting.

8. Powerful BEC Outputs

   • 5V / 3A – powers receiver, GPS, LEDs.
   • 9V / 3A – ideal for FPV cameras and video transmitters that require higher voltage (e.g., 9V or 12V).
   • Includes a video filter to clean power noise, resulting in clearer FPV feed.

9. Extremely Wide Model Compatibility

   • Suitable for 5″ to 15″ propellers – covers mini quads, long‑range cruisers (7‑10″), and even heavy‑lift or industrial drones up to 15″.

10. Flexible Firmware

    • Target firmware: OMNIBUSF4SD – supports both Betaflight (acro/freestyle) and INAV (navigation / GPS missions), and is upgradeable to newer versions.

This F405 flight controller is a cost‑effective, proven, and versatile choice for a huge range of FPV drones – from 5″ freestyle rigs to 10″+ long‑range and heavy‑lift platforms – offering ample BEC power, logging, and clean video output.

BLHELI‑S 60A 4in1 ESC – Higher Power, Same Compact Footprint for  fpv Drone Flight Controller

For pilots who demand extra headroom on 6S builds or high‑torque 7″ long‑range quads, this 60A 4in1 ESC delivers robust current handling without increasing size or weight. At just 41×39×5mm and 15g, it matches the form factor of smaller ESCs while offering significantly more capacity.

Key advantages:

• True high‑current performance – 60A continuous and 70A burst (10 sec) per channel confidently drives aggressive motors like 2507, 2810, or 2812 on 7″ props, even with 6S packs.
• 2‑6S HV compatibility – Works perfectly with everything from 2S tinywhoop builds up to 6S freestyle and long‑range setups, giving you maximum flexibility.
• Ultra‑compact & lightweight – Only 15g and 5mm thin, it saves precious stack space and keeps your quad’s AUW low for better agility and flight time.
• Standard 30.5×30.5mm mounting – Fits any full‑size flight controller stack with no modifications needed.
• Universal signal input – Supports DShot150/300/600, Multishot, Oneshot, and PWM, ensuring compatibility with F3, F4, F7, and RF flight controllers.
• Built‑in current sensor – Get accurate real‑time current and consumed mAh data directly in your OSD for precise battery management.
• Proven BLHeli‑S firmware – Based on the stable J_H_30_REV16_7 build, delivering smooth throttle response and reliable performance flight after flight.

Whether you’re pushing a 6S 7″ long‑range rig or need bulletproof current headroom for aggressive freestyle, the BLHELI‑S 60A ESC provides the power and reliability you can trust.
