F405 Fpv Drone Flight Controller Stack With Esc 50A Flying Tower 4 in 1

Description

Product 1: F405 Fpv Drone Flight Controller

---

Product Name: F405 Fpv Drone Flight Controller – 30.5×30.5mm Stackable FC for FPV Drones

Fpv Drone Flight Controller Product Overview

The F405 Flight Controller is a versatile and reliable flight control board designed for a wide range of FPV drone applications. Powered by the STM32 F405 microcontroller, this FC offers robust processing power for both Betaflight and INAV firmware. With built‑in OSD, MicroSD blackbox, and support for multiple receiver protocols, it is an ideal choice for 5‑inch to 15‑inch freestyle, racing, and long‑range drones.

---

Fpv Drone Flight Controller Key Features

• Powerful MCU – STM32 F405 microcontroller for smooth flight performance and advanced algorithm support.
• DShot Ready – Supports DShot digital protocols for precise and responsive motor control.
• Integrated OSD – Drag‑and‑drop OSD configured through Betaflight for real‑time flight data display.
• High‑Quality Gyroscope – MPU6500 gyroscope for accurate attitude sensing.
• Wide Receiver Compatibility – Supports ELRS, CRSF, SBUS, IBUS, PPM, and Spektrum DSMX receivers.
• Onboard Blackbox – MicroSD card slot for flight data logging and performance analysis.
• Dual BEC Outputs – 5V/3A and 9V/3A to power peripherals such as receivers, VTX, and cameras.
• Video Filter – Built‑in video filter reduces noise for cleaner FPV video feed.
• Flexible Firmware – Pre‑loaded with OMNIBUSF4SD firmware; upgradable to Betaflight or INAV.

---

Fpv Drone Flight Controller Technical Specifications

Parameter	Value
Project Name	F405 Flight Controller
MCU	STM32 F405
Gyroscope	MPU6500
OSD	Integrated (Betaflight configurable)
Blackbox	MicroSD card slot
BEC Outputs	5V/3A, 9V/3A
Receiver Support	ELRS, CRSF, SBUS, IBUS, PPM, Spektrum DSMX
ESC Protocol	DShot (and other standard protocols)
Video Filter	Built‑in
Firmware	OMNIBUSF4SD / Betaflight / INAV (upgradable)
Dimensions	36 × 36mm
Mounting Pattern	30.5 × 30.5mm
Weight	13g

---

Fpv Drone Flight Controller Recommended Applications

• Drone Sizes: 5‑inch, 6‑inch, 7‑inch, 8‑inch, 9‑inch, 10‑inch, 13‑inch, 15‑inch
• Drone Types: Freestyle, Racing, Long‑Range, Traversing (Cine) Drones
• Frame Compatibility: Standard 30.5mm stack mounting

---

Fpv Drone Package Includes

• 1 × F405 Flight Controller
• (Mounting hardware and cables may vary; check with seller)

---

Fpv Drone Flight Controller Summary

The F405 Flight Controller offers a balanced combination of performance, features, and affordability. With its powerful STM32 F405 processor, versatile BEC outputs, broad receiver compatibility, and support for both Betaflight and INAV, it is a reliable choice for pilots building drones from 5 inches all the way up to 15 inches.

---

Product 2: BLHeli_S 50A 4-in-1 Brushless ESC

---

Product Name: BLHeli_S 50A 4-in-1 Brushless ESC – High-Performance ESC for FPV Drones

---

Product Overview

The BLHeli_S 50A 4-in-1 Flight Controller Brushless ESC is a compact and efficient electronic speed controller designed for FPV drone applications. With support for 2–6S LiPo batteries and 50A continuous current per channel, it delivers reliable performance for 3–7 inch freestyle, racing, and lightweight long‑range drones. Featuring an EF8BB21 processor, high‑quality MOSFETs, and DSHOT protocol support, this ESC ensures smooth throttle response and efficient power delivery in a compact 30.5×30.5mm stackable format.

---

Key Features

• Wide Voltage Range – Supports 2–6S LiPo, compatible with a variety of setups from 2S micro drones to 6S high‑performance builds.
• High Current Handling – 50A continuous current per channel, 60A burst (10s) for aggressive maneuvers and punch‑outs.
• BLHeli_S Firmware – Pre‑flashed with J_H_30_REV16_7 firmware for smooth and reliable performance.
• DSHOT Protocol Ready – Supports DShot150/300/600, Multishot, Oneshot, and PWM for broad flight controller compatibility.
• Integrated Current Sensor – Provides real‑time current monitoring for accurate battery management.
• Compact & Lightweight – Measures 41×39×5mm with standard 30.5×30.5mm mounting pattern, weighs only 15g.
• High‑Quality Components – EF8BB21 processor and high‑performance MOSFETs ensure efficiency and durability.

---

Technical Specifications

Parameter	Value
Item Type	BLHeli_S 50A 4-in-1 ESC
Processor	EF8BB21
MOSFET	High‑performance MOSFET
Power Input	2–6S LiPo
Continuous Current	50A × 4
Burst Current	60A (10 seconds)
Current Sensor	Supported
ESC Protocol	DShot150 / DShot300 / DShot600 / Multishot / Oneshot / PWM
Firmware	J_H_30_REV16_7
Mounting Pattern	30.5 × 30.5mm
Dimensions	41 × 39 × 5mm
Weight	15g

---

Recommended Applications

• Drone Types: 3–7 inch FPV Freestyle, Racing, Lightweight Long‑Range, Micro Quads
• Frame Compatibility: Standard 30.5mm stack mounting
• Flight Controller Integration: Works with any flight controller supporting DSHOT, Multishot, Oneshot, or PWM protocols

---

Package Includes

• 1 × BLHeli_S 50A 4-in-1 Brushless ESC
• (Mounting hardware and cables may vary; check with seller)

---

Summary

The BLHeli_S 50A 4-in-1 Brushless ESC Flight Controller Stack is an excellent choice for pilots seeking compact design, reliable performance, and versatile protocol support in their FPV builds. With its 50A per channel continuous current, 60A burst capability, support for multiple digital and analog protocols, and lightweight 15g form factor, this ESC delivers dependable power and performance for a wide range of FPV applications.

---

Stack Combination Note

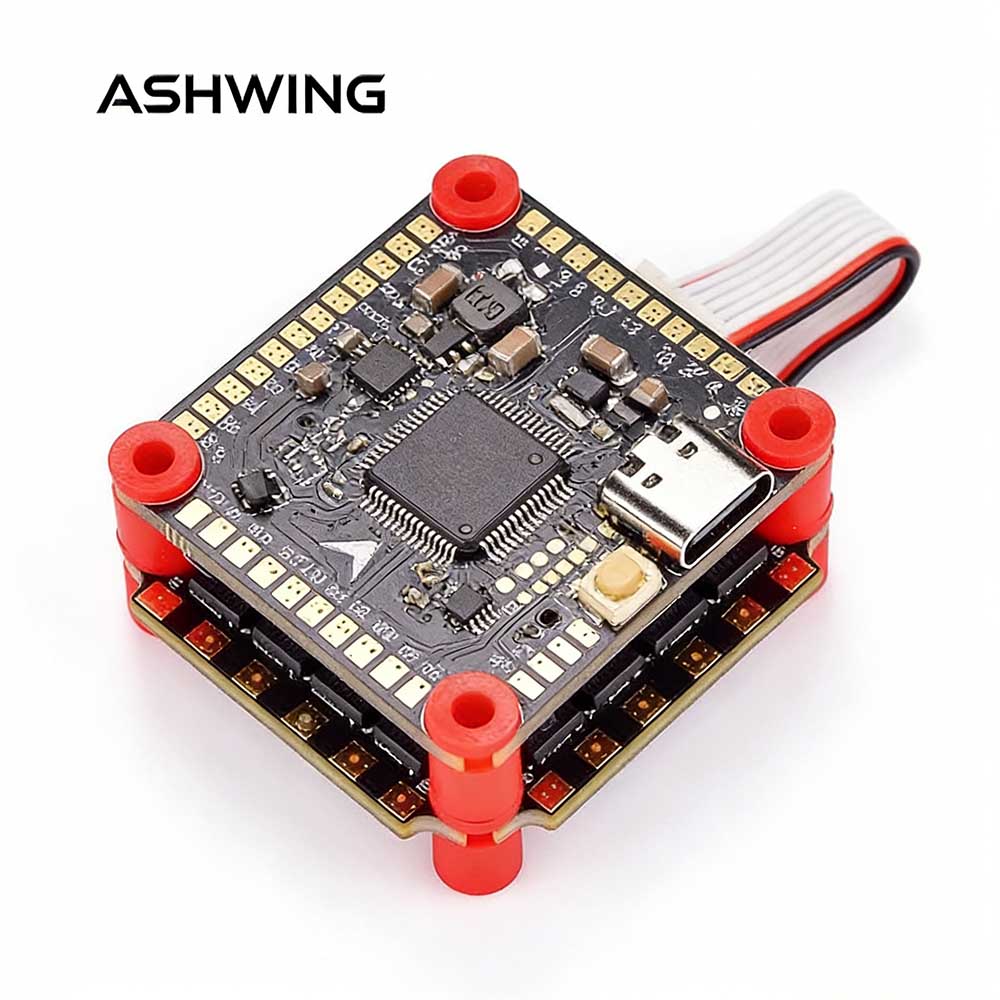

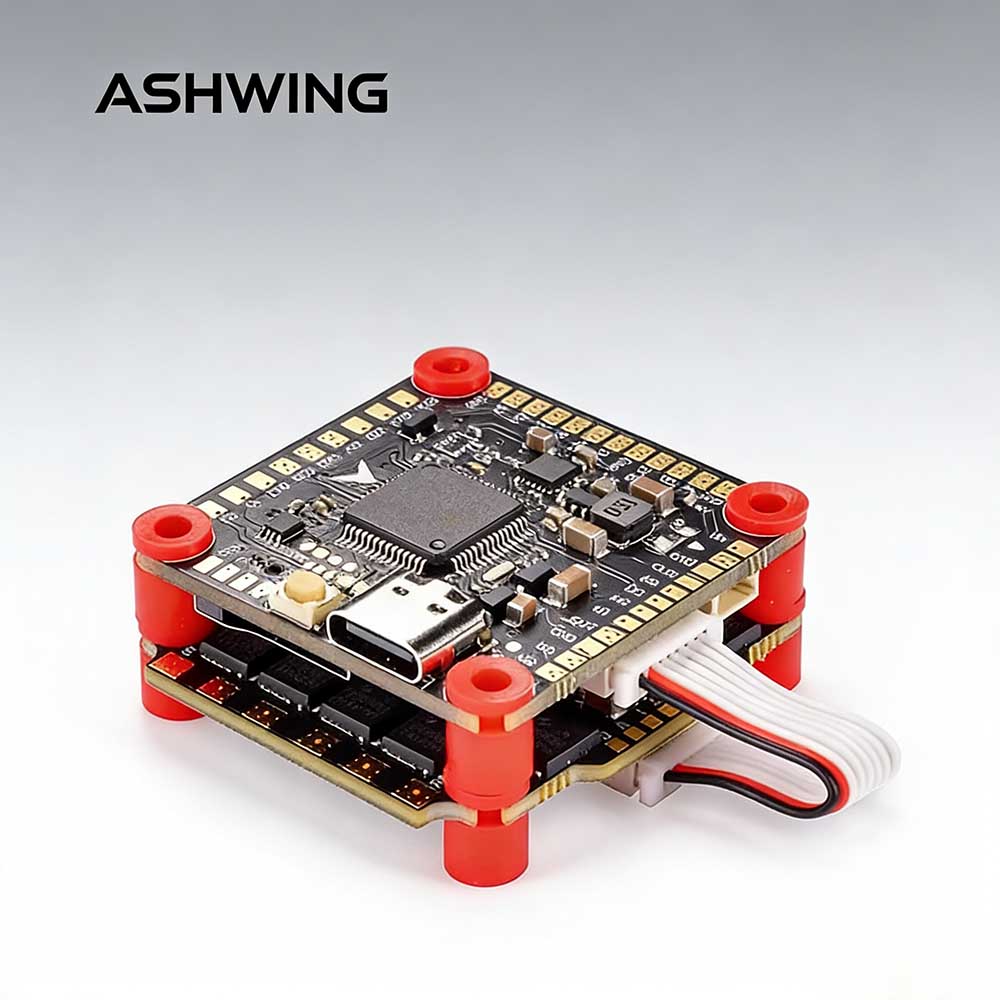

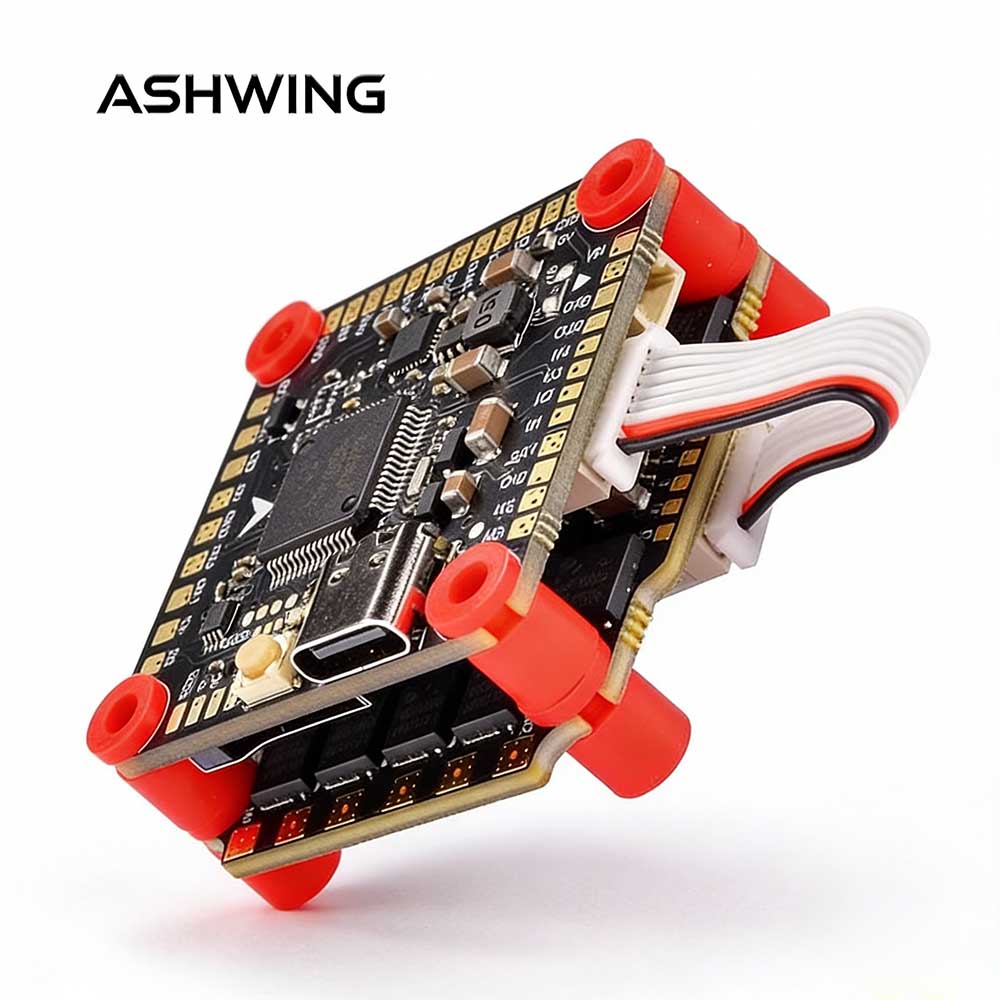

When paired together, the F405 Flight Controller and BLHeli_S 50A 4-in-1 ESC form a complete, stackable power and control system. Both share the standard 30.5×30.5mm mounting pattern, ensuring easy integration into most FPV frames. The FC’s 5V and 9V BEC outputs can power the receiver, VTX, and camera, while the ESC provides robust current handling for motors up to 6S configurations. This combination is ideal for 5‑inch to 7‑inch freestyle and long‑range builds.

F405 Flight Control FC
Project Name: F405 Flight Controller
Size: 36x36mm
Weight: 13g
Installation hole: 30.5×30.5mm
STM32 F405 microcontroller
Dshot support
Drag and drop OSD configured through Betaflight
Gyroscope: MPU6500
Supports receivers such as ELRS/CRSF/SBUS/IBUS PPM/Spketorum DSMX, etc
MicroSD card black box
BEC: 5V3A/9V3A
Car video filter
Suitable models: 5 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 13 inches, 15 inches, traversing aircraft/drones, etc
Firmware: OMNIBUSF4SD/BF/INAV (upgradable)

BLHELI-S-50A 4in1 ESC HV 2-6S
Size: 41 * 39 * 5mm
Aperture: 30.5 * 30.5mm
Firmware: BLHELI-S J_H_30_REV16_7
Weight: 15g
Input voltage: LIPO 2-6S
Continuous current: 50A
Maximum current: 60A (10 seconds)
Processor: EF8BB21
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW
Current sensor: supports
