Fpv Brushless Motors R3115 900KV 3-6S 10Inch and 11Inch RC Long Range Quadcopter

Description

R3115 900KV Fpv Brushless Motors – High-Efficiency Power for 10-11 inch UAVs & Traversal Aircraft

Fpv Brushless Motors Product Overview

The R3115 900KV  Fpv Brushless Motors  is a precision-engineered power solution designed for 10-11 inch unmanned aerial vehicles (UAVs) and traversal aircraft. With a robust 12N14P pole-slot configuration and high-quality materials, this motor delivers reliable thrust and efficiency for medium-sized drones. Whether you’re building a custom UAV, a surveillance platform, or a specialized traversing aircraft, the R3115 provides the perfect balance of power and weight.

---

Fpv Brushless Motors Key Features

• Optimized for 10-11 Inch Propellers – Designed specifically for medium-sized UAVs and traversal aircraft.
• Wide Voltage Compatibility – Supports 3-6S LiPo batteries, offering flexible power options.
• Efficient Power Delivery – Low internal resistance (60mΩ) ensures high efficiency and cool operation.
• Robust Construction – Precision-balanced rotor and durable materials for vibration-free flight.
• Standard 12N14P Configuration – Proven motor architecture for smooth and reliable performance.
• Lightweight Design – Weighs only 112g, ideal for weight-sensitive applications.

---

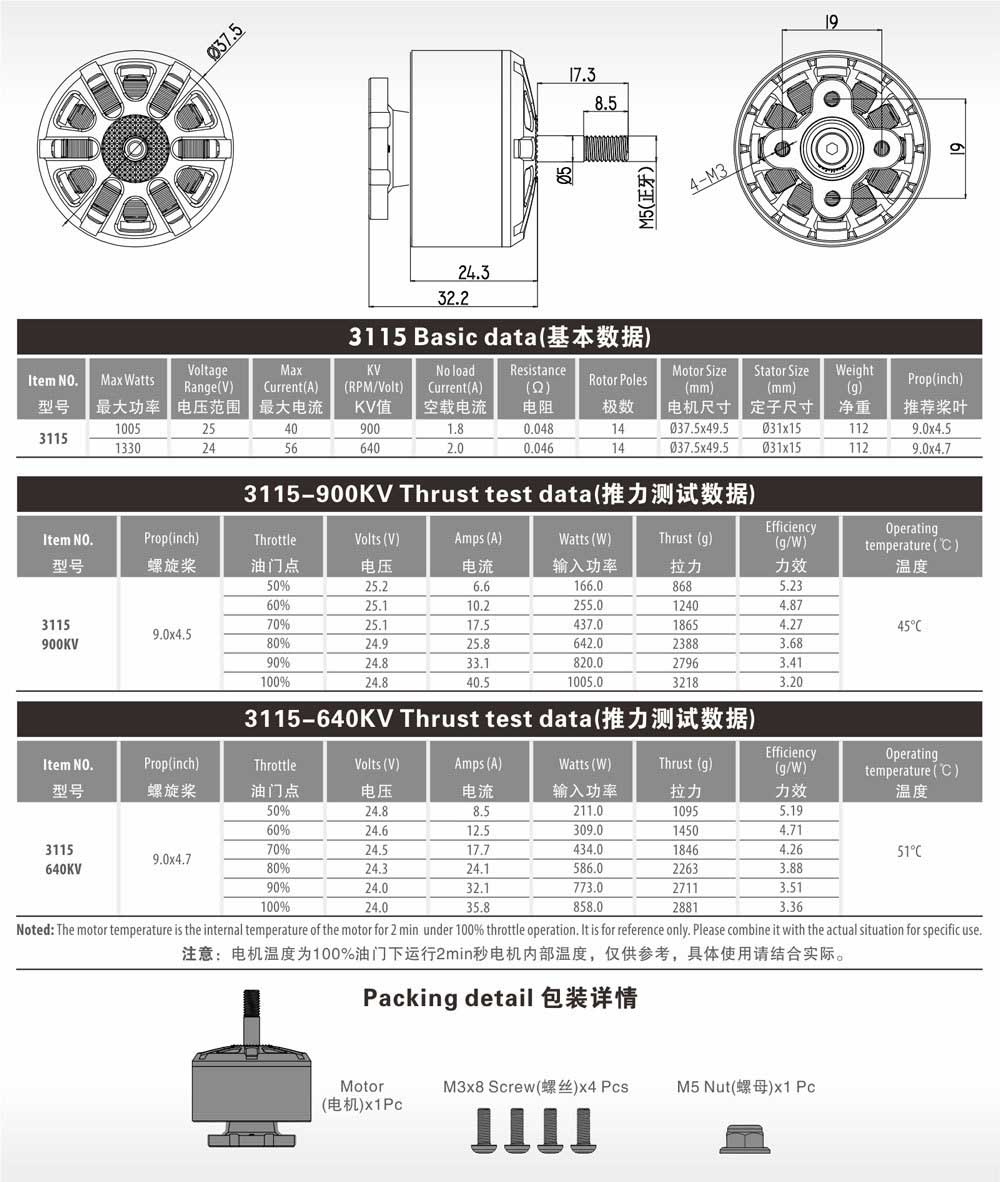

Fpv Brushless Motors Technical Specifications

---

Recommended Applications

• Drone Type: Medium-sized UAVs, traversal aircraft, surveillance drones, custom FPV platforms
• Propeller Size: 10–11 inches (optimized for efficiency and thrust)
• ESC Requirement: 30A–40A (based on load and battery voltage)
• Battery: 4S–6S for optimal performance


---

Motor Package Includes

• 1 × R3115 900KV Brushless Motor
• 1 × Hardware kit (mounting screws, bullet connectors if applicable)

---

This R3115 900KV Fpv Brushless Motors  is an excellent choice for UAV developers and hobbyists seeking a reliable, efficient, and lightweight power plant for their 10-11 inch aircraft platforms.

R3115-900KV – High‑Torque 10–11″ Fpv Brushless Motors for Efficient Long‑Range Flight

Designed specifically for 10–11″ unmanned aerial vehicles (UAVs) and traversal aircraft, the R3115-900KV combines a large 31mm stator with a 900KV winding to deliver exceptional thrust efficiency on 3‑6S LiPo. Whether you’re building a long‑range cruiser, a survey drone, or a heavy‑lift traversal platform, this motor provides the torque and reliability you need.

Key advantages:

• Optimized for 10–11″ propellers – The 31×15mm stator generates high torque at moderate RPM, perfectly matched to large‑diameter props for maximum flight time and smooth cruising.
• 900KV sweet spot – Ideal for 4‑6S operation. Lower KV than typical 7″ motors but higher than 640KV variants – giving you responsive throttle while maintaining efficiency for long‑range traversal.
• Efficient 12N14P magnetic design – Smooth cogging, linear throttle response, and reduced vibration for cleaner video footage.
• Low no‑load current (2.5A @ 25.2V) – Indicates high magnetic efficiency, meaning less energy wasted as heat – critical for endurance flights with Li‑ion packs.
• Reasonable internal resistance (60mΩ) – Balances copper loss with torque output, allowing sustained climbs without overheating.
• Robust mechanical construction
  – 112g weight – Solid yet competitive for the class, providing thermal mass for heat dissipation.
  – 37.5mm outer diameter & 33.6mm length – Fits most large frames designed for 10–11″ props.
  – Standard M5 prop shaft & 19×19mm mounting – Compatible with common 10‑11″ props and full‑size frames.
• Wide voltage range (3‑6S) – Flexible power options: 4S for moderate flying, 6S for peak efficiency or extra thrust when needed.

Recommended applications:

• 10‑11″ long‑range FPV quads (Mark4, Apex XL, LR frames)
• Traversal / surveying UAVs requiring stable, efficient flight
• Heavy‑lift cinema drones (with appropriate ESC and battery)
• Endurance platforms using Li‑ion 6S packs (e.g., 21700 cells)

Recommended ESC: 50‑60A (e.g., BLHeli_S 50A/60A or BLS 60A)

If you need higher torque for 11″+ props or extreme efficiency, consider the 640KV version. For most 10‑11″ traversal builds, the R3115-900KV delivers the perfect balance of responsiveness and stamina.
