F722 Fpv Drone Flight Controller Stack Brushless Motor Esc 4 in 1 100A with MCU IMU

Description

Product Name: F722 F7 Flight Controller Stack + 100A 4-in-1 BLHeli_S ESC Stack – 3-8S Dual BEC Flight Controller with High‑Current ESC for FPV Freestyle & Racing Drones

---

Flight Controller Stack Product Overview

The F722 Flight Controller Stack combines a high‑performance F722 flight controller with a powerful 100A 4‑in‑1 BLHeli_S ESC, delivering a complete control and power solution for FPV freestyle and racing drones. The FC features a STM32F722RET6 processor, ICM-42688 gyro, 16MB Blackbox, and dual BEC outputs (5V/2.5A and 10V/2A), while the ESC provides 100A continuous current per channel with DSHOT300/600 support. Designed for 3‑8S LiPo batteries on the FC side (ESC supports 3‑6S) and standard 30.5mm stack mounting, this combination offers reliable performance, low interference, and excellent thermal management for demanding flight applications.

---

Flight Controller Stack Key Features – Flight Controller

• High‑Performance Processor – STM32F722RET6 MCU delivers fast processing for complex flight algorithms.
• Precision Sensors – ICM-42688 gyro/accelerometer and SPL06-001 barometer for accurate attitude control and altitude hold.
• Dual BEC Outputs – 5V/2.5A and 10V/2A to power receivers, VTX, cameras, and other peripherals.
• Onboard Blackbox – 16MB flash memory for flight data logging and performance analysis.
• Wide Receiver Compatibility – Supports ELRS (CRSF), TBS Crossfire (CRSF), SBUS, IBUS, DSM2, and DSMX.
• Extensive Connectivity – 6 UART ports, I2C port, LED strip support, and 5V buzzer output.
• Digital ESC Protocol Support – Compatible with PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, and DShot600.
• Convenient Features – Type‑C USB, built‑in current/voltage sensors, and DFU button for easy firmware updates.
• Durable Construction – High‑end composite PCB with strong overcurrent capability and excellent heat dissipation.
• Compact Form Factor – 36×36mm size with standard 30.5×30.5mm mounting holes; weighs only 8.8g.
• Firmware – Pre‑loaded with Betaflight 4.3.1 JHEF7DUAL.HEX; upgradable.

---

Flight Controller Stack  Key Features – ESC (100A 4-in-1)

• High Current Capacity – 100A continuous current per channel, 120A burst (10 seconds) for aggressive maneuvers and punch‑outs.
• Wide Voltage Range – Supports 3–6S LiPo batteries (please note: ESC input is 3–6S, while FC accepts 3–8S).
• BLHeli_S Firmware – Pre‑flashed with Q_H_40_24_v0.19.2 for smooth and reliable motor control.
• Digital Protocol Support – Fully compatible with DSHOT300 and DSHOT600 for low‑latency digital communication.
• Integrated Current Sensor – Built‑in current sensor with scale 200 for real‑time power monitoring.
• High‑Quality Components – EFM8BB21F16G MCU and high‑performance MOSFETs ensure efficiency and durability.
• Compact & Lightweight – 57×56mm dimensions with standard 30.5×30.5mm mounting pattern; weighs only 28g.

---

Flight Controller Stack Technical Specifications

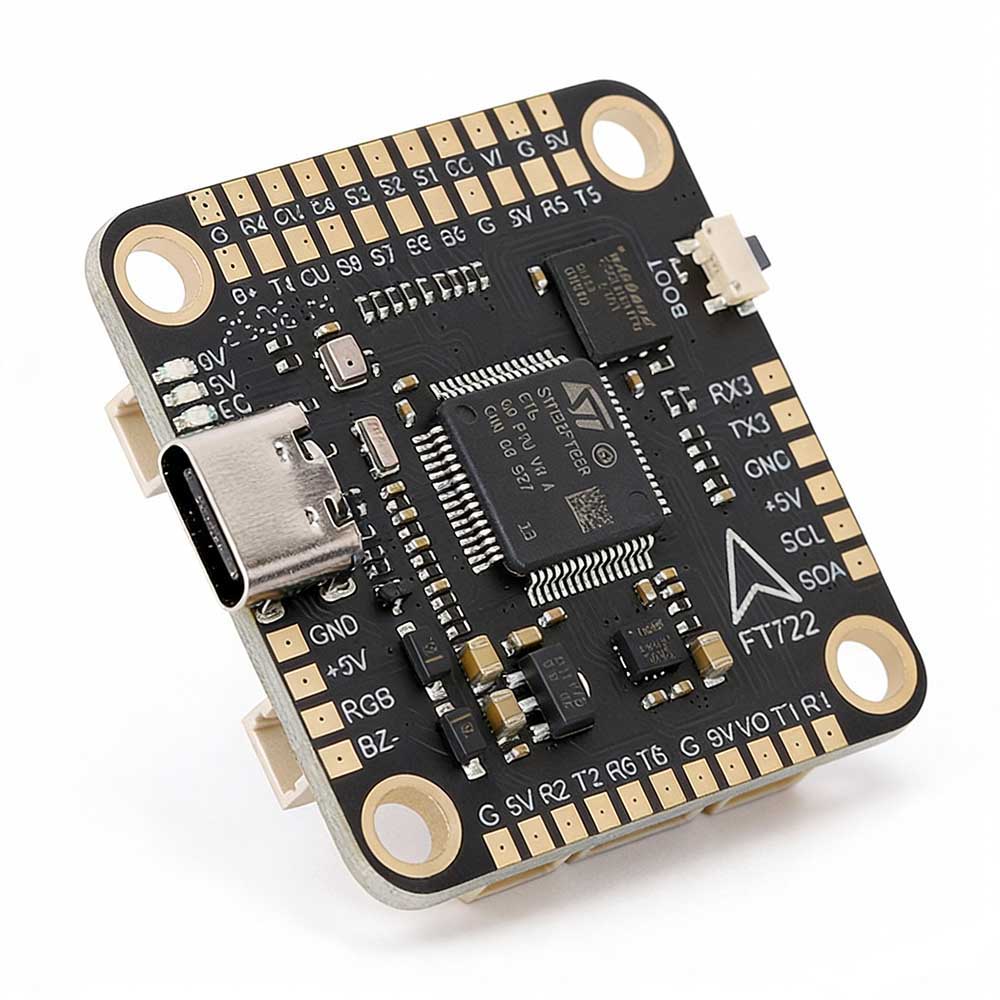

F722 Flight Controller

Parameter	Value
Model	F722 Flight Controller
MCU	STM32F722RET6
IMU (Gyro/Accelerometer)	ICM-42688
Barometer	SPL06-001
OSD Chip	AT7456E
Blackbox	16MB flash
Input Voltage	3–8S LiPo (11.4–36V)
5V BEC Output	5V/2.5A ±0.1V
10V BEC Output	10V/2A (USER1)
IO2	USER2 (configurable)
Receiver Support	ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX
UART Ports	UART1, UART2, UART3, UART4, UART5, UART6
I2C Port	I2C1
LED Strip	Supported
Buzzer Output	5V
ESC Signal Protocols	PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600
USB Port	Type‑C
Current Sensor	Yes
Voltage Sensor	Yes
DFU Button	Yes
Firmware	Betaflight 4.3.1 JHEF7DUAL.HEX
Dimensions	36 × 36mm
Mounting Holes	30.5 × 30.5mm, Φ4mm
Weight	8.8g

---

100A 4-in-1 BLHeli_S ESC

Parameter	Value
Item Type	BLS 100A 4-in-1 ESC
MCU	EFM8BB21F16G
MOSFET	High‑performance MOSFET
Power Input	3–6S LiPo
Continuous Current	100A × 4
Burst Current	120A (10 seconds)
ESC Telemetry	No
Current Sensor Scale	200
ESC Protocol	DSHOT300 / DSHOT600
Firmware	Q_H_40_24_v0.19.2
Mounting Pattern	30.5 × 30.5mm (Φ4mm holes)
Dimensions	57 × 56mm
Weight	28g

---

Flight Controller Stack Recommended Applications

• Drone Types: 5–7 inch FPV Freestyle, Racing, Long‑Range Drones
• Frame Compatibility: Standard 30.5mm stack mounting
• Flight Controller Integration: The F722 FC and 100A ESC share the same 30.5×30.5mm mounting pattern for a clean stack installation
• Power Systems: Suitable for 3–6S LiPo setups (ESC limited to 6S; FC supports up to 8S)

---

Package Includes

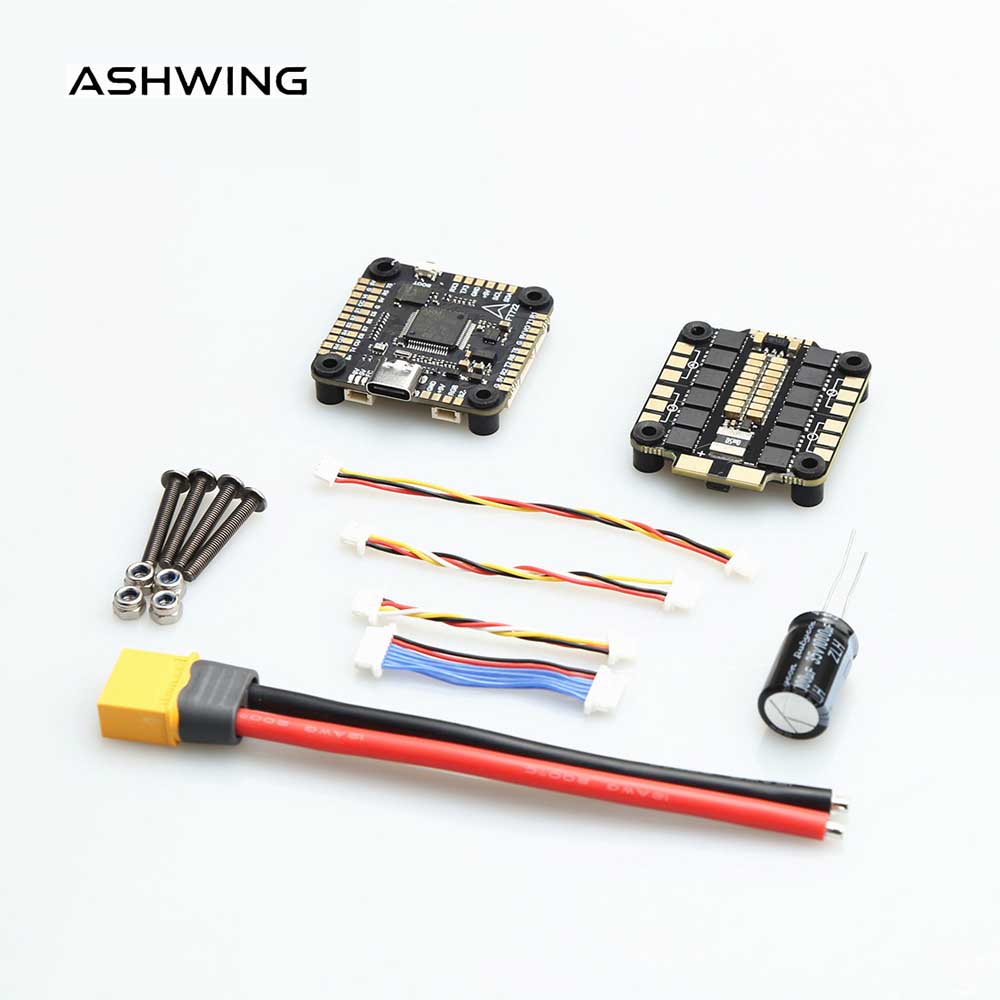

• 1 × F722 Flight Controller
• 1 × BLS 100A 4-in-1 ESC

(Mounting hardware, cables, and accessories may vary; check with seller)

---

Notes

1. Due to differences in monitor calibration, the actual product color may vary slightly from the images shown. The style is guaranteed to match the pictures.
2. Please allow 1–3mm deviation due to manual measurement and different measurement methods. Ensure you accept this tolerance before purchasing.

---

Summary

The F722 Flight Controller Stack combines a feature‑rich F722 flight controller with a robust 100A 4‑in‑1 ESC, offering a complete power and control solution for serious FPV pilots. The FC delivers precise flight control with its STM32F722 processor, ICM-42688 gyro, and dual BEC outputs, while the ESC provides industry‑leading 100A per channel continuous current, 120A burst capability, DSHOT digital protocol support, and reliable BLHeli_S performance. Both components feature standard 30.5×30.5mm mounting patterns for seamless integration into most FPV frames, making this stack an excellent choice for 5–7 inch freestyle, racing, and long‑range drone builds.
