f7 Fpv Drone F722 Flight Controller Stack Tower Brushless Motor Esc 4 in 1 60A with MCU IMU

Description

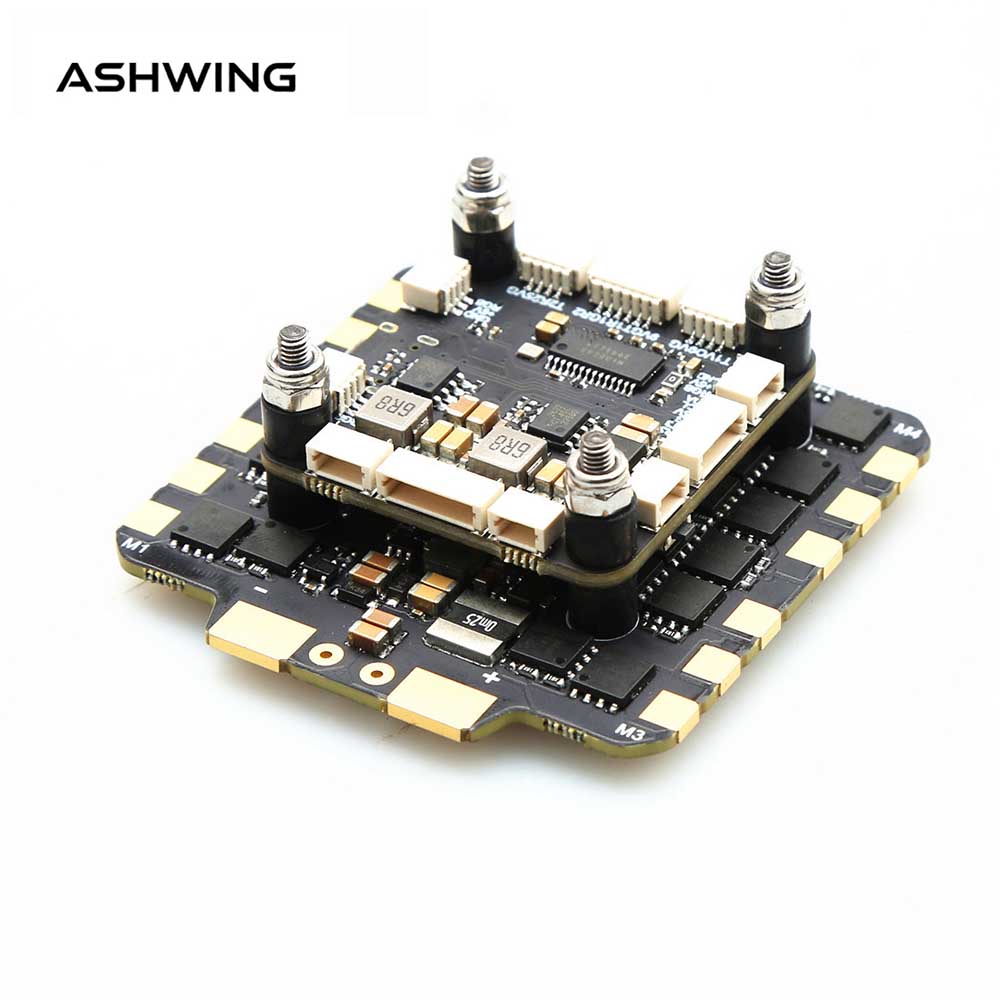

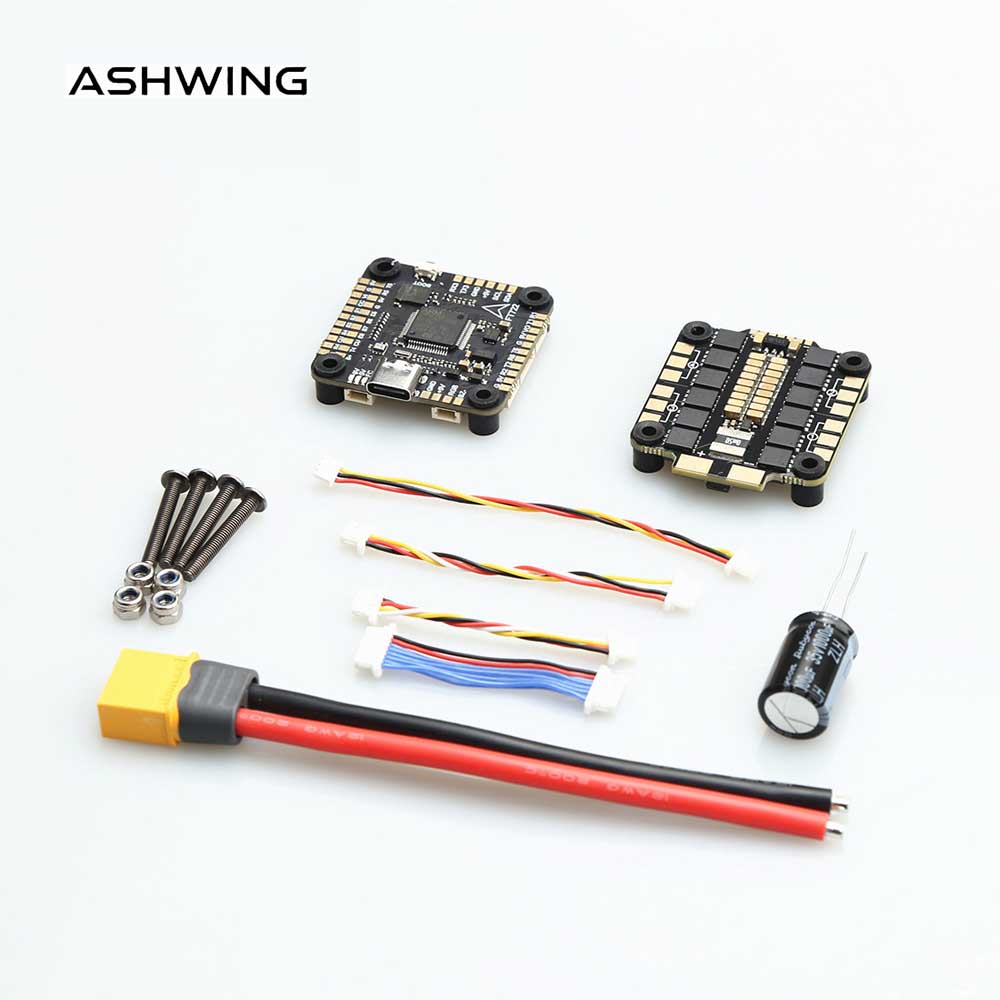

Fpv Drone F722 Flight Controller Stack (F722 FC + 60A 4-in-1 ESC)

1. Flight Controller (F722)

• MCU (Main Processor): the Flight Controller Stack including STM32F722RET6 (high-performance 216MHz processor)
• IMU (Gyro/Accelerometer): ICM-42688 (high-precision sensor)
• OSD (On-Screen Display): AT7456E (supports parameter adjustment via OSD)
• Barometer: SPL06-001 (for altitude hold)
• Blackbox: 16MB onboard memory for flight data recording
• Input Voltage: 3-8S LiPo (11.4V – 36V)
• BEC Outputs:
  • 5V BEC: 5V/2.5A ±0.1V
  • 10V BEC: 10V/2A (USER1)
  • IO2: USER2
• Receiver Support: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX

• UART Ports: UART1, UART2, UART3, UART4, UART5, UART6
• I2C Port: I2C1
• LED Strip: Supported
• Buzzer: 5V output
• ESC Signal Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• USB Port: Type-C
• Current Sensor: Built-in
• Voltage Sensor: Built-in
• DFU Button: Yes (for easy firmware flashing)
• Firmware Target: AXISFLYINGF7PRO
• Dimensions: 36mm x 36mm
• Mounting Holes: 30.5mm x 30.5mm, Φ4mm
• Weight: 8.8g

2. 4-in-1 ESC (Electronic Speed Controller)

• Item Type: 60A 4-in-1 ESC
• Size: 41mm x 39mm x 5mm
• Mounting Aperture: 30.5mm x 30.5mm (Φ3mm after installing shock absorber balls)
• Firmware: BLHELI-S
• Weight: 15g
• Input Voltage: LiPo 3-6S
• Continuous Current: 60A
• Maximum Current (Burst): 65A (for 10 seconds)
• Processor: EF8BB21
• Drive Signal Support: Dshot150, Dshot300, Dshot600, Multishot, Oneshot, PWM
• Current Sensor: Supported

Key Features Summary

This F722 flight controller stack is designed for FPV freestyle and racing drones. It features a high-performance STM32F722 processor and ICM-42688 gyro for precise flight control. The stack includes a 16MB blackbox for flight data analysis and a 60A 4-in-1 ESC capable of handling high currents up to 65A bursts. With multiple UART ports and extensive receiver support, it offers excellent flexibility for various FPV setups.

Key Features  detail

F722 Flight controller: the fpv-freestyle flight
(MCU) STM32F722RET6
(IMU) ICM-42688
(OSD): AT7456E
(Baro) SPL06-001
(Blackbox): 16MB
(Input voltage): 3-8S Lipo(11.4-36V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A(USER1)
IO2: USER2
(Receiver): ELRS(CRSF), TBS(CRSF), SBUS.IBUS.DSM2.DSMX
UART: UART1/2/3/4/5/6
IIC: 12C1
Led Strip:YES
(Buzzer): 5V
(ESCsignal): Support PWM, Oneshot125, Oneshot42. Multishot Dshot150, Dshot300, Dshot600
USB: TYPE-C
(Current port): YES
(Voltage sensor) YES
DFU (DFU button): YES
(Firmware): AXISFLYINGF7PRO
(Size): 36*36MM
(Mounting Hole) 30.5*30.5*4MM
(Weight) 8.8g
Item Type: 60A 30.5×30.5 4-in-1 ESC
Size: 41 * 39 * 5mm
Aperture: 30.5 * 30.5mm (after installing the shock absorber ball, the aperture is 3mm)
Firmware: BLHELI-S
Weight: 15g
Input voltage: LIPO 3-6S
Continuous current: 60A
Maximum current: 65A (10 seconds)
Processor: EF8BB21
Drive signal support: DShot150-300-600/Multishot/Oneshot/PMW
Current sensor: supports

Key Advantages – F722 Flight Controller

1. Powerful & Modern Processor
   • STM32F722RET6 MCU (ARM Cortex‑M7, 216MHz) – high computational performance for advanced filters, complex mixing, and running Betaflight/INAV smoothly.
2. High‑Performance IMU
   • ICM-42688 (6‑axis MEMS) – excellent vibration isolation, high temperature stability, and low noise for accurate flight control.
3. Comprehensive On‑Board Features
   • AT7456E OSD – clean overlay for flight data on FPV feed.
   • SPL06-001 Barometer – precise altitude hold and positioning (essential for GPS missions).
   • 16MB Blackbox – ample logging for flight analysis and tuning.
4. Wide Input Voltage Range
   • 3–8S LiPo (11.4–36V) – compatible with small 3S builds up to high‑voltage 8S long‑range setups.
5. Dual BEC Outputs
   • 5V / 3A – powers receiver, GPS, LEDs, etc.
   • 10V / 3A (USER1) – ideal for powering FPV camera or VTX that require higher voltage (e.g., 9V/12V cameras).
   • USER2 (IO2) – additional configurable output.
6. Versatile Receiver Support
   • ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX – works with almost all modern receivers without external inverters.
7. Abundant Connectivity
   • 6 full UARTs (UART1–6) – connect GPS, VTX, smart audio, telemetry, etc.
   • I2C (I2C1) – for external sensors like magnetometer or airspeed.
   • LED strip support, Buzzer (5V) output.
8. Full ESC Protocol Support
   • PWM, Oneshot125/42, Multishot, Dshot150/300/600 – compatible with all modern ESCs, including bidirectional Dshot for RPM filtering.
9. Modern & User‑Friendly Hardware
   • USB‑C connector – easier cable connection and more durable.
   • Dedicated DFU button – simplifies firmware flashing (no bootloader tricks).
   • Current & voltage sensor inputs – enables mAh consumption monitoring and low‑battery warnings.
10. Standard Form Factor
    • 36×36mm board, 30.5×30.5mm mounting holes (4mm hole diameter) – fits all standard flight controller stacks.
    • Lightweight at only 8.8g – negligible impact on drone weight.
11. Targeted Firmware Support
    • Firmware target: AXISFLYINGF7PRO – works with both Betaflight and INAV (navigation firmware), making it suitable for both acro/freestyle and GPS‑assisted long‑range or autonomous flight.

This F722 controller is a well‑rounded, feature‑dense board ideal for 5″ to 10″ FPV drones, long‑range cruisers, and GPS‑guided UAVs, offering excellent performance, flexibility, and expansion capabilities.
