F405 F4 V3S fpv Drone Flight Controller Kits Equipment 6x36mm Dshot Support ELRS OSD

Description

F405 fpv Drone Flight Controller – Advanced Multi-Rotor FC with Dual BEC & OSD Product Overview

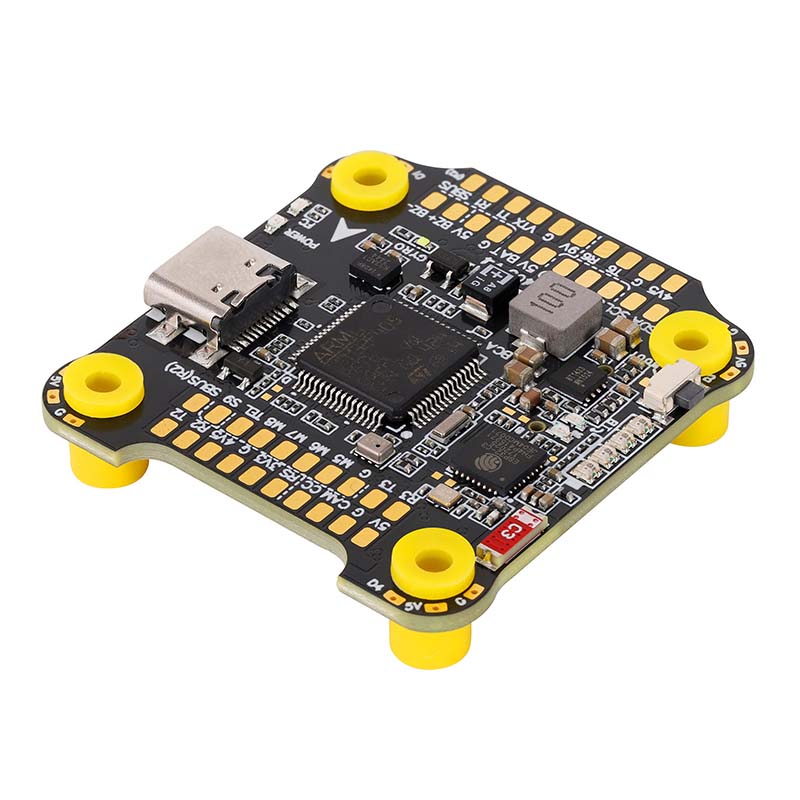

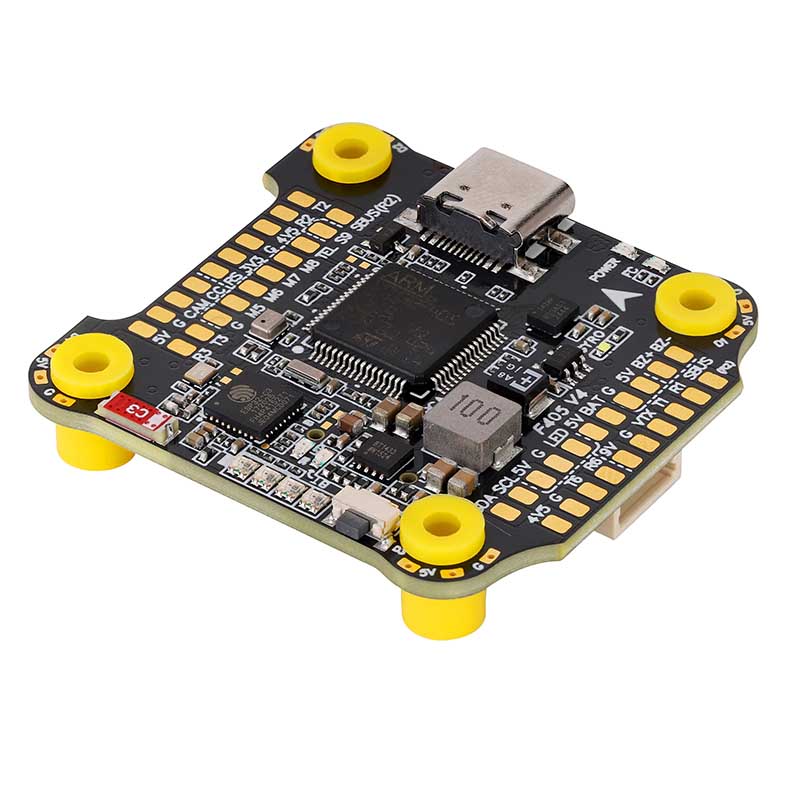

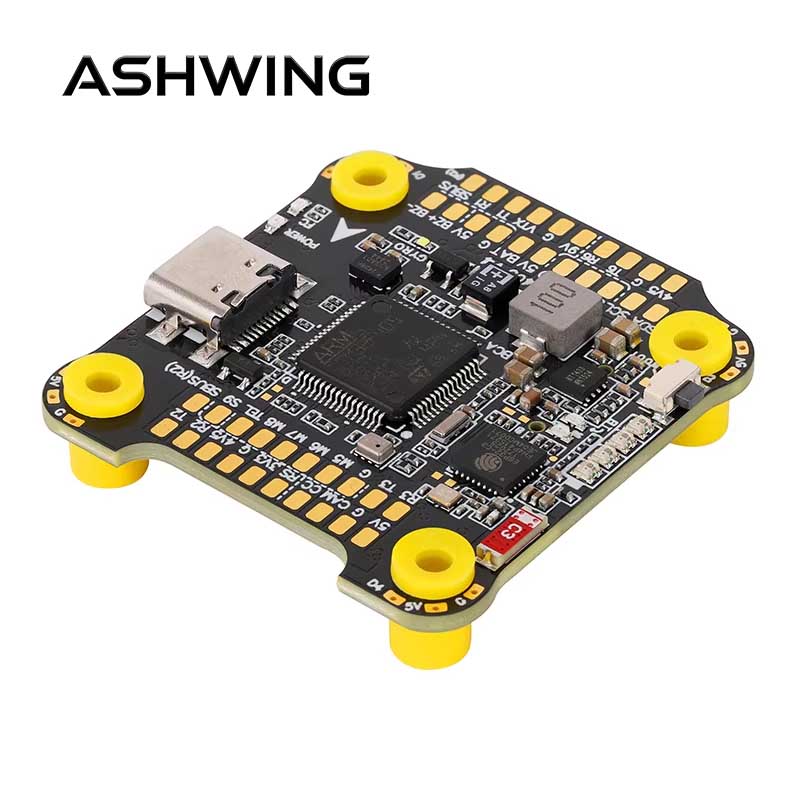

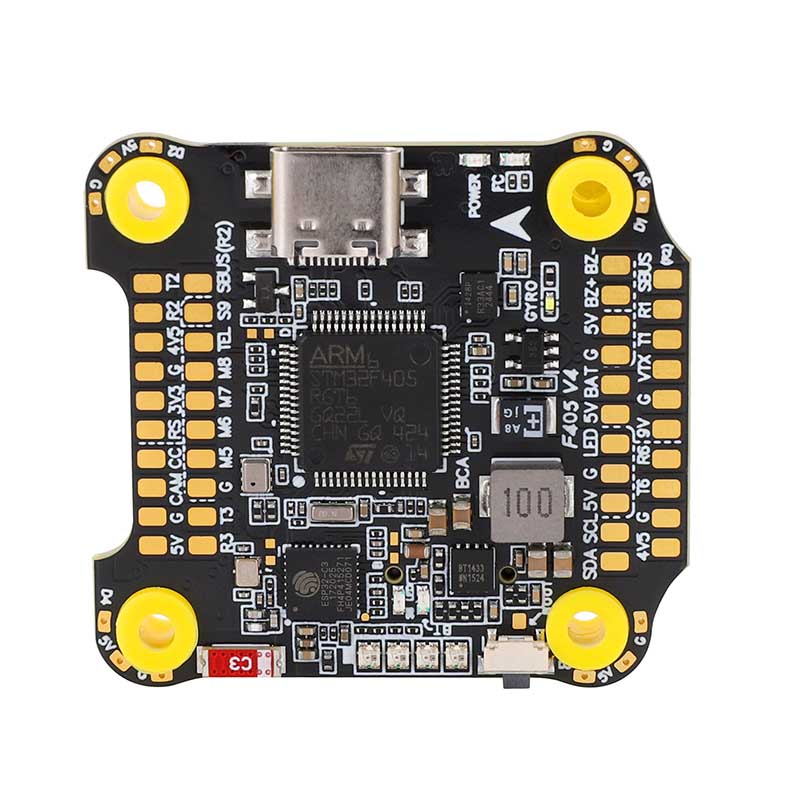

The F405 fpv Drone Flight Controller is a high-performance, feature-rich board designed for a wide range of FPV drones and traversing aircraft. Built around the powerful STM32 F405 micro controller, it delivers smooth flight performance, extensive hardware compatibility, and reliable control for both freestyle and long-range builds.

---

fpv Drone Flight Controller Key Features

• Powerful Core: fpv Drone Flight Controller STM32 F405 main processor for high-speed and smooth flight performance.
• High-Quality Gyro: Equipped with MPU6500 gyroscope for accurate and responsive flight control.
• Wide Receiver Compatibility: Supports ELRS, CRSF, SBUS, IBUS, PPM, Spektrum DSMX, and more.
• Dual BEC Outputs:
  • 5V @ 3A
  • 9V @ 3A – Perfect for powering high-voltage VTX, cameras, or accessories.
• Integrated OSD: Drag-and-drop OSD configurable via Betaflight for real-time telemetry display.

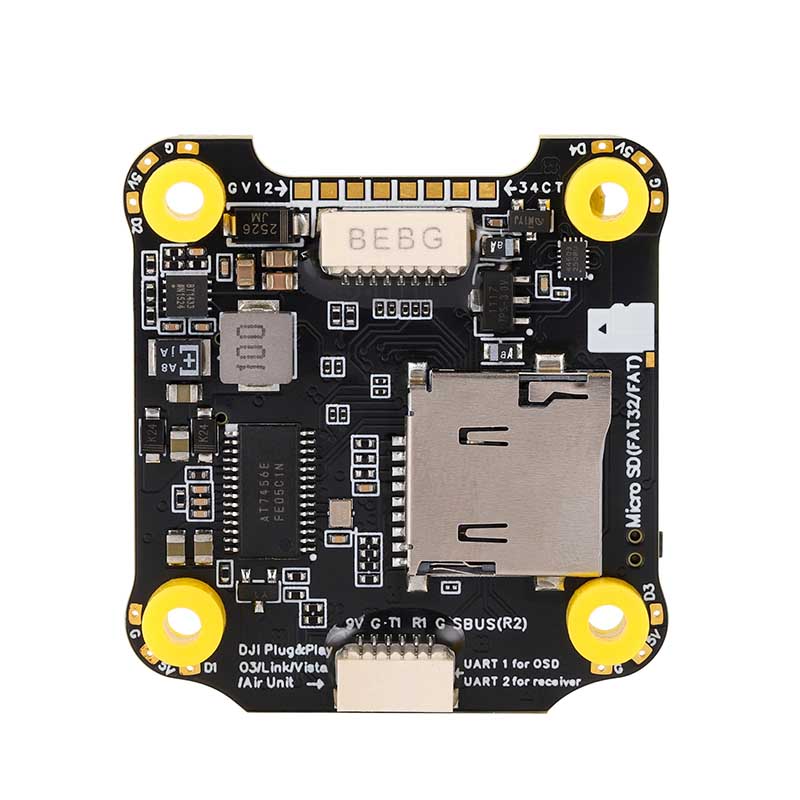

• Onboard Blackbox: MicroSD card slot for flight data logging and performance analysis.
• Car Video Filter: Built-in filter for cleaner video transmission.
• DShot Ready: Supports DShot150, 300, 600, and Multishot/Oneshot protocols.
• Multi-Firmware Support: Compatible with Betaflight / INAV (OMNIBUSF4SD target), easily upgradable.

---

fpv Drone Flight Controller Technical Specifications

Parameter	Details
Model	F405 Flight Controller
MCU	STM32 F405
Gyroscope	MPU6500
Dimensions	36 x 36 mm
Weight	13g
Mounting Pattern	30.5 x 30.5 mm (standard 30.5mm stack)
BEC Output	5V @ 3A / 9V @ 3A
Blackbox	MicroSD card slot
OSD	Betaflight OSD (drag-and-drop configurable)
Receiver Protocols	ELRS, CRSF, SBUS, IBUS, PPM, Spektrum DSMX
ESC Protocol	DShot150/300/600, Multishot, Oneshot
Firmware Target	OMNIBUSF4SD (BF / INAV upgradable)
Car Video Filter	Yes
Suitable Models	5″ to 15″ drones, traversing aircraft, long-range platforms

---

fpv Drone Flight Controller Compatible Models & Applications

• Frame Size: 5″, 6″, 7″, 8″, 9″, 10″, 13″, 15″
• Drone Type: Freestyle, Long Range (LR), Cinematic, Traversing Aircraft, Custom DIY builds
• Stack Compatibility: Standard 30.5×30.5mm mounting hole spacing for easy stacking with 4-in-1 ESCs or PDBs

---

Package Includes

• 1 x F405 Flight Controller Board
• 1 x 30.5mm Anti-Vibration Damping Foam / Mounting Pad
• 1 x JST-SH Cable Set (for receiver, VTX, etc.)
• (Optional: PDB/ESC stack not included)

---

⚙️ Firmware & Setup

• Pre-flashed with Betaflight (OMNIBUSF4SD target)
• Supports INAV for autonomous and fixed-wing applications
• Easy firmware upgrade via Betaflight Configurator or INAV Configurator

---

This F405 Flight Controller is an excellent choice for pilots seeking a reliable, feature-packed, and versatile FC for mid-to-large sized drones and specialized traversing aircraft.

Key Advantages – F405 Fpv Drone Flight Controller

1. Proven & Reliable MCU
   • STM32 F405 microcontroller – a well‑tested, stable platform with broad community support, ideal for both Betaflight and INAV.
2. Versatile Size & Weight
   • 36×36mm board, 30.5×30.5mm mounting holes – standard stack size.
   • Lightweight at only 13g – easy integration into any build.
3. Full Dshot Support
   • Compatible with Dshot protocols (including Dshot600) for clean, digital ESC communication and bidirectional Dshot / RPM filtering.
4. Drag‑and‑Drop OSD
   • On‑chip OSD fully configurable through Betaflight – no extra hardware needed, simple and intuitive.
5. High‑Performance Gyro
   • MPU6500 gyroscope – fast and accurate, well‑understood by the firmware, offering excellent flight characteristics.
6. Wide Receiver Compatibility
   • Supports ELRS (CRSF), TBS (CRSF), SBUS, IBUS, PPM, Spektrum DSMX – works with virtually all modern receivers without inverters.
7. On‑Board Blackbox
   • MicroSD card slot – ample logging capacity for tuning and troubleshooting.
8. Powerful BEC Outputs
   • 5V / 3A – powers receiver, GPS, LEDs.
   • 9V / 3A – ideal for FPV cameras and video transmitters that require higher voltage (e.g., 9V or 12V).
   • Includes a video filter to clean power noise, resulting in clearer FPV feed.
9. Extremely Wide Model Compatibility
   • Suitable for 5″ to 15″ propellers – covers mini quads, long‑range cruisers (7‑10″), and even heavy‑lift or industrial drones up to 15″.
10. Flexible Firmware
    • Target firmware: OMNIBUSF4SD – supports both Betaflight (acro/freestyle) and INAV (navigation / GPS missions), and is upgradeable to newer versions.

This F405 flight controller is a cost‑effective, proven, and versatile choice for a huge range of FPV drones – from 5″ freestyle rigs to 10″+ long‑range and heavy‑lift platforms – offering ample BEC power, logging, and clean video output.
